AF-AA Page 1 of 4

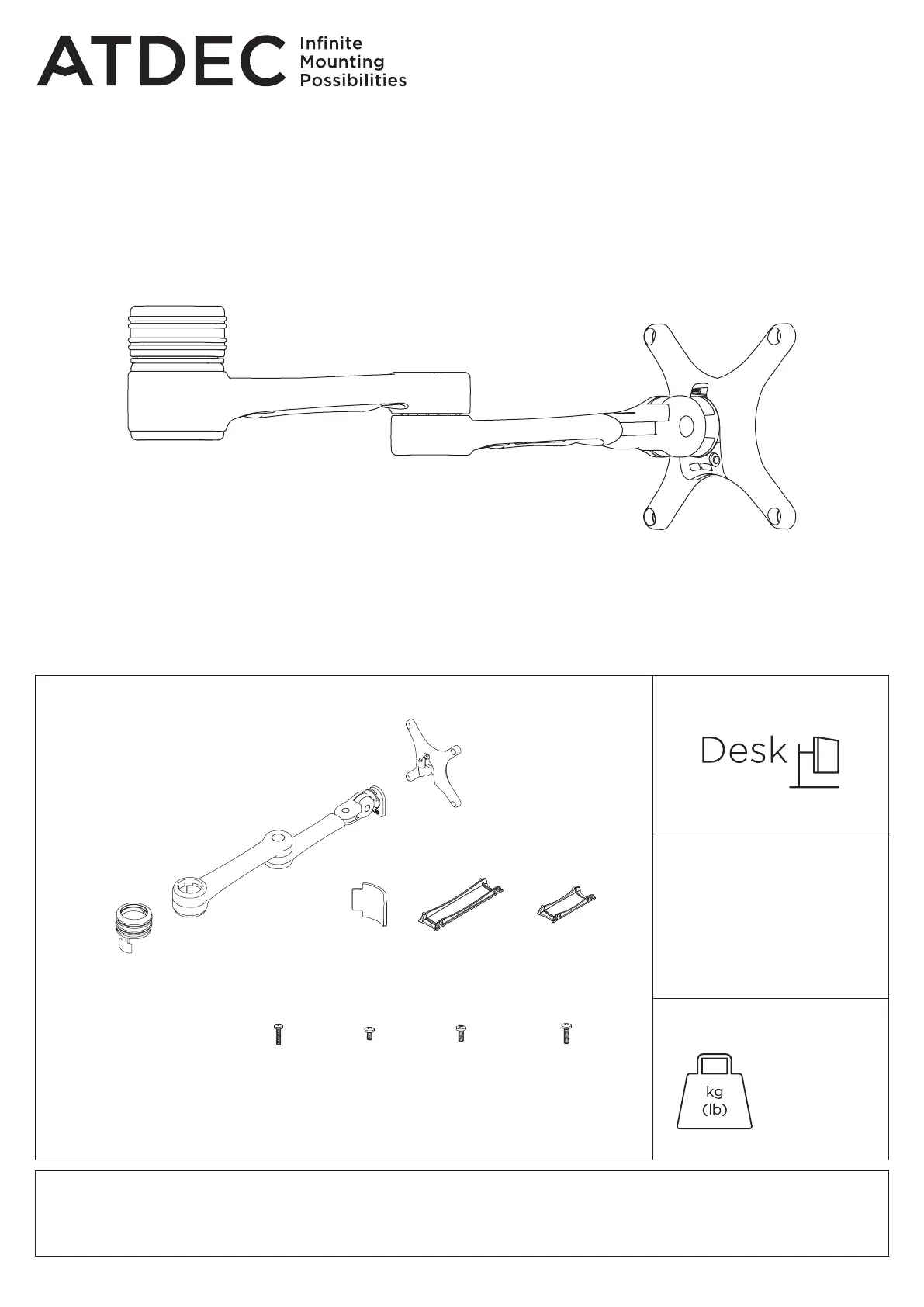

COMPONENT CHECKLIST
B
Monitor
arm
(x1)
C
Hand grip assembly
(x1)
A
VESA
head
(x1)
D
Rotation
limiter
(x1)
G
Security Screw
M4 x 16mm
(x1)
H
Mounting
screws
M4 x 10mm
(x4)
I
Mounting
screws
M4 x 12mm
(x4)
J
Mounting
screws
M4 x 16mm
(x4)
E
Primary arm
cable cover
(x1)
F
Secondary arm
cable cover
(x1)
Installation Guide
AF-AA
Accessory Arm
IMPORTANT INFORMATION
! Please ensure this product is installed as per these installation instructions.
! This product is compatible with the range of AF Poles and arms.
! The manufacturer accepts no responsibility for incorrect installation.
REQUIRED TOOLS
WEIGHT RANGE
• Phillips Head Screwdriver
0 - 8kg
(0 - 17.6lbs)
AF-AA Page 2 of 4
1. Install VESA monitor head
2. Install arm assembly
5mm
Allen Key
Pole
Top Cap
Spacers (may be required
for recessed and uneven
surfaces)
VESA monitor
head
Screen
M4x10/12/16mm
Phillips Head Mounting
Screws
1.1 Install VESA monitor head as shown.
2.1 Remove Top Cap and Allen key
from existing AF- pole product
2.4 Place arm and
handgrip on to the pole
Note Ensure handgrip tab
lines up with slot in pole
2.5 Turn the handgrip to fix the height of the arm
and place the top cap back on to the pole
2.3 Place handgrip tab
in arm assembly
100mm
100mm
Arm Assembly
2.2 OPTIONAL ROTATION LIMITER
Insert rotation limiter for 180�
rotation around mounting pole
AF-AA Page 3 of 4
4.1 Unlock Handgrip ensuring both the
screen and arm assembly are supported
4.2 Lift/Lower the Screen to the desired
height. Move both Screen and Arm
assembly together
4.3 Lock Handgrip firmly
4. Adjusting Height
5. Cable Management
3. Mounting Monitor
VESA monitor head
Arm Assembly
3.2 OPTIONAL SECURITY SCREW
Ensure the Monitor is supported, then loosen the Monitor head
screw with the 5mm Allen Key and tilt screen up before installing
the M4 x 16mm Security Screw into the Security Screw hole
Note: Support Screen
when adjusting tilt.
3.1 Insert VESA monitor head into
the receptacle in the Arm Assembly
5mm Allen Key
Phillips Head
Screwdriver
Loosen
Tighten
Security Screw
Hole
M4 x 16mm
Security Screw
Monitor head
screw
Lock Slot
Elbow Joint
‘click’
‘click’
5.1 After plugging in your cables,
install the Cable Covers.
Insert Cable Covers
up into Lock Slots.
5.2 Push Cable Covers away from
Elbow Joint to secure in place.
5.3 Cable Clips and Cable Stops can be installed
to further manage cables.
Cable Stop
Cable Clip
Note: Ensure enough cable
slack is given to allow for
movement.
