ARTEX PRODUCTS / ACR ELECTRONICS, INC.
5757 Ravenswood Rd, Ft. Lauderdale, FL 33312
www.acrartex.com

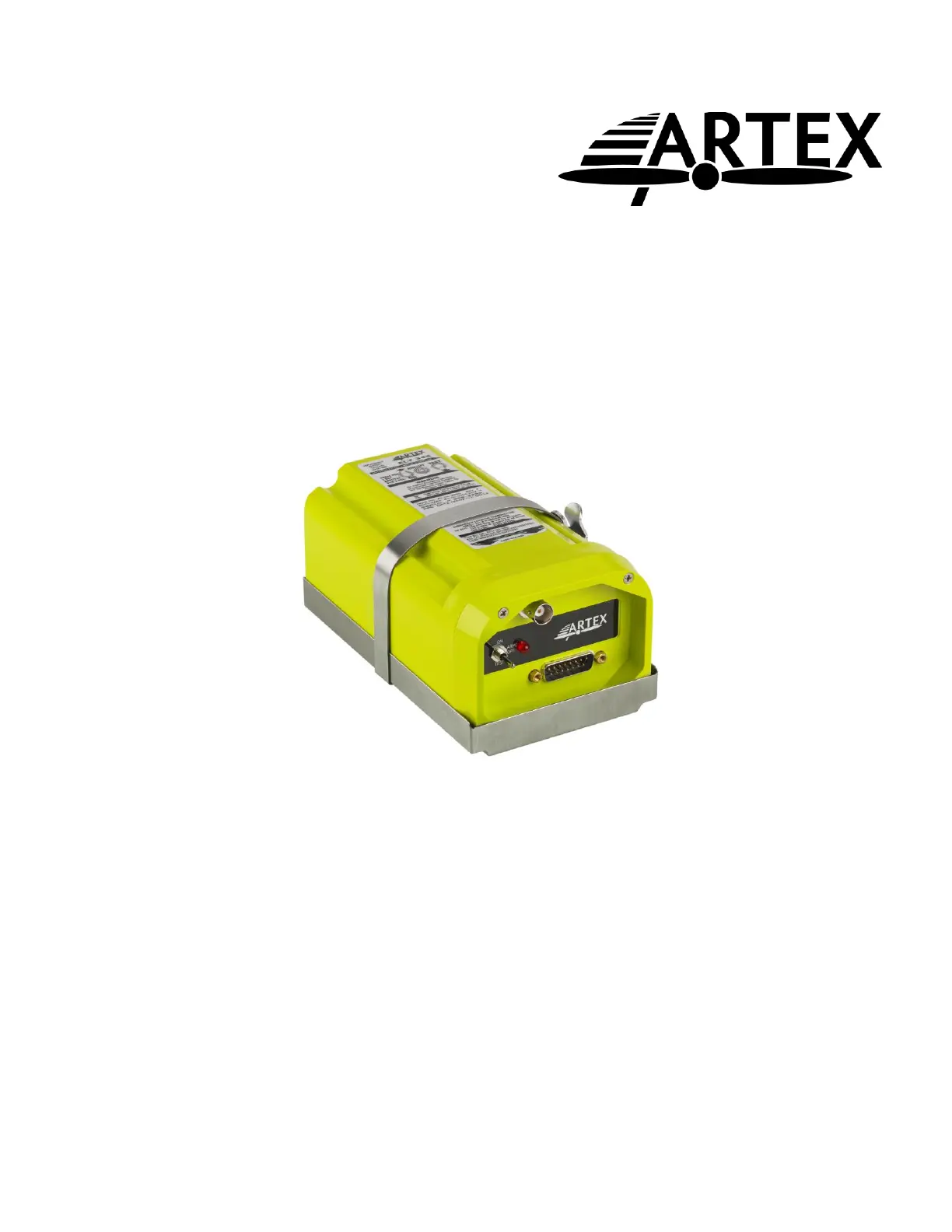

ARTEX ELT 345
Emergency Locator Transmitter
Description, Operation, Installation and Maintenance Manual
Y1- - Rev. L 03 0282
ATA Code #25- -3562
ARTEX PRODUCTS / ACR ELECTRONICS, INC.
DESCRIPTION, OPERATION, INSTALLATION AND MAINTENANCE MANUAL
ELT 345 (P/N: A3- -06 2880)
Y1- -0282 Rev. L Company Confidential Page 2 of 03 25- -62 35 60
This manual includes data for the following equipment:
Component
Labeled Part No.
Purchase Part No.
Emergency Locator Transmitter
A3- -2880 06
8100
2-Wire Remote Switch
A3- -2759 06
8304
Mounting Tray
A3- -2882 06
8323
Installation Kit
455-7423
455-7423
Antenna w/Coax (black)
A3- - -1 06 2892
8324 in kit
Cable, Coaxial, BNC to BNC, 6 ft
611 04-6013-
611 04-6013-
ELT 345 Kit
8102
8102
Battery Pack, LiMnO2
A3- -2883 06
8322
External Buzzer
452-6505
452-6505
NOTICES
THE INFORMATION CONTAINED HEREIN IS NOT PROPRIETARY.
Information in this manual is subject to change without notice. ACR Electronics, Inc. makes no warranty, expressed
or implied, with regard to this manual, including but not limited to any implied warranties of merchantability, fitness
for a particular purpose, and non-infringement. In addition, ACR Electronics, Inc. makes no warranty with regard to
the documentation or data contained herein. ACR Electronics, Inc. is not liable in the event of incidentals, special,
consequential, or any other damages in connection with or arising from furnishing, performance, or use of this
manual.
For further information contact Sales, ACR Electronics, Inc., 5757 Ravenswood Rd, Fort Lauderdale, FL 33312-6603.
Telephone (954) 981-3333.
AIRWORTHINESS LIMITATIONS
The Airworthiness limitations section is FAA approved and specifies inspections and other maintenance required
under 14 CFR§ 43.16 and 91.403, unless an alternative program has been approved.
IMPORTANT NOTICE
ACR Electronics, Inc. will be responsible for full distribution and revisions of ICA’s (Instructions for Continued
Airworthiness). For inquiries regarding the content and currency of this manual, contact ACR Electronics, Inc., 5757
Ravenswood Rd, Fort Lauderdale, FL 33312-6603. Telephone (954) 981-3333.
ARTEX PRODUCTS / ACR ELECTRONICS, INC.
DESCRIPTION, OPERATION, INSTALLATION AND MAINTENANCE MANUAL
ELT 345 (P/N: A3- -06 2880)
Y1- -0282 Rev. L Company Confidential Page 3 of 03 25- -62 35 60
TABLE OF CONTENTS
TABLE OF CONTENTS ............................................................................................................................... 3
LIST OF ACRONYMS, ABBREVIATIONS AND DEFINITIONS .......................................................................... 6
LIST OF FIGURES ..................................................................................................................................... 8
RECORD OF REVISIONS ........................................................................................................................... 9
SERVICE BULLETIN LIST ......................................................................................................................... 10
LIST OF EFFECTIVE PAGES ..................................................................................................................... 11
INTRODUCTION ..................................................................................................................................... 12
1. Manual Usage ............................................................................................................................. 12
A. General ............................................................................................................................... 12
B. Application .......................................................................................................................... 12
2. Model Description ........................................................................................................................ 13
A. ELT 345 .............................................................................................................................. 13
3. Approvals .................................................................................................................................... 13
A. ELT ..................................................................................................................................... 13
B. Battery ............................................................................................................................... 13
C. RTCA DO-160G Compliance .................................................................................................. 14
4. Frequency Allocation .................................................................................................................... 15
A. Application .......................................................................................................................... 15
B. Discussion ........................................................................................................................... 15
5. References .................................................................................................................................. 15
A. Regulatory Documents ......................................................................................................... 15
B. Other Documents ................................................................................................................ 16
DESCRIPTION AND OPERATION .............................................................................................................. 17
1. Description .................................................................................................................................. 17
A. Functional Overview ............................................................................................................ 17
B. System Components ............................................................................................................ 18
2. Operation .................................................................................................................................... 20
A. Overview ............................................................................................................................ 20
B. Normal Operation ................................................................................................................ 20
C. Manual Activation ................................................................................................................ 20
D. ELT Reset ........................................................................................................................... 21
E. Functional Check ................................................................................................................. 21
3. Specifications .............................................................................................................................. 21
A. Environmental and Physical .................................................................................................. 21
B. Electrical ............................................................................................................................. 22
C. Antenna .............................................................................................................................. 23
TEST AND FAULT ISOLATION ................................................................................................................. 24
1. Inspection and Test Regulatory Requirements ............................................................................... 24
A. United States ...................................................................................................................... 24
B. Canada ............................................................................................................................... 24
