Seite 1/2
(B)
SM427
| Bicycle Handlebar Mount with Universal Holder

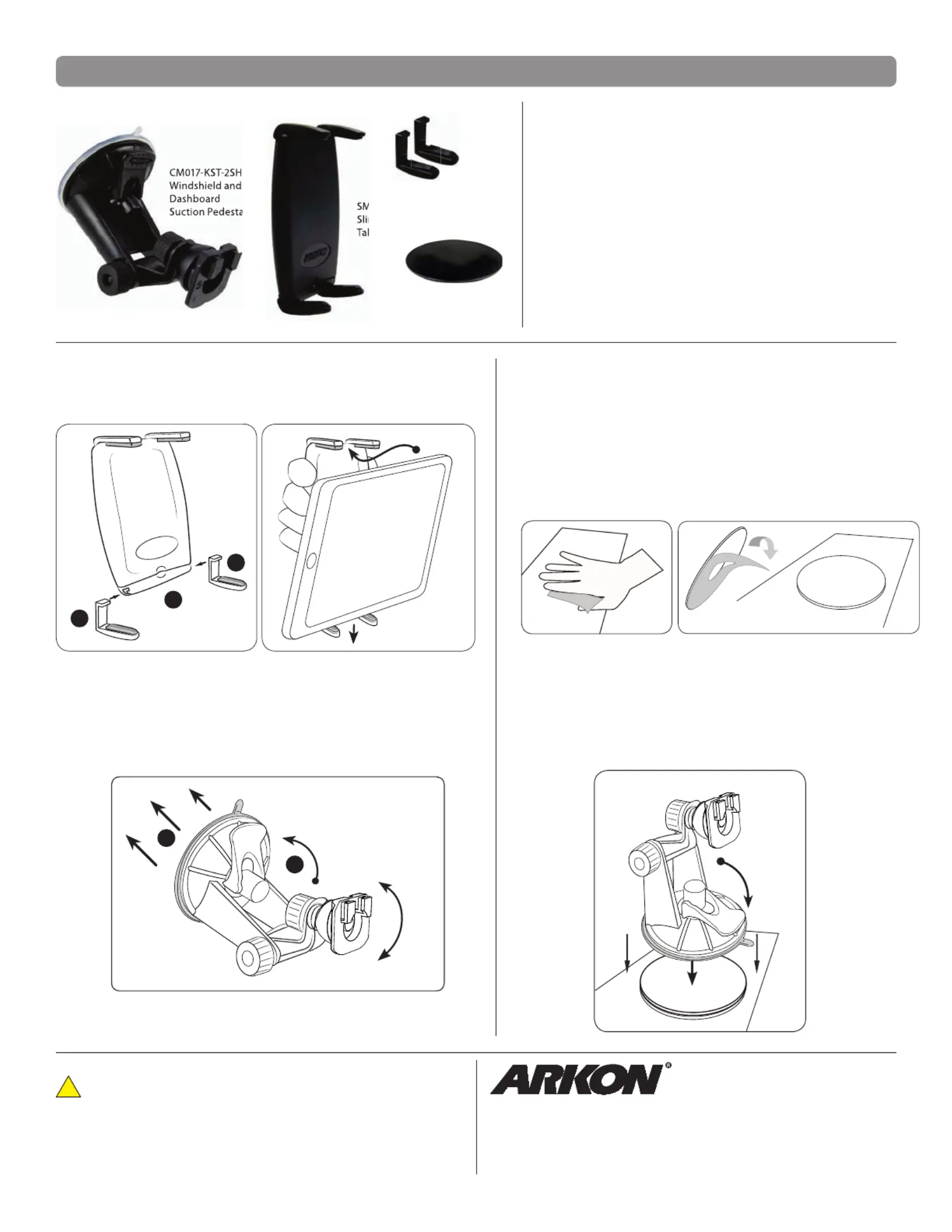

Package Contents:
(1) CM017-KST-2SH - Windshield and dashboard pedestal
(1) SM050-2 - Slim-Grip™ tablet holder
(2) Extra long support legs
(1) AP020 - Circular adhesive dashboard disc
CM017-KST-2SH
Windshield and
Dashboard
Suction Pedestal
SM517 | Windshield or Dashboard Mount for Samsung Galaxy Tab and other 7 “ Tablets
Windshield Mounting
Install the Support Legs to the Holder
Step 1. Find a safe location on the interior of the vehicle’s windshield
to mount the pedestal. Firmly push the suction base (C)
against the windshield and ip the base lever down to the (D)
locked position.
!Safety Precautions
Do not install Arkon products over an air bag cover or within the air
bag deployment zone. Arkon Resources, Inc. assumes no responsi-
bility of liability for injury or death as a result of car crashes and / or
air bag deployment.
Arkon is not responsible for any damages caused to your car, your
device, or yourself due to the installation or use of this pedestal mount.
The Mobile Mounting Specialists™
Consumer Hotline:
USA (800) 841-0884
INT’L (626) 254-9005
Monday - Friday 9 am - 5 pm, PST
www.arkon.com
Arcadia, CA 91006 USA
Designed in USA | Made in China and Taiwan
© Copyright 2010 Arkon Resources, Inc.
AP020
Circular Adhesive
Dashboard Disc
C
D
Choose a suitable location for disc (and pedestal) installation.
Do not place mount in or near an air bag deployment zone
or where it will obstruct view of the road or hinder vehicle
operation.
Clean the dashboard or console surface area thoroughly with
the included alcohol pad. Allow the area dry before applying
the mounting disc.
Remove the paper backing of the disc and place on the
cleaned surface. Press the top of the disc down rmly to allow
the adhesive to stick to the surface. Allow 24 hours for the
adhesive to cure to the surface before applying any pressure.
Step 1.
Step 2.
Step 3.
Dashboard or Console Mounting Instructions
Place the suction cup of the pedestal rmly down on the center
of the mounting disc and lower the securing lever.
Step 4.
SM050-2
Slim-Grip™
Tablet Holder
Extra Long
Support Legs
(2 Pack)
A
A
B
Step 1. Insert the extra long support legs by sliding them into the (A)
support leg grooves on the bottom of the holder.(B)
*Fits tablets with screen size 7”
(B)
(B)
(B)
Secure holder with your hand for support, as spring-loaded
mechanism requires signicant force to operate. Hold your
phone and insert into universal holder by pushing down on the
bottom spring-loaded support legs with moderate amount of
pressure (C). Slide the top of the device under the top support
legs (D) until it ts snuggly in the holder.
Insert Phone into Holder
D
C
C
Step 1.
SM427
| Bicycle Handlebar Mount with Universal Holder
SM517 | Windshield or Dashboard Mount for Samsung Galaxy Tab and other 7 “ Tablets
!Safety Precautions
Do not install Arkon products over an air bag cover or within the air
bag deployment zone. Arkon Resources, Inc. assumes no responsi-
bility of liability for injury or death as a result of car crashes and / or
air bag deployment.
Arkon is not responsible for any damages caused to your car, your
device, or yourself due to the installation or use of this pedestal mount.
The Mobile Mounting Specialists™
Consumer Hotline:
USA (800) 841-0884
INT’L (626) 254-9005
Monday - Friday 9 am - 5 pm, PST
www.arkon.com
Arcadia, CA 91006 USA
Designed in USA | Made in China and Taiwan
© Copyright 2010 Arkon Resources, Inc.
Adjusting Holder to Fit Phone
E
E
If necessary, adjust the support legs (E) on top and bottom by
sliding them laterally to avoid any buttons or ports that may be
on your tablet or other device.
Step 1.Step 1.
