Seite 1/30

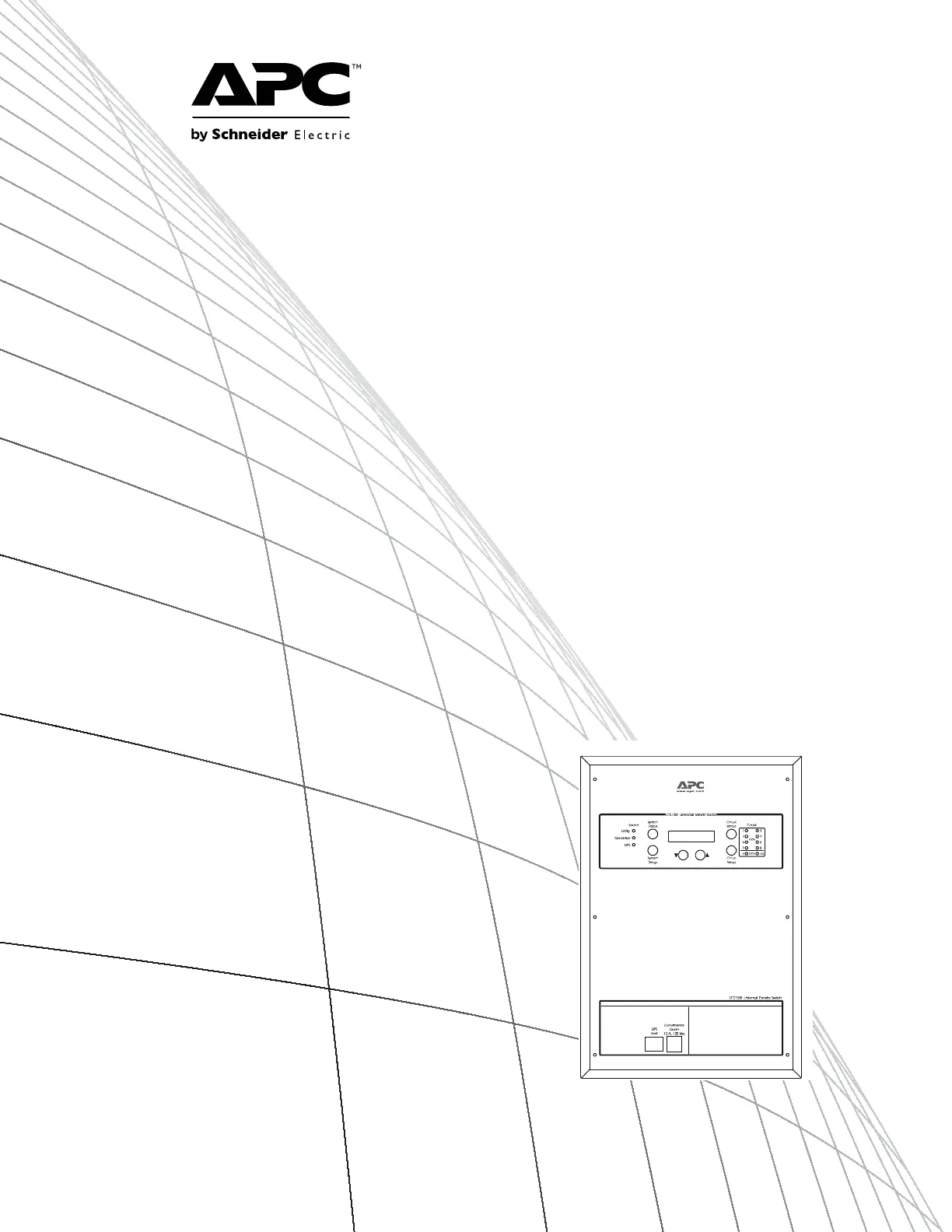

Site Preparation and
Installation Guide
Universal Transfer Switch
UTS6
UTS6H
UTS6BI
UTS10BI
UTS10BI
bu154a
1 Site Preparation & Installation Guide Universal Transfer Switch UTS6 UTS6H UTS6BI UTS10BI
Introduction
About this product
The APC® by Schneider Electric Universal Transfer Switch (UTS) is a fully automatic transfer switch for use in optional
standby systems in homes or small businesses. This unit provides safe, convenient power for up to ten circuits in the home
or office. Power is derived from one or two independent backup sources. Backup sources being a generator, an
uninterruptible power supply (UPS), a solar inverter, or another alternative energy source.
When connected to home appliances, computers, or entertainment equipment the backup power sources provide power
during utility power outages. When a UPS is used in the configuration, connected equipment (load), can be protected from
utility brownouts, sags, surges, and power outages. The UPS provides continuous power from the internal battery until
utility power returns to safe levels or the battery is fully discharged.
Protect your investment
Fill out the Warranty Registration Card found in the documentation package, or register your purchase online at
www.apc.com:
• This will guarantee that the owner receive all of the information and special offers qualified for as the owner
of this product.
• This will confirm the owners right to maximum protection under the Warranty terms and conditions.
• This will confirm yourself as the owner of the product in the event of fire, theft or loss.
The models supported by this manual vary in appearance and have
some variation in function.
Individual model functionality will be addressed in this manual.
Recommended Tools Recommended Cables
• Phillips screw driver
• standard screw driver
• wire cutter/stripper for 10-12 gauge wire
• utility knife
• insulated pliers
• Robertson #3 square head bit crimping tool
UTS6/6BI/10BI models
UF 10-3 power cable or equivalent of sufficient length to
connect the UTS to a fixed generator or a remote L14
connector.
A larger gauge cable may be needed depending on the rated
current of the connected generator.
UTS6H models
UF 10-2 power cable or equivalent of sufficient length to
connect the UTS to a fixed generator or a remote L5
connector.
UTS10BI
bu154a
Site Preparation & Installation Guide Universal Transfer Switch UTS6 UTS6H UTS6BI UTS10BI2
Inventory
Inspect the UTS upon receipt. Notify the carrier and dealer if there is damage.
The packaging is recyclable; save it for reuse or dispose of it properly.
Check the package contents:
Safety and Regulatory Information - save this information
Read the Site Preparation and Installation Guide and the Operation Manual before installing and operating the
UTS.
Read, understand, and follow the Safety Precautions in this manual.
Safety Precautions
• Adhere to all national and local electrical codes when installing, configuring and operating the UTS.
• Installation of the UTS must be performed by a licensed electrician.
• Prior to installing the UTS have a licensed electrician check that the wiring in the home or office meets all
local and national electrical codes.
• Use only outlet mounted AFCI and GFCI circuit interrupters with the UTS.
• This unit must be connected to a properly grounded utility power source.
• Do not install or operate this unit near a source of water or in an environment where the relative humidity
could exceed 95% (non-condensing).
• DO NOT operate a generator inside a building. Operating a generator inside a building can cause death by
asphyxiation.
• DO NOT allow the total load connected to the UTS to exceed the limits listed in this document.
• There are no user serviceable components in this unit. Removing the cover from this unit by unqualified
persons can present a shock hazard and may void the warranty.
• Periodically inspect all power cords to ensure:
– secure connections
– proper routing to ensure cords are not pinched, frayed, or stepped on
• If the UTS is damaged, disconnect the main circuit breaker and contact APC at www.apc.com.
All Units Additional contents for
UTS6/UTS6H/UTS6BI
Additional contents for
UTS10BI
UTS Hardware: Hardware:
UTS-to-UPS power cord • male-to-male .25 inch
bypass FastOns (six)
• male-to-male .25 inch
bypass FastOns (ten)
Site Preparation and Installation Guide • .50 in x .27 in plastic ID spacers (four) • .50 in x .27 in plastic ID spacers (four)
Quick Install Guide • 20 A, 600 Vac class CC fuse (one) • 20 A, 600 Vac class CC fuse (one)
Operation Manual • 2 x 10 AWG solid wire nuts (six) • 2 x 10 AWG solid wire nuts (ten)
Warranty Registration card
Flat head screws (three)
Ring lug #8 AWG 10-12 (one)
Ring lug #8 AWG 14-16 (one)
Locknut with strain relief cable clamp (one)
