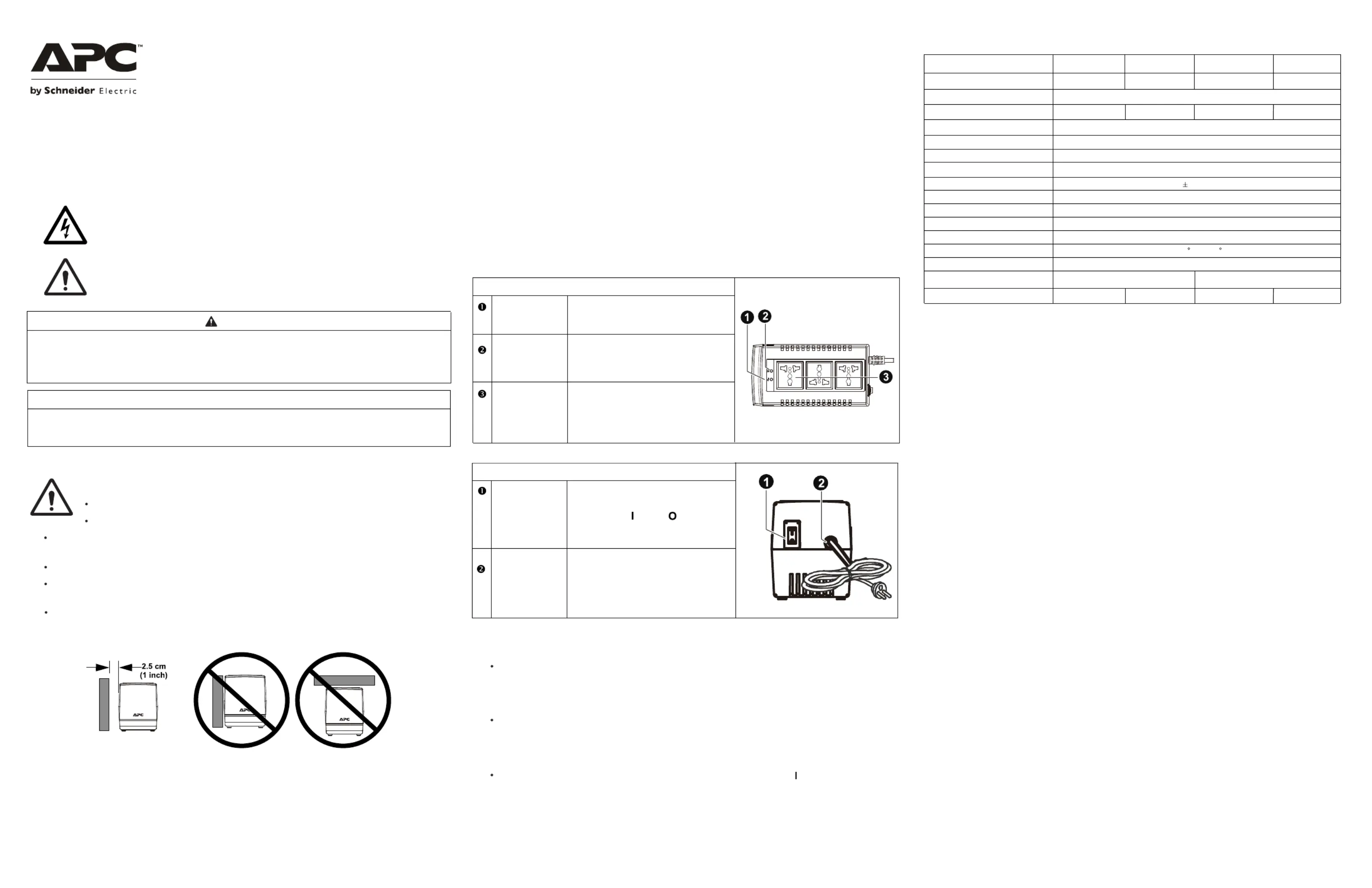

Safety Messages


Safety Information
Adhere to all national and local electrical codes.
All wiring must be performed by a qualified electrician.
Changes and modifications to this unit not expressly approved by APC by Schneider Electric
could void the warranty.
This product is intended for indoor use only.
Do not operate this product in direct sunlight, in contact with fluids, or where there is excessive
dust or humidity.
Do not block the air vents on the AVR. Allow adequate space for proper ventilation. Allow

1 inch (2.5 cm) minimum vent clearance.
Product Description
The Line-R automatically corrects brownouts (by boosting low voltage) and overvoltages (by stepping
down high voltage) from the power utility service to levels that are acceptable for computers, as well as other
sensitive equipment. APC by Schneider Electric Line-R provides a high degree of protection from line
voltage sags and swells, and has been designed for reliable, maintenance-free service.
Applications
Features
Installation
Specifications
Limited Warranty
CAUTION
NOTICE

Line-R
Automatic Voltage Regulator
Models LSW500-IND, LSW800-IND,
LSW1200-IND, and LSW2000-IND
EN 990-91153
08/2018
CAUTION in dicates a hazardous s ituation which, if not avoided, could result in minor or
moderate injury.
NOTICE is used to address p ractices not related to physical injury.
Top Panel
Power LE D Illuminates when input vo ltage is
within normal range
AV R LE D
AC Out lets
Illuminates when input vo ltage is
below or higher the rated Input
Voltage Range
These outlets supply power to
connected equipment when the Lin e-R
is connected to AC power
Rear Panel
Power Sw itch
AC Powe r
Cord
Use this as the master power switch to
turn the Line-R and all connected
equipment on ( ) or off ( ).
Use this cable to connect the Line-R to
AC power.
Plug the Line-R into a Wall Outlet - Plug the Line-R into a wall socket. Connect your computer or
other electronic equipment to any of the three outlets on the top panel of the Line-R. The Line-R
should only be used in buildings that have proper grounding on a branch circuit protected by a fuse
or circuit breaker.
Connect Your Equipment - Plug equipment into the Line-R top-panel outlets and switch the
equipment ON. The equipment will not be powered until the Line-R is switched on.
Note: The total power consumption of all equipment plugged into the Line-R must not exceed the
ratings listed in the Specifications table below.
Switch ON the Line-R - Press the back panel power switch to the on ( ) position. This switch
may be used as the master switch for the device and all equipment connected to it.
Characteristics LSW800-INDLSW500-IND LSW1200-IND
Maximum Output Power Capacity
Nominal Output Voltage
Nominal Input Current
Acceptable Voltage Range Tolerance
400 W or 800 VA250 W or 500 VA 600 W or 1200 VA
230V
1.56 A 2.5 A 3.75 A
Rated Input Voltage
Maximum Acceptable Input Voltage
Output Regulation
Response Time
Efficiency
Nominal Frequency
Number of Outlets
Operating Temperature
Relative Humidity
Weight
Dimensions
1.6 kg (3.5 lb) 1.96 kg (4.3 lb)
160-284 VAC
230 Vac
284 Vac
>95%
50 Hz
3
32 - 104 F (0 - 40 C )
0-90% Non-condensing
7 0 x 3.7 x 4.5 inches (180 x 95 x 119 mm).
6 ms
Surge Energy 148 Joules
© 8 201 APC by Schneider Electric. APC, the APC logo and Line-R are owned by Schneider
Electric Industries S A S . . . or their affiliated companies All . other trademarks are property of
their respective owners .
Note: The total power consumption of all equipment plugged into the Line-R must not exceed the
“Maximum Output Power Capacity” rating listed in the Specifications table.
The Line-R is designed for use with voltage sensitive equipment such as computers, monitors,
printers, scanners, televisions, stereos or other AV equipment.
Do not use with life sustaining equipment and any device with a power requirement exceeding the
“Acceptable Voltage Range” rating listed in the Specifications table.
Read the instructions carefully to become familiar with the equipment before attempting to install,
operate, service or maintain the AVR (Automatic Voltage Regulator). The following special messages
may appear throughout this manual or on the equipment to warn of potential hazards or to call
attention to information that clarifies or simplifies a procedure.
The addition of this symbol to a “Danger” or “Warning” safety label indicates that an
electrical hazard exists which will result in personal injury if the instructions are not
followed.
This is the safety alert symbol. It is used to alert you to potential personal injury
hazards. Obey all safety messages that follow this symbol to avoid possible
injury or death.
APC by Schneider Electric IT Customer Support Worldwide
For country specific customer support, go to the APC by Schneider Electric Web site, www.apc.com.
Schneider Electric IT (SEIT) warrants its products to be free from defects in materials and
workmanship for a period of two years from the date of purchase. SE IT obligation under this
warranty is limited to repairing or replacing, at its sole discretion, any such defective
products. This warranty does not apply to battery wear from use, equipment that has been
damaged by accident, negligence or misapplication or has been altered or modified in any
way. SEIT standard procedure is to replace the original unit with a factory reconditioned
unit. Customers who must have the original unit back due to the assignment of asset tags and
set depreciation schedules must declare such a need at first contact with an SEIT Technical
Support representative. SEIT will ship the replacement unit once the defective unit has been
received by the repair department, or cross ship upon the receipt of a valid credit card
number. The customer pays for shipping the unit to SEIT. SEIT pays ground freight
transportation costs to ship the replacement unit to the customer. For full warranty
information refer to www.apc.com.
TM
8.2 x 4.3 x 5.1 inches (210 x 110 x 132 mm)
LSW2000-IND
1000 W or 2000 VA
6.25 A
3.05 kg (6.7 lb) 3.72 kg (8.2 lb)
10%
