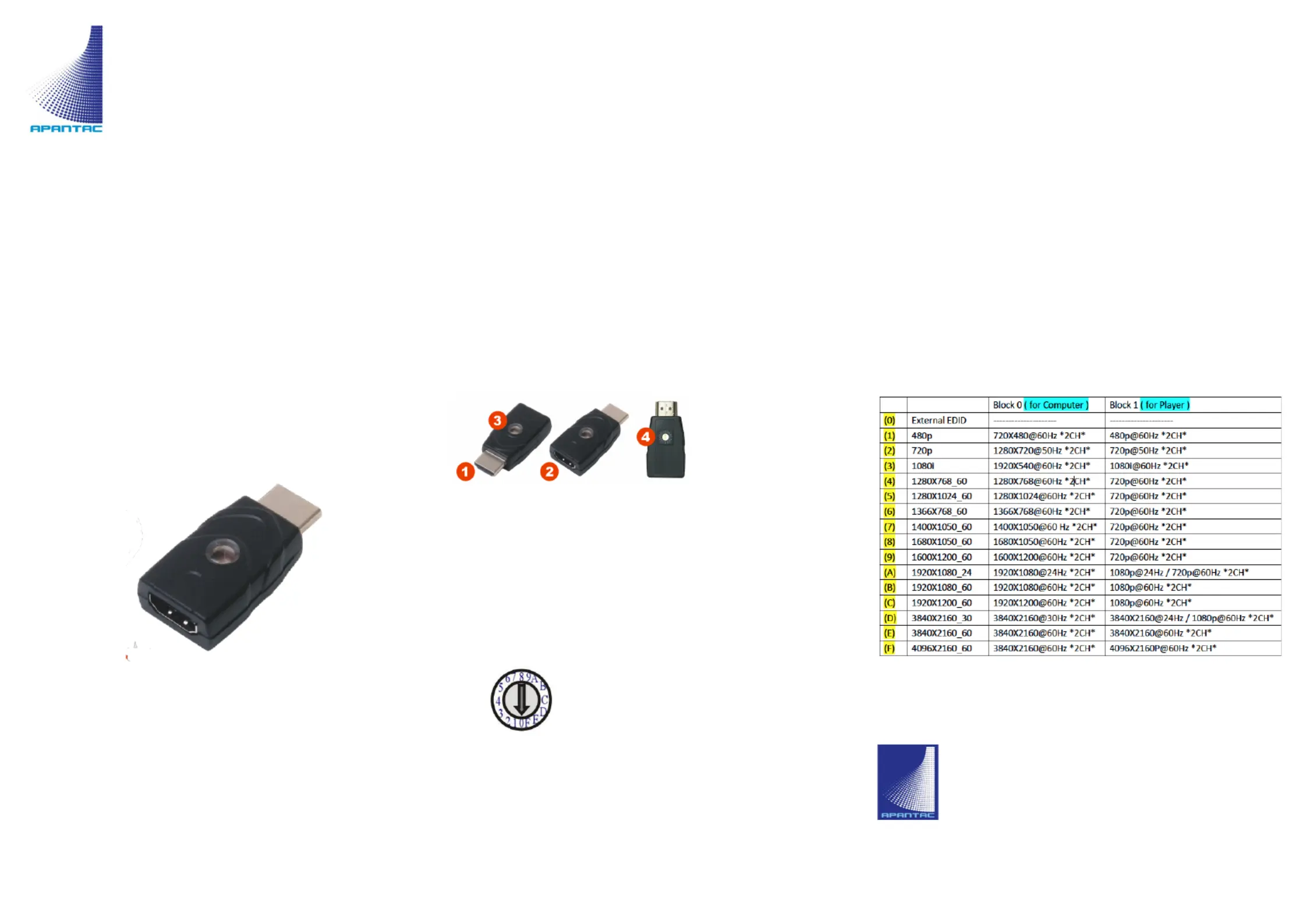

HDMI EDID
Learner / Emulator
USER MANUAL
EDID EW- -H
Package Contents
§ 1 x - -H EDID EW
§ 1 x User Manual
Features
§ Learn and store desired EDID from Display
§ 15 preinstalled EDID
§ Passive inline device – No external power needed
§ Bi-directional (bi gender). It can be used in either -
direction
§ HDCP 1.4 / 2.2 Compatible
§ Hot pluggable
§ Supports HDMI 1.3/1.4/2.0
§ Supports up to 4K/UHD @ 60Hz
Specifications
1. HDMI Type A Male
2. HDMI Type A Female
3. LED Indicator
a. Flashing Red – learning mode
b. Purple – Learning mode
c. Blue – Emulation mode, ready to use
4. Rotary Switch for selecting EDID settings
How to learn EDID
1. Set rotary switch to “0”
2. Connect a HDMI cable to the desired display
3. Connect the EDID- -EW H to a source as a power source
4. Once the EDID- -EW H receives the power needed, LED
will start flashing red. This means it is ready to learn
5. When the LED starts flashing Red, connect the HDMI
cable from the display to the female end of the
EDID EW- - H.
6. The LED will now turn purple. This means it is learning
the EDID
7. When the LED turns solid blue, it means the EDID has
been stored and ready to use
8. The EDID- -EW H is now ready to use
9. The EDID- -EW H will retain the latest learned EDID unti
the learning procedure is performed again
Preinstalled EDID
1. Turn the rotary switch to 1 to F to select the preinstalled
EDID
2. It is recommended to power cycle all equipment before
the emulator is used to ensure HDMI hand shake
initialization
© 2017 APANTAC LLC, All rights reserved
7470 SW BRIDGEPORT ROAD
PORTLAND, OR 97224, USA
PHONE +1 503 968 3000, FAX +1 503 389 7921
The content of this document are provided in connection with Apantac LLC
(“Apantac”) products. Apantac makes no representation or warranties with
respect to the accuracy or completeness of the contents of this publication
and reserves the right to make changes to specification and product
descriptions at any time without notice
