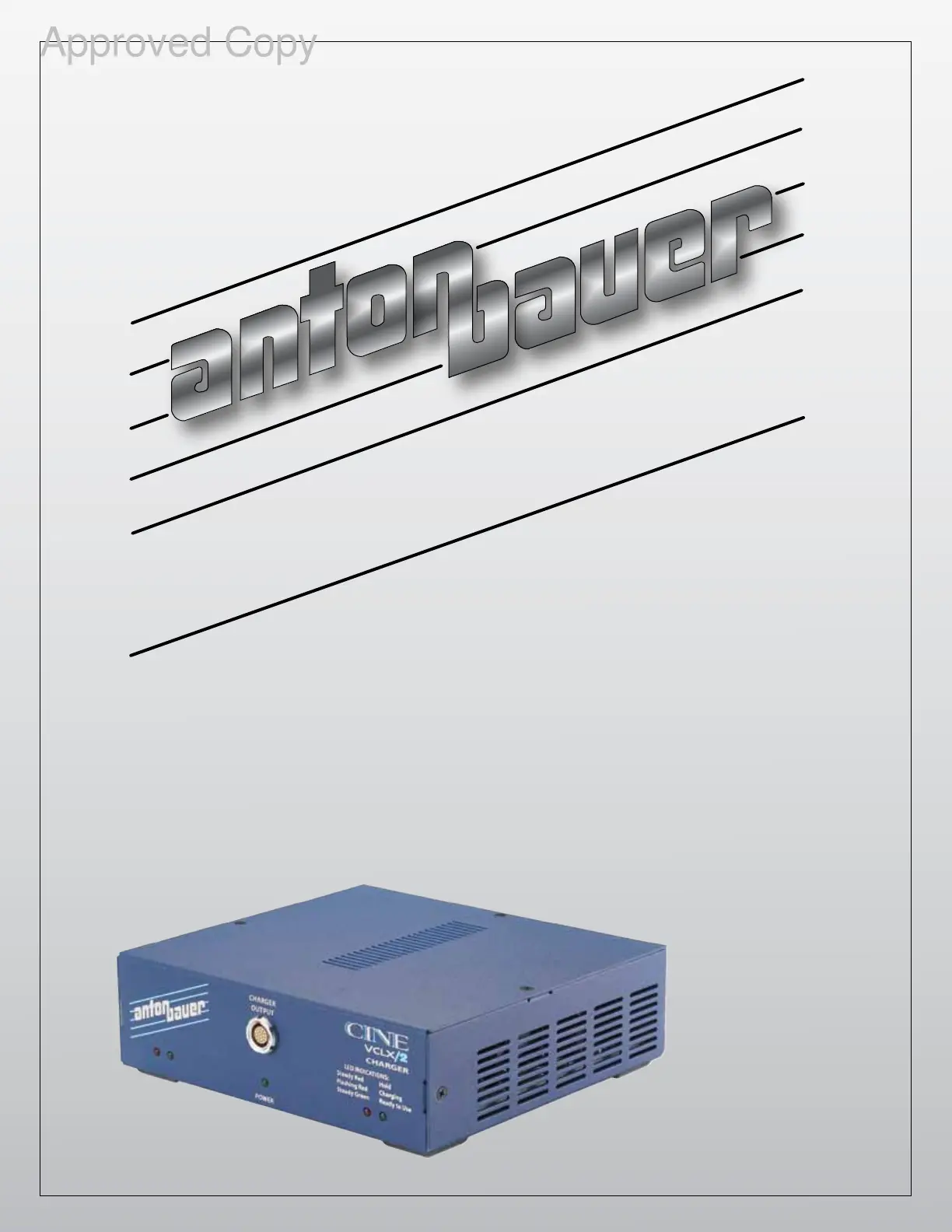

One World. One Smart Choice.â„¢
Owner’s Manual
CINE VCLX/2 CHARGER
Only for use with CINE VCLX/2 battery
®
7595-0339 Rev. B
Approved Copy
1 INTRODUCTION
FEATURES
SAFEGUARDS
GROUNDING/EARTHING
CHARGING
APPLICATIONS
2 THREE STAGE CHARGING METHODOLOGY
LED INDICATIONS
3 FCC NOTICE
SPECIFICATIONS
FUSE/TYPE REPLACEMENT
4 WARRANTY
TABLE OF CONTENTS
Approved Copy
1
INTRODUCTION
The CINE VCLX/2 charger is a three (3) hour fast charger designed
specially for the CINE VCLX/2 battery system. It incorporates all of the
Logic Series circuits that are employed in every Anton/Bauer charger. ®
The InterActive charge programming provides all charge termina-®
tion and protection routines for safe, reliable, chemistry independent
charging.
Like all Anton/Bauer chargers, everything is automatic. Once a bat-
tery is plugged into the charger, it will automatically go into the charg-
ing mode.
FEATURES
• Three (3) hour charge time
• Red and Green status LED’s
• Wide Range Input (100-240vac 50/60Hz)
• Six (6) Independent Charge Termination Systems
• Lightweight (2.5lbs.)
SAFEGUARDS
Power Sources: This unit was designed to operate at mains volt
ages from 100 to 240 Volts AC, 50-60 Hz.
Important: When powering charger using a generator, the generator
must produceasinewaveormodiedsinewaveoutput,
otherwise charger may be damaged.
Risk of Electrical Shock: Referservicingtoqualiedserviceper-
sonnel.
TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS
UNIT TO RAIN OR MOISTURE.
GROUNDING/EARTHING
IMPORTANT WARNING: THIS APPARATUS MUST BE EARTHED.
To ensure safe operation, the three pin plug supplied must be inserted
only into a standard three-pin power point which is effectively grounded
through the normal household wiring. Extension cords used with the
equipment must be three-conductor and be correctly wired to provide
connection to earth ground. Improperly wired extension cords are a
dangerous electrical hazard.
The fact that the equipment operates satisfactorily does not imply
that the power point is properly grounded and that the installation is
completely safe. If any doubt exists about the correct grounding of the
powerpoint,consultaqualiedelectrician.
IMPORTANT: The wires in this mains lead are colored in accordance
with the following code:
Green and Yellow Earth
Blue Neutral
Brown Live
CHARGING
As with all Anton/Bauer chargers, charging with CINE VCLX/2 charger
is fully automatic. Attach the CINE VCLX/2 battery to the CINE VCLX/2
charger and it will automatically determine the appropriate charge
routine and execute it.
APPLICATIONS
NOTE: A battery can remain on an Anton/Bauer charger indenitely.
The CINE VCLX/2 charger incorporates the exclusive InterActive communication
between battery and charger, which allows the charger to identify an Anton/
Bauer battery when attached and determine the precise charge routine for that
battery under the prevailing conditions.
WARNING: USE OF THIS CHARGER WITH ANY BATTERY NOT
MANUFACTURED BY ANTON/BAUER MAY RESULT
IN BATTERY DAMAGE AND CAUSE RISK OF FIRE
OR PERSONAL INJURY. ANTON/BAUER ACCEPTS
NO RESPONSIBILITY FOR ANY INJURY OR DAMAGE
ASSOCIATED WITH THE USE OF BATTERIES NOT
MANUFACTURED (OR BATTERIES SERVICED OTHER
THAN) BY ANTON/BAUER. SUCH USE WILL VOID ANY
WARRANTY.
Approved Copy
