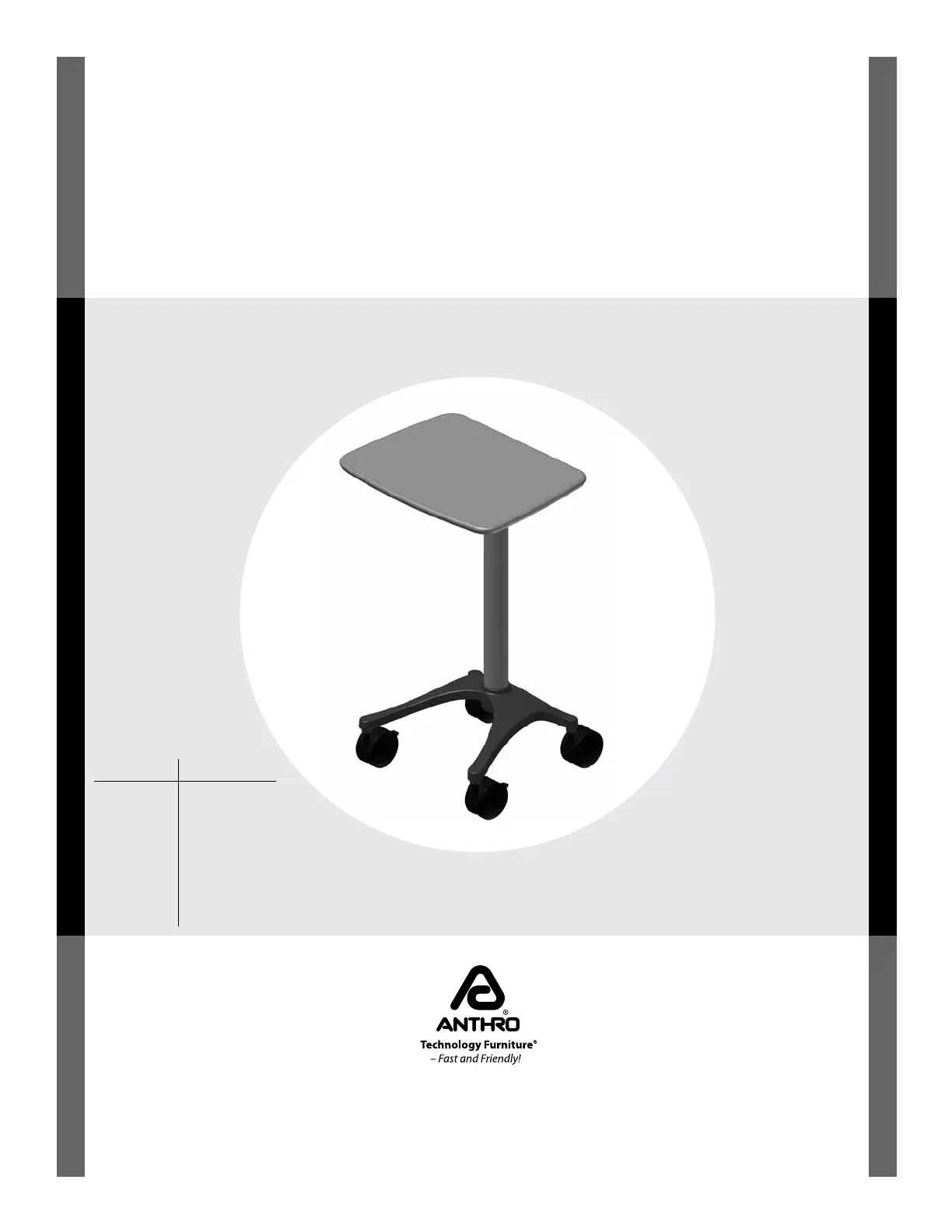

Ass embly inst ru ct ions
Anthro Corporation® | 10450 SW Manhasset Dr. | Tualatin, OR 97062
Toll-free: 800.325.3841 | Fax: 800.325.0045 | email: sales@anthro.com | anthro.com
Outside the U.S. | Tel: 503.691.2556 | Fax: 503.691.2409
Zido® Cart
Rev H, January 2011
Product Part#
Zido Carts ZD2231SB/CG4
ZD2235SB/CG4
ZD2240SB/CG4
ZD2531SB/CG4
ZD2535SB/CG4
ZD2540SB/CG4
ZD2166SB/CG4
Zido Pole Cart ZD2166SB4
WELC O ME
Thank you for purchasing Zido. If you
have any questions or if we can help
you in any way, please contact us at
800.325.3841.
PARTS L IST
Before beginning assembly of your Zido
cart please review the parts list to verify
that your shipment is complete.
All Screw quantities listed here are the
minimum needed for your Zido assembly.
There may be a few extra Screws included
which are not counted in the Parts List.
To make the assembly of your Zido even
easier, we have included the required
tools. The handy Hex Driver Bit can be
used in your electric drill in place of the
Hex Driver.
2
Zido Cart Quantity Part Number
01 Base
Small, 22" wide 1 250-3064-00
Large, 25" wide 1 250-3065-00
02 Tube
24" long (for 31” high cart) 1 500-1031-00
28" long (for 35” high cart) 1 500-1030-00
33" long (for 40” high cart) 1 500-1032-00
03 Cap Shelf
22” wide 1 101-1025-06-50
25” wide 1 101-1026-06-50
04 Casters
4” Locking 2 150-5011-03
4” Non-locking 2 150-5010-03
05 Tapped Strip 1 225-2621-00
06 Cap Shelf Bracket 1 225-2620-00
07 3/4" Flat Head Screw 2 325-5466-00
08 Wood Screws 8 325-5106-00
09 1/2" Socket Head Cap Screw 4 325-5455-00
Zido Pole Cart Quantity Part Number
01 Base 1 250-3065-00
02 Tube 1 125-4324-00
04 Casters
4” Locking 2 150-5011-03
4” Non-locking 2 150-5010-03
05 Tapped Strip 1 225-2621-00
3/4" Socket Head Cap Screw (not shown) 2 325-5461-00
End Cap (not shown) 1 175-5235-00
Product Quantity Part Number
Hex Driver 5/32” 1 375-5000-00
(not shown)
Hex Driver Bit 5/32” 1 375-5003-00
(not shown)
06
01
02
03
04
05
07
08
09
3Questions? Call us at 800.325.3841 or visit . We’re happy to walk you through the assembly!anthro.com
STEP 2
Install the Casters
¡ Add the locking casters (the ones with the brakes) to
the front of the base assembly.
¡ Add the non-locking casters to the back of the
base assembly. If you have a Fixed-height Cart, skip
ahead to Step 3.
¡ If you have a Zido Pole Cart, make sure that the
holes on the column line up with the holes on the
base and tighten the screws. Next, insert the End
Cap in the top of the Pole. Congratulations! Your
assembly is complete!
ASSEMBLY SEQUENC E
Plan out the assembly to make your installation easier. We suggest this sequence to reduce interference
between accessories.
1. Pre-drill the top for accessories (Mouse Holder, Side Bin, Gel Cup/Probe Holder, Extension Tube).
2. Assemble the cart.
3. Base Storage Shelf.
4. Drawer, Keyboard Drawer, Handle.
5. Additional Shelves, Equipment Shelves, Metal Bin, IV bracket.
6. Cable Bin, Glove Box Holder, Tank Holder.
7. Mouse Holder, Side Bin, Gel Cup Probe Holder, Extension Tube.&
8. Pole Cart Handle, Flat Panel Mounts.
STEP 1
Connect the Base with the Tube
¡ Slide the nut bar into the bottom of the base
assembly, smooth side against the inside of the tube,
with the two threaded holes on the top and the single
threaded hole at the bottom. Loosely attach the nut
bar to the tube with one 3/4" Flat Head Screw.
¡ Slide the tube into the base so that the notch at the
bottom of the tube goes over the screw. Align the
upper hole on the base with a threaded hole on the
nut bar. (For the 25w cart and the Pole Cart, you'll use
the top hole; for the 22w cart, you'll use the second
hole.) Loosely attach the nut bar, tube, and base with
the second 3/4" Flat Head Screw.
3/4" Flat Hd Screw
325-5466-00
