Seite 1/2
TECHNOLOGY FURNITURE®
0148” Wide Bench Shelf ...........Qty. 1 ..................(see below)
28” Deep (S4829zz/xx & S4835zz/xx) ..............100-6406-00
36” Deep (B4829zz/xx & B4835zz/xx) .............100-6349-00
02– Bench Leg Assemblies ...........Qty. 2 ..................(see below)
25” Bench Legs (S4829zz/xx & S4835zz/xx) ..835-5008-00
31” Bench Legs (B4829zz/xx & B4835zz/xx) 835-5009-00
03– Bench Arm Left .......................Qty. 1 ............. 225-5357-00
04– Cross Ends ................................Qty. 2 ............ 225-5334-00
05– 11/4Wood Screws .................Qty. 12 ...........325-5178-00
06– Glide Insert Screws ...............Qty. 4 ............. 325-5052-00
07– 2.5” End Caps ..........................Qty. 4 ............ 175-5158-00
08– Glide Inserts .............................Qty. 4 ............. 525-5030-00
09– Glides (1/2-13 X 2”) ................Qty. 4 ...........325-5165-00*
10– Cap Screws (5/16-18 X 4”) ...Qty. 8 .............325-5166-00
11– Curved Washers .....................Qty. 8 . 225-2050-00 or 225-3522-00
12– Bench Base Tubes ...................Qty. 2 ..................(see below)
28” Deep (S4829zz/xx & S4835zz/xx) ..............125-5225-00
36” Deep (B4829zz/xx & B4835zz/xx) .............125-5183-00
Enclosed Parts List
Detailed views of all Hardware is provided with each Assembly Step
13– 15” Bench Buttress ................Qty. 2 ............. 225-5386-00
14– 41.5” Bench Cross Tubes ....Qty. 2 ............. 125-5184-00
15– Keps Nuts (1/4-20) ..................Qty. 8 .............325-5130-03
16– Pan Screws (1/4-20 X .5”) ....Qty. 8 .............325-5003-00
17– Bench Arm Right .....................Qty. 1 ............. 225-5358-00
18– Support Screws .......................Qty. 20 ........... 325-5010-00
19– 48” Bench Pans .......................Qty. 2 ............. 225-5370-00
All Screw quantities listed here are the minimum needed
for your Bench assembly. There may be a few extra
Screws included, which are not counted in the Parts List.
To make the assembly of your Anthro Bench even easier, we
have included the required tools.. The handy Hex Driver Bit
can be used in your electric drill in place of the Hex Driver.
20- Hex Driver 5/32 .......................Qty. 1 .............375-5000-00
21- Hex Driver Bit 5/32 ................Qty. 1 .............375-5003-00
22- Hex Key 1/4 ..............................Qty. 1 .............375-5024-00
3-Way Wrench(not shown) ..............Qty. 1 .............225-5196-03
Anthro Corporation Technology Furniture® 10450 SW Manhasset Drive Tualatin, Oregon 97062
SAVE THESE INSTRUCTIONS! anthro.comSeptember 2004 Rev. E

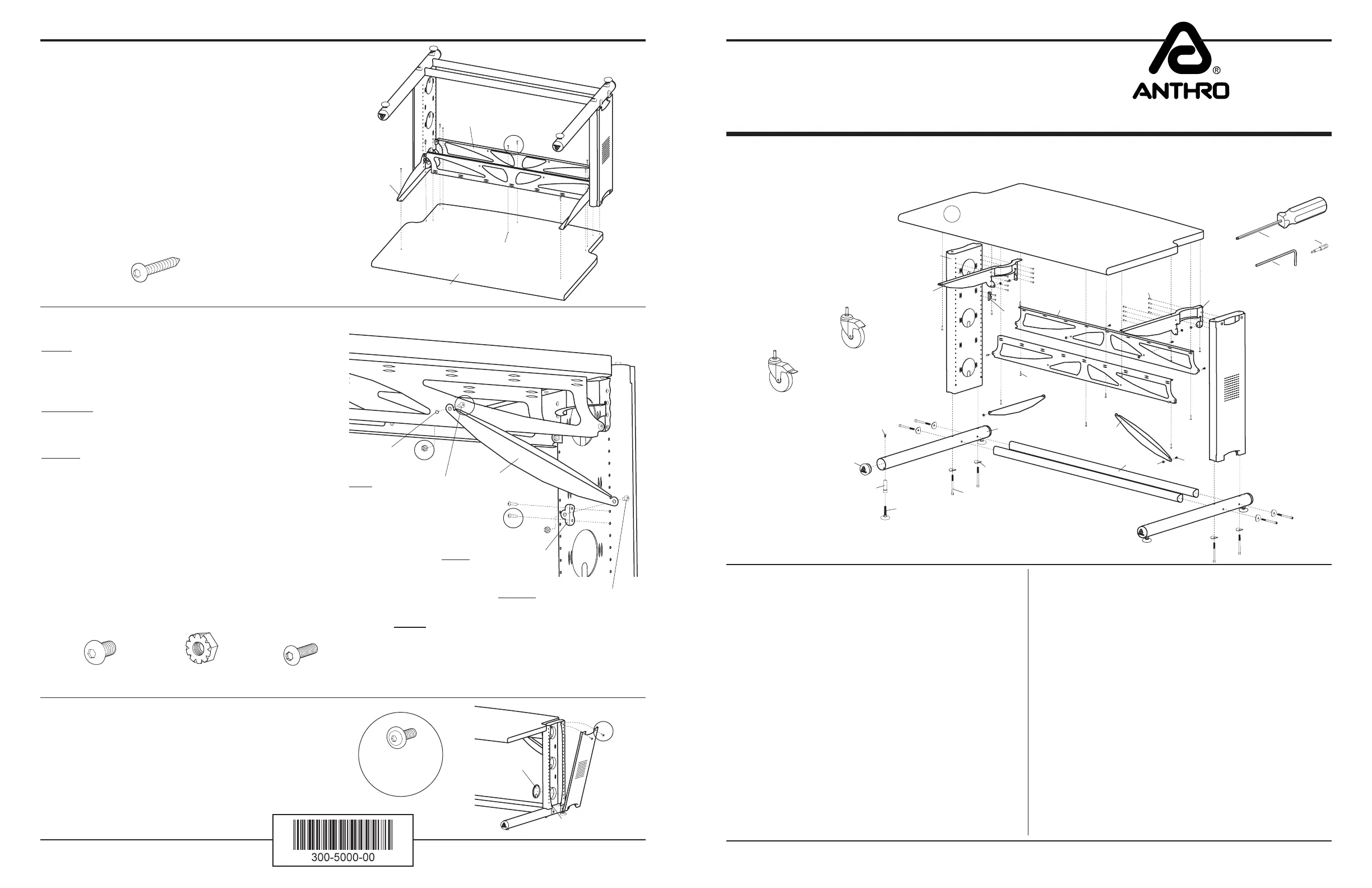

These Assembly Instructions are for the 48” AnthroBench models: B4829zz/xx, S4829zz/xx, B4835zz/xx
& S4835zz/xx. Before beginning assembly of your AnthroBench, please take a moment to review the parts listed below
to verify that your shipment is complete.
04
06
07
03
02
09
05
08
01
10
13
11 14
12
15 16
17
18
19
48” AnthroBench
Assembly Instructions
Does your Bench have 5” Casters?*
(If you purchased a 640RT - your Caster Part
Numbers are given here.)
5” Locking Caster
150-5024-00
5” Non-Locking Caster
150-5025-00
Your AnthroBench is heavy!
A second person will make this
assembly procedure much easier.
Step 7
Place the Bench Shelf (laminate facing down) onto the
floor.
With the help of another person, carefully rotate the Leg
Assembly (from Step 6) over onto the Shelf.
Position the holes on the Pans and Arms to align with the
twelve predrilled holes on the Shelf. Insert two Wood
Screws through each center opening of the Bench Pans
(shown encircled at right).
Install the remaining Wood Screws into each of the Arms
and Pans, a total of twelve Wood Screws will be installed.
In preparation for Step 8, carefully rotate your Anthro-
Bench back over onto the Glides.
Step 8 (requires a 3-Way Wrench)
FIRST- from the rear of your Bench, align one Buttress
with one hole on the Back Pan. Install a Pan Screw
through the Buttress and loosely capture using a Keps Nut
on the opposite side.
SECOND- position one Cross End on the remaining
Buttress end and install a Pan Screw and Keps Nut in the
same manner, but do not fully tighten.
THIRD- rotate the Buttress to align the Cross End with
two openings on the Leg. Secure the Cross End to the
Leg using two Support Screws.
Repeat this entire procedure for the remaining Buttress
and Cross End on the opposite end.
Tighten all Pan Screws, Support Screws & Keps Nuts.
Congratulations! Your 48” AnthroBench assembly is
complete. Please return the enclosed Registration Card to
receive our product updates, new catalogs, and sale flyers.
Thank you for choosing Anthro!
Questions? 1-800-325-3841
11/4Wood Screw
325-5178-00
(1/4-20 X .5”) Pan Screw
325-5003-00
(1/4-20) Keps Nut
325-5130-03
Buttress
Back Pan hole
Support Screw
325-5010-00
FIRST Install this Pan Screw
SECOND Install this Pan Screw
THIRD Install the Cross End
Lower Metal Mounts
Cable Grommet
Workstation Screw
(not counted in Parts List)
325-5092-00
Removal of Leg Covers & Cable Grommets
Remove the Leg Cover by: 1. First removing the top two
Workstation Screws. 2. Slightly lift the Cover upward and
off the lower metal mounts.
Cable Grommets are snapped into and out of each of the
circular Leg openings.
NOTE: The purpose of the Buttress is not to
support your Bench Shelf. It is intended to make
your Bench absolutely rigid under extreme weight
conditions.
Pans
Arms
Rounded Edge of Shelf
Predrilled holes
22
21
20
Anthro Corporation Technology Furniture® 10450 SW Manhasset Drive Tualatin, Oregon 97062 anthro.com
Step 4
Determine the height of your Shelf. These Instructions will
place your final Shelf height at either 29” or 35” from the floor
(depending on which height Bench you purchased).
The holes along the Leg Assemblies are spaced at 1”
increments. Adjusting either one hole up or down will modify
the final Shelf height by 1” respectively. Rotating the Glides
will also provide additional height adjustment.
NOTE: Your Shelf height can be adjusted at a later time if needed,
however, Assembly Steps 5 through 8 will need to be disassembled
and reassembled again.
Step 5
Position the Left Bench Arm onto the Left Leg Assembly.
Align the top two openings of the Arm with Hole 2 of the
Leg Assembly. Loosely install a Support Screw through the
top two holes of the Arm into the Leg.
Install the remaining six Support Screws into the Left Arm,
but do not fully tighten any of the Support Screws.
Repeat entire procedure for the Right Bench Arm on the
Right Leg Assembly.
Step 6 (requires a 3-Way Wrench)
Position a Bench Pan between the Arms, aligning the
two tabs on each Arm with the two holes in the lower
corners of a Pan. Insert a Pan Screw through the Pan
and Arm Tab- capturing it with a Keps Nut (but do not
fully tighten). Repeat this procedure for the remaining
end of the Pan and for the second Pan.
Tighten all Pan and Support Screws.
NOTE: the 3-Way Wrench can be used to assist in tightening
the Keps Nuts.
Questions? 1-800-325-3841
(1/4-20 X .5”) Pan Screw
325-5003-00
Support Screw
325-5010-00
Insert Screw
(small pink patch on end)
325-5052-00
Glide Inserts placed
into the large holes
Leave these two holes open
(5/16-18 X 4”) Bench Cap Screw
325-5166-00
Curved Washer
225-2050-00 or 225-3522-00
29” or 35”
Left Leg Assembly
Right Leg Assembly
Side holes
Cross Tubes
Leave top two
Holes open Hole 2
Left Leg Assembly
Right Leg Assembly
(1/4-20) Keps Nut
325-5130-03
(5/16-18 X 4”) Bench Cap Screw
325-5166-00
Curved Washer
225-2050-00 or 225-3522-00
Leave these two holes open
Lower holes
Arms
Second Pan shown installed
REMINDER: You may want to measure
your equipment to make sure it fits into
the selected Shelf location.
48” AnthroBench
Assembly Instructions
Left Bench Arm
Step 3
Position the Right Leg Assembly with two (from Step 2)
Cross Tubes as shown. Insert one Bench Cap Screw
with a Curved Washer through a side hole, carefully
threading the Screw into the Cross Tube.
Repeat entire procedure for the remaining three
side holes.
Step 2
Orient one Bench Leg Assembly with one Base Tube
Assembly (from Step 1). The Glide Inserts should be facing
down.
Insert one Bench Cap Screw through one Curved Washer,
then carefully insert through one of the lower holes on
the Base Tube, threading into the Right Leg Assembly.
Repeat this procedure for the remaining three lower holes
on the Right & Left Leg Assembly.
STOP: If you are upgrading to 5” Casters do so now.
Finally, thread one Bench Glide into each Glide Insert.
Left Leg
Assembly
Right Leg
Assembly
Thread one Glid e
int o ea c h Gl i d e
Inse r t AFT ER the
Base Tubes have been
installed to the Legs.
NOTE: Loosen these
Support Screws (if
needed) to allow the
Base Tube to install
easier.
Glide Inserts
Step 1
Install two Bench Glide Inserts into each Bench Base Tube
and secure with one Insert Screw per Insert.
Pop two End Caps into the ends of both Base Tubes.
