At Antec, we continually refine and improve our products to ensure the highest
quality. As such, it’s possible that your new case may differ slightly from the
description in this manual. This isn’t a problem; it’s simply an improvement. As of
the date of publication, all features, descriptions, and illustrations in this manual
are correct.
P190 User’s Manual

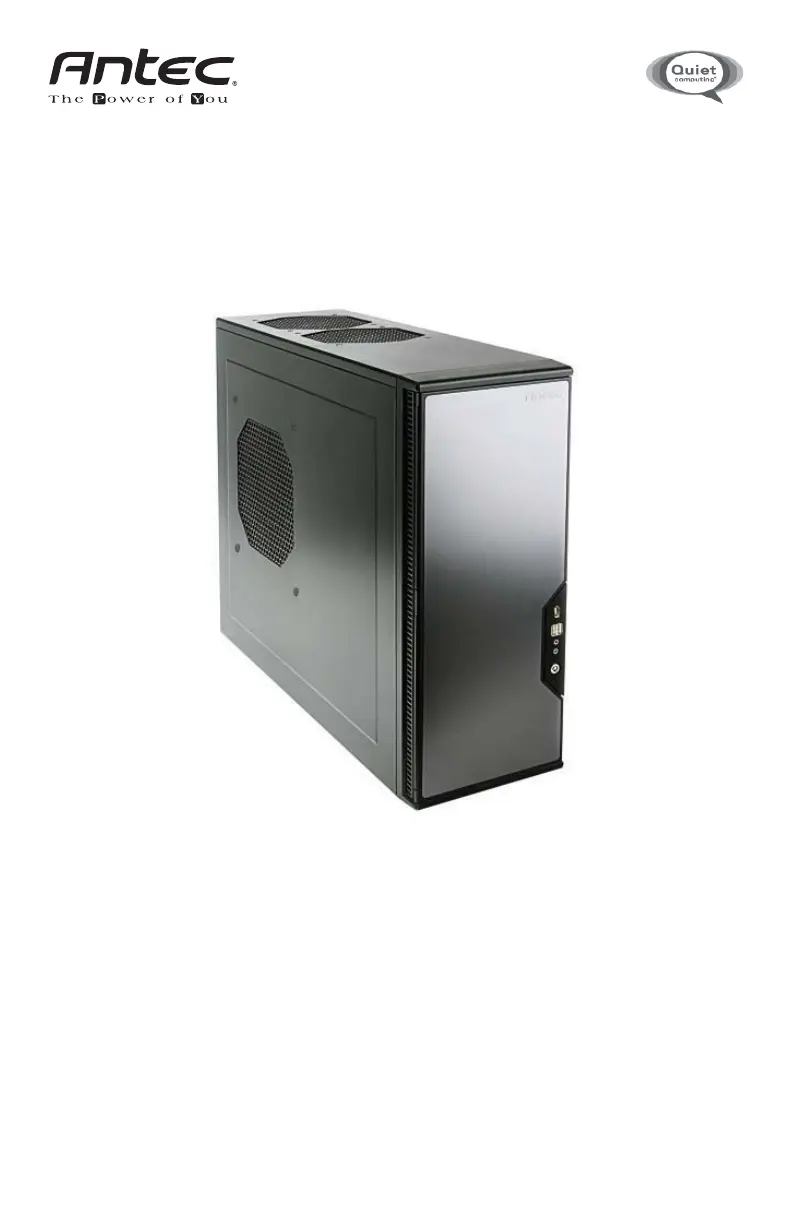

P190 – Advanced Super Mid Tower Case
This case comes with the unique Antec dual power supply system, NeoLink™.
Consisting of two power supply units –the NeoLink™ 650P and the NeoLink™ 550S
– the NeoLink™ system has an output 1,200 watts. You will need to connect the
NeoLink™ 650P to your motherboard and graphic card(s), and the NeoLink™ 550S
to your peripheral drives and accessories such as fans or system monitoring/
control devices. Both power supplies come with an on/off switch. Please be
sure to turn both power switches to the ON (I) position before you boot up your
computer for the first time – your computer will not boot with only one of the
NeoLink™ power supplies. Normally, you won’t need to switch to the OFF (O)
position, since the power supply includes a soft on/off feature. This lets you turn
your computer on and off by using the soft switch on your computer case. If
your computer crashes and you can’t shut it down using the soft switch, you can
switch the main power to the OFF (O) position on both power supplies to clear the
fault, then reboot.
Although care has been taken to prevent sharp edges in your Antec case, we
strongly recommend taking your time and the appropriate care when working with
it. Hurried or careless motion and use of excessive force, particularly when working
inside areas you cannot into see clearly, are but a few examples of activity that
should be avoided. Please use reasonable precaution.
Setting Up
1. Place the case upright on a flat, stable surface with the rear of the case
facing you.
2. Remove the thumbscrews from the right side panel. Grip the panel at the top
and bottom and swing it towards you to open the case.
3. Remove the screws from the left side panel. Grip the panel at the top and bottom
and swing it towards you to remove the left side panel.
Note: Do not use your fingernails to pry or lift the panels.
Inside the case you should see two separate chambers - the upper chamber for the
motherboard, externally accessible drives and hard drives; and the lower chamber
for the power supply and hard drives. You will also find some wiring with marked
connectors (USB, PWR etc.), the installed I/O panel, a box containing the top fan
spoiler and one set each of drive rails for a 5.25” drive and a floppy disk drive, and
Disclaimer
This manual is intended only as a guide for Antec’s Computer Enclosures. For more
comprehensive instructions on installing the motherboard and peripherals, please
refer to the user’s manuals that come with those components.
2
a tool box attached to the upper HDD cage containing more hardware (screws,
brass standoffs, spare silicone grommets, etc.).
Cable Management
You can route data and power supply cables through the holes behind the
motherboard (MB) tray.
1. Remove both side panels.
2. Pass the cables through the holes behind the MB tray and use the cable ties
to hold them in place.
Installing the Motherboard
This manual does not cover CPU, RAM, or expansion card installation.
Please consult your motherboard manual for specific mounting instructions and
troubleshooting.
1. Lay the case down, with the open side facing up. The drive cages and power
supply should be visible.
2. Make sure you have the correct I/O panel for your motherboard. If the panel
provided with the case isn’t suitable, please contact your motherboard
manufacturer for the correct I/O panel.
3. Line up your motherboard with the standoff holes and remember which holes
are lined up. Not all motherboards will match with all the provided holes; this
is normal and won’t affect its functionality.
4. Remove your motherboard by lifting it up.
5. Install standoffs as needed and put the motherboard back in.
6. Screw in your motherboard to the standoffs with the provided Philips-head
screws. Your motherboard is now installed.
Connecting the Power and LED
1. Connect the power supply Main Power Connector and the 4-pin +12V
connector to your motherboard as needed.
2. Connect the Reset switch (labeled RESET SW) to your motherboard at the
RST connector.
3. Power Switch (labeled POWER SW) connects to the PWR connector on the
motherboard.
4. Power LED (labeled POWER LED) connector is located behind the Reset connector.
On all LED’s, the colored wire is positive (+).
5. Hard Drive LED I, LED II (labeled HDD I, HDD II) connectors: This case comes
with two HDD LEDs. You may use these LEDs for two hard drives.
Connecting the USB Ports
You will find a single 10-pin connector on a cable attached to the front USB ports.
This is an Intel® standard connector that is keyed so that it can’t be accidentally
reversed when connected to a proper Intel® standard motherboard header. Connect
the 10-pin connector to the motherboard headers so that the blocked pin fits over
the missing header pin.
Note: Please check the motherboard manual for the USB header pin layout and
make sure it matches the table below. If it does not match this Intel® standard,
please visit Antec’s web store at http://www.antec.com/StoreFront.bok and
search for part number 30095 to order a USB Internal Adapter Cable. This adapter
