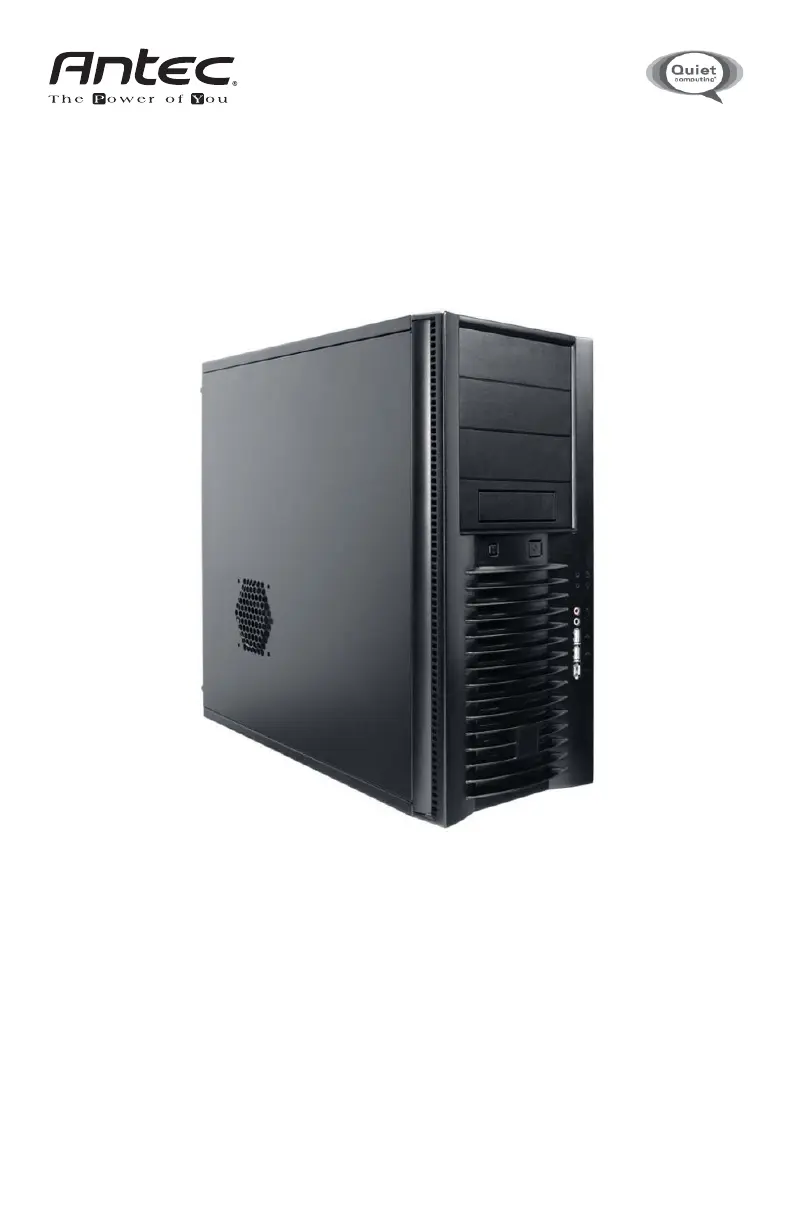

Atlas 550 Quiet Mini Server Case
User’s Manual
Manuel de l’utilisateur
Anwenderhandbuch
Manuale per l’operatore
Manual del usuario
পᡅ䂀ᯢ᳌
1
At Antec, we continually refine and improve our products to ensure the highest
quality. It’s possible that your new case will differ slightly from the descriptions
in this manual. This isn’t a problem; it’s simply an improvement. As of the date of
publication, all features, descriptions, and illustrations in this manual are correct.
Atlas 550 User’s Manual
Atlas 550 – Quiet Mini Server Case
This case comes with a TruePower Trio™ 550 Watt power supply unit (PSU).
It complies with the newest Intel® EPS12V specification. The PSU comes with a
main power switch. Make sure you turn the switch to the ON (I) position before
you boot up the computer for the first time. Normally, you won’t need to switch
to the OFF (O) position, since the PSU includes a soft on/off feature. This lets you
turn the computer on and off by using the soft switch on the computer case.
If the computer crashes and you can’t shut it down using the soft switch, you can
switch the main power to the OFF (O) position to shut the system down.
Then turn the switch back to the ON (I) position and reboot.
Antec TruePower Trio™ power supplies feature Power Factor Correction (PFC)
circuitry in accordance with European standard regulation code EN61000-3-2.
By altering the input current wave shape, PFC improves the power factor of the
PSU. A better Power Factor increases energy efficiency, reduces heat, improves
output voltage stability and prolongs the life of all equipment. The PSU’s high
efficiency design and quiet fan deliver not only a cleaner but also a quieter
operating environment.
Although care has been taken to prevent sharp edges in your Antec case, we
strongly recommend taking your time and the appropriate care when working with
it. Hurried or careless motion and use of excessive force, particularly when you are
working in areas you cannot see clearly, are but a few examples of activity that
should be avoided. Please use reasonable precaution.
Setting Up
1. Place the case upright on a flat, stable surface.
2. Loosen the thumbscrews from the right side panel and remove it by swinging
it out. : Do not use your fingernails to pry or lift the panels.Note
3. Inside the case you should see the power supply, some wiring with marked
connectors (USB, PWR etc.), the installed I/O panel, a power cord, a plastic
bag containing more hardware (screws, brass standoffs, etc.), and six drive
rails.
4. There are three plastic tabs on the left side of the bezel that fasten it to the
metal chassis. Release the tabs from the top down to release the bezel.
5. Swing the bezel open to about 45Âş, gently lift it up and it will come off
easily. Set the bezel aside in a safe place.
Disclaimer
This manual is intended only as a guide for Antec’s Computer Enclosures. For more
comprehensive instructions on installing the motherboard and peripherals, please
refer to the user’s manuals that come with those components.
2
Installing the Motherboard
This manual does not cover CPU, RAM, or expansion card installation.
Please consult the motherboard manual for specific mounting instructions and
troubleshooting.
1. Lay the case down with the open side facing up. The drive cages and power
supply should be visible.
2. Make sure you have the correct I/O panel for the motherboard. If the panel
provided with the case isn’t suitable, please contact the motherboard
manufacturer for the correct I/O panel.
3. Line up the motherboard with the standoff holes, and remember which holes
are lined up. Not all motherboards will match with all the provided holes; this
is normal and won’t affect functionality.
4. Remove the motherboard.
5. Screw the brass standoffs into the threaded holes that line up with the
motherboard. : Do not over-tighten the standoffs. Some standoffs may Note
be pre-installed for your convenience.
6. Place the motherboard on the brass standoffs.
7. Screw in the motherboard to the standoffs with the provided Philips-head
screws. The motherboard is now installed.
Connecting the Power and LED
1. Connect the 24-pin Main Power Connector and
the 4-pin +12V connector to your motherboard as
needed. If your motherboard uses a 20-pin connec-
tor, detach the 4-pin attachment on the 24-pin power
connector. (see pictures 1 and 2).
2. Connect the Reset switch (labeled RESET SW) to your motherboard at the
RST connector.
3. Connect the 4-pin molex connector from the front display to a 4-pin molex
connector on the power supply.
4. The Power Switch (labeled POWER SW) connector connects to the PWR connector
on the motherboard.
5. The Hard Drive LED (labeled H.D.D. LED) connector connects to the hard drive
activity header.
Power supply 3-PIN fan signal connector
A three-pin signal connector with blue and black wires is available to connect the
power supply to one of your motherboard’s fan connectors ( Some motherboards Note:
have a dedicated fan connector labeled PWR-FAN or PSU-FAN that is specifically for
the power supply). This connector is for monitoring the power supply’s fan speed
only. It is optional—the power supply and its fan will operate normally whether
this cable is connected to your motherboard or not.
The fan speed can be monitored through the BIOS or special monitoring software
that came with your motherboard. To ensure proper monitoring of the power supply
fan, please check your motherboard manual.
Note: At low temperatures, the fan may run as slow as 750 RPM (±10%). At
these speeds, some motherboards may not properly detect the fan speed and may
generate false warnings of fan failure.
Picture 1 Picture 2
For 24-pin
motherboards
For 20-pin
motherboards
