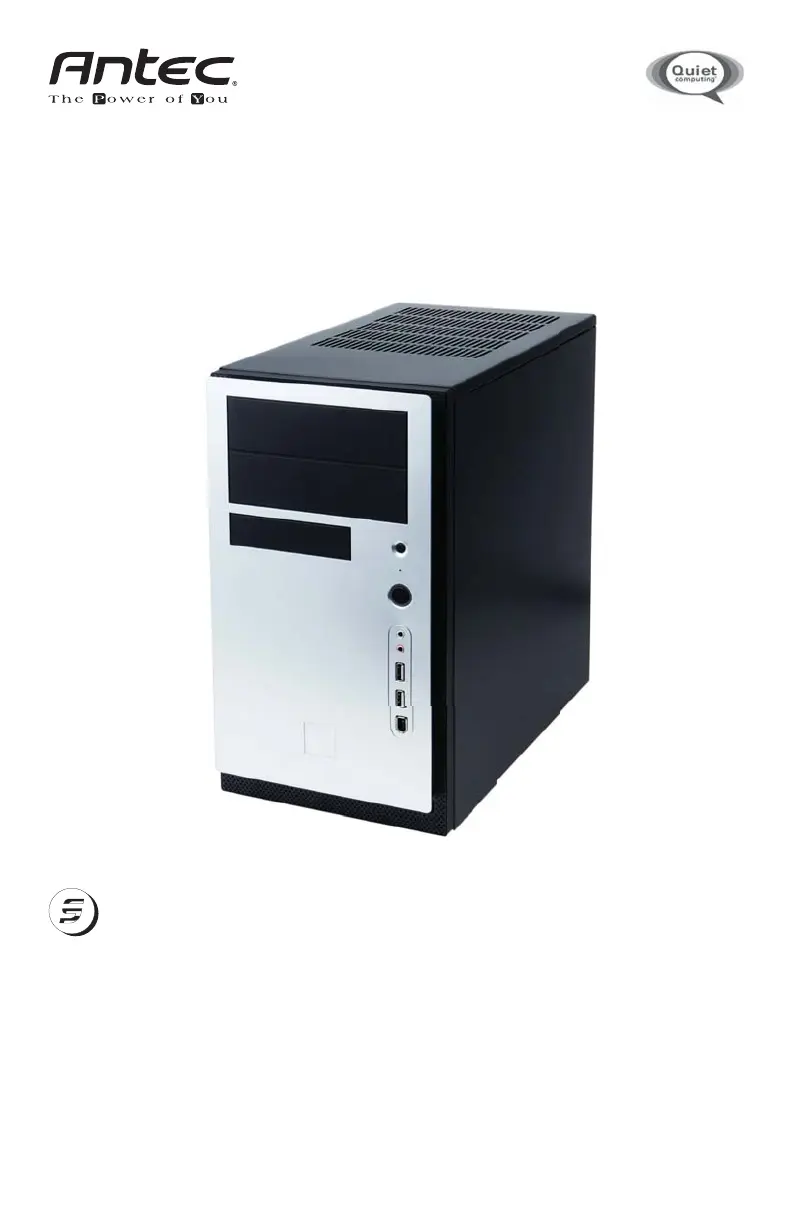

New Solution Series
NSK3480
User’s Manual
Manuel de l’utilisateur
Anwenderhandbuch
Manuale per l’operatore
Manual del usuario
পᡅ䂀ᯢ᳌
1
At Antec, we continually refine and improve our products to ensure the highest
quality. It’s possible that your new case will differ slightly from the descriptions
in this manual. This isn’t a problem; it’s simply an improvement. As of the date of
publication, all features, descriptions, and illustrations in this manual are correct.
New Solution Series User’s Manual
NSK 3480
Quiet microATX Case
The NSK3480 Case with EA-380 power supply
The NSK3480 comes with an EarthWatts 380 watt PSU. Universal input, active
PFC single 80mm fan cooled power supply that follows the ATX12V version 2.2
specifications. This includes dual +12V output rails that deliver safer and more
reliable output to your system’s components. Featuring higher energy efficiency,
which reduces power consumption by up to 25%, saving you money on your
electricity bill. EarthWatts power supplies have achieved 80 PLUS® Certification,
the latest independent standard in power supply efficiency. In addition EarthWatts
includes a variety of protective circuitry: OPP (over power protection), OVP (over
voltage protection), and SCP (short circuit protection).
This power supply is backwards compatible with previous ATX form factor power
supplies. To make sure you connect the power supply properly, please refer to the
user manuals supplied with the motherboard and peripherals before connecting any
of them to the power supply.
The power supply comes with a main power switch. Make sure you turn the
switch to the ON (I) position before you boot up the computer for the first time.
Normally, you won’t need to switch to the OFF (O) position, since the power sup-
ply includes a soft on/off feature. This lets you turn the computer on and off by
using the soft switch on the computer case. If the computer crashes and you can’t
shut it down using the soft switch, you can switch the main power to the OFF (O)
position, to clear the fault, then reboot.
Antec power supply models feature Power Factor Correction (PFC) circuitry in
accordance with European standard regulation code EN61000-3-2. By altering the
input current wave shape, PFC improves the power factor of the PSU. A better
Power Factor increases energy efficiency, reduces heat, improves output voltage
stability and prolongs the life of your equipment. The PSU’s high efficiency design
and quiet fan deliver not only a cleaner but also a quieter operating environment.
The Dual Chamber Structure
The case is divided into two chambers. The motherboard chamber and the power
supply chamber are separated from each other for maximum quiet and optimal
cooling.
Disclaimer
This manual is intended only as a guide for Antec’s Computer Enclosures. For more
comprehensive instructions on installing the motherboard and peripherals, please
refer to the user’s manuals that come with those components.
2
Set Up
1. Take the case out of the box. Remove the foam packing material and
plastic bag.
2. Place the case upright with the power supply fan at the back facing you on a
stable flat surface.
3. Remove the two thumbscrews fastening to the top cover of the case. Set
these screws aside and keep them separate from the other screws.
4. Slide the top panel toward the rear of the case and lift it up.
5. There are tabs at the top of each side panel located in front the power
supply. Lift and pull the side panels out using the tabs.
6. Inside the case you should see the power supply, some wiring (LED’s, etc.),
an installed I/O panel, a power cord and a plastic bag containing more
hardware (screws, brass standoffs, plastic stands, etc.).
Motherboard Installation
This manual is not designed to cover CPU, RAM, or expansion card installation.
Please consult the motherboard manual for specific mounting instructions and
troubleshooting.
1. Lay the case down so that the open side is up. You should be able to see the
drive cage and power supply.
2. Make sure you have the appropriate I/O panel for the motherboard. If the
panel provided is not suitable for the motherboard, please contact the
motherboard manufacturer for the correct I/O panel.
3. Line up the motherboard with the standoff holes, and determine which ones
line up and remember where they are. Not all motherboards will match with
all of the provided screw holes, and this is not necessary for proper
functionality. Some standoffs may be pre-installed for your convenience.
4. Lift up and remove the motherboard.
5. Screw in the brass standoffs to the threaded holes that line up with the
motherboard.
6. Place the motherboard on the brass standoffs.
7. Screw in the motherboard to the standoffs with the provided Phillips-head
screws.
8. The motherboard is now installed.
Connecting the Power and LED
The power supply conforms to the ATX12V v2.2 standard. Before you connect
the power supply to any of the devices, please consult the appropriate user
manuals for the motherboard and other peripherals.
1. You will need to route the cables from
the power supply to the rest of the case.
You can use either of the two holes in
picture 1. One is narrow and will work for
all types of power and interface cables
except PCI-E or the main 20 or 24-pin
connector. Those larger connectors must
be routed through the side.
2. Connect the 24-pin Main Power Connector and the 4-pin 12V connector to
the motherboard. If the motherboard uses a 20-pin connector then detach the
4-pin attachment on the 24-pin power connector (see pictures 2 and 3).
Picture 1
