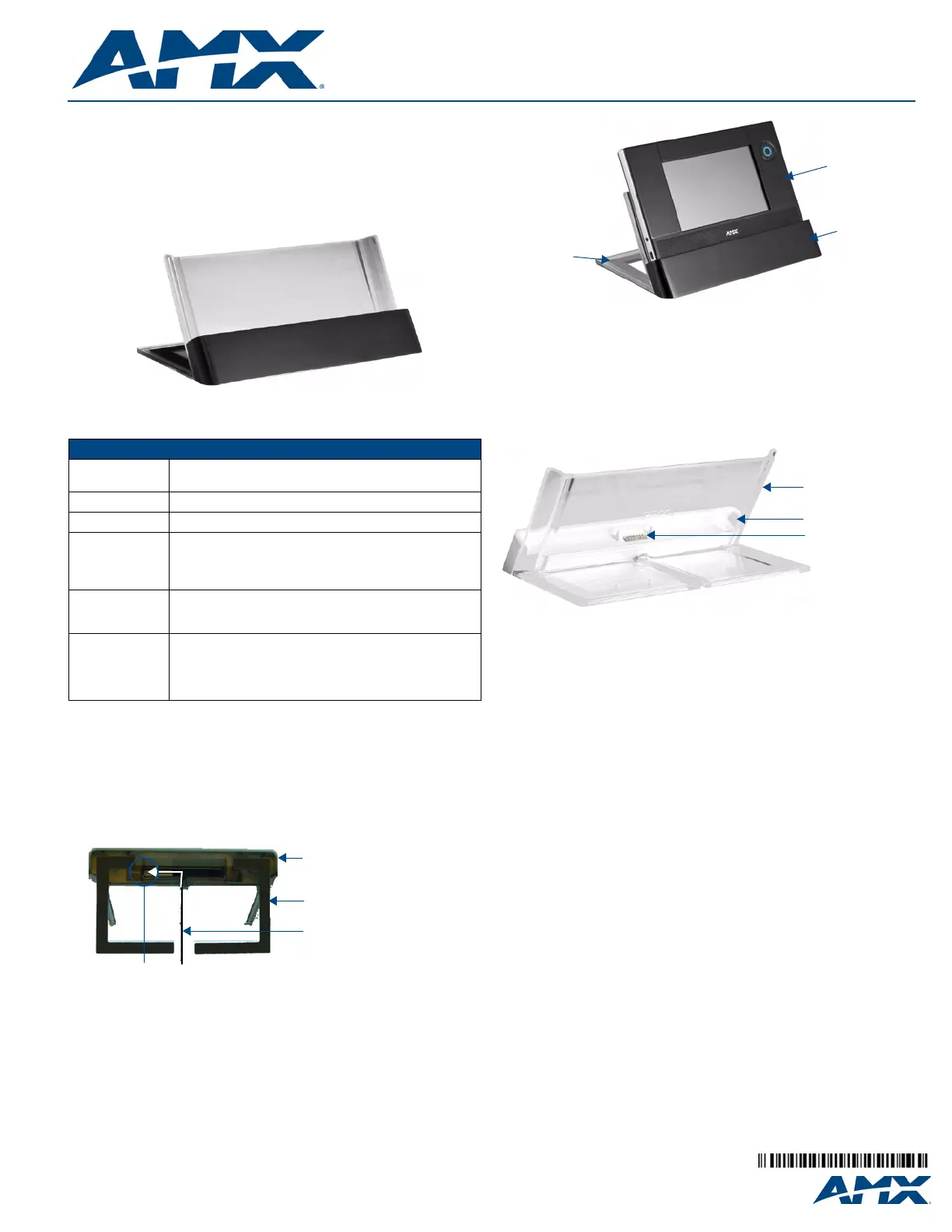

Installation Guide
MVP-TCS-52 Table Charging Station
For full warranty information, refer to the AMX Instruction Manual(s) associated with your Product(s).
1/08
©2008 AMX. All rights reserved. AMX and the AMX logo are registered trademarks of AMX.
AMX reserves the right to alter specifications without notice at any time.
3000 RESEARCH DRIVE, RICHARDSON, TX 75082 • 800.222.0193 • fax 469.624.7153 • technical support 800.932.6993 • www.amx.com
93-5966-02 REV: A
Overview
The MVP-TCS-52 Table Charging Station (FG5966-1X) is both a charging
station and a direct power connection for the MVP-5200i Modero ® Viewpoint®
Widescreen Touch Panel. The charging station is available in either white
(FG5966-11) or black (FG5966-10). For more information, please refer to the
Accessories section of the MVP-5200i Modero Viewpoint Widescreen Touch
Panel User Manual, available at www.amx.com.
Specifications
Powering the MVP-TCS-52
The MVP-TCS-52 uses a PS3.0 power supply to provide direct power for the
MVP panel both for standard function and for charging its internal battery.
1. Turn the device upside down and connect the terminal end of the PS3.0
power supply to the PWR connector on the bottom of the MVP-TCS-52.
2. To prevent wear on the power supply cord and assure that the device’s
base is in full contact with the table surface, press the cord into the locking
groove running across the bottom of the device (FIG. 2).
3. Provide power to the MVP-TCS by connecting the PS3.0 cord to an
external power source.
4. Place the touch panel in the Charging Station cradle (FIG. 3), guiding it into
place with the locking grooves on each side of the cradle (FIG. 4). When
fully seated, the touch panel’s charging station connector should be in
contact with the Charging Station’s charger pins.
Recharging
To recharge the MVP-5200i, slide the device into the Table Charging Station
cradle bottom-first and make sure the device is fully seated in the Charging
Station. The charger pins in the bottom of the cradle (FIG. 4) must be in contact
with the connector on the bottom of the MVP-5200i for it to start recharging. The
MVP panel will stop recharging automatically once the battery has achieved its
maximum charge.
Cleaning the MVP-TCS-52
You should clean the Table Charging Station after each day’s use to maintain the
device’s appearance. Always use a clean cotton cloth and a spray bottle
containing water or a vinegar-based cleaner, as alcohol-based cleaners can
damage the device. Do not directly spray the device: instead, spray the cloth to
prevent moisture from collecting on the charger pins. Do NOT use an abrasive of
any type to clean the Table Charging Station, as this may permanently damage
or remove the device’s finish.
FIG. 1 MVP-TCS-52 Table Charging Station (FG5966-10)
MVP-TCS-52 Specifications
Dimensions
(HWD): • 8.0” x 4.75” x 3.5” (20.32cm x 12.07cm x 8.89cm)
Weight: • .65 lbs (.29 kg)
Rear Connector: • 12-pin charging connector on bottom of device cradle.
Operating/
Storage
Environments:
• Operating Temperature: 0° C (32° F) to 40° C (104° F)
• Operating Humidity: 20% - 85% RH
• Storage Temperature: -20° C (-4° F) to 60° C (140° F)
• Storage Humidity: 5% - 85% RH
Included
Accessories
• MVP-TCS-52 Table Charging Station Installation Guide
(93-5966-02)
• PS3.0 Power Supply (FG423-30)
Other AMX
Equipment:
• MVP-5200i Modero Viewpoint Widescreen Touch Panel -
Gloss Black (FG5966-01)
• MVP-5200i Modero Viewpoint Widescreen Touch Panel -
Gloss White (FG5966-02)
• MVP-WCS-52: Wall Charging Station (FG5966-1X)
FIG. 2 Power source cable path for bottom of MVP-TCS-52
Power source cable path
Bottom of Charging Station
PWR connector location
Front of Charging Station
FIG. 3 MVP-TCS-52 - Front view with MVP-5200i
FIG. 4 MVP-TCS-52 - Rear view
MVP-5200i device
Table Charging
Charging Station
rear support
Station
Charger pins
Charging Station cradle
Locking groove
