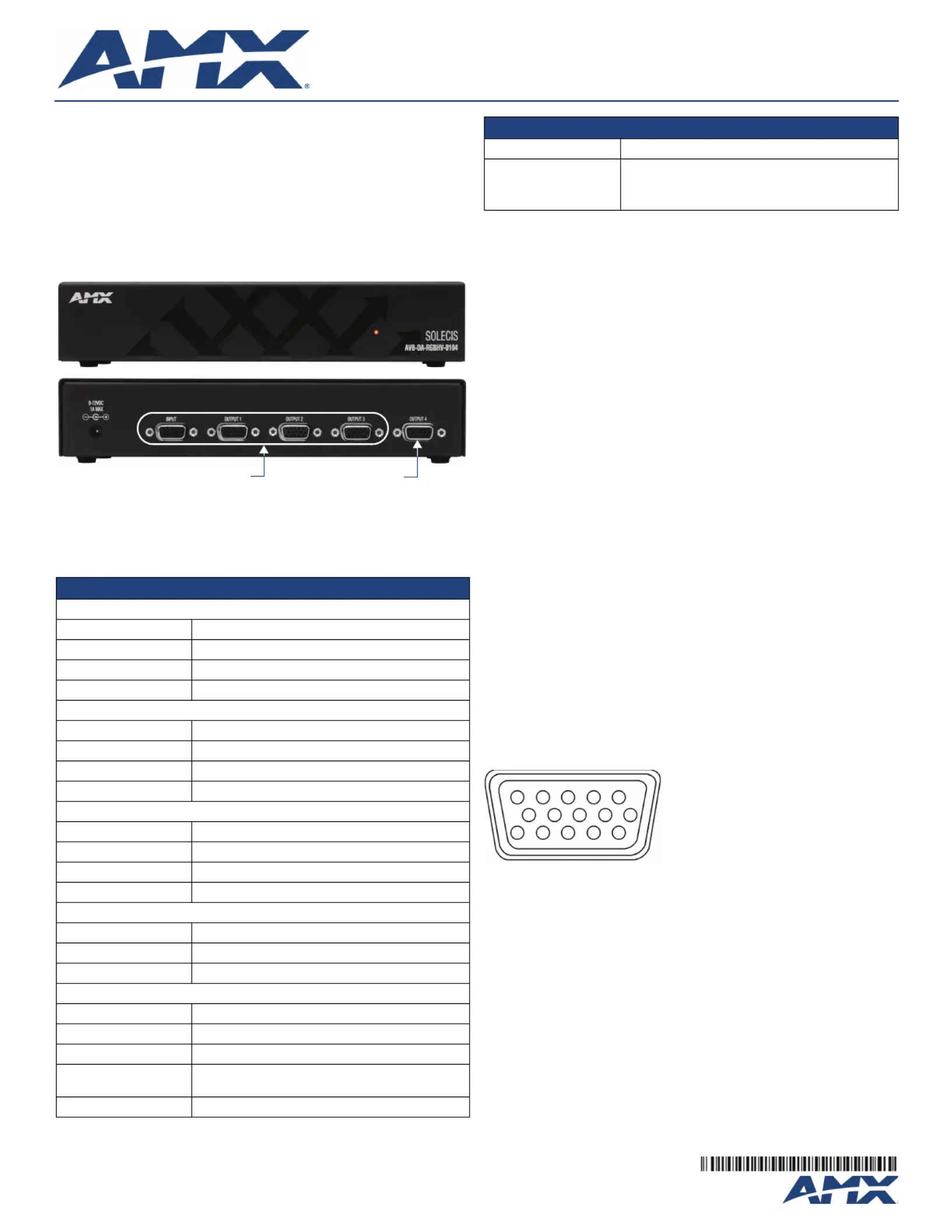

Installation Guide
Solecis AVB-DA-RGBHV-0104
For full warranty information, refer to the AMX Instruction Manual(s) associated with your Product(s).
4/11
©2011 AMX. All rights reserved. AMX and the AMX logo are registered trademarks of AMX.
AMX reserves the right to alter specifications without notice at any time.
3000 RESEARCH DRIVE, RICHARDSON, TX 75082 • 800.222.0193 • fax 469.624.7153 • technical support 800.932.6993 • www.amx.com
REV: F 93-1340-3404-01
Overview
The Solecis AVB-DA-RGBHV-0104 1x4 RGBHV HD-15 Distribution Amplifier
(FG1340-3404-01) is a high quality, wide-bandwidth distribution amplifier. With
video bandwidth exceeding 350MHz (-3dB) the AVB-DARGBHV- 0104 is perfect
for all RGBHV, RGBS, RGsB and YUV type signals.
The terminated inputs and 75 ohm driven outputs make the
AVB-DA-RGBHV-0104 an ideal solution for connection to long cable runs.
The AVB-DA-RGBHV-0104 is housed in a metal enclosure and is powered by
the supplied external power adaptor.
Common Application
Great for delivering up to four outputs over long cable runs.
Product Specifications
Safety Instructions
Please read these instructions before using your AMX Solecis device. Failure to
comply with these instructions could result in fire, electrical shock, personal injury,
death, or damage to the equipment.
Liquid Spills
Do not set drinks on top of the unit or immerse the unit in liquid.
Do Not Disassemble
This device contains no user serviceable parts. All servicing must be performed by a
qualified service technician.
For Safety Reasons
• Do not place the unit on an unstable surface.
• Do not use near water or sources of heat.
• Use only recommended attachments.
• Use the type of power supply as specified.
Unplug the power to the unit and refer servicing to qualified personnel under the
following conditions:
• If liquid has been spilled or the unit has been exposed to rain or water.
• If it does not operate normally when the operating instructions are followed or if
it exhibits a distinct change in performance indicating a need for service.
• If the unit has been dropped or the cabinet damaged.
Connections
PC Source
Connect the PC source to the Input socket on the rear panel of the unit and
connect monitors, projectors etc to the Output sockets.
• The PC video input is 75 ohm terminated.
• The PC video outputs are fully 75 ohm driven for connection to long cable
runs.
Note: It is imperative that the input source is fully compatible with the display
device.
Power
• Connect the supplied power pack to the power socket on the unit.
• Connect the power supply to a MAINS source. The power LED on the front
of the unit will light and the input signal will be present on all 4 outputs.
Video Pin Connections
FIG. 2 provides the pin layout for the HD-15 connectors:
The pin configuration for the HD-15 (video) connector are as follows:
NOTE: Extended Display Identification Data (EDID) is passed via the RGB
Input.
FIG. 1 Solecis AVB-DA-RGBHV-0104
AVB-DA-RGBHV-0104 Specifications
RGB Input (HD-15)
Number: 1
Level: Analog
Max Level: 1V p-p
Impedance: 75 ohm
Sync Input
Type: Analog or TTL
Impedance: 75 ohm
RGB Video Bandwidth: 350MHz -3dB
RGB Return Loss: -45dB@10MHz, -27dB@100MHz
RGB Outputs (HD-15)
Number: 4
Level: Analog
Gain: Unity
Impedance: 75 ohm
Sync Output
Level: TTL
Gain: TTL restore
Impedance: 75 ohm
Power
Input Voltage: 9-12VDC
Power Consumption: 8W
Heat Dissipation: 27.3 BTU/hr
Dimensions (HWD): • 1.86” x 9.10” x 4.25”
• 47.2mm x 231.1mm x 107.9mm
Weight: 3.30 lbs. (1.5kg)
(rear)
(front)
Video OUT 1-4 Video IN
AVB-DA-RGBHV-0104 Specifications (Cont.)
Included Accessories: PS2.8 power supply (FG423-11)
Certifications: • CE
• FCC class B, part 15
• RoHS/WEEE compliant
FIG. 2 RGBHV HD-15 connector
1 - RED 9 - n/c
2 - GREEN 10 - SYNC GROUND
3 - BLUE 11 - n/c
4 - n/c 12 - n/c
5 - n/c 13 - H SYNC
6 - RED GROUND 14 - V SYNC
7 - GREEN GROUND 15 - n/c
8 - BLUE GROUND
12345
678910
1112131415
