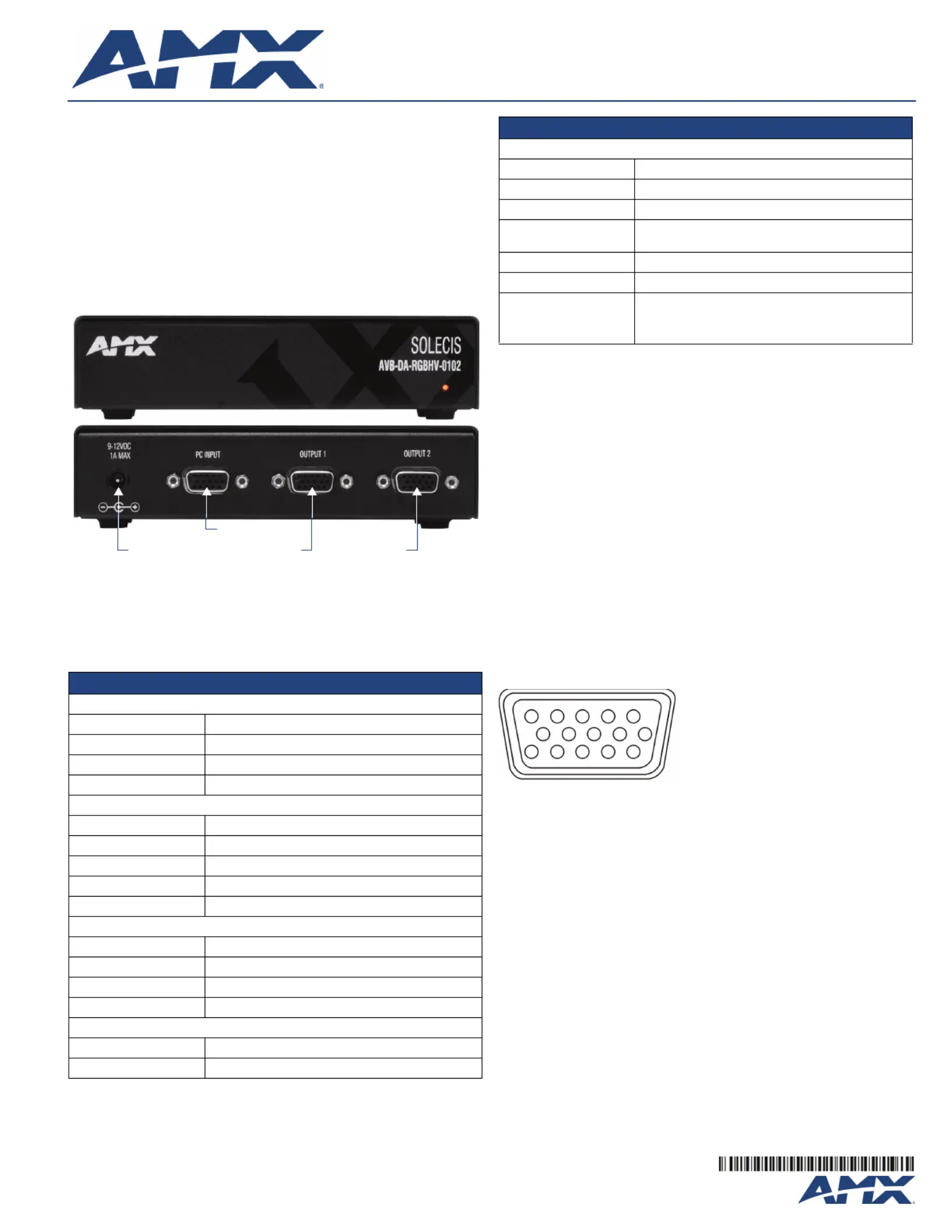

Installation Guide
Solecis AVB-DA-RGBHV-0102
For full warranty information, refer to the AMX Instruction Manual(s) associated with your Product(s).
4/11
©2011 AMX. All rights reserved. AMX and the AMX logo are registered trademarks of AMX.
AMX reserves the right to alter specifications without notice at any time.
3000 RESEARCH DRIVE, RICHARDSON, TX 75082 • 800.222.0193 • fax 469.624.7153 • technical support 800.932.6993 • www.amx.com
93-1340-1200-01 REV: F
Overview
The Solecis AVB-DA-RGBHV-0102 1x2 RGBHV HD-15 Distribution Amplifier
(FG1340-1200-01) is a high-bandwidth, high-resolution 1x2 VGA through to
UXGA distribution amplifier.
The video bandwidth exceeds 350MHz making the AVB-DA-RGBHV-0102 the
ideal choice for all presentation applications. It utilizes buffered outputs to
provide signal integrity when distributing data and video to plasma displays,
projectors and monitors.
By using true, high-quality VGA cable, signal and picture quality can be
extended over long distances. The AVB-DA-RGBHV-0102 also comes complete
with an external 12V power supply.
Common Application
The AVB-DA-RGBHV-0102 is a perfect choice for a variety of presentation
applications requiring up to two outputs.
Product Specifications
Safety Instructions
Please read these instructions before using your AMX Solecis device. Failure to
comply with these instructions could result in fire, electrical shock, personal injury,
death, or damage to the equipment.
Liquid Spills
Do not set drinks on top of the unit or immerse the unit in liquid.
Do Not Disassemble
This device contains no user serviceable parts. All servicing must be performed by a
qualified service technician.
For Safety Reasons
• Do not place the unit on an unstable surface.
• Do not use near water or sources of heat.
• Use only recommended attachments.
• Use the type of power supply as specified.
Unplug the power to the unit and refer servicing to qualified personnel under the
following conditions:
• If liquid has been spilled or the unit has been exposed to rain or water.
• If it does not operate normally when the operating instructions are followed or if it
exhibits a distinct change in performance indicating a need for service.
• If the unit has been dropped or the cabinet damaged.
Video Pin Connections
FIG. 2 provides the pin layout for the HD-15 connectors:
The pin configuration for the HD-15 (video) connectors are as follows:
NOTE: Extended Display Identification Data (EDID) is passed via the RGB Input.
FIG. 1 Solecis AVB-DA-RGBHV-0102
AVB-DA-RGBHV-0102 Specifications
RGB Input (HD-15)
Number: 1
Level: Analog
Max Level: 1V p-p
Impedance: 75 ohm
Sync Input
Type: Analog or TTL
Impedance: 470 ohm
RGB Video Bandwidth: 400MHz -3dB
RGB Return Loss: -45dB@10MHz, -27dB@100MHz
Sync Processing: TTL restore
RGB Outputs (HD-15)
Number: 2
Level: Analog
Gain: Unity
Impedance: 75 ohm
Sync Output
Level: TTL
Impedance: 75 ohm
(rear)
(front)
Video IN
Power
connector Video OUT 1 Video OUT 2
AVB-DA-RGBHV-0102 Specifications (Cont.)
Power
Input Voltage: 9-12VDC
Power Consumption: 3W
Heat Dissipation: 10.2 BTU/hr
Dimensions (HWD): • 1.44” x 5.80” x 2.77”
• 36.6mm x 147.3mm x 70.4mm
Weight: 0.62 lbs. (0.28kg)
Included Accessories: PS2.8 power supply (FG423-11)
Certifications: • CE
• FCC class B, part 15
• RoHS/WEEE compliant
FIG. 2 RGBHV connector
1 - RED 9 - n/c
2 - GREEN 10 - SYNC GROUND
3 - BLUE 11 - n/c
4 - n/c 12 - n/c
5 - n/c 13 - H SYNC
6 - RED GROUND 14 - V SYNC
7 - GREEN GROUND 15 - n/c
8 - BLUE GROUND
12345
678910
1112131415
