Amaran 200x

-3- -4- -5- -6--1- -2-

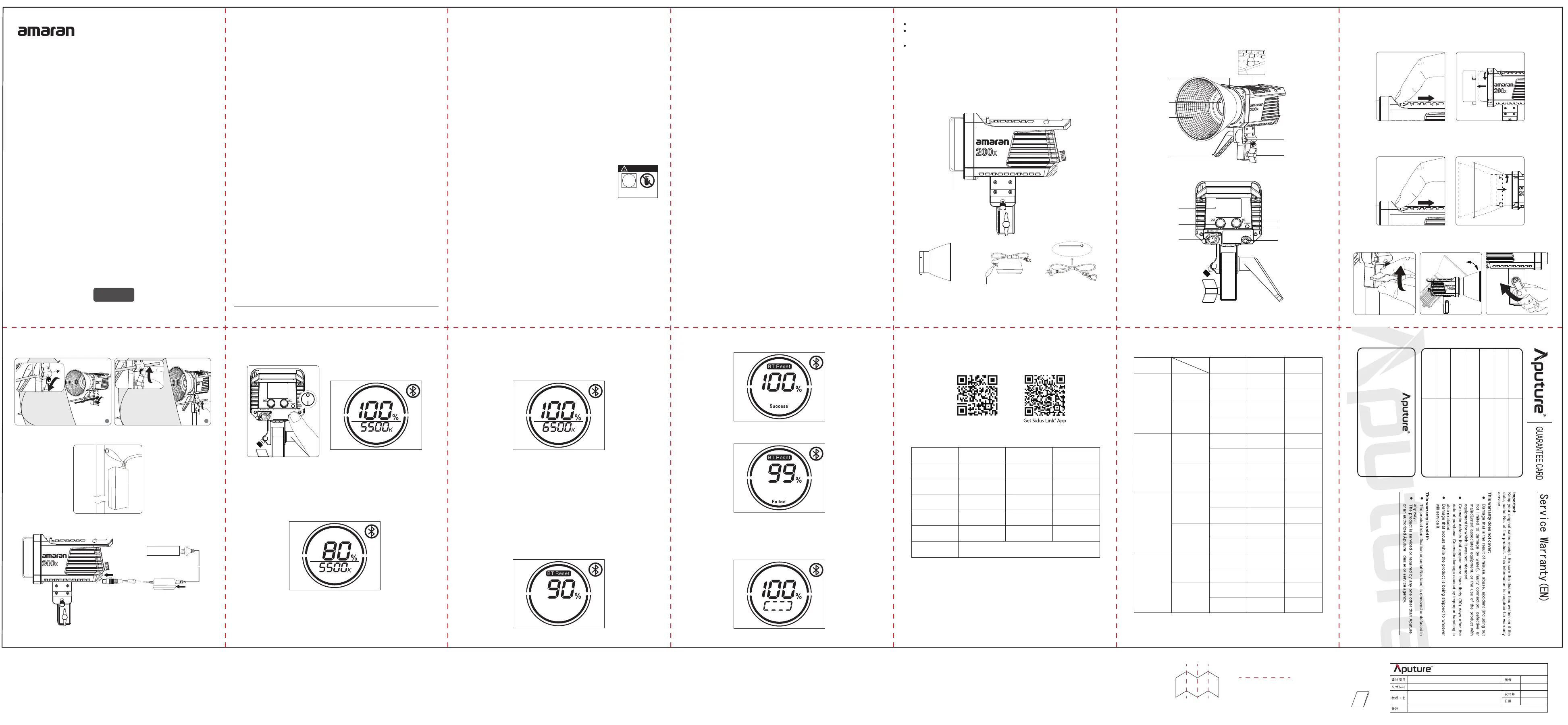

Product Details Installations

1. Light

DC-in connector

Bowens Mount

Release Latch

Bowens Mount

55° Reﬂector

COB LED

Tie Down

Locking handle

Neutrik® powerCON AC

Power Cable (1.5m) (1 pc)

Cable Tie

1. Attaching/detaching the protection cover

2. Installation and removal of 55° Reﬂector

Push the lever handle according to the arrow direction shown in the picture, and rotate the

55° Reﬂector into it.Rotating in the opposite direction pulls out the 55° Reﬂector.

* Notice: Always remove the protection cover prior to turning on the light. Always re-install the

cover when packing it away.

Soft light

umbrella hole

CCT adjusting knob INT adjusting knob

OLED Display

Bluetooth Reset key

Power switch button

3. Setting up the Light

Adjust the lamp body to the appropriate height, rotate tie-down to ﬁx the lamp body on the tripod,

then adjust the lamp body to the required angel, and tighten the lock handle.

DC 48V

207.5x154x164.8mm

5.2A

2.4GHz

2700K-6500K

≥96

≤100m

TLCI

≥95CRI

1m 3m 5m

432 fc 51 fc 20 fc

4650 lux 550 lux 210 lux

3214 fc 316 fc 102 fc

34600 lux 3400 lux 1100 lux

3930 fc 390 fc 130 fc

42300 lux 4200 lux 1400 lux

4794 fc 474 fc 153 fc

51600 lux 5100 lux 1650 lux

4348 fc 427 fc 139 fc

46800 lux 4600 lux 1500 lux

525 fc 62 fc 23 fc

5650 lux 670 lux 250 lux

622 fc 73 fc 28 fc

6700 lux 790 lux 300 lux

553 fc 65 fc 25 fc

5950 lux 700 lux 270 lux

5600K

Illumination

CCT

2700K

3200K

Steel wire

rope (1 pc)

Adapter

(1 pc)

-7-

5. Adapter mounting

Run the wire rope through the adapter clasp and hang it on the bracket.

4. Soft light umbrella installation

Insert the soft light handle into the hole and lock the lock knob on the hole.

The power supply

* Please press the spring-loaded lock button on the power cord to remove the power cord.

Do not pull it out forcibly.

* This is an averaged result, the number might be slightly diﬀerent on each light.

AC 100V-240V

-8- -9- -10-

1. Press the power button to turn the light on and oﬀ

3. Wireless mode adjustment

2. Manual control

Operations

2.1 Brightness adjustment

A. Rotate the INT adjusting knob to adjust the brightness with 1% variable, and the brightness

change range is (0-100) %, and display the change of (0-100) % in real time on the LIGHT body

OLED display;

B. Click the INT adjustment knob to quickly switch the brightness level: 20% 40% 60% 80%→→→

→ →→→→→ → →→→100% 20% 40% 60% 80% 80% 40% 60% 80% 100% cycle switch.

2.2 CCTS adjustment

A. Rotate the CCT adjusting knob to increase or decrease with 100K as the change amount to

change the current CCT value (2700K-6500K), and display (2700K-6500K) CCT value in real time

on the light body display screen.

B. Click the CCT adjustment knob to quickly switch the color temperature shift: 2700K 3200K→

→→→→→→→→4300K 5500K 6500K 2700K 3200K 4300K 5500K 6500K cycle switch.

The user can connect the light body named Amaram 200x-xxxxxx through the bluetooth of the

mobile phone or tablet (Bluetooth serial number). At this time, the light body can be controlled

wirelessly through the mobile phone or tablet.When the light eﬀect is controlled by APP, the

word "FX" is displayed in the upper left corner of LCD.

In wireless mode, 9 lighting eﬀects can be controlled through App: paparazzi, ﬁreworks, faulty

bulb, lightning, TV, pulse, ﬂash, explosion and Fire. And App can control all kinds of light eﬀect

CCT, brightness, frequency.

5. OTA mode

Firmware updates can be updated online via the Sidus Link app for OTA updates.

4. Reset Bluetooth

4.1 Long press the Bluetooth Reset button to reset bluetooth.

4.2 During the Reset process, the LCD displays BT Reset and the Bluetooth icon is ﬂashing, and

the percentage shows the current Reset progress (1%-50%-100%).

4.3 The LCD will display [Success] 2 seconds after the Bluetooth reset is successful.

4.4 If the Bluetooth reset is unsuccessful, the LCD will display [Failure] and disappear after 2

seconds.

4.5 After resetting the light's Bluetooth connection, your mobile phone or tablet will be able to

connect to and control the light.

-12-

Specifications

-11-

Detailed product manual can be found on www.aputure.com .

Product Manual

English

折页方式：

折页成型（英文在正面）：

为折线(不印刷) 177 说明书 AP-177-PR-01

20201019

版本 V1.0

Ingrid

深圳市爱图仕影像器材有限公司

70g 书纸，正反两面印刷

料号：

682.5*280mm 折页尺寸：97.5*140mm

Aputure Imaging Industries Co., Ltd.

Add: F/3, Building 21, Longjun industrial estate,

HePing West Road, Shenzhen, Guangdong

E-MAIL: cs@aputure.com

Sales Contact: (86)0755-83285569-613

Aputure Imaging Industries Co., Ltd. warrants the original consumer purchaser

from defects in material and workmanship for a period of one (1) year after the

date of purchase. For more details of warranty visit www.aputure.com

Serial No.

Item Name

Purchase Date

Buyer Name

Buyer Phone

Buyer Add

Franchiser Seal

Add F/3, Building 21, Longjun Industrial Estate, Heping West Road, Shenzhen, Guangdong:

Aputure Imaging Industries Co.,Ltd.

Inspection: Qualified

IMPORTANT SAFETY INSTRUCTIONS

When using this unit, basic safety precautions should always be

followed, including the following:

1. Read and understand all instructions before using.

2. Close supervision is necessary when any ﬁxture is used by or

near children. Do not leave the ﬁxture unattended while in use.

3. Care must be taken as burns can occur from touching hot

surfaces.

4. Do not operate the ﬁxture if a cord is damaged, or if the

ﬁxture has been dropped or damaged, until it has been

examined by qualiﬁed service personnel.

5. Position any power cables such that they will not be tripped

over, pulled, or put into contact with hot surfaces.

6. If an extension cord is necessary, a cord with an amperage

rating at least equal to that of the ﬁxture should be used.

Cords rated for less amperage than the ﬁxture may overheat.

7. Always unplug the lighting ﬁxture from the electrical outlet

before cleaning and servicing, or when not in use. Never yank

the cord to remove the plug from the outlet.

Thank you for purchasing "Amaran" series of LED

photography lights - Amaran 200X.

Foreword

Amaran 200x is Amaran series of newly designed high cost

performance lamps.Compact structure design, compact and

light, excellent texture.Has a high performance level, such as

high brightness, high indication, can adjust the brightness,

etc.It can be used with the existing Bowens Mount lighting

accessories to achieve a variety of lighting eﬀects and enrich

product usage patterns.So that the product to meet the needs

of diﬀerent occasions light control, easy to achieve professional

level photography.

CAUTION

DO NOT TOUCH LED

Light Source Surface

8. Let the lighting ﬁxture cool completely before storing.

9. To reduce the risk of electric shock, do not immerse this

ﬁxture in water or any other liquids.

10. To reduce the risk of ﬁre or electric shock, do not

disassemble this ﬁxture. Contact cs@aputure.com or take

it to qualiﬁed service personnel when service or repair

work is required. Incorrect reassembly may cause electric

shock when the lighting ﬁxture is in use.

11. The use of an accessory attachment not recommended

by the manufacturer may increase the risk of ﬁre, electric

shock, or injury to any persons operating the ﬁxture.

12. Power this ﬁxture by connecting it to a grounded outlet.

13. Please remove the protective cover before powering on

the light.

14. Please remove the protection cover before using the

reﬂector.

15. Please do not block the ventilation and do

not look at the light directly when it is

powered on.

16. Please do not place the LED lighting ﬁxture near any

liquids or other ﬂammable objects.

17. Only use a dry microﬁber cloth to clean the product.

18. Please have the product checked by an authorized

service personnel agent if your product has a problem.

19. The malfunctions caused by unauthorized disassembly

are not covered under the warranty.

20. We recommend only using the original Aputure cable

accessories. Please note that our warranty for this

product does not apply to any repairs required due to

any malfunctions of unauthorized Aputure accessories,

although you may request such repairs for a fee.

FCC Compliance Statement

21. This product is certiﬁed by RoHS, CE, KC, PSE, and FCC.

Please operate the product in full compliance with the

operation standards. Please note that this warranty does

not apply to repairs arising from malfunctions, although

you may request such repairs on a chargeable basis.

22. The instructions and information in this manual are

based on thorough, controlled company testing

procedures. Further notice will not be given if the design

or speciﬁcations change.

SAVE THESE INSTRUCTIONS

This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions:

(1) This device may not cause harmful interference.

(2) This device must accept any interference received, including interference that may

cause undesired operation.

Warning:

Changes or modiﬁcations not expressly approved by the party responsible

for compliance could void the user's authority to operate the equipment.

NOTE:

This equipment has been tested and found to comply with the limits for a Class

B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses, and can radiate radio frequency energy and, if not

installed and used in accordance with the instructions, may cause harmful interference

to radio communications. However, there is no guarantee that interference will not

occur in a particular installation. If this equipment does cause harmful interference to

radio or television reception, which can be determined by turning the equipment oﬀ

and on, the user is encouraged to try reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment to an outlet on a diﬀerent circuit than the receiver is

connected to.

Consult the dealer or an experienced radio/TV technician for help.

This device has been evaluated to meet general RF exposure requirements.

RF Warning Statement:

Check list

When you unbox the product, please make sure all the items listed below are included.

Otherwise, please contact the seller immediately

200x Lamp

Head (1 pc)

55° Hyper-Reﬂector

(1 pc)

Protection

Cover (1 pc)

Push the handle of the lever in the direction of the arrow shown in the picture, and rotate the cover

to pull it out.Reverse rotation will put the protective cover into.

6. Using the Sidus Link APP

You can download the Sidus Link app from the iOS App Store or Google Play Store for

enhancing the functionality of the light. Please visit sidus.link/app/help for more details

regarding how to use the app to control your Aputure lights.

Sidus.link/app/help

Power Consumption

Cooling Mode Active Cooling

250W maximum

Light Operating

Current

Light Power Supply

AC 100~240V

50/60Hz

Adapter Power Supply

Color Temperature

APP Control Type Bluetooth

Radio Frequency

Remote Ability

Sizes

(L*W*H)

Distance

Bare Bulb

Hyper-Reﬂector

Bare Bulb

Hyper-Reﬂector

Bare Bulb

Hyper-Reﬂector

6500K

Bare Bulb

Hyper-Reﬂector

Photometrics

Amaran 200x

-3-

使用者指南

中文

-4- -5-

物品清单

使用本产品前，请检查包装内是否包含所有以下物品。如有缺失，请与经销商联系。

-6-

FCC 符合声明 :

-1-

您可以在本公司网站 www.aputure.com/cn 中找到本设备的详细使用者指南。

-2-

扩大设备与接收器之间的距离。

将设备连接到其他电路的插座中，而不是接收器所连接电路的插座。

咨询经销商或有经验的无线电/电视机技术人员以获得帮助。

FCC 辐射暴露声明

本设备符合FCC针对未受控制环境所制定的辐射暴露限制。

产品视图安装

1. 灯体

电源插座

顶杆手柄

保荣卡口

标准罩

COB灯珠

紧固手柄

锁紧手柄

灯体 (1 pc)

电源线 (1 pc)

集线绑带

55° 标准罩

(1 pc)

保护罩 (1 pc)

1. 保护罩的拆卸与安装

按照图示箭头方向拨顶杆手柄，同时将保护罩旋转拔出。反方向旋转则将保护罩装入。

2. 标准罩的安装与拆卸

按照图示箭头方向拨顶杆手柄，同时将标准罩旋转装入。反方向旋转则将标准罩拔出。

* 使用时，务必将保护罩拔出，否则会烧掉。不使用时，将保护罩装入以保护灯头。

此设备符合 FCC 规则第 15 部分中的规范。操作设备须符合以下两个条件：

(1) 此设备不会导致有害干扰；

(2) 此设备可承受任何外来干扰，包括可能导致非预期操作的干扰。

【警告】如果用户未经爱图仕明确许可而进行改动或改装，可能会丧失继续

操作该设备的权利。

【注】此设备经测试确定符合 B 类数码设备（依照 FCC 规则第 15 部分规范

）的限制。这些限制的设计旨在为居住场所安装条件下的有害干扰提供合理

的保护。此设备生成、使用并可以发射射频能量。如果未按照指示安装和使

用，可能对无线电通信造成有害干扰。但是，在特定安装条件下，不保证这

类干扰不会发生。如果此设备确实对无线电或电视机接收信号造成有害干扰

，而这点可以通过关闭和打开设备来确定，那么建议用户尝试使用以下一种

或多种措施来消除干扰：

伞孔

色温调节键亮度调节键

显示屏

蓝牙重置键

电源开关

前言

注意

COB灯珠，切勿触碰

感谢您购买“艾蒙拉”系列LED摄影灯—Amaran 200x。

Amaran 200x是艾蒙拉系列全新设计推出的高性价比灯具。该灯具结构设计

紧凑，小巧轻便，质感出色。有较高的性能水平，如高亮度、高显指、能调

节亮度。能够和现有的保荣卡口灯光附件通用，实现多种灯光效果，更加丰

富产品使用形态。使产品满足不同场合的控光需求，轻松实现专业级摄影摄

像。

重要的安全说明

使用此摄影灯时，应始终遵循基本的安全预防措施，包括：

1. 使用前阅读并理解所有说明。

2. 当儿童靠近设备或使用设备时，必须进行密切监督。在使用设备时，请

勿将设备置于无人看管状态。

3. 必须小心接触高温部件防止被烫伤。

4. 请勿操作电源线损坏的设备以及掉落或损坏的设备，直到合格的维修人

员检查过。

5. 请归置好电源线，防止被电源线绊倒或拉扯电源线导致设备断电，且电

源线不可接触灼热表面。

6. 如果需要延长线，应使用额定电流至少等于设备额定电流的延长线。额

定电流小于设备的电线可能过热。

7. 在清洁和维修之前以及不使用时，务必从电源插座上拔下电器插头。切

勿拉扯电线从插座拔出插头，应抓住插头并拉动来拔出。

8. 在存放前让设备完全冷却。存放时，请将电源线从设备上拔出，待冷却

后归置在手提包对应位置。

9. 为降低电击风险，请勿将本产品浸入水中或其他液体中。

10.为降低电击风险，请勿拆卸本产品，在需要维修时将其交给合格的维修

人员。不正确的重装可能会在随后使用设备时引起电击。

11.使用非制造商推荐的配件可能会引起火灾、电击或人身伤害。

12.请将本产品连接到接地插座。

13.使用前请将保护罩取下。

14.使用标准罩前将EVA内托取下。

15.本产品工作时，请勿遮挡散热孔，勿直视COB灯珠；

任何情况下勿触摸COB灯珠。

16.勿将本产品置于液体或其他易燃，易挥发溶剂附近，避免损坏产品。

17.请用软布、干布清洁本设备。

18.请勿在潮湿的环境下使用本设备，否则有短路或电击的危险。

19.需要维修时请联系授权的维修人员。本设备内有精密电子线路。未经许

可擅自拆卸导致故障不在本司保修范围内，但用户可以付费维修。

20.建议使用爱图仕原厂线缆。由于使用非爱图仕原厂附件导致本产品的任

何损坏，不在本司保修范围内，但用户可以付费维修。

21.本产品已通过RoHS, CE, KC, PSE和FCC认证，请参考相关国家标准使

用和操作。因使用操作不当而造成机器损坏，不在保修范围内，但用户

可以付费维修。

22.此使用者指南依据本公司严格测试制定。设计和规格如有变更，恕不另

行通知。

保存这些说明

3. 固定灯体

调节灯体到合适高度，旋转紧固手柄固定灯体在三脚架上，再调节灯体到需要的角度，

然后把锁紧手柄锁紧。

DC 48V

207.5x154x164.8mm

工作频率

App控制方式

尺寸

（长x宽x高）

功耗（MAX）5.2A

2.4GHz

2700K-6500K

散热方式

色温控制距离

主动散热

250W

≥96 蓝牙

≤100m

灯体工作电流

灯体工作电压

AC 100~240V

50/60Hz

适配器工作电压

TLCI

≥95CRI

裸光源

5600K

标准罩

裸光源

6500K

标准罩

裸光源

标准罩

裸光源

照度

距离

标准罩

CCT

2700K

3200K

钢丝挂绳

(1 pc) 电源适配器

(1 pc)

-7-

5. 适配器挂装

可将钢丝挂绳从适配器扣环穿过，然后挂在支架上即可。

4. 柔光伞安装

将柔光伞伞柄插入伞孔内，锁紧伞孔上的锁紧旋钮。

交流电供电

供电

* 拆卸电源线时，请下拉电源线上的弹簧锁口按钮再拆卸，切勿硬拔。

* 亮度数据为平均数据，不同灯的亮度会有微小差异。

AC 100V-240V

-8- -9- -10-

1. 接通电源，打开灯体电源开关。

3. 无线模式调节

2. 手动控制

操作

2.1 亮度调节

a.旋转亮度调节旋钮，以1%的变量调节亮度，亮度变化范围为（0-100）%，

并且在灯体显示屏上实时显示（0-100）%的变化；

b. 点击亮度调节旋钮可快速切换亮度档位：20%→40%→60%→80%→100%

→20%→40%→60%→80%→100%循环切换。

2.2 色温调节

a.旋转色温调节旋钮，以100K为变化量增加或减少，改变当前色温值（

2700K-6500K），并且在灯体显示屏上实时显示（2700K-6500K）色温值。

b.点击色温调节旋钮可快速切换色温档位：2700K→3200K→4300K→5500K

→6500K→2700K→3200K→4300K→5500K→6500K循环切换。

用户可通过手机或平板蓝牙连接名称为Amaran 200x -xxxxxx（蓝牙序列号）

的设备，此时可通过手机或平板无线控制设备。通过APP控制光效时，在LCD

左上角显示【FX】字样。

在无线模式下，可通过App控制9种光效：狗仔队、烟花、故障灯泡、闪电、

电视、脉搏、闪光灯、爆炸、火焰；并且可通过App控制各光效色温、亮度、

频率。

5. OTA 模式

固件升级可以通过Sidus Link app进行OTA在线升级更新。

4. 重置蓝牙

4.1 长按蓝牙重置按键，进行蓝牙重置。

4.2 重置过程中，LCD显示【BT Reset】并且蓝牙图标处于闪烁状态，百分比

显示当前重置进度（1%-50%-100%）。

4.3 蓝牙重置成功，LCD显示【Success】2秒后消失。

4.4 蓝牙重置不成功，LCD显示【Failure】2秒后消失。

4.5 重置蓝牙配对后，设备可通过与灯连接。

-12-

规格

亮度测试数据表

-11-

6. Sidus Link APP的使用

您可以在App store和安卓市场搜索sidus link下载专业控制软件来控制爱图仕灯具，

更多详细使用方法请访问:sidus.link/app/help

Sidus.link/app/help 获取 Sidus Link App

检验：合格

深圳市爱图仕影像器材有限公司

地址：深圳市龙华新区和平西路部九窝龙军工业区

产品编号

产品名称

购买日期

用户姓名

用户电话

用户地址

经销商印章

深圳市爱图仕影像器材有限公司

地址：广东省深圳市龙华和平西路部九窝龙军工业区21栋3楼

邮箱：cs@aputure.com

销售热线：0755-83285569-613

服务热线：400-0999-028

保修条款(中文)

本公司对产品第一买主客户提供为期一年的质量保证期。质保内

容和细节，请登陆我们的网站www.aputure.com。

重要说明：

请保留您原始购买单据及保修卡，确定您购买的供应商资料都在

此单据，同时包括您的购买日期，产品序列号等，这些资料质保服务

时都会需要提供。

质保范围不包括：

产品不当使用，破坏，意外，错误接线，不良或失调的外接装置，

不适合的外接装置所造成的损坏（包括暴露于雨水等损坏），不

在质保范围。

自购买日30天后产品外观的损伤，或是不当的表面处理接触造

成的外观损伤，不在质保范围。

经销商运送所造成的损坏，不在质保范围。

产品序列号标识已经被撕去或无法辨识，本质保条款无效。

产品未经本公司或者指定授权维修公司的检修及改装，本质保

条款无效。

质保无效说明：

1m 3m 5m

432 fc 51 fc 20 fc

4650 lux 550 lux 210 lux

3214 fc 316 fc 102 fc

34600 lux 3400 lux 1100 lux

3930 fc 390 fc 130 fc

42300 lux 4200 lux 1400 lux

4794 fc 474 fc 153 fc

51600 lux 5100 lux 1650 lux

4348 fc 427 fc 139 fc

46800 lux 4600 lux 1500 lux

525 fc 62 fc 23 fc

5650 lux 670 lux 250 lux

622 fc 73 fc 28 fc

6700 lux 790 lux 300 lux

553 fc 65 fc 25 fc

5950 lux 700 lux 270 lux

Produktspezifikationen

Marke:	Amaran
Kategorie:	Nicht kategorisiert
Modell:	200x

Brauchst du Hilfe?

Wenn Sie Hilfe mit Amaran 200x benötigen, stellen Sie unten eine Frage und andere Benutzer werden Ihnen antworten

Ihren Namen*

Deine E-Mail*

Schreiben Sie hier Ihre Frage

Bedienungsanleitung Nicht kategorisiert Amaran

Amaran P60x Bedienungsanleitung

28 August 2024

Amaran F22c Bedienungsanleitung

28 August 2024

Amaran 100x Bedienungsanleitung

28 August 2024

Amaran 200x Bedienungsanleitung

28 August 2024

Amaran 100d Bedienungsanleitung

28 August 2024

Amaran P60c Bedienungsanleitung

28 August 2024

Amaran T2c Bedienungsanleitung

27 August 2024

Amaran T4c Bedienungsanleitung

27 August 2024

Amaran 60x Bedienungsanleitung

11 Februar 2024

Bedienungsanleitung Nicht kategorisiert

Neueste Bedienungsanleitung für -Kategorien-

DAS Audio AX-112-5 Bedienungsanleitung

16 Oktober 2024

Ferplast Ergocomfort Freetime Bedienungsanleitung

16 Oktober 2024

AEG MECK52 Bedienungsanleitung

16 Oktober 2024

Makita UR012G Bedienungsanleitung

16 Oktober 2024

Stihl HT 70 Bedienungsanleitung

16 Oktober 2024

Ernesto H14270 Bedienungsanleitung

16 Oktober 2024

IFM AC901S Bedienungsanleitung

16 Oktober 2024

Nedis RFPOM120FBK Bedienungsanleitung

16 Oktober 2024

AEG E9KLCS01 Bedienungsanleitung

16 Oktober 2024

ART ProChannel II Bedienungsanleitung

16 Oktober 2024
