Video Wall Mount
INSTALLATION MANUAL
CAUT IO N: DO NOT EXCEED
RATED LISTED WEIGHT. SERIOUS
INJURY OR PROPERTY DAMAGE
MAY OCCUR!
200x200
400x200/400x400
600x400
/300x300
AS0364T
70"
MAX
Maintenan ce
• Check that the bracket is secure a nd safe to use at regular intervals(at least every three mo nths).
• Please cont act your distributor if you have any que stions.
9. Lock the Pop-out Module with the Plastic Locking Pieces
I
2
Component Checklist
IMPORTANT: Ensure that you have received all parts according to t he component checklist prior to installation.
If any parts are missing o r faulty, telephone your lo cal distributor for a replac emen t.
Package M
Package W
ST6.3x55 (x6)
W-A
concrete anchor
W-B
(x6) D6 washer (x6)
W-C
1
NOTE: Read the entire instruction manual before you start installation and assembly.
WARNING
M5x14
M-A
(x4) M6x14
M-B
(x4)
washer
M-F
(x4)
M8x20
M-C
(x4)
big
M-H
spacer (x4)
M6x30
M-D
(x4)
M8x30
M-E
(x4) small spacer (x8)
M-G
• Do not begin the installation until you have read and understood all the instructions
and warnings contained in this installation sheet. If you have any questions
regarding any of the instructions or warnings, please contact your local distributor.
• This mounting bracket was designed to be installed and utilised ONLY as
specified in this manual. Improper installation of this product may cause damage
or serious injury.
• This product should only be installed by someone with good mechanical ability
who has basic building experience and fully understands this manual.
• Make sure that the supporting surface will safely support the combined weight of
the equipment and all attached hardware and components.
• Always use an assistant or mechanical lifting equipment to safely lift and position
the equipment.
• Tighten screws firmly, but do not over tighten. Over tightening can cause damage
to the items, This greatly reduces their holding power.
• This product is intended for indoor use only. Using this product outdoors could
lead to product failure and personal injury.
antiskid block (x2)
H
plastic locking piece (x2)
I
wall plate
A
(x1) pop-out module
B
(x1)
M8x12 (x8)
G
M8 nut (x8)
F
adapter bracket (x2)
C
VESA adapter (x2)
D
VESA adapter
E
(x2)
4
3
1. For Solid Brick and Concrete Wall Mounting
Drill pilot holes
2
X X
√
Screw the wall
plate onto
the wall
60mm
60mm
60mm
60mm60mm
(
(
(
((2
2
2
22.
.
.
..4
4
4
44"
"
"
"")
)
)
))
60mm
(2.4")
ø 10mm
(ø 3/8")
Mark the
exact location of
mounting holes
1
Installers must verify that the supporting surface will safely support the combined weight of
the equipment and all attached hardware and components.
WARNING
2. For Video Wall Installation (Mounting space as shown below)
X=Length of display Y=Height of display

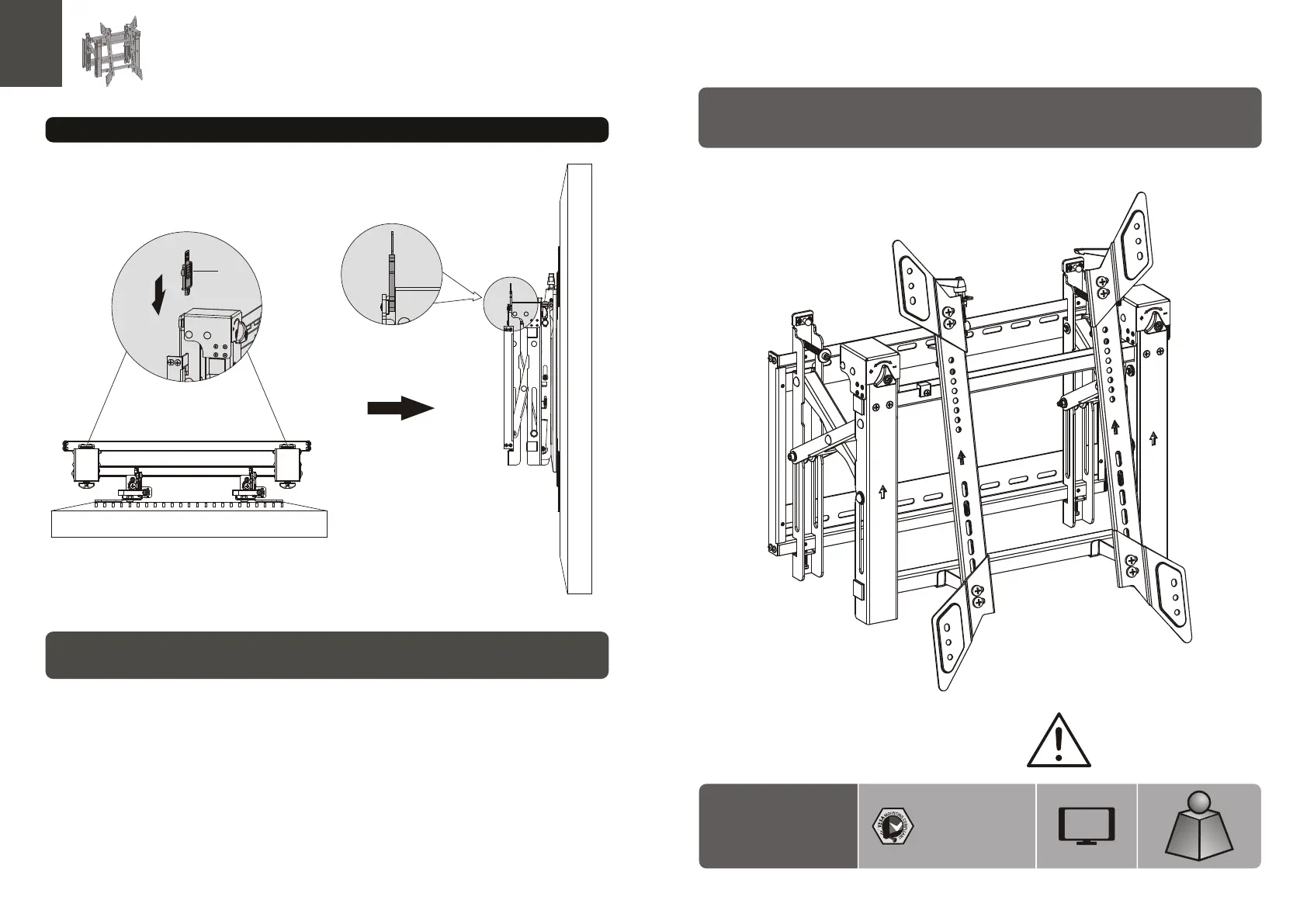

3. Installing the Pop-out Module
Please take off the caps before installation.
W-C
W-A
W-
W-
W-
W-B
B
B
BW-B
X
X
Y+5mm
Y+5mm
B
