Seite 1/44

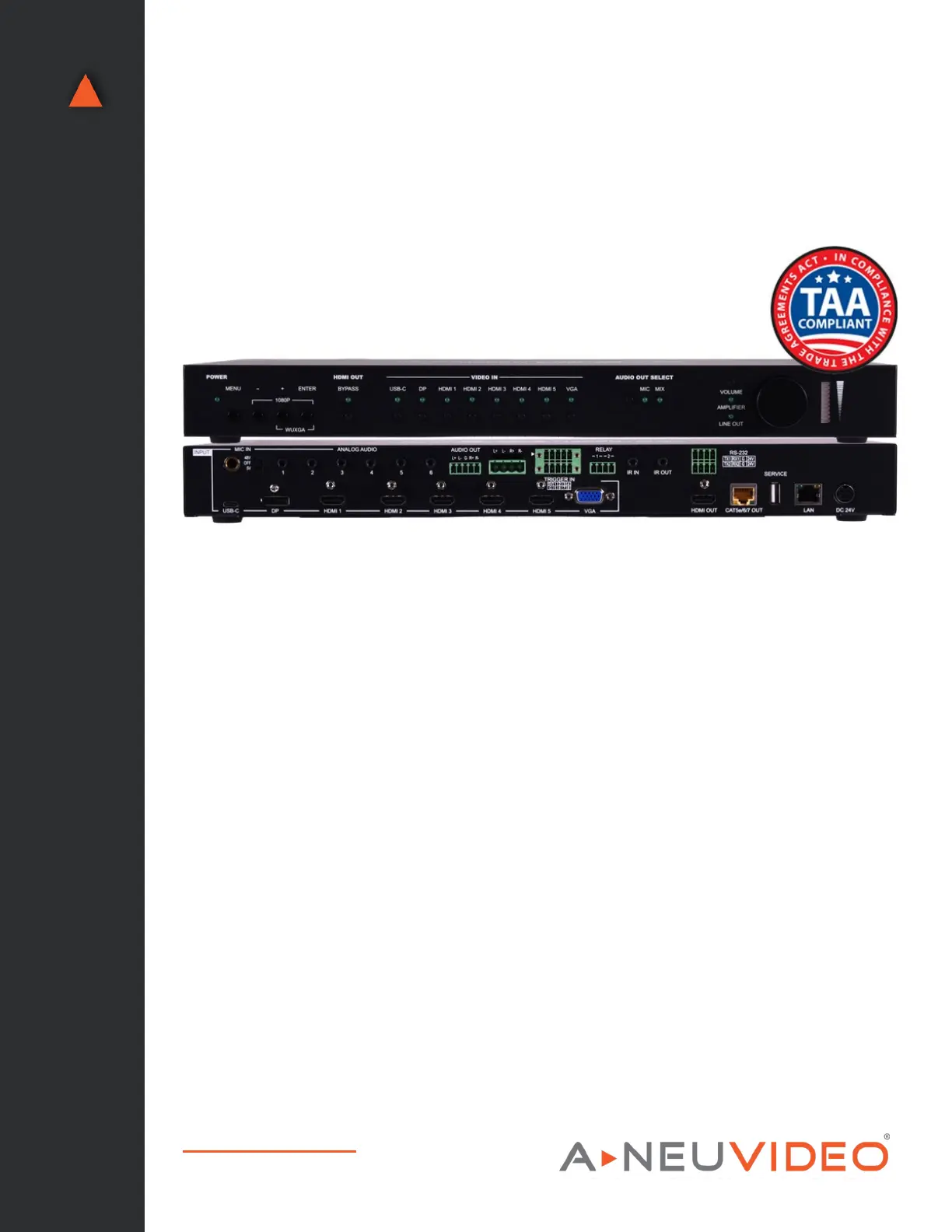

ANI-8X2MFS
8x2 4K@60Hz MULTI-FORMAT HDMI/DP/USB-C/VGA to HDMI/HDBaseT™
SCALER PRESENTATION SWITCH w/ AUDIO
A-NeuVideo.com
Frisco, Texas 75036
INSTRUCTION MANUAL
PACKAGE CONTENTS
Before attempting to use this unit, please check the packaging and make sure the following items are contained in
the shipping carton:
• ANI-8X2MFS UHD+ 8x2 Multi-Format to HDMI/HDBaseT™ Switcher with Scaler
• 24V/6.25A DC Power Adapter
• Rackmount Ears (Set of 2)
• Shockproof Feet (Set of 4)
SAFETY INFORMATION
1. To ensure the best results from this product, please read this manual and all other documentation before operating your equipment.
Retain all documentation for future reference.
2. Follow all instructions printed on unit chassis for proper operation.
3. To reduce the risk of îšżre, do not spill water or other liquids into or on the unit, or operate the unit while standing in liquid.
4. Make sure power outlets conform to the power requirements listed on the back of the unit. Keep unit protected from rain, water and
excessive moisture.
5. Do not attempt to clean the unit with chemical solvents or aerosol cleaners, as this may damage the unit. Dust with a clean dry cloth.
6. Do not use the unit if the electrical power cord is frayed or broken. The power supply cords should be routed so that they are not
likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords and plugs, convenience
receptacles, and the point where they exit from the appliance.
7. Do not force switched or external connections in any way. They should all connect easily, without needing to be forced.
8. Always operate the unit with the AC ground wire connected to the electrical system ground. Precautions should be taken so that the
means of grounding of a piece of equipment is not defeated.
9. AC voltage must be correct and the same as that printed on the rear of the unit. Damage caused by connection to improper AC
voltage is not covered by any warranty.
10. Turn power o󰀨 and disconnect unit from AC current before making connections.
11. Never hold a power switch in the “ON” position.
12. This unit should be installed in a cool dry place, away from sources of excessive heat, vibration, dust, moisture and cold. Do not use
the unit near stoves, heat registers, radiators, or other heat producing devices.
13. Do not block fan intake or exhaust ports. Do not operate equipment on a surface or in an environment which may impede the normal
ow of air around the unit, such as a bed, rug, carpet, or completely enclosed rack. If the unit is used in an extremely dusty or smoky
environment, the unit should be periodically “blown free” of foreign dust and matter.
14. To reduce the risk of electric shock, do not remove the cover. There are no user serviceable parts inside. Refer all servicing to
qualiîšżed service personnel. There are no user serviceable parts inside.
15. When moving the unit, disconnect input ports îšżrst, then remove the power cable; îšżnally, disconnect the interconnecting cables to
other devices.
16. Do not drive the inputs with a signal level greater than that required to drive equipment to full output.
17. The equipment power cord should be unplugged from the outlet when left unused for a long period of time.
18. Save the carton and packing material even if the equipment has arrived in good condition. Should you ever need to ship the unit,
use only the original factory packing.
19. Service Information Equipment should be serviced by qualiîšżed service personnel when:
A. The power supply cord or the plug has been damaged.
B. Objects have fallen, or liquid has been spilled into the equipment.
C. The equipment has been exposed to rain.
D. The equipment does not appear to operate normally, or exhibits a marked change in performance.
E. The equipment has been dropped, or the enclosure damaged.
THIS SAFETY INFORMATION IS OF A GENERAL NATURE AND MAY BE SUPERSEDED BY INSTRUCTIONS CONTAINED WITHIN THIS MANUAL.
TABLE OF CONTENTS
A NEUVIDEO
1
CONTENTS
INTRODUCTION ..........................................................................1
FEATURES ...................................................................................2
SPECIFICATIONS ........................................................................3
VIDEO SPECIFICATIONS ...........................................................4
AUDIO SPECIFICATIONS .........................................................6
CABLE SPECIFICATIONS / HDBASET™ FEATURES .............7
FRONT PANEL ............................................................................8
BACK PANEL ...............................................................................9
IR CABLE PINOUTS & RS-232 PINOUT & DEFAULTS ..........11
OSD MENU ................................................................................12
WEBGUI CONTROL ..................................................................23
TELNET CONTROL / SERIAL & TELNET COMMANDS ..........30
CONNECTION DIAGRAM .......................................................39
OPTIONAL RECEIVER ............................................................40
INTRODUCTION
This 8 by 2 multi-format scaling switcher provides HDMI, USB-C,
DisplayPort, and VGA inputs which can be freely selected for output
at a scaled resolution of the user’s choosing over the mirrored HDMI
and HDBaseT™ outputs. The HDMI, DisplayPort, and USB-C
inputs and HDMI output support resolutions up to 4K@60 (4:4:4,
8-bit) while the VGA input supports resolutions up to WUXGA.
The HDBaseT™ output supports automatic color subsampling of
4K50/60(4:4:4) sources to 4K50/60(4:2:0) and provides a great
solution to extend your audio and video up to 100 meters over a
single run of CAT6A cable as well as providing PoH power to a
compatible HDBaseT™ receiver.
This unit also includes multiple analog stereo audio inputs and a
microphone input along with an ampliîšżed analog stereo output to
provide a range of audio routing and mixing exibility. The built-in
audio mixer function allows the user to mix audio from any LPCM
2.0 source with the microphone input for presentation or lecture
usage. The ability to switch back and forth between mixed and non-
mixed audio greatly simpliîšżes the presentation experience.
A trigger input interface is also provided to allow the easy addition
of a remote control keypad, or other trigger-supporting products,
which can be installed within a podium or within a table in a
conference room or classroom. This interface can allow the user
to activate functions with the simple press of a button. Standard
control is available via front panel buttons with an On-Screen
Display (OSD), WebGUI, Telnet, Triggers, and RS-232 making it
exceptionally versatile.This product has a 3 year warranty.
SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or
operate this equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
• Always follow basic safety precautions to reduce the risk of re,
electrical shock and injury to persons.
• To prevent re or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts
inside the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the
PSU if it is damaged.
• Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
su󰀩cient space for air to circulate around the unit.
DISCLAIMERS
The information in this manual has been carefully checked and
is believed to be accurate. We assume no responsibility for any
infringements of patents or other rights of third parties which may
result from its use.
We assume no responsibility for any inaccuracies that may be
contained in this document. We make no commitment to update or
to keep current the information contained in this document.
We reserve the right to make improvements to this document and/
or product at any time and without notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted,
transcribed, stored in a retrieval system, or any of its part translated
into any language or computer îšżle, in any form or by any means
— electronic, mechanical, magnetic, optical, chemical, manual, or
otherwise — without the express written permission and consent.
© Copyright 2020. All Rights Reserved.
Version 1.0 MAR 2020
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document may be
trademarks of the companies with which they are associated.
