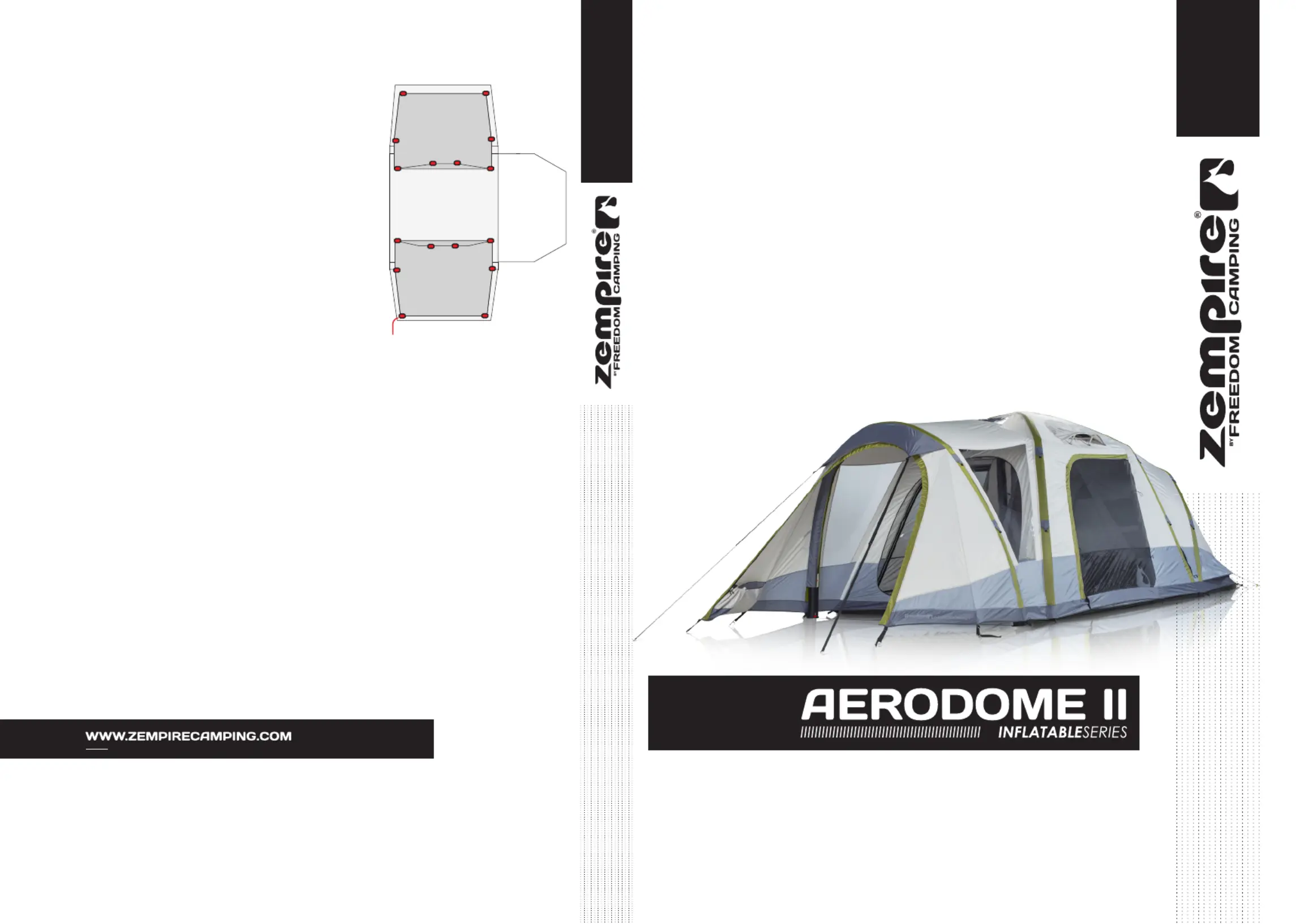

Seite 1/2
INSTRUCTIONS
For a detailed description of all the features and specications
of this product please visit our website.
Tested in New Zealand. Made with care in China
IN THE UNLIKELY EVENT OF YOUR TENT DEVELOPING A LEAK
2. Firstly check all valves are screwed in correctly.
3. Deflate the faulty AERO-FRAME and unzip the flysheet sleeve.
4. Remove the tube from the Outer by cutting the cable tie holding the
zipper ends together and unzip.
CAUTION: DO TO OPEN THESE ZIPS WHEN THE POLE IS INFLATED.
5. Remove the clear tube from the sleeve.
6. Partially inflate the tube and check for leaks (bubbles) in a basin of water.
7. Using the repair patch provided cover the hole and seal.
8. Partially inflate the tube and re insert into the pole sleeve. Zip together.
9. Connect the zipper ends with the replacement Cable ties provided.
INNER TENT ATTACHMENT
1. Lay out the inner inside the tent with
the door facing the centre and the black
floor facing downwards.
2. Attach the buckles at the rear corners
of the tent and connect the toggles on
the inner through the corresponding rings
working your way from the rear to the
front.
3. The room can remain attached when
deflating the tent.
Side Release
Buckles
INSTRUCTIONS
12. It is recommended that guy ropes are
pegged out at all times and windows are
opened whenever possible to allow
adequate ventilation.
Insert pegs at a 45o angle
3. Unzip the triangle Valve Cover
on the Left hand side of the tent
and locate the AERO-FRAME
valves.
1. Clear your site making sure there are no sharp
objects where you are going to pitch your tent. Try
to get a site that is as flat as possible. Spread tent
out, the PVC windows are located at the front.
2. Peg out the 4 peg points on the main body of the
tent as shown.
4. Remove the valves completely and re-screw in to ensure the valve is not
cross-threaded. Screw in firmly but do not over tighten. Open the valve caps.
5. The Pump features a double hose adapter
which allows two tubes to be inflated at the
same time.
Ensure the pump is configured as per the
following diagram.
Attach the of the hoses to the AERO-FRAME
valve inlets.
6. AERO-FRAME. Begin to inflate the centre and left hand side
Have someone walk inside to help raise the frame during
inflation. Inflate to 7 PSI.
DO NOT INFLATE ABOVE 8PSI. THIS MAY CAUSE DAMAGE
TO THE POLES AND THE TENT.
7. Once inflated to the correct pressure, remove the pump hoses and securely attach
the valve caps. Close theValve Cover.
8. Inflate the front awning and the
Right Hand Side Room
AERO-FRAME following the same
procedure as above, then remove
the hose and securely attach the
valve caps.
9. Peg out the remaining peg points around
the tent ensuring that the floor sits flat. It is
easier to align the front door correctly with
the door closed.
10. Peg out the front and rear anchor
webbings. These should sit at a 45o angle to
the ground.
DEFLATION
1. AERO-FRAME. Remove the valves from the Take care as poles will be under
pressure.
2. AERO- FRAME It may be necessary to remove some excess air from the
before rolling up your tent. This can be done by carefully walking down the
length of the tube towards the valve end.
PSI0
1
2
3
456
7
8
9
10
INFLAT E
DEFL ATE
DOUBLE ADAPTER
PRESSURE GAUGE
PRESSURE RELEASE VALVE
Valve Cover
Peg
points
PSI
0
1
2
3
456
7
8
9
10
Front Inflation Valve
Peg
points
Rear
Anchor
Webbings
Front
Anchor
Webbings
FRONT
Valve Cover
Draft Vents
11. Peg out the 4 draft vents on either side
of the bedrooms. These can be pegged
closed during cooler weather conditions.
Produktspezifikationen
| Marke: | Zempire |
| Kategorie: | Zelt |
| Modell: | Aerodome II |
