IMPORTANT! Installation Requirements
Visit the product page to download the latest rmware, document version,
additional documentation, and conguration tools.
Install the latest rmware to ensure that all features described in this
document are available during and after installation.
Read through the Wiring and Connections section for important wiring
guidelines before creating or choosing premade cables.
Recommended Products
To take full advantage of the features of this matrix, WyreStorm recommends
the following products be used within this product.
RX-70-4K-SCL
Scaling receiver that allows for 4K and 2K screens to be used while
maintaining output of 4K.
RX-70-4K-ARC
HDCP 2.2 receiver with audio in to send audio from built in apps back to the
matrix.
RXF-300-4K
For use with TX-H2X-OM3 when duplex OM3 Multimode ber is required.
RXV-70-4K
For use when content too high in bandwidth for HDBaseT is required, such as
high-framerate HDR or 4:4:4/60.
In the Box
1x MX-1010-H2XC or MX-1616-H2XC
1x Handheld IR Remote
10/16x IR emitters
10/16x IR Broadband Receiver (30KHz to 50KHz)
1x IR Receiver (38Khz)
10/16x 3-pin phoenix to stereo RCA sockets
1x AC Power Cord with US Plug
1x AC Power Cord with UK Plug
1x AC Power Cord with EU Plug
1x USB to UART Serial Cable
2x 4U Rack Ears and Screws
1x Quickstart Guide (This Document)
Additional Information
Visit the product page on to download additional wyrestorm.com
documentation, control drivers, and conguration software.
Copyright © 2018 WyreStorm Technologies | wyrestorm.com
MX-xxxx-H2XC Quickstart Guide | 180622
UK: +44 (0) 1793 230 343 | ROW: 844.280.WYRE (9973)
support@wyrestorm.com
1 of 4
WyreStorm recommends reading through this document in its entirety to become familiar with the product’s features before beginning the
installation process.

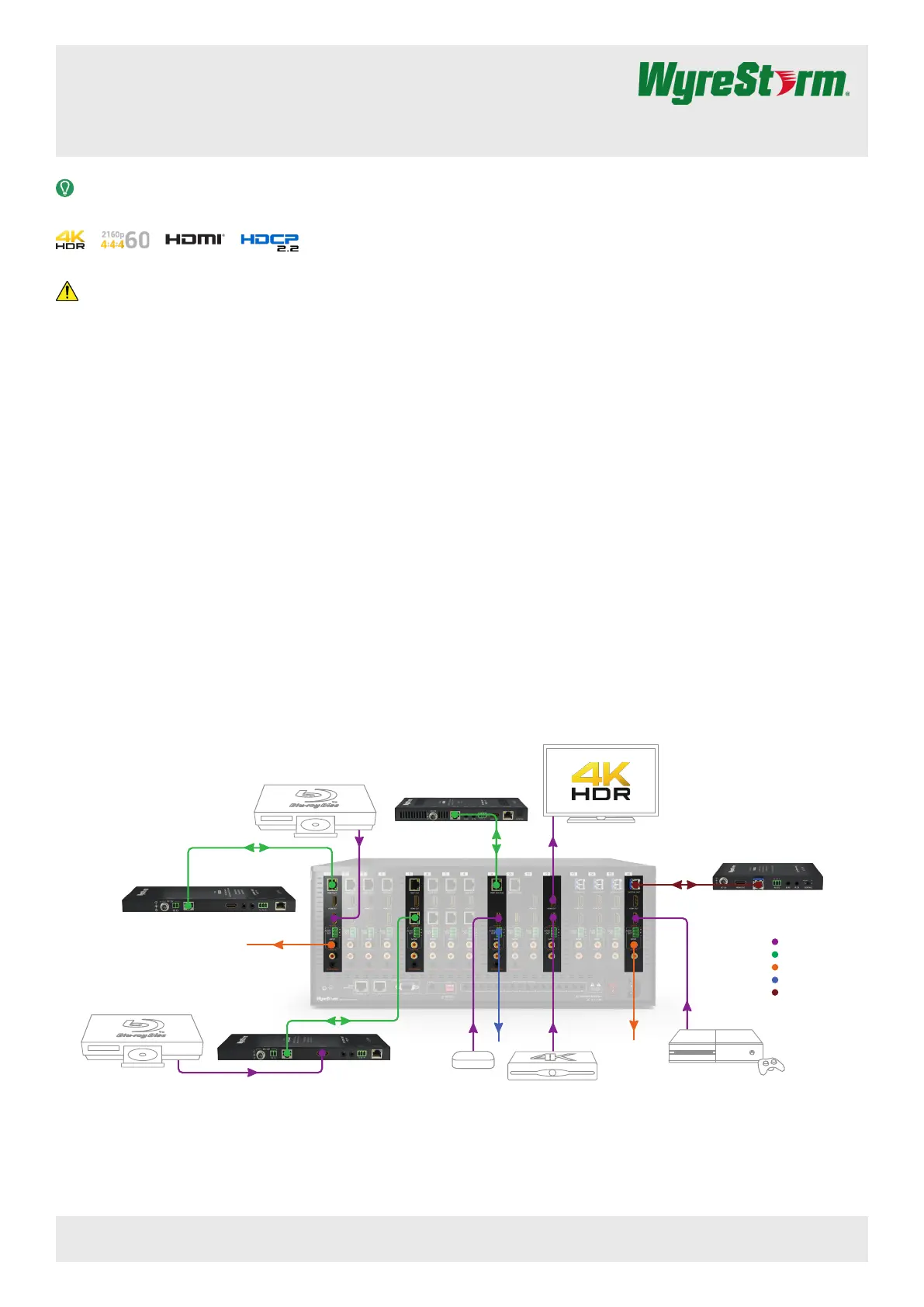

Basic Wiring Diagram
R -70-4K-ARCXV
R -300-4KXF
RX-70-4K
(Used for TX-H2X-HDMI
and TX-H2X-HDBT Cards)
KEY
HDMI
HDBaseT
Digital Audio
Analog Audio
Duplex OM3 Fiber
Blu-ray Player
Blu-ray Player
Games Console
Satellite Box
Media Player
Custom 4K HDR Video Matrix with Audio Matrix & DSP
MX-1010-H2XC | MX-1616-H2XC Quickstart Guide
Wiring and Connections
WyreStorm recommends that all wiring for the installation is run and terminated prior to making connections to the switcher. Read through this section in its
entirety before running or terminating any wires to ensure proper operation and to avoid damaging the equipment.
HDMI/HDBaseT Wiring
IMPORTANT! Wiring Guidelines
The use of patch panels, wall plates, cable extenders, kinks in cables, and
electrical or environmental interference will have an adverse effect on HDMI
and Ethernet transmission limiting performance. Steps should be taken to
minimize or remove these factors completely during installation for best
results.
WyreStorm recommends using high quality HDMI cables such as
WyreStorm Express to ensure the highest content performance available.
The type of category cable and length used can restrict the available video
resolution. While Cat5e can be used, WyreStorm recommends using Cat6
or higher to ensure the highest content performance available. See Video
Resolutions in the Specications table before determining cable type and
length.
IR TX/RX Wiring
IMPORTANT! IR TX/RX Guidelines
WyreStorm IR ports function differently than standard IR ports. For this
reason only WyreStorm IR emitters and receivers can be used.
WyreStorm IR emitter and receiver cables cannot be spliced as cutting
into the cables will short the shield. While an extension cable may be used,
WyreStorm assumes no responsibility for operation using an extension
cable.
When connecting the IR TX to an IR connecting blocks or control system
with different plugs, a cable must be made following the IR TX Port Pinout
diagram.
When connecting to an IR control system use the WyreStorm CAB-IR-LINK
cable. This cable compensates for differences between the WyreStorm RX
and the control systems TX connection. Visit the CAB-IR-LINK product page
for details.
IR TX Port Pinout
Tip: Anode
Sleeve: Cathode (IR Signal)
IR RX/Ext Port Pinout
Tip:
Ring: IR Signal
+5V DC
Sleeve: Ground (GND)
RS-232 Wiring
Most control systems and computers are DTE where pin 2 is RX, this can vary
from device to device. Refer to the documentation for the connected device for
pin functionally to ensure that the correct connections can be made.
5
9 8 7 6
4 13 2
Outside of DB9 chassis port shown.
Unidnetified pins have no function and should
not be connected.
Pin 3: RX (Receive)
Pin 2: TX (Transmit)
Pin 5: GND (Ground)
Audio Wiring
Tip: Signal (+)
Shield: Ground/Return (-)
Copyright © 2018 WyreStorm Technologies | wyrestorm.com
MX-xxxx-H2XC Quickstart Guide | 180622
UK: +44 (0) 1793 230 343 | ROW: 844.280.WYRE (9973)
support@wyrestorm.com
2 of 4
EDID Settings
EDIDs can be congured to resolve issues with video output on displays that may not accept the maximum resolution available from the source.
When set to Smart EDID (default) the matrix will scan all selected displays for the lowest resolution to dynamically adjust the source content to allow output
on 2K and 4K displays sharing the same source.
When EDID Copy or a direct EDID is being used, SmartEDID is turned Off.
Ensure that a display is connected and powered On to the selected output before copying EDIDs or the copy will fail. When this occurs, EDID will be set to
4K@30Hz 2ch.
Power to the matrix must be cycled (Off/On) after changing dip switches in order for the setting to take effect.
Accessing the Web UI
This matrix is set to a default static IP Address (192.168.11.143). In order to communicate with it initially the PC must be set to a192.168.11.xxx address with a
subnet of 255.255.0.0. This can be changed back once a static IP is set within a different range.
1. Connect the matrix to the same network as a PC.
2. Open a web browser and enter the IP Address of the matrix.
Default: 192.168.11.143 | Password: admin
Note: The installer password and general password are the same by default. WyreStorm recommends changing the password for installer login to avoid any
unwanted changes being made to the matrix conguration.
Copying EDIDs
1. Set the EDID dipswitch to the Front Panel, Web UI or API EDID Control
(all switches up).
2. Reboot the matrix.
3. Using the front navigation buttons, select the input port for the output.
Example: Input 2 for Output 2
4. Once the output port indicator blinks, press and hold Enter for 5
seconds. OK indicates that the copy was successful, FL-2 indicates that
the copy failed.
5. Reboot the matrix
Note: EDID settings may also be congured using the Web UI. Refer to the
Accessing the Web UI section.
Troubleshooting
No or Poor Quality Picture (snow or noisy image)
Verify that power is being supplied to all devices in the system and that they
are powered on.
Verify that all source and HDBaseT connections are not loose and are
functioning properly.
Verify that the HDBaseT cable is properly terminated per the HDMI/HDBaseT
Wiring section.
Verify that the matrix, receiving device, and display support the output
resolution of the source. Refer to Video Resolutions in the Specications
table for the max distance based on resolution.
If transmitting 3D or 4K, verify that the HDMI cables used are 3D or 4K rated.
No or Intermittent 3rd party Device Control
Verify that the IR cable(s) is properly terminated.
See IR TX/RX Wiring.
Verify that the IR emitter is located near the IR receiver on the device.
Troubleshooting Tips:
WyreStorm recommends using a cable tester or connecting the cable to
other devices to verify functionality.
Use a ashlight to locate the IR receiver behind any tinted panels on the
device being control
SmartEDID/Front Panel/ Web UI 4K UHD 1080p Standard Video
Smart EDID-Display
Lowest Resolution -
2ch only (default)
4K @60Hz 2ch
No HDR 1080p @60Hz 7.1ch 1920x1200 2ch
Front Panel, Web UI or
API EDID Control
4K @30Hz 5.1ch
With HDR 1080p @60Hz 5.1ch 1920x1200 No Audio
4K @30Hz 7.1ch
With HDR 1080p @60Hz 2ch
4K @30Hz 2ch
With HDR
4K @30Hz 8bit 2ch
No HDR
Copyright © 2018 WyreStorm Technologies | wyrestorm.com
MX-xxxx-H2XC Quickstart Guide | 180622
UK: +44 (0) 1793 230 343 | ROW: 844.280.WYRE (9973)
support@wyrestorm.com
3 of 4
