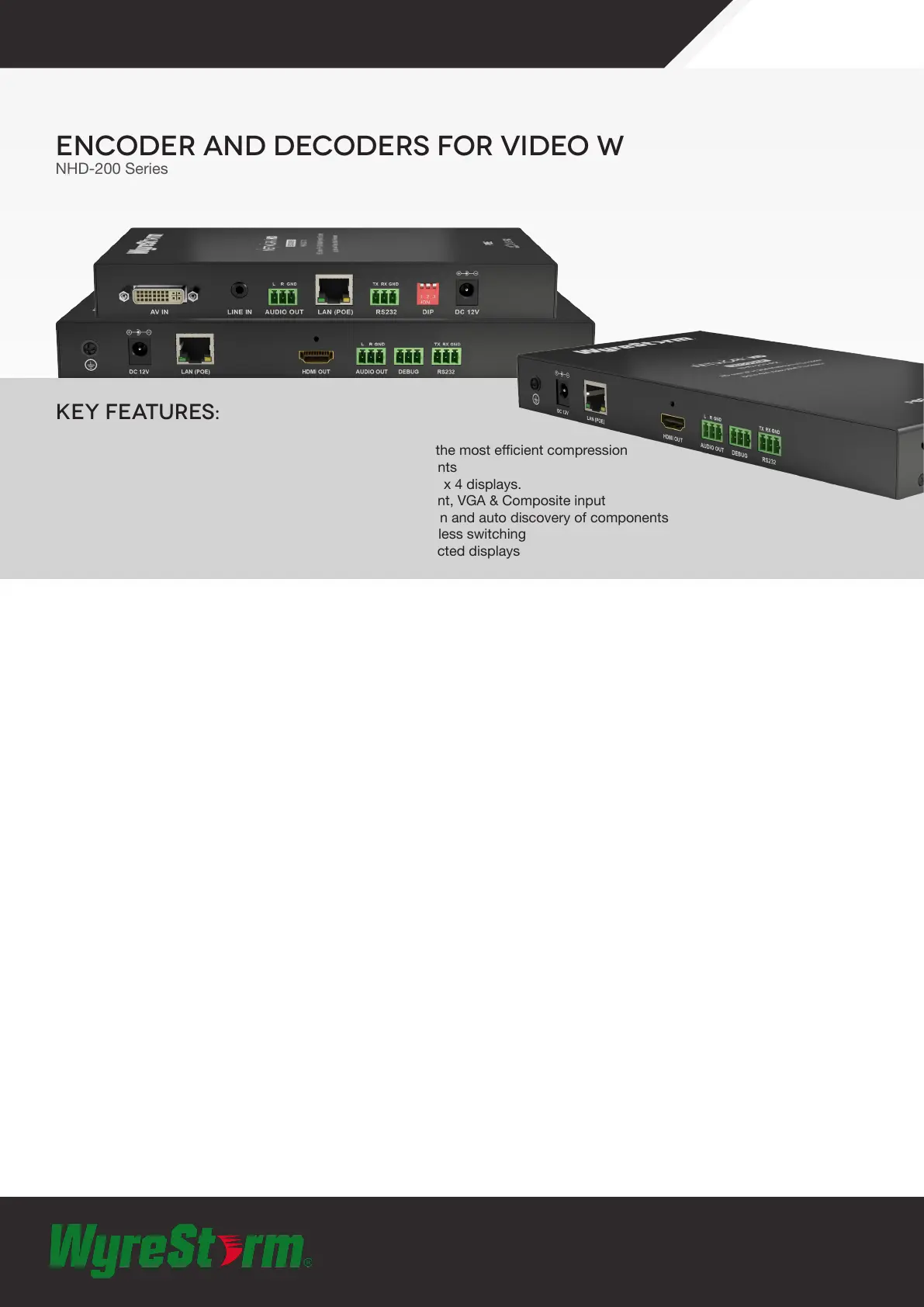

Wyrestorm NetworkHDâ„¢ 200-Series HD Over IP
Encoder and Decoders for video wall
NHD-200 Series
WyreStorm® NetworkHD 200 is our agship H.264 HD over IP distribution platform. With its simple system conguration and
powerful video wall functionality it is the best all round solution for commercial AV installs. Enabling the distribution of multiple
video formats over a dedicated IP network switch for commercial AV applications.
NetworkHD 200 series facilitates the transmission of an HDMI, DVI, Component & VGA signals (including Full HD 1080p video with
2.1 audio) to any number of HDMI displays over standard Ethernet (Cat5e/6) infrastructure. The NHD-200-RX enables the display
of a single image on a display whilst the NHD-210-RX decoder adds video wall playback to the system.
WYRESTORM PRODUCT SPECIFICATION SHEET
• Highly scalable, visually lossless HD over IP solution using the most ecient compression
technology to allow for very large commercial AV deployments
• Powerful video wall functionality (NHD-210-RX only) up to 4 x 4 displays.
• Multi-format DVI-I input selectable to HDMI, DVI, Component, VGA & Composite input
• Plug and Play setup with automatic networking conguration and auto discovery of components
• Quick SyncTM technology for virtually instantaneous, seamless switching
• CEC One-Touch Play & Standby or RS232 control of connected displays
Key Features:
Additional Features & Benefits:
• Supports video previewing on a PC or third party device.
NetworkHD 100 outputs simultaneous IP streams. One full
resolution for the NHD-100-RX. The other small one supports
resolutions of 352 x 288 @ 5Hz to easily preview a video from
the encoder on a PC or Mac
• Use with the new NHD-000-CTL controller for simple
conguration and control via the LAN, as well as for allowing
control from third party control system such as AMX, Crestron,
Control4, RTI & WyreStormTM Enado.
• Supports PoE to enable remote powering from POE network
switches, eliminating the need for a nearby power outlet
• Full PC control suite available free of charge at wyrestorm.com
• Supports HDCP
• Audio Breakout on both Encoder & Decoder
• Congurable encoding bit rate up to 40 Mbps
NHD-000-CTL
1 x NHD-000-CTL Main Unit
1 x Power Adapter (12V 1A DC)
1 x Phoenix Conn.
(Male, 3.5 mm, 3 pins)
2 x Mounting Brackets
5 x IP labels
NHD-200-TX
1 x NHD-200-TX Main Unit
1 x Power Adapter (12V 1A DC)
1 x Detachable Plug
1 x HDMI to DVI Converter
2 x Phoenix Conn.
(Male, 3.5 mm, 3 pins)
2 x Mounting Brackets
NHD-200-RX
1 x NHD-200-RX Main Unit
1 x Power Adapter (12V 1A DC)
1 x Detachable Plug
3 x Phoenix Conn.
(Male, 3.5 mm, 3 pins)
2 x Mounting Brackets
NHD-210-RX
1 x NHD-210-RX Main Unit
1 x Power Adapter (12V 1A DC)
1 x Detachable Plug
3 x Phoenix Conn.
(Male, 3.5 mm, 3 pins)
2 x Mounting Brackets
in the box
US OFFICE:
TEL: +1 518-289-1293
EMEA OFFICE:
TEL: + 44 (0) 1793 230 343
WYRESTORM PRODUCT SPECIFICATION SHEET
Specifications NHD-200-TX
Input Video Ports 1 × DVI IN
Input Video Type HDMI 1.3, DVI 1.0, VGA, YPbPr
Input Video Resolutions HDMI: 640 x 480 @ 60Hz, 480p @ 60Hz, 576p @ 50Hz,
800 x 600 @ 60Hz, 1024 x 768 @ 60Hz, 720p @ 50Hz, 720p @ 60Hz,
1280 x 800 @ 60Hz, 1280 x 1024 @ 60Hz, 1360 x 768 @ 60Hz,
1366 x 768 @ 60Hz, 1400 x 1050 @ 60Hz, 1440 x 900 @60Hz,
1680 x 1050 @ 60Hz, 1080p @ 24Hz, 1080p @ 25Hz, 1080p @ 30Hz,
1080p @ 50Hz, 1080p @ 60Hz, 1920 x 1200 @ 60Hz
DVI: 640 x 480 @ 60Hz, 480p @ 60Hz, 576P @ 50Hz, 800 x 600 @ 60Hz,
1024 x 768 @ 60Hz, 720p @ 50Hz, 720p @ 60Hz, 1280 x 800 @ 60Hz,
1280 x 1024 @ 60Hz, 1360 x 768 @ 60Hz, 1366 x 768 @ 60Hz,
1400 x 1050 @ 60Hz, 1440 x 900 @ 60Hz, 1680 x 1050 @ 60Hz,
1080p @ 24Hz, 1080p @ 25Hz, 1080p @ 30Hz, 1080p @ 50Hz, 1080p @ 60Hz,
1920 x 1200 @ 60Hz
VGA: 640 x 480 @ 60Hz, 800 x 600 @ 60Hz, 1024 x 768 @ 60Hz, 1280 x 1024 @ 60Hz,
1280 x 720 @ 60Hz, 1280 x 768 @ 60Hz, 1280 x 800 @ 60Hz, 1360 x 768 @ 60Hz,
1366 x 768 @ 60Hz, 1440 x 900 @ 60Hz, 1400 x 1050 @ 60Hz,
1680 x 1050 @ 60Hz, 1920 x 1080 @ 60Hz, 1920 x 1200 @ 60Hz
Component: 720 x 480p @ 60Hz, 720 x 576p @ 50Hz, 1280 x 720p @ 50Hz,
1280 x 720p @ 60Hz
Input Video Signal 0.5 ~ 1.2 V p-p
Encoding Data Rate Up to 40 Mbps, congurable
Output Video Ports 1 x LAN
Output Video Type H.264/MPEG-4 AVC
Output Video Resolutions Large IP stream: 480p @ 60Hz ~ 1920 x 1200 @ 60Hz, Small IP stream: 352 x 288 @ 5Hz
Video Impedance 100 Ω
Input DDC Signal 5 V p-p (TTL)
End-to-End Time Latency About 60 ms-90 ms (Low latency mode), About 250 ms-300 ms (High quality mode)
Input Audio Ports 1 x Audio Jack
Input Audio Format Stereo
Output Audio Ports 1 x Phoenix Connector
Output Audio Format Stereo
Control Method Rear panel source switch, PC congurator and RS232
Operating Temperature +32°F ~ +113°F (0°C ~ +45°C) 10% ~ 90%, non-condensing
Storage Temperature -4°F ~ 140°F (-20°C ~ +70°C) 10% ~ 90%, non-condensing
Power 12V 1A DC
Power Consumption 6W (Max.)
ESD Protection Human body model: ±8kV (air-gap discharge) ±4kV (contact discharge)
Surge Protection Voltage ±1 kV
Product Dimensions (WxHxD) 200mm x 25 mm x 94mm / 7.9’’ x 1.0’’ x 3.7’’
Weight 0.48 Kg
Certication CE, FCC, RoHS compliant
For additional product information visit wyrestorm.com
For technical support contact: North America: 1 844-280-WYRE (9973) EMEA/ROW: +44 (0) 1793 230 343 +
Specifications NHD-200-RX & NHD-210-RX
WYRESTORM PRODUCT SPECIFICATION SHEET
Input Video Ports 1 × LAN
Input Video Type H.264/MPEG-4 AVC
Input Video Resolutions 480p @ 60Hz ~ 1920 x 1200 @ 60Hz
Output Video Ports 1 x HDMI
Output Video Type HDMI 1.3
Output Video Resolutions HDMI: 480p @ 60Hz, 576p @ 50Hz, 800 x 600 @ 60Hz, 1024 x 768 @ 60Hz,
720p @ 50Hz, 720p @ 60Hz, 1280 x 800 @ 60Hz, 1280 x 1024 @ 60Hz,
1366 x 768 @ 60Hz, 1440 x 900 @ 60Hz, 1600 x 1200 @ 60Hz,
1680 x 1050 @ 60Hz, 1080p @ 24Hz, 1080p @ 25Hz, 1080p @ 30Hz,
1080p @ 50Hz, 1080p @ 60Hz, 1920 x 1200 @ 60Hz
Video Impedance 100 Ω
End-to-End Time Latency About 60 ms-90 ms (Low latency mode), About 250 ms-300 ms (High quality mode)
Input Audio Ports 1 x LAN
Input Audio Format Audio embedded in streaming media input
Output Audio Ports 1 x Phoenix Connector
Output Audio Format Stereo
Control Method PC congurator and RS232
Operating Temperature +32°F ~ +113°F (0°C ~ +45°C) 10% ~ 90%, non-condensing
Storage Temperature -4°F ~ 140°F (-20°C ~ +70°C) 10% ~ 90%, non-condensing
Power 12V 1A DC
Power Consumption 6W (Max.)
ESD Protection Human body model: ±8kV (air-gap discharge ±4kV (contact discharge)
Surge Protection Voltage ±1 kV
Product Dimensions (WxHxD) 228mm x 25 mm x 111mm / 9’.0’ x 1.0’’ x 4.4’’
Weight 0.6 Kg
Certication CE, FCC, RoHS compliant
US OFFICE:
TEL: +1 518-289-1293
EMEA OFFICE:
TEL: + 44 (0) 1793 230 343
The modular system architecture of NetworkHD 200 removes the limitations of a traditional xed platform I/O matrix system
without compromising quality or reliability, whilst oering signicant cost savings when designing large scale installations. Adding
transmitters and receivers as required enables the system to grow with the needs of the application.
NetworkHD 200 uses multiple technologies to automatically congure and discover system components, making setup a breeze.
Functioning on 10/100 or Gigabit Layer2 SMART switches, NetworkHD 200 does not require advanced integrator network
experience to install, nor does it require complicated VLAN congurations or PC software, making it one of the simplest HD over
IP systems available. Conguring network switches takes minutes through your browser and even the largest distributions can be
quickly and easily congured and expanded.
The NHD-000-CTL controller creates a simple, single interface to congure, manage and control the entire NetworkHD 200
system, whilst also capable of fully integrating with leading control brands including WyreStorm EnadoTM for the highest quality
total HD distribution and control solution over a network.
For further information on this product and other WyreStorm ranges, visit our website or download our latest product guide at
wyrestorm.com
