18Gbps 4K HDR HDBaseT Extender with
HDCP 2.2 and 2-way PoH
EX-70-H2 v2 Quickstart Guide
Copyright © 2019 WyreStorm Technologies | wyrestorm.com
EX-70-H2 v2 Quickstart Guide | 190227
UK: +44 (0) 1793 230 343 | ROW: 844.280.WYRE (9973)
support@wyrestorm.com
1 of 4
WyreStorm recommends reading through this document in its entirety to become familiar with the product’s features prior to starting the
installation process.

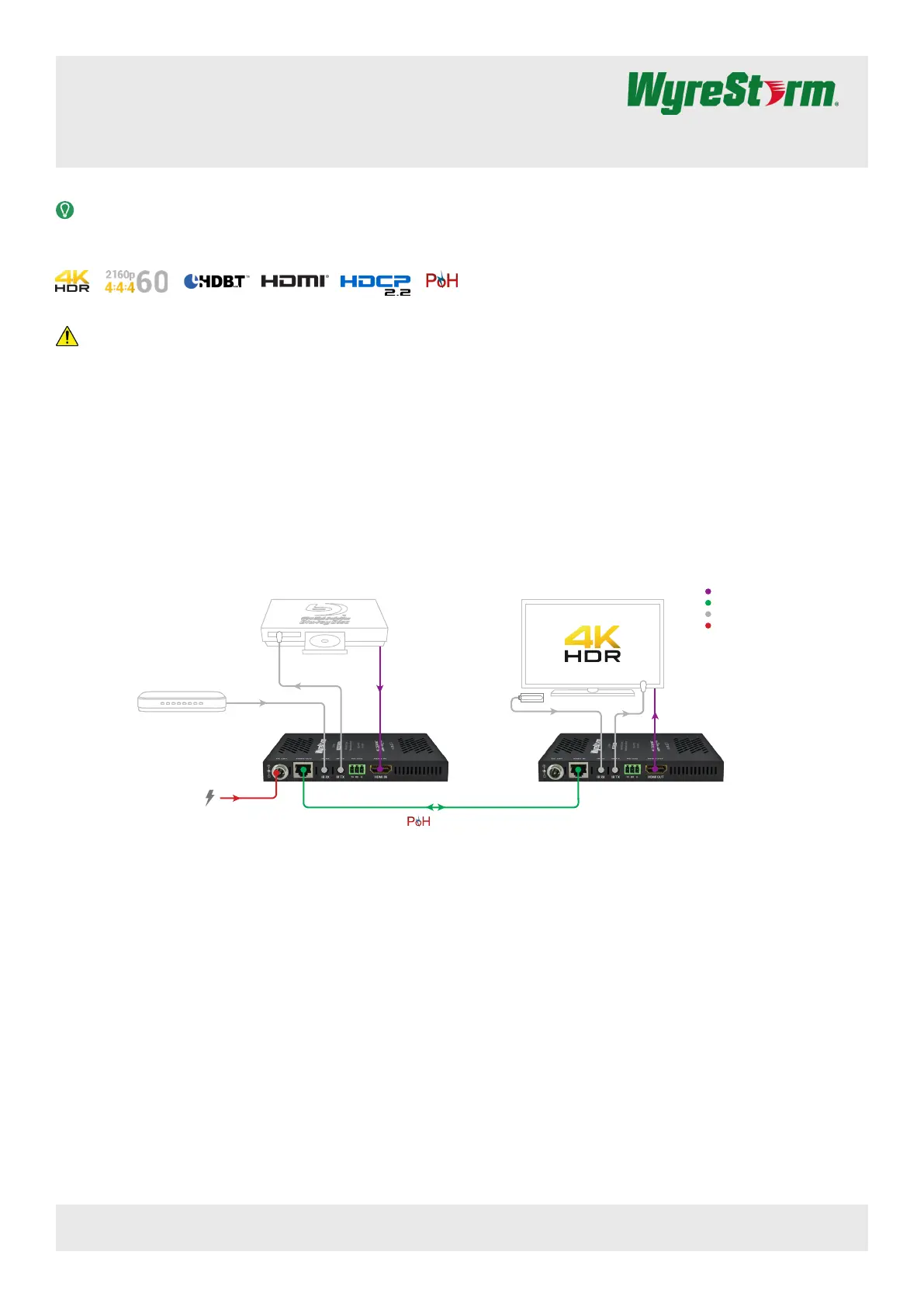

Basic Wiring Diagram
IMPORTANT! Installation Requirements
• This product was released in 2 different versions which contain different
chassis designs and feature sets.
• See Identifying Product Versions for details.
• Visit the product page to download the latest rmware, document version,
additional documentation, and conguration tools.
• Read through the section for important wiring Wiring and Connections
guidelines before creating or choosing premade cables.
• While this product supports CEC, WyreStorm cannot guarantee
compatibility with all forms of CEC communication.
In the Box
1x EX-70-H2 v2 Transmitter
1x EX-70-H2 v2 Receiver
1x IR Emitter
1x IR Receiver
2x 3-pin Terminal Block
1x 18V DC 1A Power Supply (US/UK/EU)
4x Mounting Brackets (2x for TX | 2x for RX)
1x Quickstart Guide (this document)
HDMI
HDMI
IR Emitter
IR Emitter
IR Receiver
18V DC 1A
Power Supply
IR to Control System
CAB-IR-LINK (Sold Separately)
EX-70-H2 Transmitter (TX) EX-70-H2 Receiver (RX)
4K/UHD HDMI Source 4K/UHD HDMI Display
KEY
HDMI
HDBaseT Cat6/7
IR TX and RX
Power
HDBaseT
Cat5e/6/6a/7
Note: Extender set may be powered
by either the TX or RX. Only one
power supply is required.
Front Panel (TX/RX) Rear Panel (TX/RX)
Power LED Solid: The receiver is powered On
Off: The receiver is powered Off
Status LED Flashing: The receiver is operating normally.
Off: The receiver is Not operating normally.
HDCP LED
Solid: HDCP content is present.
Flashing: HDCP content is not present.
Off: No signal.
LINK LED
Solid: Link to receiver has been established.
Flashing: Link to receiver has not been
established.
Power In
5.5mm Screw Down Barrel Jack
Connect to the included 18V DC 1A power
supply to the transmitter or receiver. A power
supply is not required on the other end as it
will be powered using PoH.
HDBT In
HDBT Out
8-pin RJ-45 female
Connect the transmitters HDBT Out to
receivers HDBT In.
IR TX
IR RX
IR TX - 3.5mm (1/8in) Mono Jack: Connect
to the supplied IR emitter to control a local
device from the remote display location via
HDBaseT.
IR RX - 3.5mm (1/8in) Stereo Jack: Connect
to the supplied IR receiver to send IR to the
remote display location via HDBaseT.
See for more IR TX/RX Guidelines
information.
RS-232 1x RS-232: 3-pin Phoenix
HDMI In
HDMI Out
19-pin type A HDMI female
Supports HDMI and DVI/D with adapter
Copyright © 2019 WyreStorm Technologies | wyrestorm.com
EX-70-H2 v2 Quickstart Guide | 190227
UK: +44 (0) 1793 230 343 | ROW: 844.280.WYRE (9973)
support@wyrestorm.com
2 of 4
Copyright © 2019 WyreStorm Technologies | wyrestorm.com
EX-70-H2 v2 Quickstart Guide | 190227
UK: +44 (0) 1793 230 343 | ROW: 844.280.WYRE (9973)
support@wyrestorm.com
3 of 4
Wiring and Connections
WyreStorm recommends that all wiring for the installation is run and terminated prior to making connections to the switcher. Read through this section in it’s
entirety before running or terminating the wires to ensure proper operation and to avoid damaging equipment.
IMPORTANT! Wiring Guidelines
• The use of patch panels, wall plates, cable extenders, kinks in cables, and
electrical or environmental interference will have an adverse effect on
signal transmission which may limit performance. Steps should be taken
to minimize or remove these factors completely during installation for best
results.
• WyreStorm recommends the use of shielded category cable to minimize
signal noise and interference.
• WyreStorm recommends using pre-terminated HDMI cables due to the
complexity of these connector types. Using pre-terminated cables will
ensure that these connections are accurate and will not interfere with the
performance of the product.
.
IR TX/RX Guidelines
• Using WyreStorm infrared emitters and receivers is the best way to ensure
that most IR coding formats are transmitted and received by the NetworkHD
system. Other 3rd party emitters and receivers can be used; however, these
devices must operate in the same manner as the WyreStorm devices.
• Due to differences in IR across 3rd party control systems their IR ports
should never be connected directly to a NetworkHD system as an
incompatibility may exist. WyreStorm offers a cable that compensates for
voltage differences as well adjusts for differences in the pins used within the
port. Refer to the product page for more information.CAB-IR-LINK
IR TX Port Pinout
Connection for IR TX (transmit) uses a 3.5mm (1/8in) mono plug.
Tip: Anode
Sleeve: Cathode (IR Signal)
IR RX Port Pinout
Connection for IR RX (receive) uses a 3.5mm (1/8in) stereo jack that outputs
+5V DC to power the included IR receiver.
Tip:
Ring: IR Signal
+5V DC
Sleeve: Ground (GND)
RS-232 Wiring
The EX-70-H2 uses a 3-pin RS-232 with no hardware ow control. Most
control systems and computers are DTE where pin 2 is RX, this can vary from
device to device. Refer to the documentation for the connected device for pin
functionally to ensure that the correct connections can be made.
3rd Party Device
Pin 1 TX (Transmit) > To > RX (Receive)--- ---
Pin 2 RX (Receive) > To > TX (Transmit)--- ---
Pin 3 G (Gro d) > To > G (Gro d)un --- --- un
WyreStorm Co ectornn
Troubleshooting
No or Poor Quality Picture (snow or noisy image)
• Verify that power is being supplied to the transmitter and receiving device
• Verify that all HDMI and HDBaseT connections are not loose and are
functioning properly
• Verify that the HDBaseT cable is properly terminated following EIA568B
standard
• Verify that the output resolution of the source and display is supported by
this extender
• If transmitting 3D or 4K, verify that the HDMI cables used are 3D or 4K rated.
No or Intermittent 3rd party Device Control
• Verify that the IR and RS-232 cables are properly terminated following the
Wiring and Connections section.
Troubleshooting Tips:
• WyreStorm recommends using a cable tester or connecting the cable to
other devices to verify functionality.
