Seite 1/8
www.wavtech-usa.com

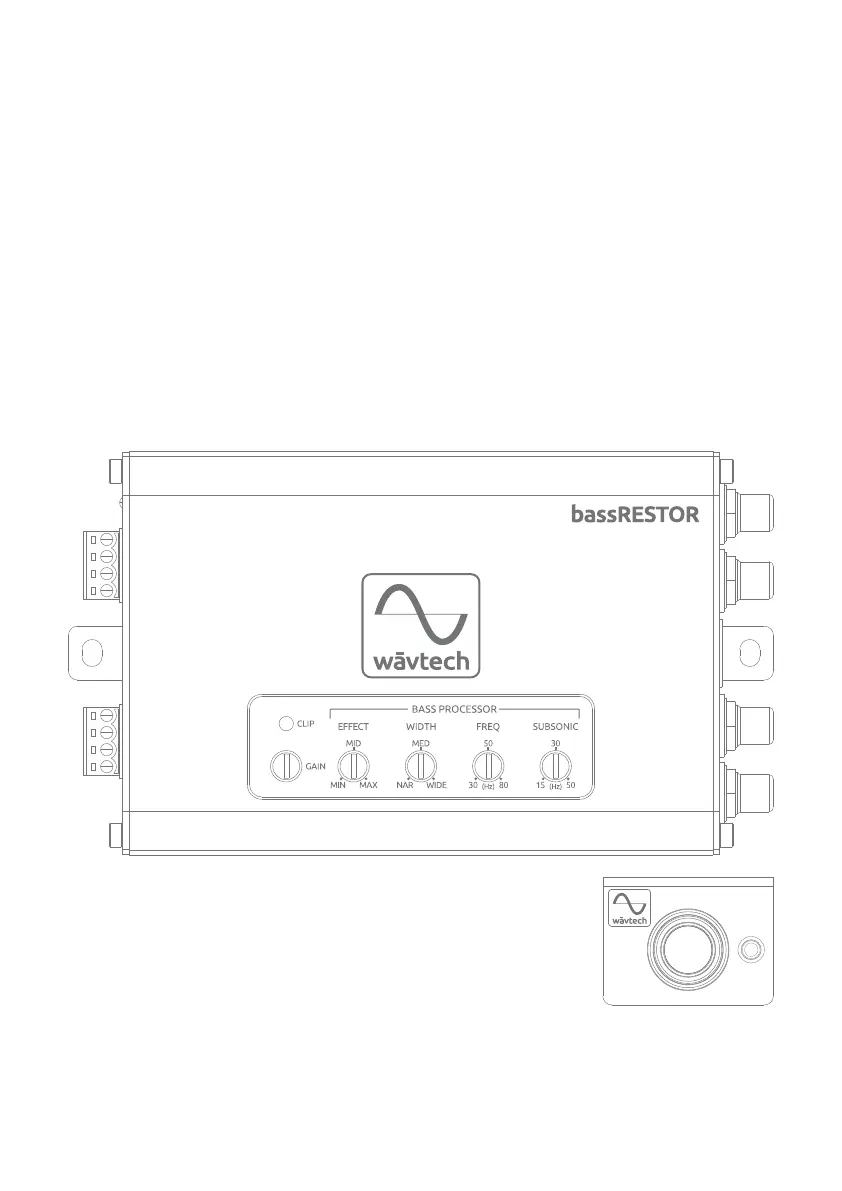

Owner’s Manual
Bass Restoration Processor / LOC / Line Driver
Complete Tuning Control Ÿ Ÿ Multi-Function Remote
bassRESTOR
Auto Turn-On
• Any function that requires your prolonged attention should not be performed DO NOT DRIVE WHILE DISTRACTED.
while driving. Always stop the vehicle in a safe location before performing any such function. Failure to do so may
result in an accident.
• KEEP THE VOLUME AT MODERATE LEVELS WHILE DRIVING. Excess volume levels can obscure sounds such as
emergency vehicle sirens or road warning signals and may result in an accident. Continuous exposure to high sound
pressure levels may cause permanent hearing loss. Use common sense and practice safe sound.
• FOR USE WITH 12V NEGATIVE GROUND VEHICLE APPLICATIONS ONLY. Using this product other than in its
designed application may result in fire, injury or product damage.
• MAKE THE CORRECT WIRING CONNECTIONS AND USE PROPER FUSE PROTECTION. Failure to connect wiring
correctly or use appropriate fuse protection may result in fire, injury or product damage . Ensure proper fusing of all
system power wiring and install a 1-ampere in-line fuse (not included) with the +12V lead to the unit’s power supply
connector.
• DISCONNECT THE NEGATIVE BATTERY TERMINAL BEFORE INSTALLATION. Failure to do so may result in fire,
injury or damage to the unit.
• D O NOT ALLOW CABLES TO BECOME ENTANGLED IN SURROUNDING OBJECTS. Arrange wiring and cables to
prevent obstructions when driving. Cables or wiring that obstruct or hang up on places such as steering wheel, brake
pedals, etc. can be extremely hazardous.
• DO NOT DAMAGE VEHICLE SYSTEMS OR WIRING WHEN DRILLING HOLES. When drilling holes in the chassis for
installation, take precautions so as not to contact, puncture or obstruct brake lines, fuel lines, fuel tanks, electrical
wiring, etc. Failure to take such precautions may result in fire or an accident.
• DO NOT UTILIZE OR CONNECT TO ANY PART OF VEHICLE SAFETY SYSTEMS. Bolts, nuts or wires used in the
brake, airbag, steering or any other safety-related systems or fuel tanks should NEVER be used for mounting, power or
ground connections. Using such parts may disable control of the vehicle or result in fire.
WARNING
WARNING This symbol means important instructions.
Failure to heed them can result in serious injury or death.
CAUTION This symbol means important instructions.
Failure to heed them can result in injury or property damages.
• STOP USE IMMEDIATELY IF A PROBLEM OCCURS. Failure to do so may result in personal injury or damage to the
product. Return it to your authorized Wāvtech dealer.
• HAVE AN EXPERT DO THE WIRING AND INSTALLATION. This unit requires special technical skill and experience for
wiring and installation. To insure safety and proper function, always contact the authorized dealer where you
purchased the product to have it done professionally.
• INSTALL THE UNIT SECURELY WITH SPECIFIED PARTS. Be sure to use only the included parts and specified
installation accessories (not included). Use of other than designated parts may damage this unit. Install the unit
securely so that it will not come loose during a collision or sudden jolt.
• ROUTE WIRING AWAY FROM SHARP EDGES AND MOVING PARTS. Arrange cables and wiring away from sharp or
pointed edges and avoid moving parts such as seat hinges or rails to prevent pinching or wear. Use loom protection
where appropriate and always use a grommet for any wiring routed through metal.
• NEVER RUN SYSTEM WIRING OUTSIDE OR UNDERNEATH THE VEHICLE. All wiring must be routed, secured and
protected inside the vehicle. Failure to do so may result in fire, injury or property damage.
• INSTALL THE UNIT IN A DRY AND VENTILATED LOCATION. Avoid mounting locations where the unit will likely be
exposed to high moisture or heat without adequate ventilation. Moisture penetration or heat buildup may result in
product failure.
• REDUCE GAIN AND SOURCE VOLUME TO MINIMUM LEVELS FOR INITIAL SYSTEM TUNING AND BEFORE
CONNECTION TO AN AMPLIFIER. Ensure amplifier power is off before connecting RCA cables and follow proper
system gain setting procedure. Failure to do so may result in damage to the amplifier and/or connected components.
CAUTION
Package Contents:
Main Unit
Accessories Required for
Installation :(not included)
ŸRCA Interconnects
Ÿ18AWG Wire
ŸIn-line Fuse Holder w/1A fuse
ŸBattery Ring Terminal
ŸWire Crimp Connectors
ŸGrommets and Loom
ŸCable Ties
ŸMounting Screws
1
Remote Level Control
Remote Cable
(16.4ft / 5m)
Terminals
Mounting Tabs
(detachable)
PWR/SPK GND
bassRESTOR
EFFECT
15 50
30
12
BASS PROCESSOR
8030
50MED
NAR WID E
Introduction
Welcome to Wāvtech, exceptional mobile audio integration products for audiophiles. Our products are
engineered to provide a truly remarkable listening experience. Built for the professional installer, our
OEM integration and signal processor models are simply the best solution available for unlimited sound
system upgrades while retaining the factory receiver or with an aftermarket source.
ΠPower Indicator: This red LED indicates when the bassRESTOR is powered on. Once illuminated, there
will be a short delay before audio signal output is enabled. During initial power connections, it may
illuminate for a brief period.
Ground Jumper: For selecting between chassis, isolation or 200Ω for the internal audio signal ground.
Chassis ground is the default setting and ideal for most applications due to the differential input
stage. In the rare case there is system noise present after all other installation countermeasures,
changing this jumper to ISO or 200Ω may reduce or eliminate the noise.
ŽPower Supply Terminal: For +12V battery, chassis ground, remote input and remote output wire
connections. A minimum of 18AWG wire is recommended for power and ground connections. Always
protect the +12V power wire with a 1-amp fuse.
Speaker Level Input Terminal: For left and right channel speaker level (a.k.a. high level) connections to
the source. In the default setting, input signals ranging from 4Vrms to 40Vrms will produce up to
10Vrms RCA output from maximum to minimum gain. If after adjusting all other settings the
bassRESTOR’s output is not enough to maximize system levels at the desired source volume range,
internal jumpers are available to increase input sensitivity by two times (+6dB) for 2Vrms to 20Vrms.
RCA Input Jacks: For left and right channel low level (a.k.a. line level) signal connections to the source.
In the default setting, input signals ranging from 1Vrms to 10Vrms will produce up to 10Vrms RCA
output from maximum to minimum gain. If more output is desired after making all other system
adjustments, the input sensitivity range may be increased by two times (+6dB) via internal jumpers for
0.5Vrms to 5Vrms. Additionally, these differential inputs may be set to unbalanced via internal
jumpers if required for a particular source or to midigate potential for coupled noise if left floating.
‘Remote Level Control Jack: This RJ45 jack is for connecting the remote level control to the main unit
with the supplied cable. A standard ethernet cable may also be used.
’RCA Output Jacks: For left and right channel line level signal connections to your amplifier(s). Each
output is capable of driving multiple amplifier input channels in parallel. Use quality interconnects to
ensure stable connection and minimize the possibility for induced noise.
“Mounting Tabs: These mounting tabs are pre-attached and should be used to properly secure the
bassRESTOR during installation with screws or cable ties. They are removable if the unit can be safely
secured by another method.
”Remote Housing: This 2-piece housing design provides both convenient mounting
and simple dissasembly for customization. The integrated screw mount tabs are
pre-scored to aid removal if securing by another method, and the lower housing
can be detatched by removing the two top screws. For custom panel mounting,
the housing can be completely disassembled by also removing the main knob,
outer ring, shaft nut, circuit board screw and relocating the LED. If the housing is
removed, it is recommended to protect the exposed PCB with heat shrink.
Connections & Functions
2
ŸVariable Gain with Clip LED
ŸAuto Turn-On via DC-Offset or Audio Signal Detect
ŸGenerated +12V Remote Output
ŸOEM Load Detect Compatible
ŸSelectable Ground Isolation
ŸLocking Detachable Power/Speaker Terminals
ŸPanel Mount RCA Jacks
ŸCompact Aluminum Chassis
ŸDetachable Mounting Tabs
Features
ŸBass Restoration Processor
Complete Tuning Control (Effect, Width, Freq)
Variable Subsonic Filter
ŸMulti-Function Remote
Total Output Level
Bass Effect Level with Push On/Off
ŸLine Output Converter or Line Driver
ŸDifferential Balanced Inputs
Ÿ Low Impedance Outputs
‘
’
“
Œ
Ž 
”
