Item # C.S.I. Section 11420
F R Y E R S
P.O. Box 696 ■ Louisville, KY 40201 ■ Toll-free: 1-800-814-2028 ■ Local: 502-778-2791 ■ Quote & Order Fax: 1-800-444-0602
a division of ITW Food Equipment Group LLC
F32900 (08/18)

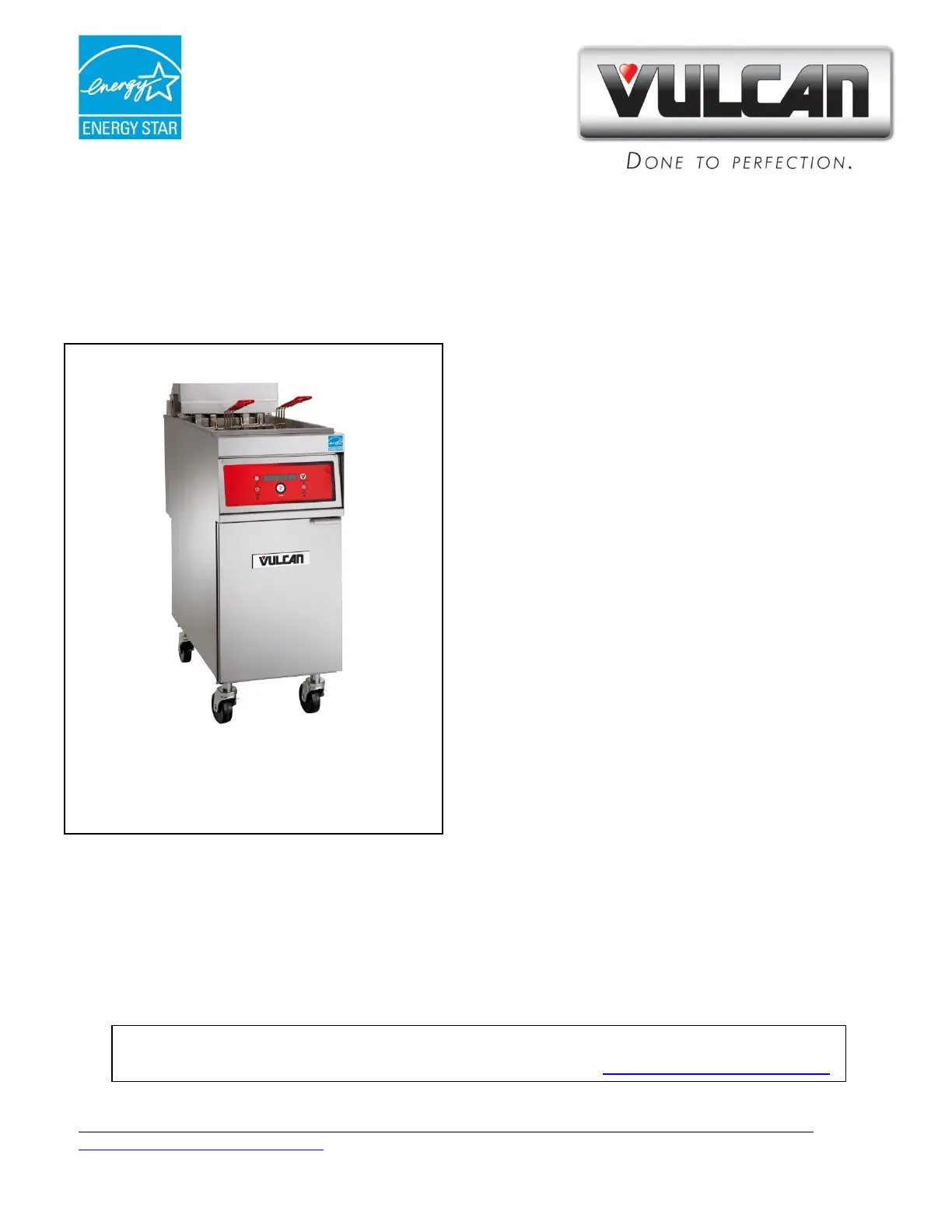

Model 1ER50D
Shown with caster accessory
SPECIFICATIONS
Electric deep fat fryer, Vulcan Model No. (1ER50A) (1ER50D)
(1ER50C). Temperature controls are adjustable from 200°F to
390°F and multiple fat melt cycles and high limit control. Stainless
steel cabinet with four 6" adjustable legs. 16 gauge stainless steel
fry tank holds 50 lbs. of frying compound. 1
1⁄4" full port ball type
drain valve. 17kW low watt density ribbon style heating elements.
Twin fry baskets. Power supply is 208 volt, 50/60 Hz, 3 phase.
Overall Dimensions:
151⁄2"w x 343⁄8"d x 397⁄16"h working height is 353⁄4".
NSF listed. CSA design certied.
Specify voltage when ordering.
1ER50A Solid state analog knob control.
1ER50D Solid state digital controls.
1ER50C Programmable computer controls.
STANDARD FEATURES
■Stainless steel cabinet.
■Set of four 6" adjustable legs.
■16 gauge stainless steel fry tank, 50 lb. capacity.
■Ten year limited fry tank warranty.
■1
1⁄4" full port ball type drain valve.
■17 kW low watt density ribbon style heating elements.
■Multiple fat melt modes.
■High limit control.
■Twin fry baskets with plastic coated handles.
■208 volt, 3 phase.
■One year limited parts and labor warranty.
CONTROLS
1ER50A Solid state knob control. Accurate temperature
control 200°F to 390°F within +/- 2°. Multiple fat melt
modes, fast recovery.
1ER50D Solid state digital read temperature control. Accurate
temperature control 200°F to 390°F within +/- 2°.
Multiple fat melt modes, fast recovery and boil out
mode and two countdown timers.
1ER50C Computer control digital read temperature control.
Accurate temperature control 200°F to 390°F within
+/- 2°. Multiple fat melt modes, fast recovery and
boil out mode. Ten programmable product keys and
ten countdown timers. Secondary and advanced
programming options.
OPTIONAL FEATURES (Factory Installed)
Second year extended limited parts and labor warranty.
ACCESSORIES (Packaged & Sold Separately)
Stainless Steel Tank Cover – doubles as a work surface top
Set of four 6" adjustable casters (2 locking)
Extra set of Twin Fry Baskets – 61⁄2"w x 131⁄4"d x 6"h
Large Single Fry Basket – 13"w x 131⁄4"d x 51⁄2"h
Frymate™ VX15S Dump Station
Connecting Kit(s) – connect two fryers together (banking
strip, brackets and hardware)
10" high stainless steel removable splash guard
1ER50 SERIES
FREE STANDING ELECTRIC FRYERS
P.O. Box 696 ■ Louisville, KY 40201 ■ Toll-free: 1-800-814-2028 ■ Local: 502-778-2791 ■ Quote & Order Fax: 1-800-444-0602
a division of ITW Food Equipment Group LLC
F R Y E R S
F32900 (08/18)
1ER50 SERIES
FREE STANDING ELECTRIC FRYERS
INSTALLATION INSTRUCTIONS
SERVICE CONNECTIONS:
1. Each tank requires it's own separate power supply.
2. Power supply for basket lifts and/or lter motor is wired into
the fryer’s high voltage line terminal block, except for 480V
which requires a separate 120V single phase electrical power
connection NEMA 5-15P service for the basket lifts and lter
motor, (not supplied with fryer).
NOTE: In line with its policy to continually improve its product,
Vulcan reserves the right to change materials and specications
without notice.
1. An adequate ventilation system is required for Commercial
Cooking Equipment. Information may be obtained by writing to the
National Fire Protection Association, Batterymarch Park, Quincy,
MA 02269. When writing refer to NFPA No. 96.
2. All models require a 6" clearance at both sides and rear adjacent
to combustible construction.
3. All models require a 16" (407 mm) minimum clearance to adjacent
open top burner units.
4. This appliance is manufactured for commercial installation only
and is not intended for home use.
ELECTRICAL CHARACTERISTICS
Model
Number
Total kW
Connection
3 PH Loading
kW per Phase
Nominal Amps per Line Wire
3 Phase
208 volt 480 volt 208 volt 480 volt
X-Y X-Z X Y Z X Y Z
1ER50 17 5.6 5.6 47 47 47 20 20 20
This appliance is manufactured for commercial use only and is not intended for home use.
15.50"
(394)
13.69"
(348)
.94"
(24)
15.50"
(394)
3.38"
(86)
34.38"
(873)
49.19"
(1249)
53.33"
(1355)
39.44"
(1002)
6.00"
(152)
28.88"
(734)
35.78"
(909)
25.25"
(641)
21.75"
(552)
