Seite 1/8
Installation/User Guide Installation/User Guide
Before operating the unit, please read this manual thoroughly
and retain it for future reference

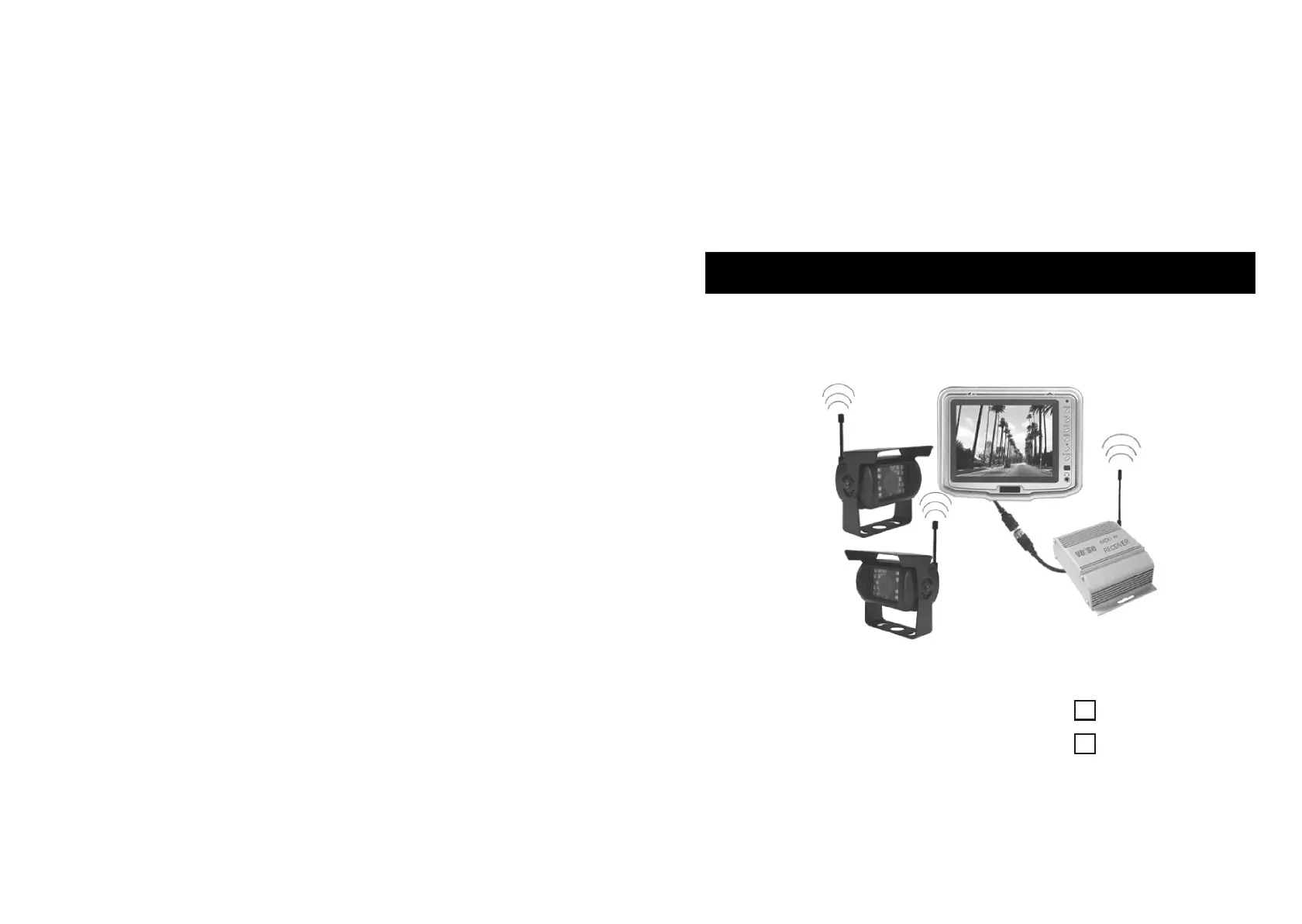

Colour TFT LCD 12/24Volt Colour TFT LCD 12/24Volt
Vehicle Wireless Rear View SystemVehicle Wireless Rear View System
DF-5500
DF-3500

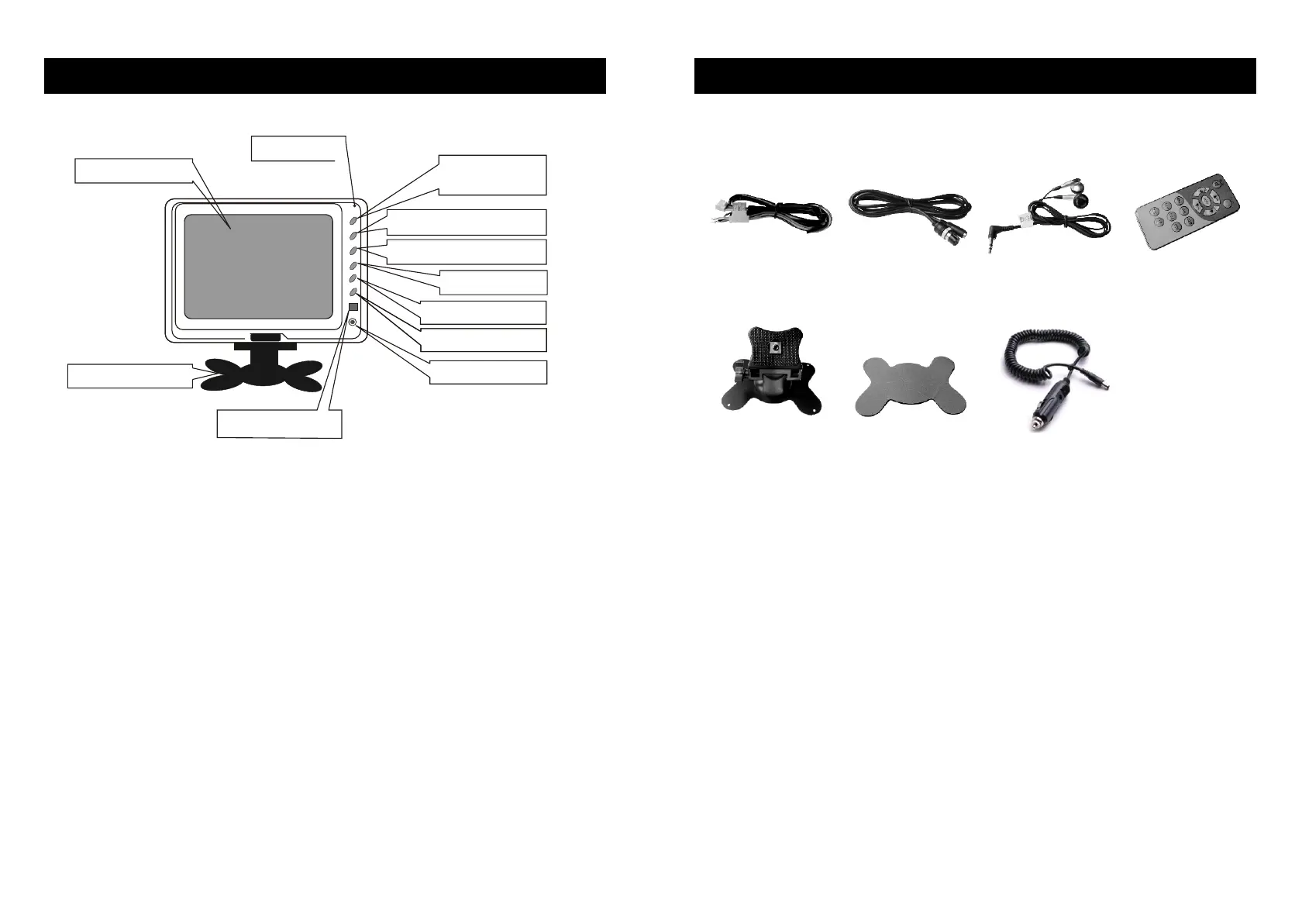

Electrical & Hardware Accessories:
7. ENCLOSURE7. ENCLOSURE
1. TFT LCD MONITOR1. TFT LCD MONITOR
Color LCD screen
Power indicator
Power ON/OFF
Volume increase,analog
quantity selection +
Volume increase,analog
quantity selection -
Menu
Down
AV1/AV2 shift
Earphone Jack
Display base support
Rewmote receiving
window
1-1. Appearance
1-2. Technical Parameters
Product: TFT LCD Color Monitor
Display Device: Color TFT-LCD
Screen Size: 5 inches
Audio Output: 200MW
Loudspeaker: 4.0cm round loudspeaker
Connecting Terminal: Earphone jack,
external power supply input jack, 6 Pin Mini pin connector (Av1,
AV2,Power,Audio,round Input.)
Power Consumption: about 8W
Dot Pitch: 0.107 (H) 0.319 (V)
Resolution: 960 (H) 234 (V)
Viewing Angle: U: 15 / D: 35, R/L: 50
Brightness: 300cd/m2.
Contrast: 150:1
Weight: 430g
Outer Dimension: W 163mm H 125mm T 30.5mm
114
WARRANTY
Veise Electronics warrant to the purchaser that the product
described herein is free from defects in the normal or wordman
ship under normal use for 1 year from date of purchase.During
the warranty peirod,upon proof of purchase,Veise Electronics
will either repair or replace the product without charge for either
parts or labour. The purchaser shall pay all posting and insurance
costs to Veise Electronics and Veise Electronics shall pay all the
retun posting and insurance costs.
This warranty does not cover damage resulting from negligence of
the precautions in the Wiring &Operation instructions,alterations
performed by unauthorized persons and abuse.
The warranties set forth herein are made in lieu of any other
warranties,including implied warranty of merchantability and / or
fitness for purposes.
This warranty does not affect your rights under statutory law.
Support Spacer
EarphoneAutomobile power
supply adapter
B/D/A/V conversion line Remote controller
Car lighter
1. TFT LCD MONITOR1. TFT LCD MONITOR
1.For the sake of safety for yourself and others, please
do not watch or turn on the display during driving.
2.It is dangerous to watch or operate TV while driving.
Warning
!
1-3. OPERATION MANUAL
1. POWER Button
Simply press this button to turn Monitor ON/OFF.
2. AV1/AV2 Shift Button
Use this button to select required Video Input.
As you press this button the screen displays the
selected video input source.
3. VOL-and VOL+ Buttons
These buttons have dual operations,They are used to control the
audio volume and also used to increment / decrement values when
system is in MENU mode.
4. DOWN Button
Use this button to shift down Options whilst in MENU mode.
This enables you to select specific options for adjustment.
5. MENU Button
Pressing this button selects one of Four Menu modes.
These modes are as follows:
2
3.BOX
6. CONNECTION SCHEMATIC DRAWING 6. CONNECTION SCHEMATIC DRAWING
13
NC
Notice:
For one camera system
Please leave the switch off,
It helps to save power and
to maintain the system
5
Field of View:130
B/D/A/V OUT
Signal of reversing bulb/swith(brown)
Poewer input lead(red)
Ground lead(black)
A V 1 IN
Connect to
Vehicle power
VIDEO
(Yellow)
AUDIO
(Red)
CAM1
ANT ANT
CAM2
ANT
Please mount the CAM 1
on the back of the vehick
and connect it with the
CAM 1 jack of the switch
box
Please mount the CAM 1
on the back of the vehick
and connect it with the
CAM 1 jack of the switch
box
DF-3500
(DF-4103W+SP-M50+Box)
DF-3500
(DF-4103W*2+SP-M50+Box)
