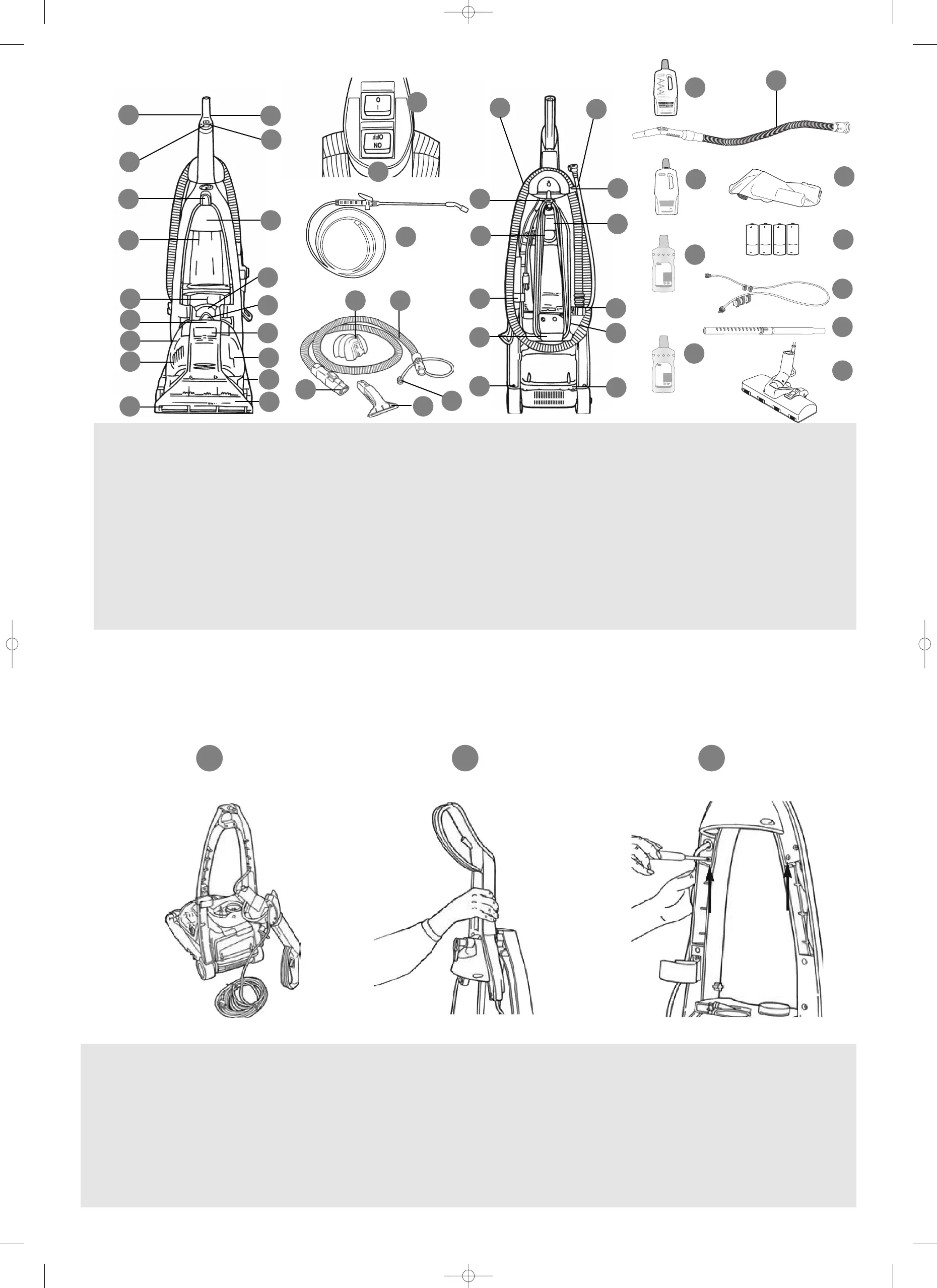

Putting your cleaner together
Remove your Rapide XL from the
carton with caution. The handle is
connected to the body by a cord.
Note: Do not tug or pull on the
cord.
Line up the handle to the upper
body of the machine and slide into
place.
Secure from the back with the
two smaller screws.
Phillips screwdriver required
a Handle
b Solution trigger
c Soap on/off
d Power on/off
e Clean water tank release
f Clean water tank carry handle
g Clean water tank
h Cleaning solution soap tank
i Drain cap
j Hose water supply port
k Dual brushbars
l Front suction nozzle
m Dirty water tank
n Floor/tools selector
o Hose attachment cover
p Dirty water tank handle
q Dirty water tank nozzle tab
r Dirty water tank latch
s Detachable tool storage
t Extra long Stair Hose
u Water supply connector
v Upholstery wash tool
w Upholstery tool trigger
x Solution/hose clip
y Quick cord release
z Carrying handle
aa Clean water tank cap
bb Hose storage clips
cc Power cord
dd Cord wrap
ee Handle release pedal
ff Carpet treatment wand
gg AAA carpet cleaner
hh Multi hard floor solution
ii Pre-treatment solution
jj Post-treatment solution
kk Carpet treatment wand water supply port
ll Flexible hose
mm Power Wash Brush
nn Batteries for power wash brush
oo Solution tube and clips ( 3 large, 2 small)
pp Telescopic tube
qq Hydrodry hard floor wash head
bb
aa
h
d
b
y
bb
xmm
nn
nn
z
f
g
i
j
k
l
m
no
pq
r
c
d
v
w
cc
dd
ii
ee
st
ff
gg
hh
pp
oo
2
multi
pre
treatment
pre-treatment
carpets olution
solution de pr élavage
pour tapis e t moquetest
teppichvorwaschs pr ay
tapit reiniger spray
Parts checklist
oo
kk
u
ll
qq
jj
post
treatment
pre-treatment
carpe t solution
solution de prélavage
pour tapis etmoquetest
teppichvorwas c hs pray
tapit reiniger s pray
V027(Y) User Guide 5/10/06 11:47 am Page 1
4
5
4 5 6
Putting your cleaner together
Feed the cord through the slots on
the back of the handle and push
into place.
Place a nut into the recess in the
back of the upper handle. While
holding the nut in place insert one
of the large screws through the
front of the upper handle and
tighten.
Repeat the process with the second
screw.
Remove the backing tape from the
screw cover and press into place.
12 1
Clean water tank
Note: Make sure the cleaning
solution tank is resting in place with
the solution tube pressed fully into
tube opening.
Line up the grooves of the clean
water tank with the support posts
inside the handle. Tilt the top of
clean water tank inward and push
until it locks into place.
To install the tool caddy, line up the
tabs of the tool caddy storage with
round tabs on the back of the
handle (above quick cord clip).
Tool storage
V027(Y) User Guide 5/10/06 11:47 am Page 2
6
7
234
Tool storage
Slide the tool caddy
downwards until it is
secured in place.
Note: The tool caddy can
be removed for storage on
a wall.
1 2 3
Pre-treating your carpets
with the carpet treatment
wand and solution
Remove the clean water tank by
pressing the clean water tank
release and pulling the tank by
the handle. Put to one side to fill
later.
While the clean water tank is
removed, loosen the solution tank
by gently pushing out the solution
plug from the plug opening.
Note: The solution tank can be
filled while it is attached to the
cleaner but you should use care
when refilling.
Remove the solution tank by
pulling up and out.
Note: After spraying rinse the
machine and carpet treatment
wand with clean water. Wash the
carpet as described in this guide,
using VAX AAA carpet cleaner.
4a
Push the upholstery tool
onto the end of the extra
long stair hose.
Starting on the left of the
machine, wrap the hose around
the back section of the hose
caddy. Wrap the hose around the
back of the machine for a second
and third time using the front,
section of the hose caddy. Secure
in place using the hose clips. To
store the Power Wash Brush,
place on the left hand side of the
machine on the holder provided.
The carpet treatment wand is
stored on the right hand side of
the machine, clipping into place
at both the top and the bottom.
Attach the tube of the carpet
treatment wand into the carpet
treatment wand water supply
port. Press firmly until it locks into
place.
Note: Once the carpet treatment
wand is attached it can remain in
place between uses.
V027(Y) User Guide 5/10/06 11:47 am Page 3
