Seite 1/4

1 947997

CAUTION: To reduce the risk of electric shock,

Do not remove cover.

No user serviceable parts inside.

Refer servicing to qualified service personnel.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

This symbol indicates that dangerous

voltage constituting a risk of electric

shock is present within this unit.

This symbol in dicates that there are

important operating and maintenance

instructions in the literature accompanying

this unit.

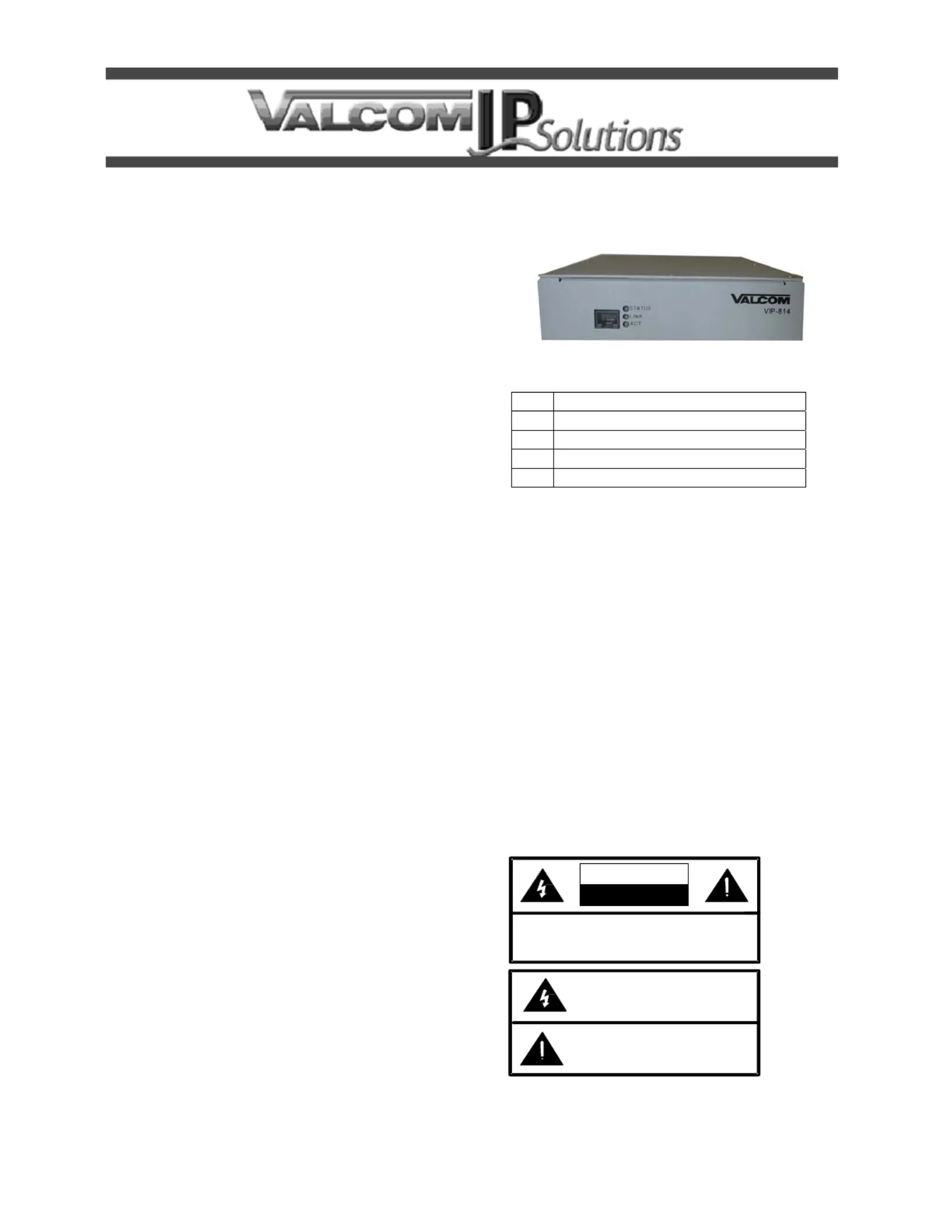

ISSUE 6

VIP-814

QUAD NETWORKED STATION PORT

INTRODUCTION

The VIP-814 Quad Networked Station Port

allows most loop start terminal devices to be

connected to a managed IP-based LAN/WAN.

SPECIFICATIONS

Access Methods

 PBX, FXO Port

 POTS telephone set

Features

 RJ-45 for network connection

 4 RJ-11 telephone connections

 4 Relays with Form C contacts

 Generates Caller ID Signals

 Front panel Status/Link/Activity LEDs

 2 REN

 2.5mm jack for external power (optional)

 Power over Ethernet 802.3af compatible

Dimensions/Weight

 1.75 H x 6.75" W x 9.5" D

(4.45cm H x 17.15cm W x 24.13cm D)

 Weight: 1.75 lbs. (0.80 kg)

Nominal Specifications

Input Impedance: 600 Ohms

Input Level: -10dBm

Output Impedance: 600 Ohms

Output Level: - 10dBm nominal

Relay Current: 1 AMP @ 24VDC

Nominal Power Requirements

Via rear panel barrel connector:

Voltage: 24VDC

Current: 325mA

Via 802.3af PoE Ethernet Switch:

802.3af: Class 3

Environment

Temperature: 0 to +40° C

Humidity: 0 to 85% non-precipitating

Packing List

Qty Item

1 VIP-814

1 VSP Document

2 Mounting Brackets W/ Hardware

4 Rubber Pads

INSTALLATION

NOTE: The telephone system referred to in

this manual is the customer premise

equipment such as an electronic key system,

a PBX or a dedicated single line telephone

sets. The VIP-814 is not intended for direct

or indirect connection to the public

telephone network. When used with a

customer premise telephone system such as

a key system or PBX system, these units are

interfaced to the system via a fully protected

page port or system central office port,

which is a fully protected interface device.

Also, the host system must be configured to

disallow central office trunk conferencing in

order to prevent indirect connection to the

public network.

Precautionary Designations

2 947997

FCC Information

This equipment has been tested and found to

comply with the limits for a Class A digital

device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide

reasonable protection against harmful

interference when the equipment is operated

in a commercial environment. This

equipment generates, uses and can radiate

radio frequency energy and if not installed

and used in accordance with the instruction

manual, may cause harmful interference to

radio communications. Operation of this

equipment in a residential area may cause

harmful interference in which case the user

will be required to correct the interference at

his own expense.

Mounting

The VIP-814 is designed for wall, table or rack

mounting.

Table: Provided with the VIP-814 are four

rubber pads. Peel the pads from their carrier

backing and place at the four corners of the

bottom of the unit

Wall: Using the template on last page of this

document, mark the location of the bracket

screw holes on the wall. Drill 5/64" pilot holes,

3/4" deep, at each screw location and use the

wood screws provided to attach the brackets to

the wall. For surfaces other than wood, use

hardware appropriate for the surface (not

included). With the brackets securely attached

to the wall, attach the VIP-814 to the brackets

using the included hardware. Figure 1 illustrates

the bracket assembly.

Rack: Following the assembly drawing below,

attach the two mounting brackets to the VIP-814

unit. Using rack screws, mount the VIP-814 in

an available 1U rack slot. See Figure 2.

Figure 1. Wall Mount

Figure 2. Rack Mount

Power Connections

The preferred method of powering a VIP-814 is

via a Power over Ethernet (PoE) switch meeting

the 802.3af specification.

If the rear panel barrel connector is used for

power, the preferred power supply is a Valcom

VIP-324D.

Make all required signal connections before

applying power to the unit. If powering via

802.3af, make sure all signal connections via the

rear panel are made then connect the VIP-814

to the Ethernet switch.

If power is supplied via the barrel connector,

make sure all signal connections are secure.

Attach the unit to the network via the front panel

RJ-45 Ethernet connector. Apply power by

plugging the power supply in to the VIP-814 via

the barrel connector on the rear of the VIP-814.

Network Connection

The VIP-814 has one RJ-45 network connector

on the front panel.

Use a standard Ethernet patch cable to connect

the VIP-814 to an Ethernet switch. If the

Ethernet switch is 802.3af compliant the VIP-814

will draw power from it.

Signal Connections

On the rear panel, the VIP-814 has 4 RJ-11

jacks for telephone connection and 2 terminal

blocks for relay connections.

FXO Connections: Connect loop start FXO port

or standard analog telephones to the VIP-814

via the rear panel RJ-11 jacks labeled Phone 1,

3 947997

STATUS

LINK

ACT

K1 K2 K3 K4

+24V DC

PHONE PHONE

2 3

PHONE PHONE

N.O.

N.C.

COM

N.C.

N.O.

N.C.

COM

N.C.

N.O.

Phone 2, Phone 3 and Phone 4. Tip and Ring

appear on pins 3 and 4 of these jacks.

Relay Connections: Access to the four form C

relays is provided via two six pin screw terminal

blocks. The relays are labeled K1, K2, K3 and

K4. Each relay is brought out on three

terminals. The common contact (COM) is the

middle terminal with the normally closed (N.C.)

contact on the right and the normally open

(N.O.) contact on the left. Relay contacts are

rated for 1A @ 24VDC.

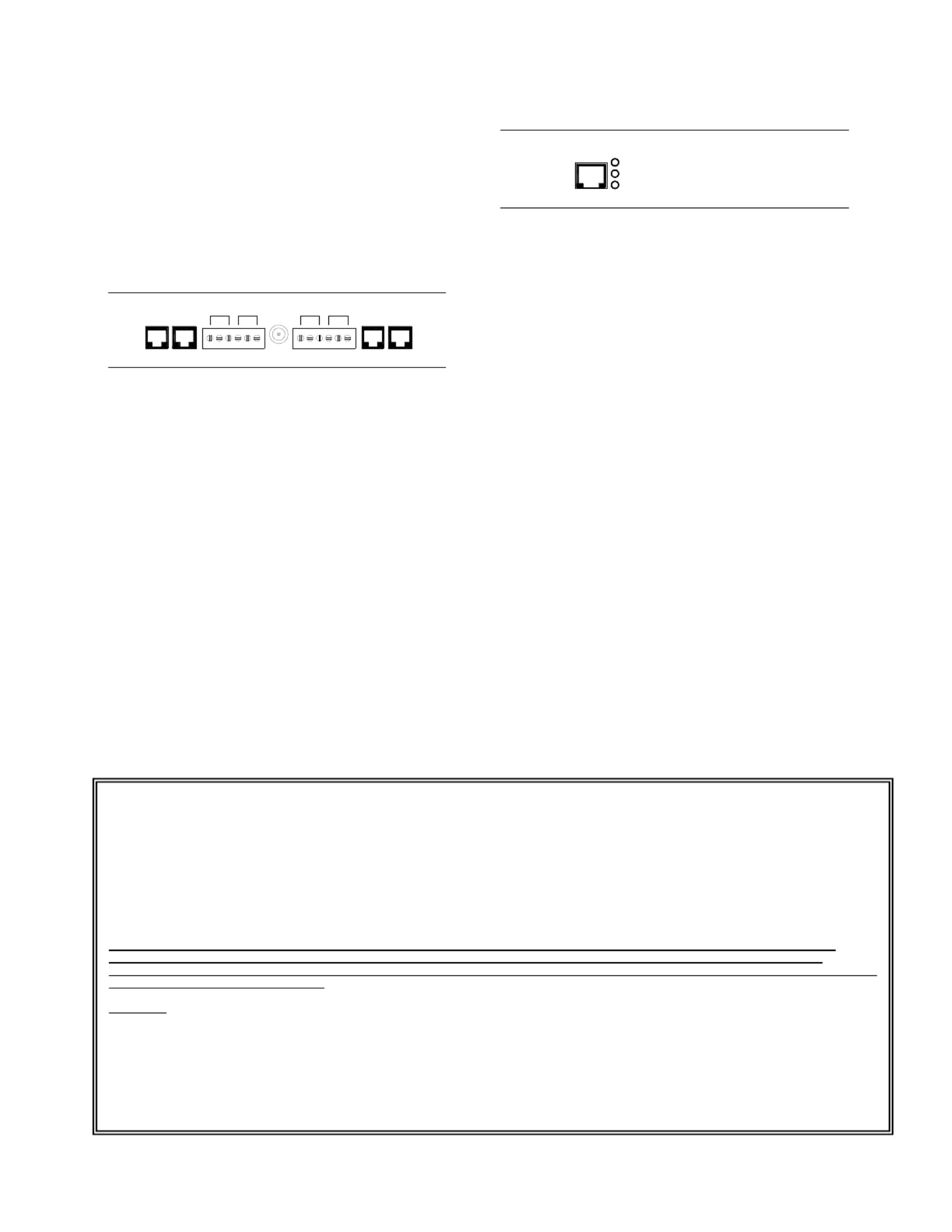

Rear View

Setup

Information specific to your application will need

to be programmed into the VIP-814 using a

computer. The PC used for programming

should be connected to the same subnet as the

VIP-814. Setup will be done using the IP

Solutions Setup Tool. Download the latest

version of the free IP Solutions Setup Tool from

the Valcom web site at

www.valcom.com/vipsetuptool.

Status Indicator Lights

The VIP-814 has 3 status indication lights on the

front panel:

STATUS: Flashes then illuminates to indicate

power.

LINK: Indicates 100 Mbit Ethernet connection

when illuminated. No activity indicates 10 Mbit

connection.

ACT: Indicator flashes to indicate network

activity.

Front View

TECHNICAL ASSISTANCE

When trouble is reported, verify power is being

supplied to the unit and there are no broken

connections. If a spare unit is available,

substitute a spare unit for the suspected

defective unit.

Assistance in troubleshooting is available from

the factory. Call (540) 563-2000 and press 1 for

Technical Support or via email at

support@valcom.com.

When requesting assistance, you should include

all available information. General information

and troubleshooting procedures are available on

the Valcom website at www.valcom.com.

Valcom equipment is not field repairable.

Valcom, Inc. maintains service facilities in

Roanoke, VA. Should repairs be necessary,

attach a tag to the unit clearly stating your

company name, address, phone number,

contact person and the nature of the problem.

Send the unit to:

Valcom, Inc.

Repair & Return Dept.

5614 Hollins Road

Roanoke, Va. 24019-5056

VALCOM LIMITED WARRANTY

Valcom, Inc. warrants its products only to the original purchaser, for its own use, to be free from defects in materials and workmanship under conditions of

normal use and service for a period of one year from the date of shipment. This Limited Warranty obligation shall be limited to the replacement, repair or refund

of any such defective device within the warranty period, provided that:

1. inspection by Valcom, Inc. indicates the validity of the claim;

2. the defect is not the result of damage, misuse or negligence after the original shipment;

3. the product has not been altered in any way or repaired by others and that factory sealed units are unopened (a service charge plus parts

and labor will be applied to units defaced or physically damaged);

4. freight charges for the return of products to Valcom are prepaid;

5. all units 'out of warranty' are subject to a service charge. The service charge will cover minor repairs (major repairs will be subject to

additional charges for parts and labor).

This Limited Warranty is in lieu of and excludes all other warranties, expressed or implied and in no event shall Valcom, Inc. be liable for any

anticipated profits, consequential damages, loss of time or other losses incurred by the buyer in connection with the purchase, operation,

maintenance, installation, removal or use of the product. The maximum liability of Valcom under this warranty is limited to the purchase price of the

specific Product covered by the warranty.

Disclaimer. Except for the Limited Warranty provided herein, the product is provided “as-is” without any warranty of any kind whatsoever including, without

limitation, any WARRANTY OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR NON-INFRINGEMENT.

This warranty specifically excludes damage incurred in shipment. In the event a product is received in damaged condition, the carrier should be notified

immediately. Claims for such damage should be filed with the carrier involved in accordance with the F.O.B. point.

Headquarters:

Valcom, Inc.

5614 Hollins Road Roanoke, VA 24019-5056

Phone: (540) 563-2000 FAX: (540) 362-9800
