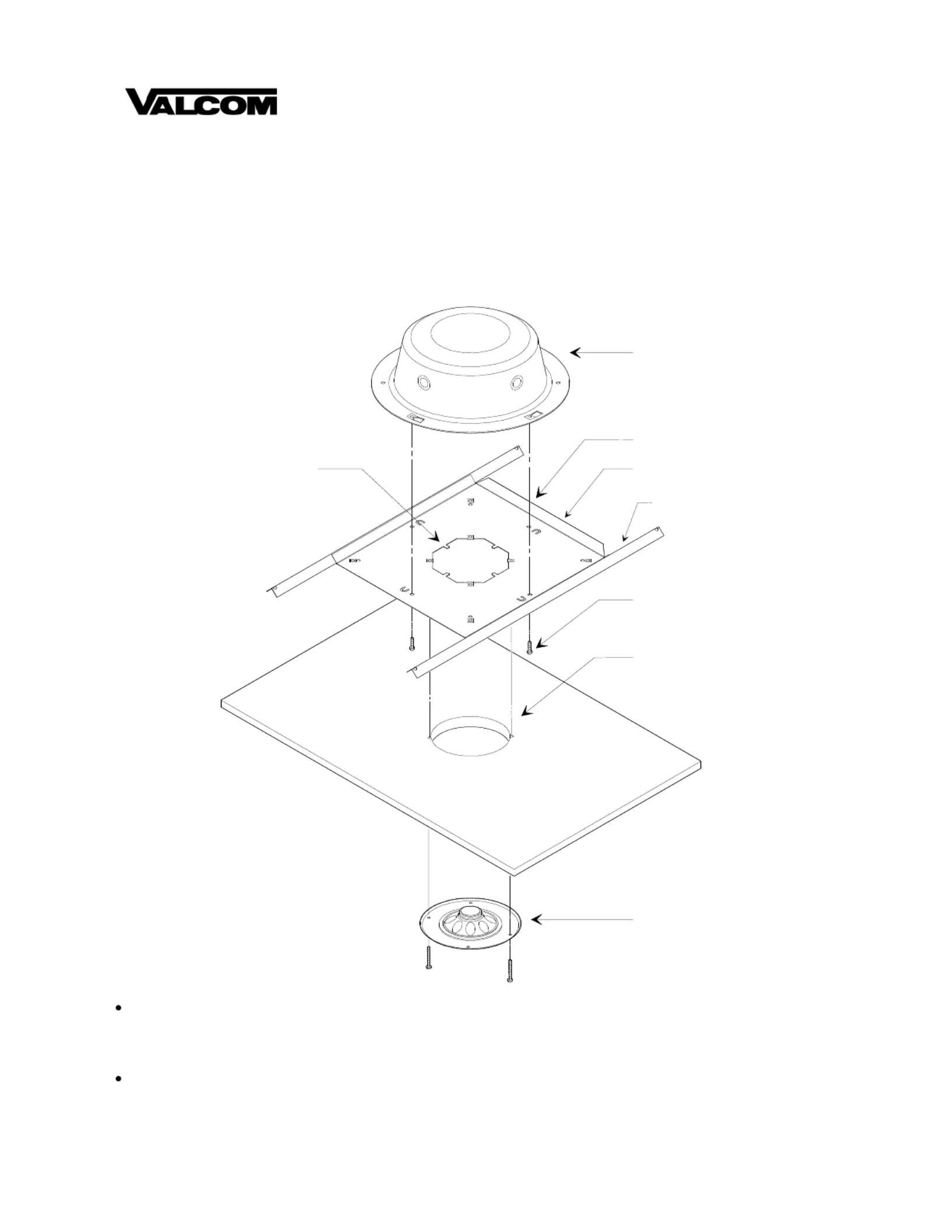

UL LISTED (UUMW) FLUSH MOUNTED

LOUDSPEAKER INSTALLATION INSTRUCTIONS

V- -9915M 5 Backbox

V- -9904M 5 Bridge

Bend tabs down to

locate bridge in

ceiling tile cutout

Attach backbox to

bridge using 4 screws

provided with V-9915M

Cut 5.25" round

hole in ceiling tile

4" Ceiling Grille

and Speaker

4" SPEAKERS

Issue 9

14.50" X 13.60"

23.75" X 1.00"

REGULATORY INFORMATION

Listed by Underwriters Laboratories, Inc.

Category UUMW. Material and construction

permits use where ceiling plenum is part

of the air handling system.

Compound knockout(s) provided for listed

type metallic fittings for 1/2" and 3/4" plenum

rated cable and plenum whip flex conduit.

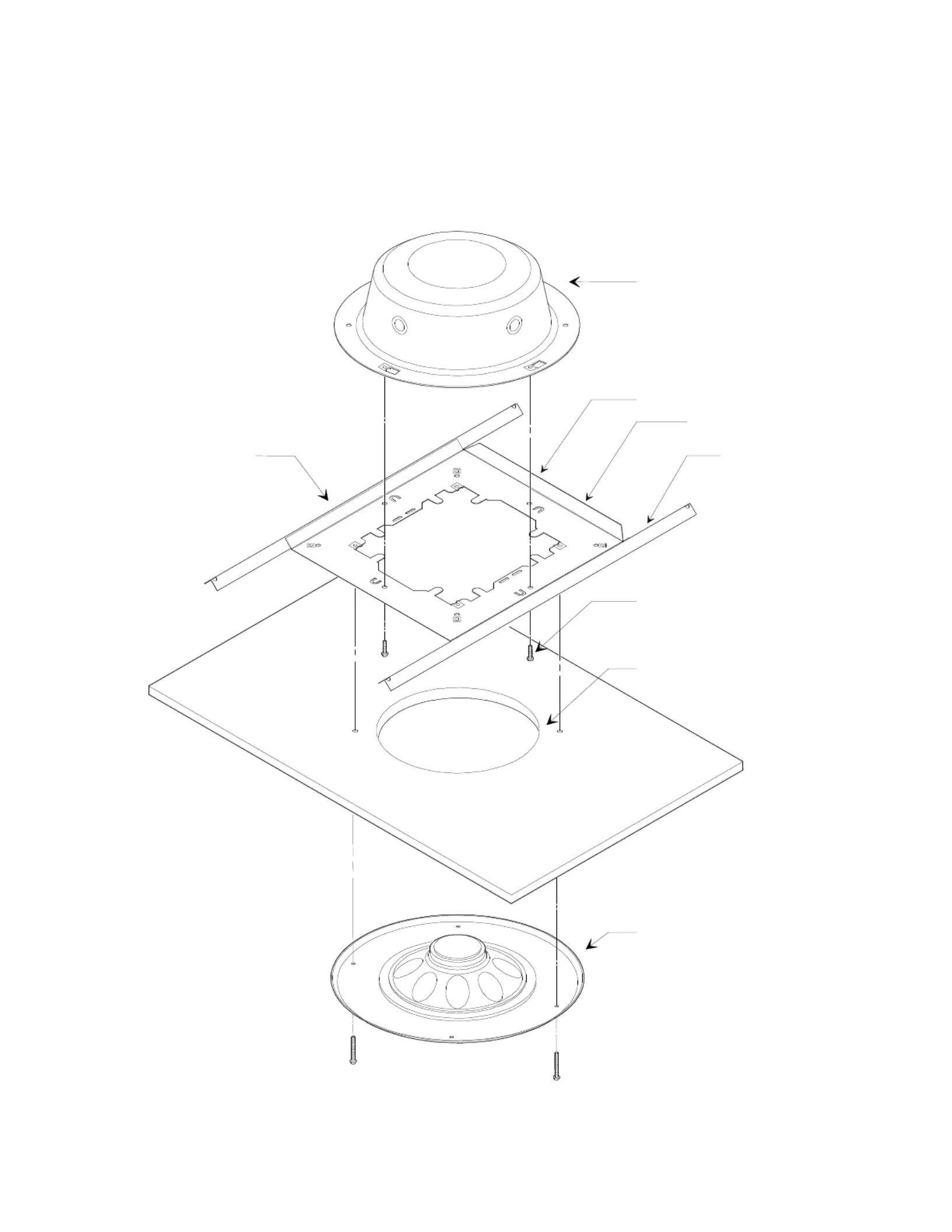

V-9915M UL LISTED BACKBOX AND V-9904M BRIDGE

V- - -9914M + V 9915M = V 9916M

INSTALLATION INSTRUCTIONS

V- -9915M 5 Backbox

V- -9914M 5 Bridge

Attach backbox to

bridge with 4 screws

provided with V-9915M

Cut 8.5" round

hole in ceiling tile

Bend tabs down to

locate bridge in

c eiling tile cutout

8" Ceiling Grille

and Speaker

(4 white screws

provided)

8 " SPEAKERS

14.50" x 13.60"

23.75" x 1.00"

COMPATIBILITY

Product Number

Compatible with this Speaker

V- - 9904M 5 (5 per box)

V- 1010C

V- - 9914M 5 (5 per box)

V- - - - 1020C, V 1020KNOB, V 1060A/B, V 1220

V- 9916M (1 per box)

V- - - - 1020C, V 1020KNOB, V 1060A/B, V 1220

V- - 9915M 5 * (5 per box)

To use the V 5 Backbox with the V 1010C Speaker, it is necessary -9915M- -

to use the V 5 Bridge. The backbox may be used alone with the -9904M-

V- - -1020C, V 1060A/B or the V 1220 as long as provisions are made to

support the weight of the assembly.

TECHNICAL ASSISTANCE

Assistance is available from the factory when problems are encountered. Call (540) 563 2000 and - press

1 for Technical Support or visit our website at http://www.valcom.com.

Valcom equipment is not field repairable. Valcom, Inc. maintains service facilities in Roanoke, VA.

Should repairs be necessary, attach a tag to the unit clearly stating company name, address, phone

number, contact person, and the nature of the problem. Send the unit to:

Valcom Inc.

Repair and Return Dept.

5614 Hollins Road

Roanoke, VA 24019-5056

VALCOM LIMITED WARRANTY

Valcom, Inc. warrants its products only to the original purchaser, for its own use, to be free from defects in materials and workmanship under conditions of normal

use and service for a period of one year from the date of shipment. This Limited Warranty obligation shall be limited to the replacement, repair or refund of any

such defective device within the warranty period, provided that:

1. inspection by Valcom, Inc. indicates the validity of the claim;

2. the defect is not the result of damage, misuse or negligence after the original shipment;

3. the product has not been altered in any way or repaired by others and that factory sealed units are unopened (a service charge plus parts

and labor will be applied to units defaced or physically damaged);

4. freight charges for the return of products to Valcom are prepaid;

5. all units 'out of warranty' are subject to a service charge. The service charge will cover minor repairs (major repairs will be subject to

additional charges for parts and labor).

This Limited Warranty is in lieu of and excludes all other warranties, expressed or implied and in no event shall Valcom, Inc. be liable for any

anticipated profits, consequential damages, loss of time or other losses incurred by the buyer in connection with the purchase, operation,

maintenance, installation, removal or use of the product. The maximum liability of Valcom under this warranty is limited to the purchase price of the

specific Product covered by the warranty.

Disclaimer. Except for the Limited Warranty provided herein, the product is provided “as is” without any warranty of any kind whatsoever including, without -

limitation, any WARRANTY OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR NON- INFRINGEMENT.

This warranty specifically excludes damage incurred in shipment. In the event a product is received in damaged condition, the carrier should be notified
