V-5580041A

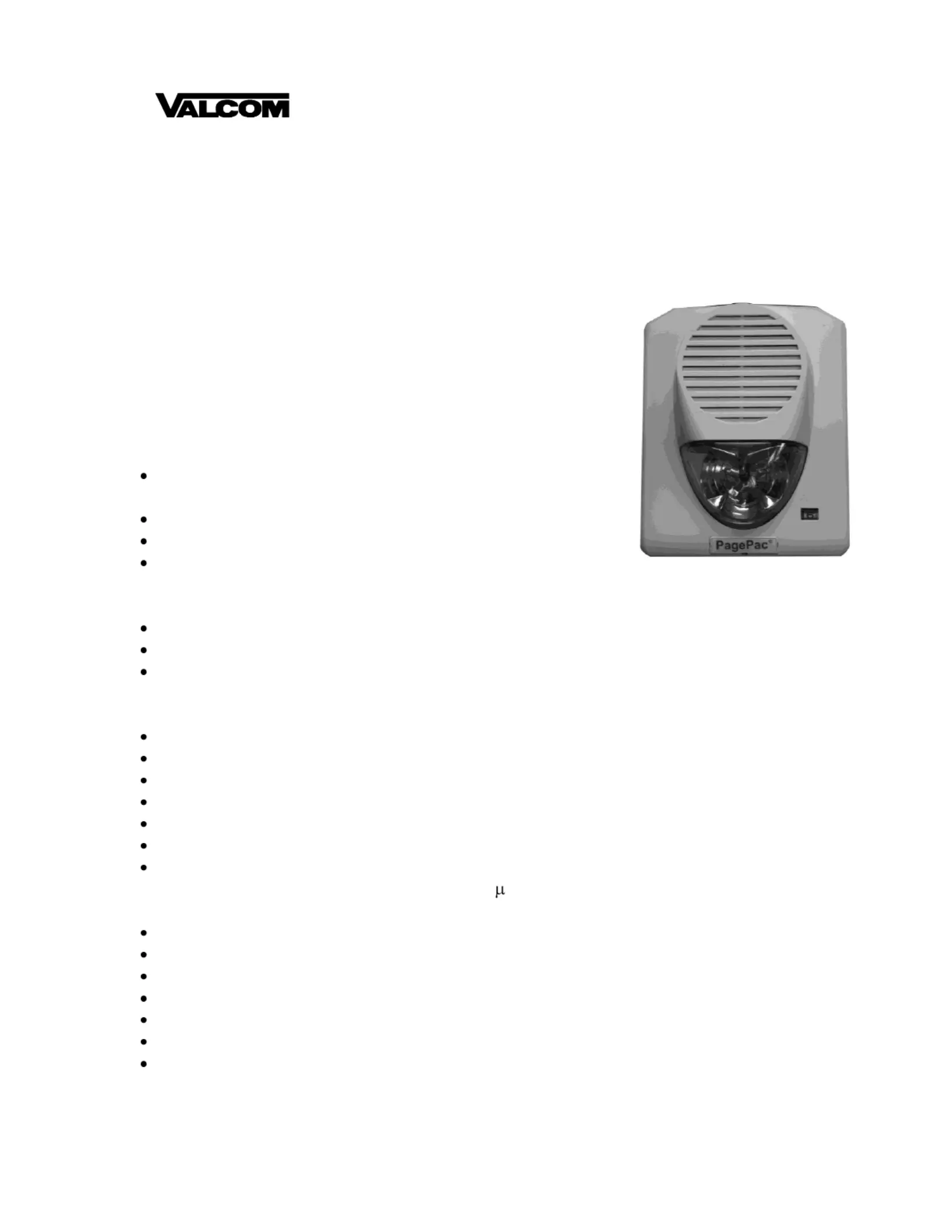

ADA COMPLIANT STROBE

INTRODUCTION

These instructions contain the specifications and information

necessary to install, operate, and maintain the ADA Compliant

Strobe.

SPECIFICATIONS

Features

Cost effective and versatile solution to applications

requiring visual alerts or strobes

ADA compliant with a 99 Candella rating

Typical coverage of 4900 sq. ft. @ 80" mounting height

Supplied with accessories to fit almost any application

Activation Methods Dimensions/Weight

Volt amplified sp ker signal 4.50"H x 4.50"W x 4.55"D 70 ea

Dry contact closure (11.43cm H x 11.43cm W x 11.56cm D)

Electronic Message Sign 5V signal 1.38 lbs. (.63 kg)

Specifications

Brightness Candella99

Power supply operating voltage input 110VAC

Strobe min um operating voltage 18VDCim

Strobe maximum operating voltage 30VD

Current draw 196mA

Maximum instantaneous 450mA

Activation voltage requirements

Electronic message sign A at 3 Volts 40

70 Volt audio signal 70 Volts peak

Activation voltage 70 Volts minimum 5 Volts

Environmental Rating Indoor

Connector Cable footage 6 feet

Mounting hardware 2 wall hangers

Lens color Amber

Faceplate cover Ivory

Metal case Silver

VP-324

- +

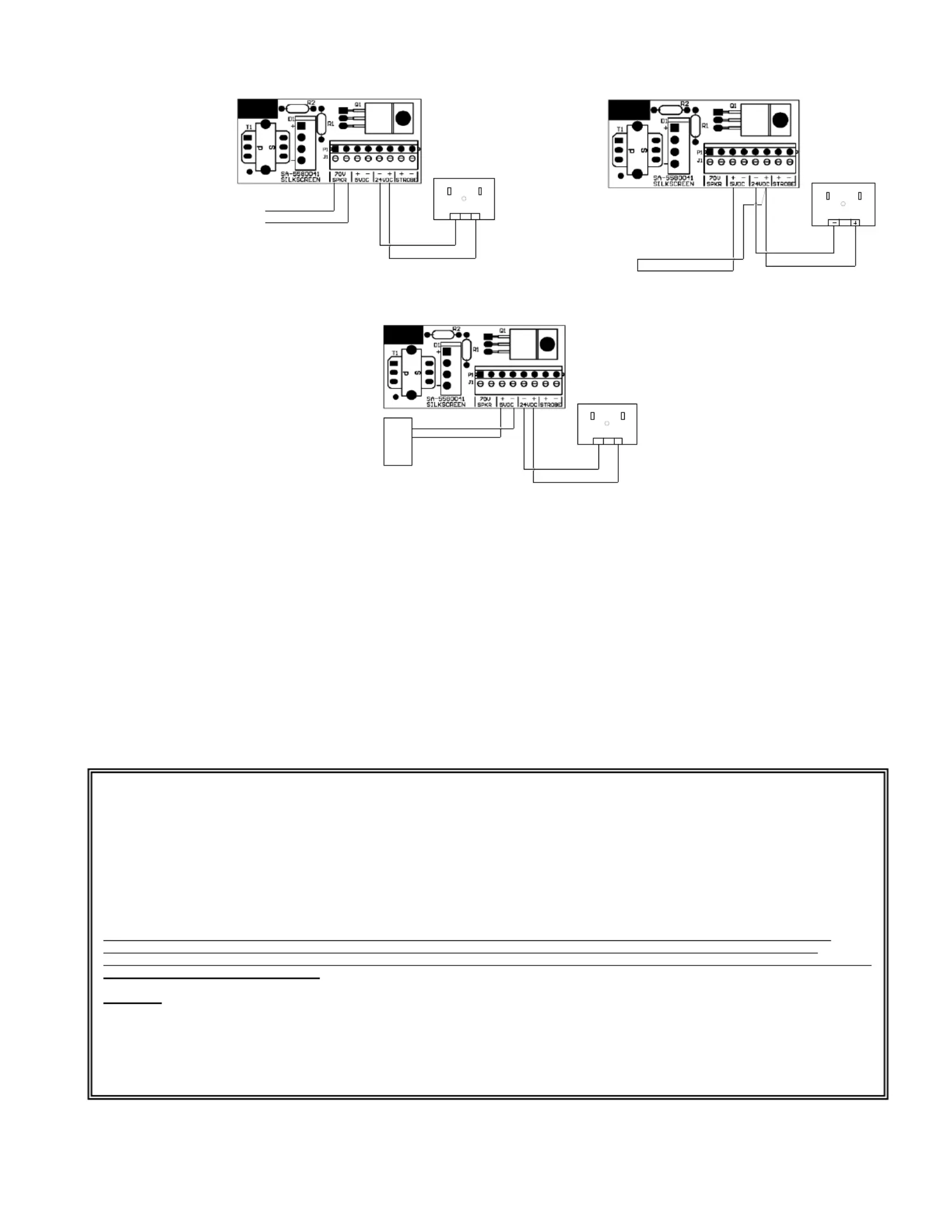

70 VOLT SPEAKER ACTIVATION

COMMON SPEAKER LINE

70 VOLT SPEAKER LINE

5 VOLT SIGN ACTIVATION

CONNECTOR

PLUG

5 VOLT SIGN

VP-324

- +

CONTACT CLOSURE ACTIVATION

SWITCH/RELAY

VP-324

TECHNICAL ASSISTANCE

When calling, have a VOM and a telephone test set available and call from the job site.

Call ( -2000 and ask for Technical Support, or visit our websites at 540) 563

http://www.pagepac.com and www.valcom.com.

Should repairs be necessary, attach a tag to the unit clearly stating company name, address,

phone number, contact person, and the nature of the problem. Send the unit to:

Valcom, Inc.

PagePac® Repair Dept.

5614 Hollins Road

Roanoke, VA 240 -5056 19
