Seite 1/2
4 mm Allen key
Install the support legs on both sides.
Install the L shape Fork Adapter as shown.
Tighten all bolts after installation is complete.
4 mm Allen key
EN
Make sure the fender is aligned with tire. Tighten all
bolts after installation is complete.
Adjust DeFender™ for proper tire clearance. Improper
angle or tire clearance may cause damage to DeFender
or your bike and may cause bodily harm.
RECOMMENDED
Recommend to adjust the DeFender as close to ™
the tire for better dirt coverage.
CR2032 x 2
(Rear)
Adjusting Lever
Mounting Bracket
(Front)
* Tools required: 3 & 4 mm Allen keys

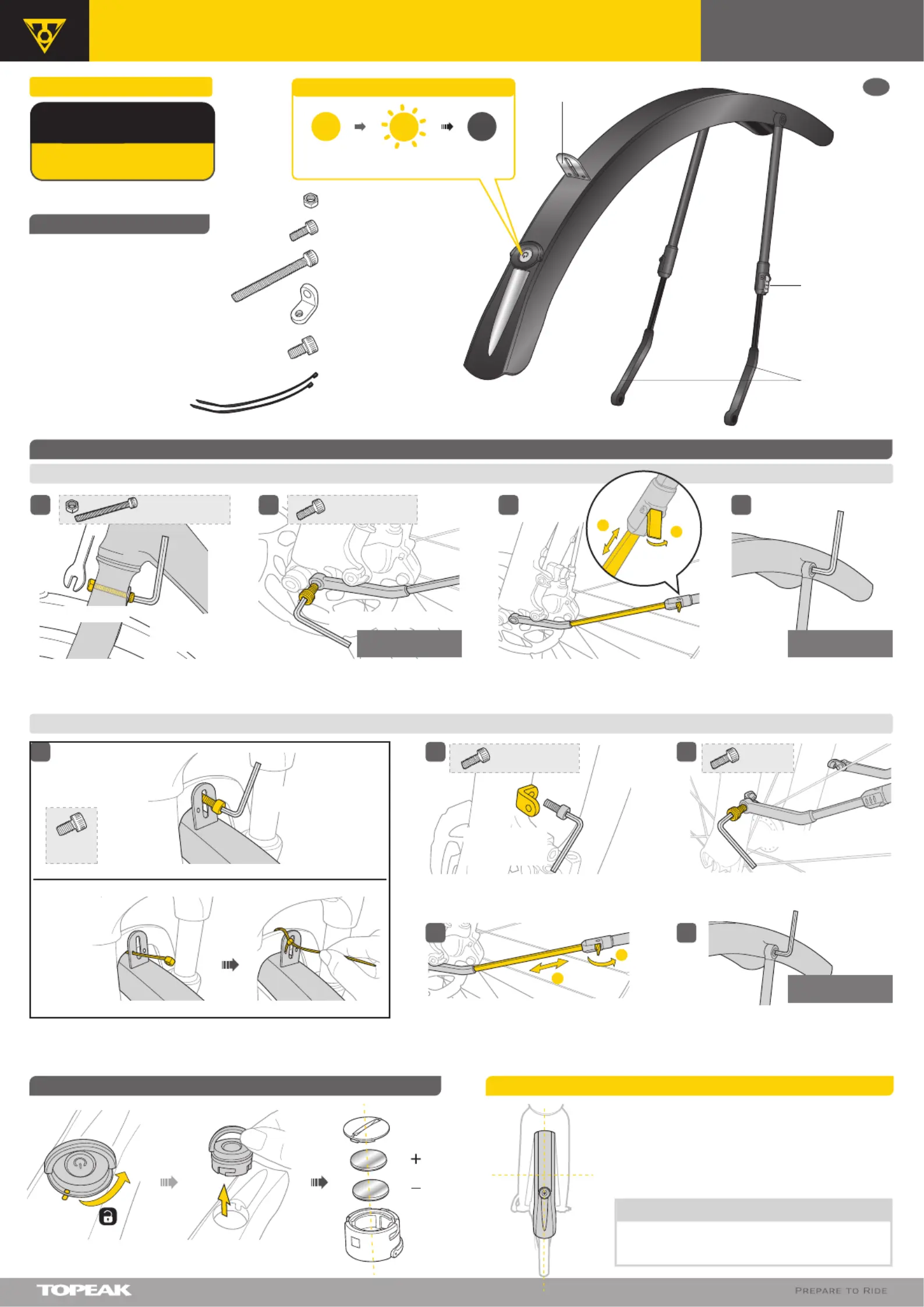

User's Guide
DEFENDER™ iGLOW TX (FRONT)
INSTALLATION
SPECIFICATION
WARNING
CHANGING BATTERY
M5 Bolt Nut x 1 pc
M5 x 8 mm Bolts x 4 pcs
M5 x 45 mm Bolt x 1 pc
L shape Fork Adapter x 2
M6 x 10 mm Bolt x 1 pc
Zip Tie x 2 pcs
1 2
4 5
3
MOUNT ON BIKE with RIGID FORK
MOUNT ON BIKE with SUSPENSION FORK
OPTION 1
Install with
Bolt
OPTION 2
Install with
Zip Ties
Function: Constant / Blinking
Bulb: 1 bright White LED
Battery: CR2032 x 2 pcs (included)
Burn Time (approx): 50 hours (constant)
100 hours (blinking)
Weight: 220 g / 7.76 oz (with batteries)
Support Legs
MODE
Blinking Off
Constant
(On)
M6 x 10 mm
Bolt
M5 x 8 mm Bolt M5 x 8 mm
Bolt
3 mm Allen key
4 mm Allen key
Up to 700 x 44C
ROAD TIRE FITTING SIZE
FOR TREKKING BIKE ONLY
Lift the lever and adjust the support legs to
proper length on both sides.
1
2
Hold the bolt nut and tighten the bolt at
the same time.
Install the support legs on both sides. Tighten all bolts after installation is
complete.
Lift the lever and adjust the support legs to
proper length on both sides.
1
2
4 mm Allen key
4 mm Allen Key
Recommended Torque
4 N.m Recommended Torque
4 N.m
Recommended Torque
4 N.m
1 2 3 4
M5 x 45 mm
Bolt + nut M5 x 8 mm Bolt
3 mm
Allen key
8 mm open
end wrench
Pre-set the rear fender as shown. Install the support legs on both sides. Ensure the hook and loop fastener will not interfere with
water bottle holes.
When the mounting position
is confirmed, install the L
shape Bracket in proper
position.
Recommended Torque
4 N.m
4 mm Allen key
(Rear)
(Front)
RECOMMENDED
WARNING
Recommend to adjust the
DeFender™ iGlow TX as
close to the tire for better
dirt coverage.
Adjust DeFender™ iGlow TX
for proper tire clearance.
Improper angle or tire
clearance may cause
damage to DeFender™ iGlow
TX or your bike and may
cause bodily harm.
ANGLE ADJUSTMENT
M-TIG-DF03_04-EN 01/17Copyright © Topeak, Inc. 2017
* Tools required: 3 & 4 mm Allen keys
User's Guide
DEFENDER™ iGLOW TX (REAR)
2-year Warranty: All mechanical components against
manufacturer defects only. Batteries are not covered
under any implied warranty.
Warranty Claim Requirements
To obtain warranty service, you must have your original
sales receipt. Items returned without a sales receipt will
assume that the warranty begins on the date of
manufacture. All warranties will be void if the product is
damaged due to user crash, abuse, system alteration,
modification, or used in any way not intended as
described in this manual.
* The specifications and design are subject to change
without notice.
Please contact your Topeak dealer with any questions.
For USA customer service, call: 1-800-250-3068
www.topeak.com
WARRANTY
INSTALLATION
SPECIFICATION
Function: Constant / Blinking
Bulb: 1 bright Red LED
Battery: CR2032 x 2 pcs (included)
Burn Time (approx): 50 hours (constant)
100 hours (blinking)
Weight: 278 g / 9.80 oz (with batteries)
Make sure the fender is
aligned with tire. Tighten
all bolts after installation
is complete.
Adjust DeFender for ™
proper tire clearance.
Improper angle or tire
clearance may cause
damage to DeFender™ or
your bike and may cause
bodily harm.
WARNING
1 2 3
Adjusting Lever
Support Legs
Hook and Loop Fastener
L shape Bracket
MODE
Blinking Off
Constant
(On)
M5 Bolt Nut x 1 pc
M5 x 8 mm Bolts x 2 pcs
L shape Bracket x 1
M5 x 25 mm Bolt x 1 pc
Up to 700 x 44C
ROAD TIRE FITTING SIZE
FOR TREKKING BIKE ONLY
M5 x 8 mm Bolt
Hold the bolt nut and tighten the
bolt at the same time.
Install the fender with Hook and Loop Fastener as shown. Lift the lever and adjust the support legs to
proper length on both sides.
Tighten all bolts after installation
is complete.
1
2
4 mm Allen key
4 5 6 7
3 mm Allen key
M5 x 25 mm
Bolt + nut
8 mm open end wrench
Recommended Torque
4 N.m
