Ed : 03/18 Rev : 01 Cod :
BEDIENUNGSANLEITUNG
GRLDTOORXRWXSEA
3

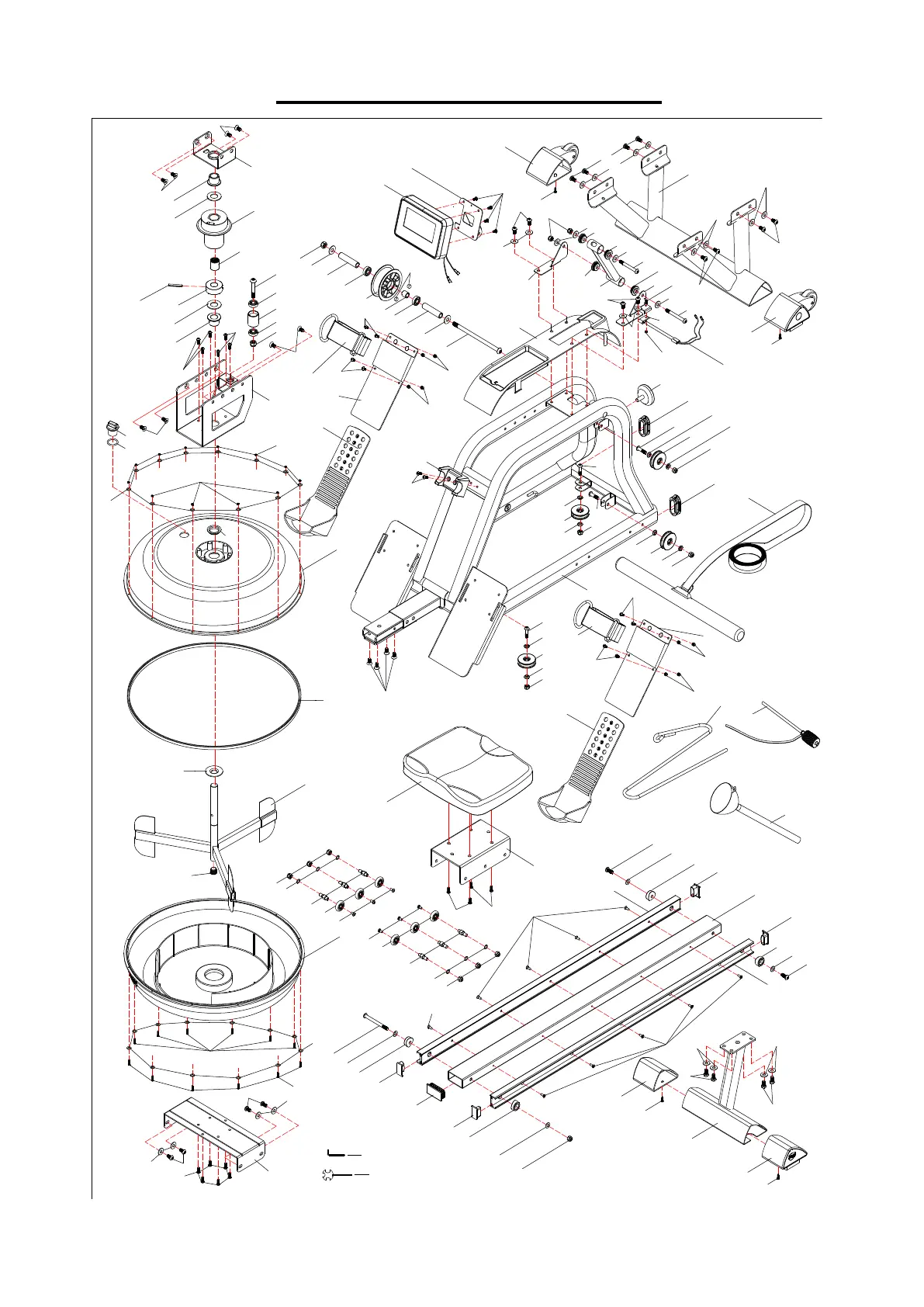

EXPLOSIONSZEICHNUNG
1
2
3
82
83
4
27
72
27
72
6
46
5
7
8
9
10
11
12
13
14
15
16
57
53
50
42
5142 50
53
52
17
18
19
71
56
65
65 18
19
71
56
20
42
59
42
57
44
40
21
56
80
22
80
54
29
73
22
80
80 56
54
54
80
22
80
56
80
22
80
56
54
24
24
37
37
23
23
25
26
68
68
28
86
71
84
61
71
35
82
83
35
71
56
29
31
30
32
34
33
60
71
35
35 71 60
36
39
40
44
41
45
47
48
49
55
55
55 55
55
55
56
58
58
58
58
60
60
60
60
60
58
60
60
61
62
62
71
79
7971
63
63
79
79
64
66
66
67
67
67
68
69
70
70
70
70
71
71
71
71
71
71
71 71
71
81
81
74
75
77
76
78
43
38
84
85
64
64
64
64
4
No.
Description
Spec.
QTY
No.
Description
Spec.
QT
Y
1
Main frame
1
44
Bushing
2
2
Front stabilizer
1
45
Pin
Ø6.0*40
1
3
Slide rail
SPHC,T=2.0
1
46
Meter
1
4
Rear stabilizer
1
47
Sensor wire
2
5
Support for computer
1
48
Sensor holder
PA,black
1
6
Support Plate
1
49
Magnet
Ø10*5
2
7
Tank plate
1
50
Spacer for mesh belt wheel
Ø16* Ø10.2*69
2
8
Plate for bushing
SPHC,T=3.0
1
51
Short spacer
Ø16* Ø10.2*16
1
9
Handlebar
1
52
Screw
M10*185
1
10
Seat carriage
SPHC,T=4.0
2
53
Washer
OD25*ID10.5*2.0
2
11
Impeller
1
54
Screw
M8*30
4
12
Upper tank
PC
1
55
Screw
M6*15
18
13
Lower tank
PC
1
56
Nylon lock nut
M8
13
14
Mesh belt wheel
1
57
Nylon lock nut
M10
2
15
Decorate cover
HIPS,black
1
58
Flat screw
M8*15
12
16
Belt wheel
POM, black
1
59
Screw
M10*55
1
17
Handlebar seat
HIPS, black
1
60
Screw
M8*15
18
18
Roller
POM, black
6
61
Screw
M3*20
12
19
Roller Shaft
6
62
Nylon lock nut
M3
12
20
Guide roller
POM, black
1
63
Screw
M8*70
2
21
Magnet Seat
POM, black
1
64
Screw
M5*12
12
22
Bungee pulley
POM, black
4
65
Screw
M5*8
6
23
Top Pedal
PP, black
2
66
Outer hex screw
M8*15
4
24
Under Pedal
PP, black
2
67
Flat cross screw
M5*15
10
25
Left end cap
1
68
Cross Screw
M4*12
3
26
Right end cap
1
69
Nylon lock nut
M4
1
27
Adjustable end cap
2
70
Nylon lock nut
M5
8
28
Rail end cap
PP, black
1
71
Washer
OD20*ID8.5*1.5
24
29
Oval plug
PP, black
2
72
Screw
ST4.2*16
2
30
Rubber sealing ring
Rubber, black
1
73
Knob
1
31
Impeller Shaft Seal
Rubber, black
1
74
Allen wrench
S5
1
32
Round plug
PP, black
1
75
Spanner
S13-S17
1
33
Fill Plug
Rubber, black
1
76
Pumping siphon
1
34
O shape ring
Rubber, black
1
77
Funnel
1
35
Stopper
Rubber, black
4
78
Lower tank plate
1
36
Seat
PU, black
1
79
Plastic Bushing
Ø27* Ø8.2*10
4
37
Pedal strap
PP, black
2
80
Spacer
Ø15* Ø8.2*4.1
8
38
Sensor stand L
SPHC,T=2.0
1
81
Aluminum
37*21*1050
2
39
Bungee cord
nylon,black
1
82
Rail endcap L
PP,black
2
40
Plastic washer
POM,black
2
83
Rail endcap R
PP,black
2
41
One way bearing
HFL2026
1
84
Stainless Washer
M3
24
42
Bearing
6000ZZ
4
85
Sealing ring for upper tank
Rubber,black
1
43
Sensor stand R
SPHC,T=2.0
1
86
Screw
M8*90
1
