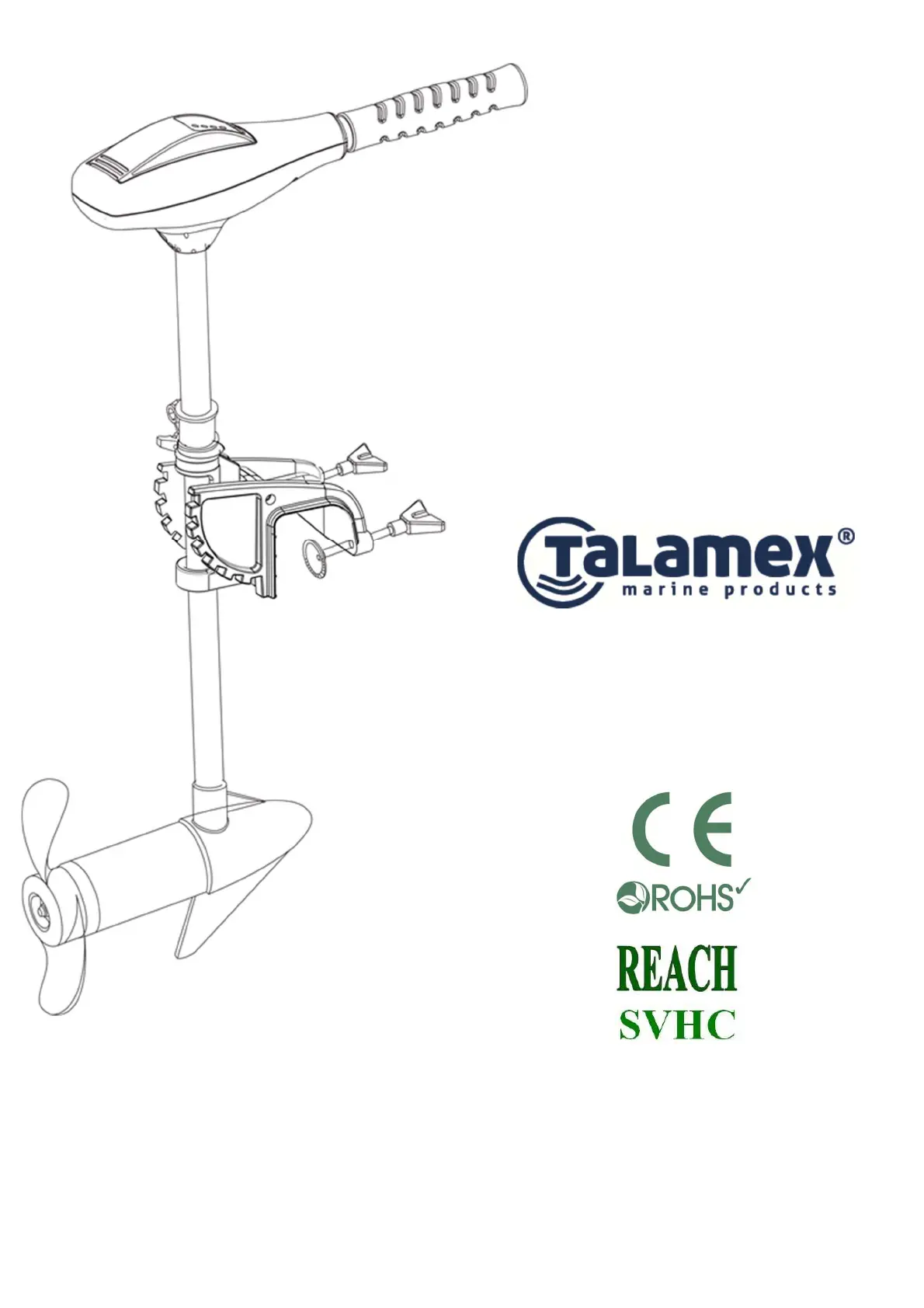

Seite 1/58
Please read and retain this manual before use of this electric motor.
GB
USER MANUAL
TROLLING MOTOR USER MANUAL
2
Table of Contents
GENERAL INFORMATION
WIRING AND BATTERY RECOMMENDATION
SAFETY INFORMATION
FIRST TIME RUNNING
Battery Connection Method
Attaching the Motor to Your Boat
Depth Adjustment
Steering
Speed Control
How to (re)place the propeller
TROUBLESHOOTING
MAINTENANCE
STORAGE
WARRANTY
GENERAL INFORMATION
Thank you for purchasing a Talamex electric engine. The trolling motors are designed and developed by
professional engineering teams. With years of efforts. The power of trolling motor has widely covered 30LBS, 40LBS,
48LBS, 58LBS 66LBS and 86LBS in order to fit various costumers’ requirements and provide different experiences.
Please read and retain this manual before using this electrical motor. The manual contains information that
describes the procedure for safe operation and daily maintenance of your trolling motor. Safe operation will prevent
from personal injury and product damage.
TROLLING MOTOR USER MANUAL
3
WIRING AND BATTERY RECOMMENDATION
Battery Type
Recommended battery(s): 12-volt Deep Cycle battery or Marine battery, battery should has at least 55 ampere hour
rating or higher. To extend running time an additional battery can be used. See section on battery connection
method.
Cable Size
If extending the standard battery cable supplied with the product, recommends the use of 13m wire (6-gauge ㎡
wire, AWG).
Warning: Be sure all switches are in the OFF position before connecting to battery or batteries.
Electrical arcing near the battery could ignite hydrogen gas and cause the battery to explode.
SAFETY INFORMATION
Do not allow children under 16 to operate the electric outboard motor.
Do not modify the unit in any way or add accessories not intended for this product.
Never fully submerse the unit, if unit is accidentally submersed disconnect battery and leave to dry.
Warning: Always disconnect power from the motor when replacing propeller, removing debris
around the prop, charging batteries, transporting boat or when the motor is not in use.
FIRST TIME RUNNING
BATTERY CONNECTION METHOD
Before connecting the motor’s cables to the battery, ensure switch is in the OFF position and stand clear of the
propeller. Connect the red cable to the positive (+) terminal and the black cable to the negative (-) terminal, making
sure the terminals are clean before doing so. A clean connection will minimize power wastage and give you
maximum power from the battery. (A). The battery should be kept in a well-ventilated location. We recommend
using a special deep cycle marine battery for optimum performance.
(A) (B)
ATTACHING THE MOTOR TO YOUR BOAT
Attach the motor to the stern of the boat and tighten both mounting bolts securely while taking care not to
over-tighten. To adjust the angle of the motor after attachment, hold the motor head with one hand and depress
the positioning pin at the top of the mounting bracket with your other hand. Press and hold the positioning pin until
the desired angle has been reached, next release the pin and ensure the mechanism locks securely. (B)
Warning: Before the installation, make sure the area between the boat wall and the motor bracket is
clear.
