S-4611 SDI to DVI converter
USER MANUAL
SWIT Electronics Co., Ltd.
Tel:+86-25-85805753
Fax:+86-25-85805296
http://www.swit.cc
E-mail: contact@swit.cc
1. Characteristics
â—† Portable 3G/HD/SD-SDI to DVI converter
â—† 1 SDI input, 1 SDI loop through output, 1 DVI output,
â—† SDI embedded audio ch-1 & ch-2 output via 3.5mm socket
â—† Heavy duty aluminium housing and bottom screw threads for installation

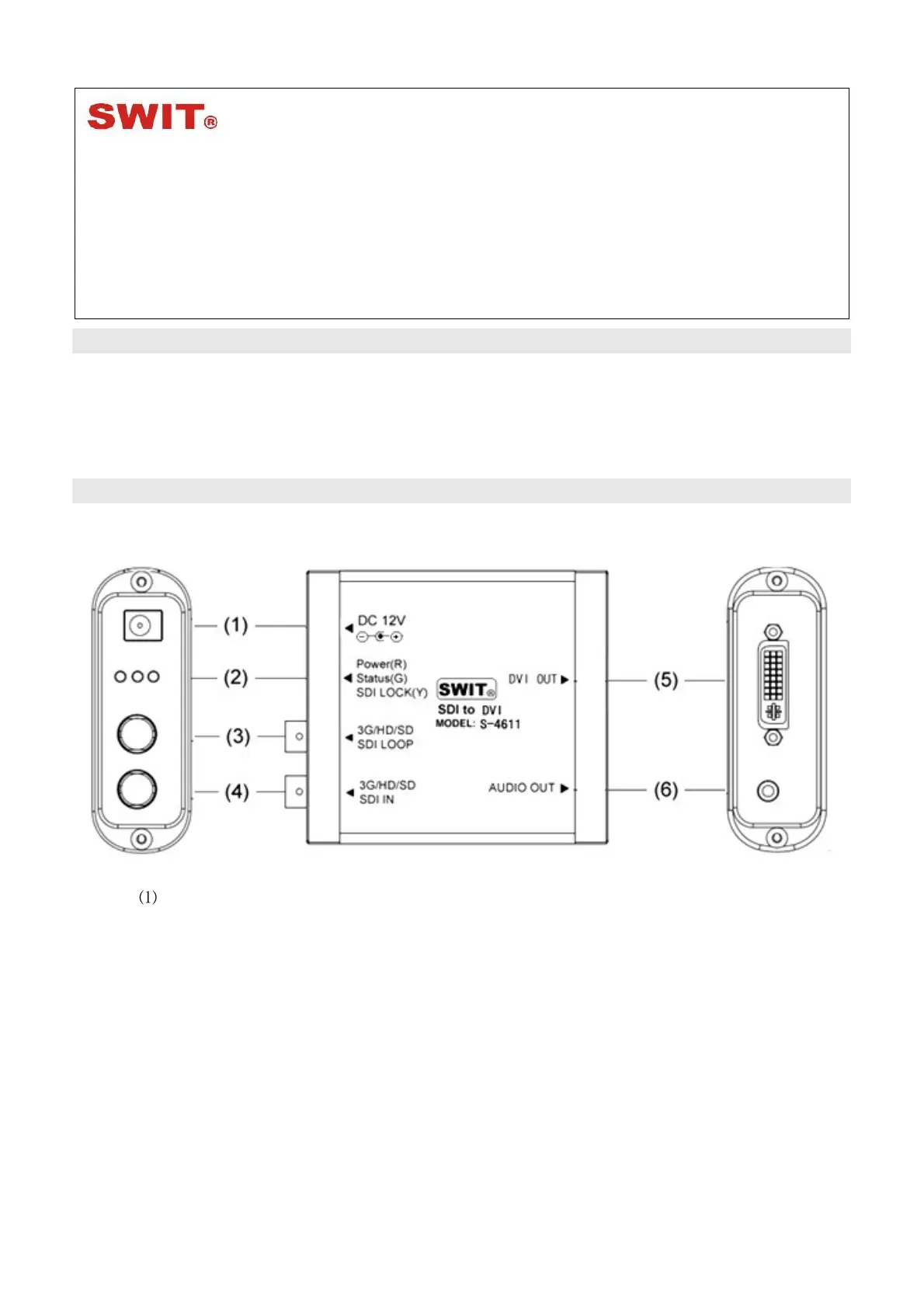

2. Product View
Left side view Front view Right side view
â‘´ DC 12V: 5.5mm pole DC input
⑵ LED status indicator
Power (red): light up when power is connected
Status (green): light up when DVI port connected and output signal is recognized
SDI LOCK (Yellow): light up when SDI input signal is recognized
⑶ SDI loop through output (BNC) 3G/HD/SD SDI LOOP:
â‘· SDI input (BNC) 3G/HD/SD SDI IN:
⑸ DVI OUT: DVI output (DVI-I, 24+5)
⑹ AUDIO OUT: Analog audio output (3.5mm)
Ver:V1.0.0V00
3. Installation Plate
Installation Plate Rear View of S-4611 Installed
Screw hole 3 Screw hole 4
Screw
hole 1
Screw
hole 2
Screw hole 5 Screw hole 6
Match the screw holes 1&2 with the threads 1&2 of S-4611, and fix the installation plate to the
S-4611 by the supplied screws. The screw holes 3, 4, 5, 6 are used to install S-4611 to wall or
racks.
4. Specifications
Input 3G/HD/SD-SDI×1
Output
3G/HD/SD-SDI×1,
DVI×1,
Analog audio (3.5mm)×1
Video Format
DVI 480i / 576i / 720p (60 / 59.94 / 50) / 1080i (60 / 59.94 / 50) /
1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
SDI
SMPTE-425M 1080p (60 / 59.94 / 50)
SMPTE-274M 1080p (30 / 29.97 / 25 / 24 / 23.98)
1080i (60 / 59.94 / 50)
SMPTE-RP211 1080psf (30 / 29.97 / 25 / 24 / 23.98)
SMPTE-296M 720p (60 / 59.94 / 50)
ITU-R BT.656 576i (50)
SMPTE-125M 480i (59.94)
Audio Format 48KHz sync
Power ≤3W
Working Voltage DC 6-18V
Working Environment Temperature: 0 +70°C, Humidity:10%-90%
Dimension 98.5×84.2×29 mm
Net weight 209g
5. Maintenance
1. Please do not disassemble the product by yourself.
2. Keep the product away from rain or moisture.
3. Please use the provided power adapter and if you use third party power adapter, please
make sure the voltage range, supplied power, and polarity of power lead are fit.
Match thread 1
Match thread 2
