Instruction Manual

DE: Bedienungsanleitung - de.startech.com

FR: Guide de l'utilisateur - fr.startech.com

ES: Guía del usuario - es.startech.com

IT: Guida per l'uso - it.startech.com

NL: Gebruiksaanwijzing - nl.startech.com

PT: Guia do usuário - pt.startech.com

Manual Revision: 08/07/2012

For the most up-to-date information, please visit: www.startech.com

Packaging Contents

• 1 x PC/HD to HDMI® Converter with Audio

• 1x VGA to Component (RCA) Breakout Cable

• 1x Universal Power Adapter (US/UK/EU/AUS)

System Requirements

• VGA or Component (RGB/YPbPr) enabled video source device (i.e.

computer, Blu-ray Player)

• HDMI® enabled video display device (i.e. television, projector)

• HDMI® Destination Cable

• VGA Source Cable for VGA Video (Component to VGA adapter

included for Component Video)

• 2 Channel RCA Audio Cable (Optional)

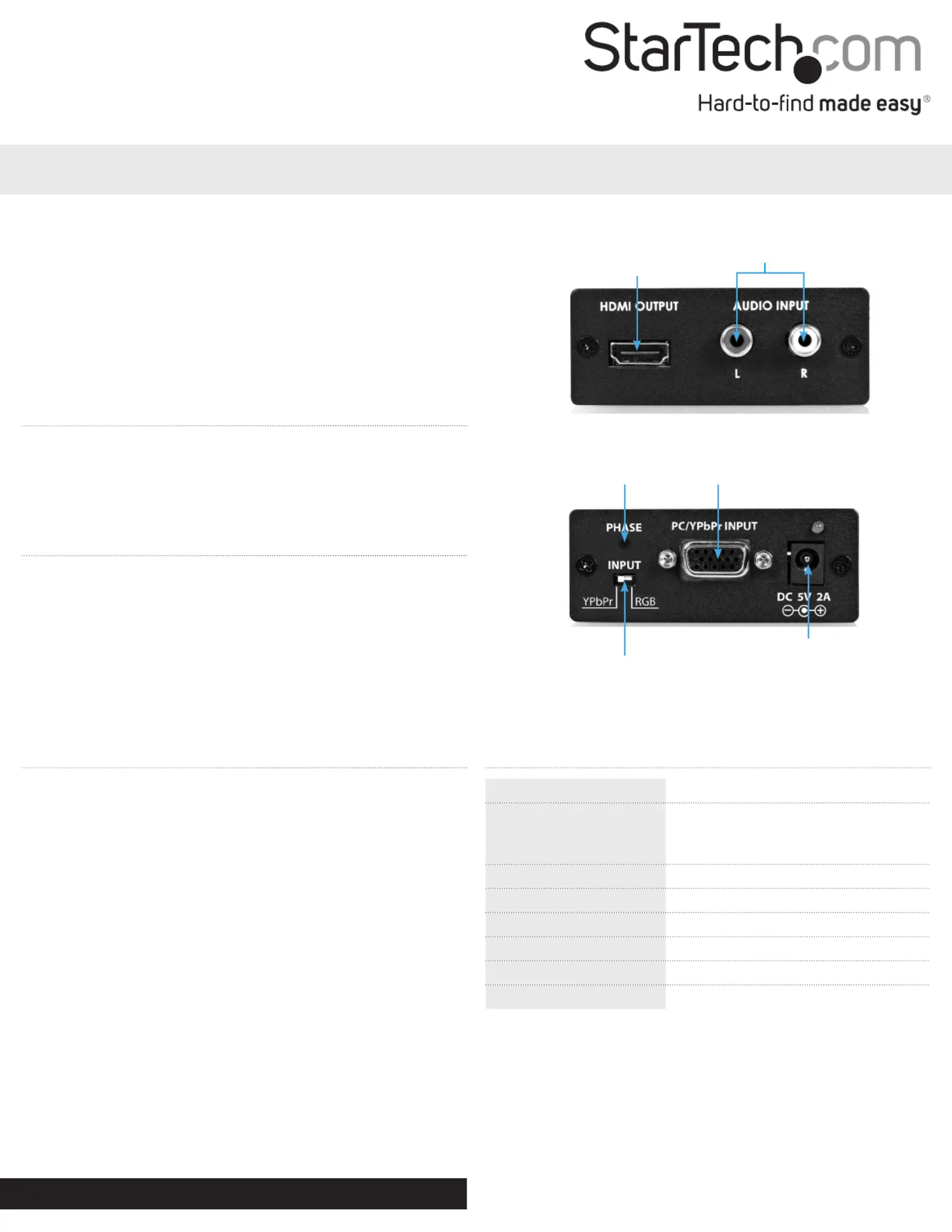

VGA2HD2

Component / VGA to HDMI® Video Converter

HDMI® Output

Port

RCA Two

Channel Audio

Input Ports

Input Select Switch

(YPbPr/RGB)

Power Adapter

Port

VGA Input

Port

Hardware Installation and Operation

1. Using a VGA cable, or the included VGA to Component (RCA)

Breakout Cable, connect the video output source from the VGA or

Component enabled video source device (i.e. computer, Blu-ray

Player) to the VGA Input Port on the VGA2HD2.

2. Using an HDMI® cable, connect the HDMI® Output port on the

VGA2HD2 to the HDMI® input port on the HDMI® enabled video

display device (i.e. television, projector).

3. (Optional) If the input signal includes an audio source, connect

the audio source device (i.e. computer, Blu-ray Player) to the RCA

two channel audio input ports on the VGA2HD2 using an RCA

audio cable.

4. Set the Input Select Switch to YPbPr or RGB, depending on which

color space the video output device supports.

NOTE: Component devices typically support YPbPr, while VGA

devices typically support RGB, check the video source device manual

to conrm which color space is supported.

5. Connect the Universal Power Adapter from an available wall

outlet to the Power Adapter Port on the VGA2HD2.

6. The VGA or Component video source image will now appear on

the HDMI® display.

Specications

Converter Type Format Converter

AV Input

Component (YPbPr)

VGA (RGB)

Audio RCA

AV Output HDMI

Interface VGA

Audio Yes

Output Signal HDMI

Max Resolution 1080p

Wide Screen Supported Yes

Phase

Control

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against

harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause

harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s)

to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby acknowledges that all

trademarks, registered trademarks, service marks, and other protected names and/or symbols contained in this manual and related documents are the property of their respective holders.
