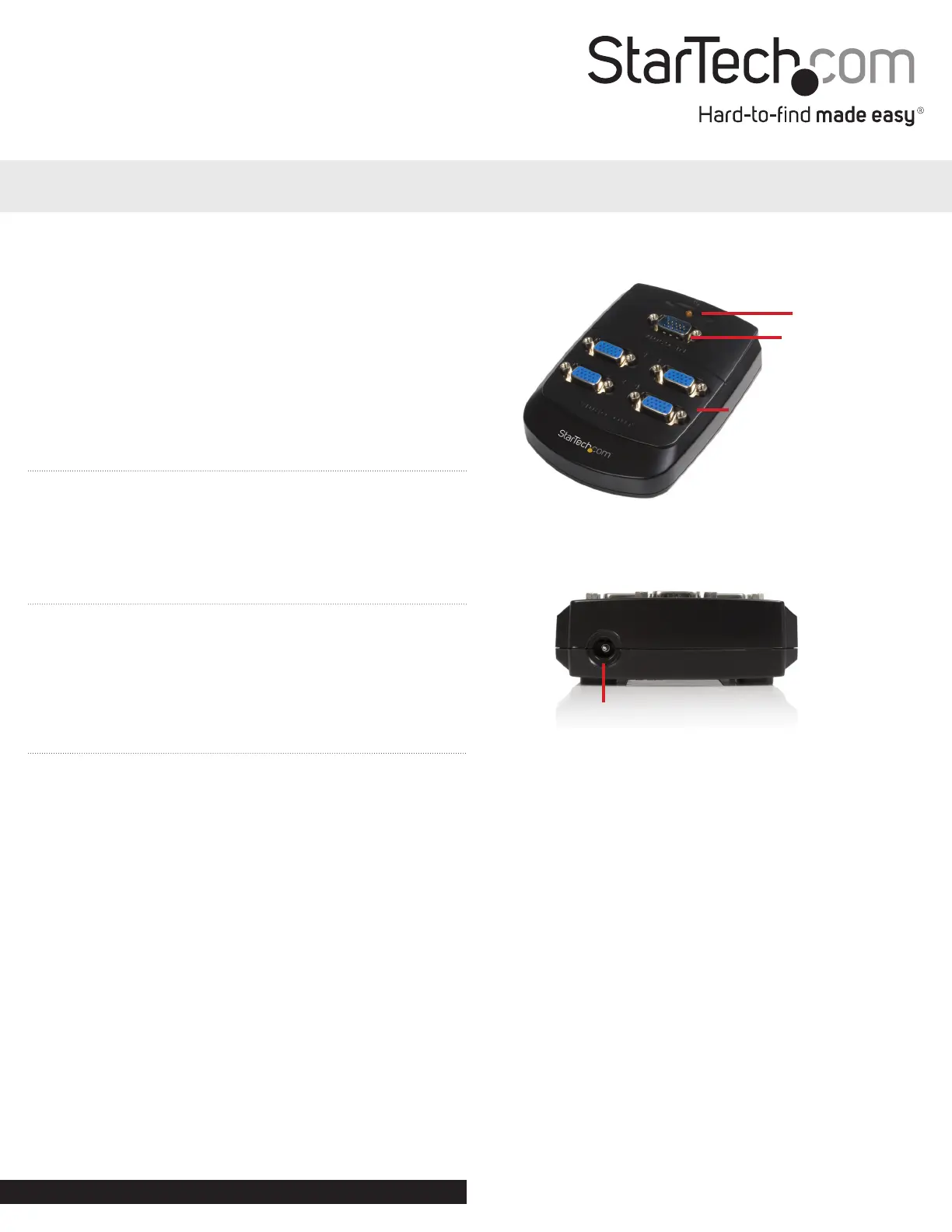

2/ 4/ 8 Port VGA Video Splitter - Wall Mountable
ST122W / ST124W / ST128W
DE: Bedienungsanleitung - de.startech.com
FR: Guide de lāutilisateur - fr.startech.com
ES: GuĆa del usuario - es.startech.com
IT: Guida per lāuso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuƔrio - pt.startech.com
Features
ā¢ī Max.īsupportedīresolutionsīupītoī1600īxī1200
ā¢ī Cascadableīupītoī3īlevels
ā¢ī Supportsītransmissionīdistancesīupītoī65mī/200āī
SystemīRequirements
ā¢ī AīcomputerīwithīaīVGAīCardīinstalled
ā¢ī DE-15īVGAīmale/femaleīvideoīcable
ā¢ī DE-15īVGAīmale/maleīvideoīcable(s)
Installation
InīaīSingleīUnitīInstallation,īonlyīoneīvideoīsplitterīisīused,īinīturnī
limitingītheīnumberīofīdisplaysītoīwhichītheīsplitīsignalīcanībeī
broadcast;īaīCascadedīconī¶gurationīonītheīotherīhand,īutilizesī
multipleīsplittersīconnectedītoīoneīanotherītoīprovidingīnumerousī
additionalīvideoīconnectionsī(i.e.īST122Wīcanībeīcascadedītoī
provideīupītoī8īvideoīoutputs,īST124Wīupītoī64īandīST128Wīupīī
toī512.
Single Unit Installation
1.īWithītheīvideoīsourceīcomputerīpoweredīdown,īuseīaīhighī
densityīDE-15īmale/femaleīVGAīcableītoīconnectītheīcomputerī
VideoīOutīportītoītheīVideoīINīportīonītheīsplitter.
2.īUsingīaīhighīdensityīDE-15īmale/maleīVGAīcableīforīeachī
connection,īconnectītheīmonitorsītoītheīVideoīOUTīportsī
providedībyītheīsplitter.
3.īConnectītheīPowerīPortīonītheīvideoīsplitterītoīanīavailableī
powerīoutlet,īusingītheīprovidedīadapter.
4.īPowerīupītheīsourceīcomputerīandīnewlyīconnectedīmonitors.
ī
ī
Cascaded Installation
Toīcascadeīmultipleīsplitters,īuseīaīhighīdensityīDE-15īmale/femaleī
VGAīcableītoīconnectīanyīavailableīVideoīOUTīportīonītheīāhigherī
levelāīvideoīsplitterītoītheīVideoīINīportīofītheīlowerīlevelīvideoī
splitter.īīYouīcanīcascadeīasīmanyīvideoīsplittersīasīthereīareīportsī
available,īhoweverītheīsignalīwillīdeteriorateīasīdistanceībetweenī
theīmonitorīandīsourceīincreases.
Pleaseīseeīreverseīforīaīdiagramīdepictingīaīcascadedī
conī¶guration.
TopīViewī(ST124Wīshown)
RearīViewī(ST124Wīshown)
PowerīIndicator
VideoīINīport
VideoīOUTīports
PowerīPort
Instruction Manual
*actual product may vary from photos
ManualīRevision:ī02/01/2012
For the most up-to-date information, please visit: www.startech.com
FCC Compliance Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment oī and on, the user
is encouraged to try to correct the interference by one or more of the following measures:
ā¢ī Reorient or relocate the receiving antenna.
ā¢ī Increase the separation between the equipment and receiver.
ā¢ī Connect the equipment into an outlet on a circuit diīerent from that to which the receiver
is connected.
Consult the dealer or an experienced radio/TV technician for help.
Use of Trademarks, Registered Trademarks, and other Protected Names & Symbols
This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of
third-party companies not related in any way to
StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an
endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual
applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body
of this document, StarTech.com hereby acknowledges that all trademarks, registered trademarks, service marks, and
other protected names and/or symbols contained in this manual and related documents are the property of their
respective holders.
Technical Support
StarTech.comās lifetime technical support is an integral part of our commitment to provide industry-leading solutions.
If you ever need help with your product, visit www.startech.com/support and access our comprehensive selection of
online tools, documentation, and downloads.
Warranty Information
This product is backed by a two year warranty.
In addition, StarTech.com warrants its products against defects in materials and workmanship for the periods noted,
following the initial date of purchase. During this period, the products may be returned for repair, or replacement with
equivalent products at our discretion. The warranty covers parts and labor costs only. StarTech.com does not warrant
its products from defects or damages arising from misuse, abuse, alteration, or normal wear and tear.
Limitation of Liability
In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their oīcers, directors, employees
or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise),
loss of proīts, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the
actual price paid for the product. Some states do not allow the exclusion or limitation of incidental or consequential
damages. If such laws apply, the limitations or exclusions contained in this statement may not apply to you.
Speciī¶cations
ST122W ST124W ST128W
Number of Ports 2 4 8
Connectors
Video In 1īxīDE-15īVGAīmale
Video Out 2īxīDE-15īVGAīfemale 4īxīDE-15īVGAīfemale 8īxīDE-15īVGAīfemale
Power 1īxīDCīJack
LEDs Power 1
Video Bandwidth 250MHz 200MHz
Resolution ī1920īxī1440ī@75Hz 1600īxī1200ī@ī60Hz
Signal Range Upītoī65mī(210ā)
Power Consumption DC9V,ī1.35Wī(Max.) DC9V,ī2.25Wī(Max.) DC9V,ī2.5Wī(Max.)
Environment
Operating Temperature 0Ā°Cī~ī50Ā°C
Storage Temperature -20Ā°Cī~ī60Ā°C
Humidity 0%ī~ī80%īRH,īNon-condensing
Physical
Properties
Weight 140g 150g 220g
Dimensions 11.45īxī8.75īxī3.33cmī(LīxīWīxīH) 15.59īxī9.79īxī3.33cm
Produktspezifikationen
| Marke: | StarTech.com |
| Kategorie: | Splitter |
| Modell: | ST128W |
