Seite 1/2

1 x VGA Video Splitter unit•

1 x Power Adapter•

1 x Installation Guide•

VGA enabled video source•

VGA enabled display device•

Available electrical outlet•

With the video source device and display devices powered off, 1.

connect a male/female DE-15 VGA cable from the Video In

connector on the splitter to the VGA video output on the source

device.

Using high quality male/male DE-15 VGA cables, connect each 2.

display device to the Video Output connectors on the splitter.

Connect the supplied power adapter from an electrical outlet to 3.

the video splitter.

Power on the connected display devices, followed by the video 4.

source device.

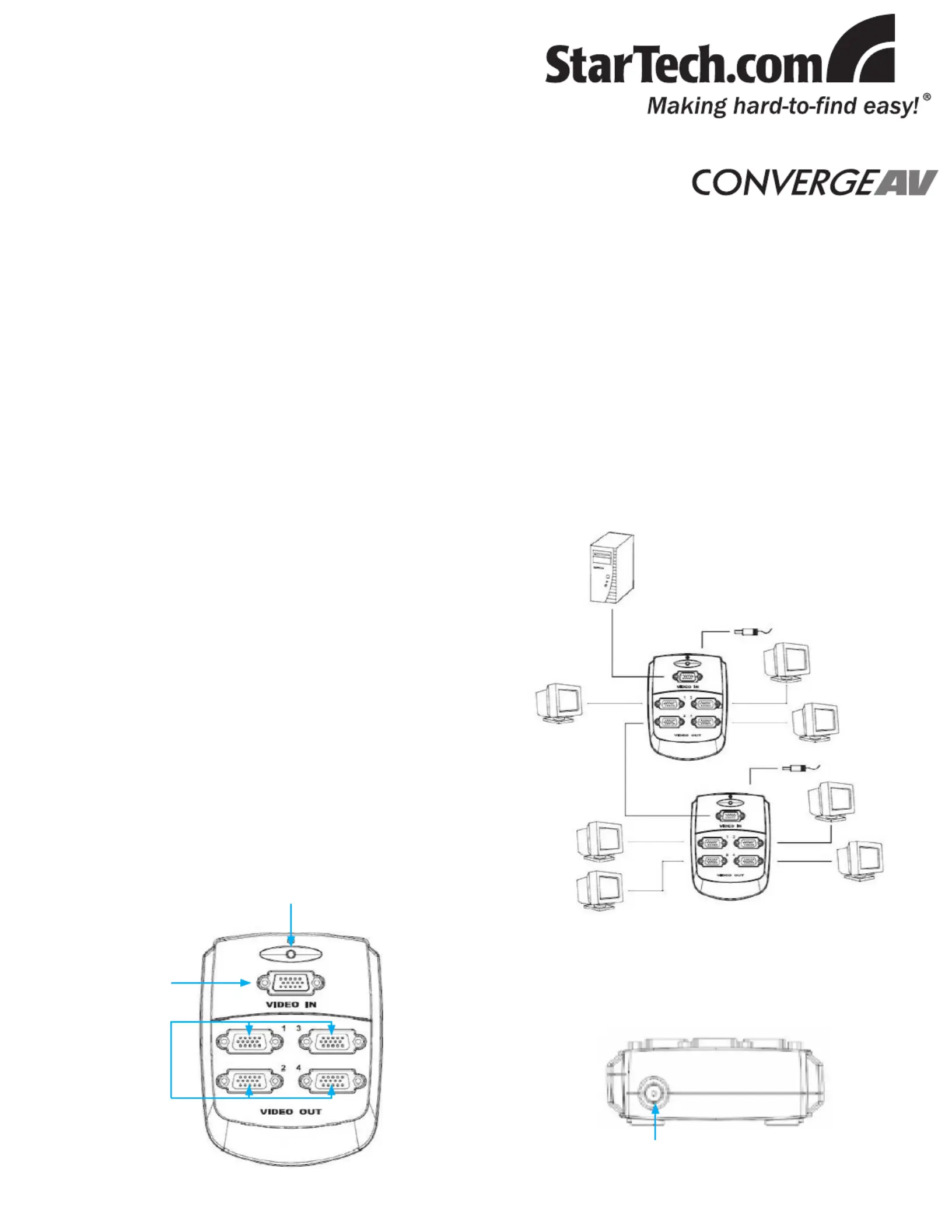

To cascade/daisy-chain multiple video splitters together, use 1.

a male/female DE-15 VGA cable to connect any one of the

Video Out connectors on the primary splitter, to the Video In

connector on the secondary splitter.

A video splitter can be connected to each Video Out connector 2.

on the primary splitter.

Up to three (3) levels of cascading is supported, so connecting 3.

another video splitter to the secondary splitter is possible,

allowing for up to 8 (ST122WEU), 64 (ST124WEU), or 512

(ST128W) video displays to be connected to a single source.

VGA Video Source

Power Adapter

Power LED

DE-15 VGA connector

(input)

DE-15 VGA connector

(output)

DC Power connector

* ST124WEU/ST124WGB model shown

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection

against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruc-

tions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following

measures:

Reorient or relocate the receiving antenna.•

Increase the separation between the equipment and receiver.•

Connect the equipment into an outlet on a circuit different from that to which the receiver •

is connected.

Consult the dealer or an experienced radio/TV technician for help.•

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the

product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby acknowl-

edges that all trademarks, registered trademarks, service marks, and other protected names and/or symbols contained in this manual and related documents are the property of their respective

holders.

Technical Support

StarTech.com’s lifetime technical support is an integral part of our commit-ment to provide industry-leading solutions. If you ever need help with your product, visit www.startech.com/support and

access our comprehensive selection of online tools, documentation, and downloads.

Warranty Information

This product is backed by a one year warranty.

In addition, StarTech.com warrants its products against defects in materials and workmanship for the periods noted, following the initial date of purchase. During this period, the products may

be returned for repair, or replacement with equivalent products at our discretion. The warranty covers parts and labor costs only. StarTech.com does not warrant its products from defects or

damages arising from misuse, abuse, alteration, or normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their ofﬁcers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive,

incidental, consequential, or otherwise), loss of proﬁts, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. Some

states do not allow the exclusion or limitation of incidental or consequential damages. If such laws apply, the limitations or exclusions contained in this statement may not apply to you.

ST122WEU

ST122WGB

ST124WEU

ST124WGB

ST128WEU

ST128WGB

Video Signal VGA (RGBHV)

Connectors

2 x DE-15 VGA female

1 x DE-15 VGA male

1 x DC Power

4 x DE-15 VGA female
