2/4/8-Port High Resolution VGA Video Splitter
ST122PRO / ST122PROGB / ST122PROEU
ST124PRO / ST124PROGB / ST124PROEU
ST128PRO / ST128PROGB / ST128PROEU
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l’utilisateur - fr.startech.com
ES: GuĂ­a del usuario - es.startech.com
IT: Guida per l’uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuĂĄrio - pt.startech.com
Packaging Contents
• 1 x VGA Video Splitter
• 1 x Power Adapter
• 4 x Rubber Feet
• 1 x Installation Guide
System Requirements
• VGA enabled video source (i.e. computer, PVR/DVR, etc.)
• VGA enabled display device (i.e. monitor, projector, etc.)
• Available AC electrical outlet
Installation
1. With the video source device and display devices powered
o, connect a male/female DE-15 VGA cable from the ‘Input’
connector on the splitter to the VGA video output on the source
device.
2. Using high quality male/male DE-15 VGA cables, connect each
display device to the Video Output connectors on the splitter.
NOTE: Port 1 is the primary output so EDID information will be taken from
there. The capabilities of the display on Port 1 will be applied to all other
ports so be careful not to exceed the capabilities of the other displays.
3. Connect the included power adapter from an AC electrical outlet
to the video splitter. The ‘Power’ LED should light up solid.
4. Power on the connected display devices, followed by the video
source device. Once a valid video signal is sent to the splitter, the
‘Active’ LED should light up.
Cascaded Installation
The VGA video splitter can be cascaded/daisy-chained with
additional VGA video splitters for expanded capabilities, such as
more ports and reaching greater distances.
1. Make sure all displays and the video source device are turned o
before installing.
2. To cascade/daisy-chain multiple video splitters together, use a
male/female DE-15 VGA cable to connect any one of the Video
Out connectors on the primary splitter, to the ‘Input’ connector
on the secondary splitter.
3. A video splitter can be connected to each Video Out connector
on the primary splitter, if required.
4. Up to three (3) levels of cascading is supported, so connecting
another video splitter to the secondary splitter is possible,
allowing for up to 8 (ST122PRO), 64 (ST124PRO), or 512
(ST128PRO) video displays to be connected to a single source.

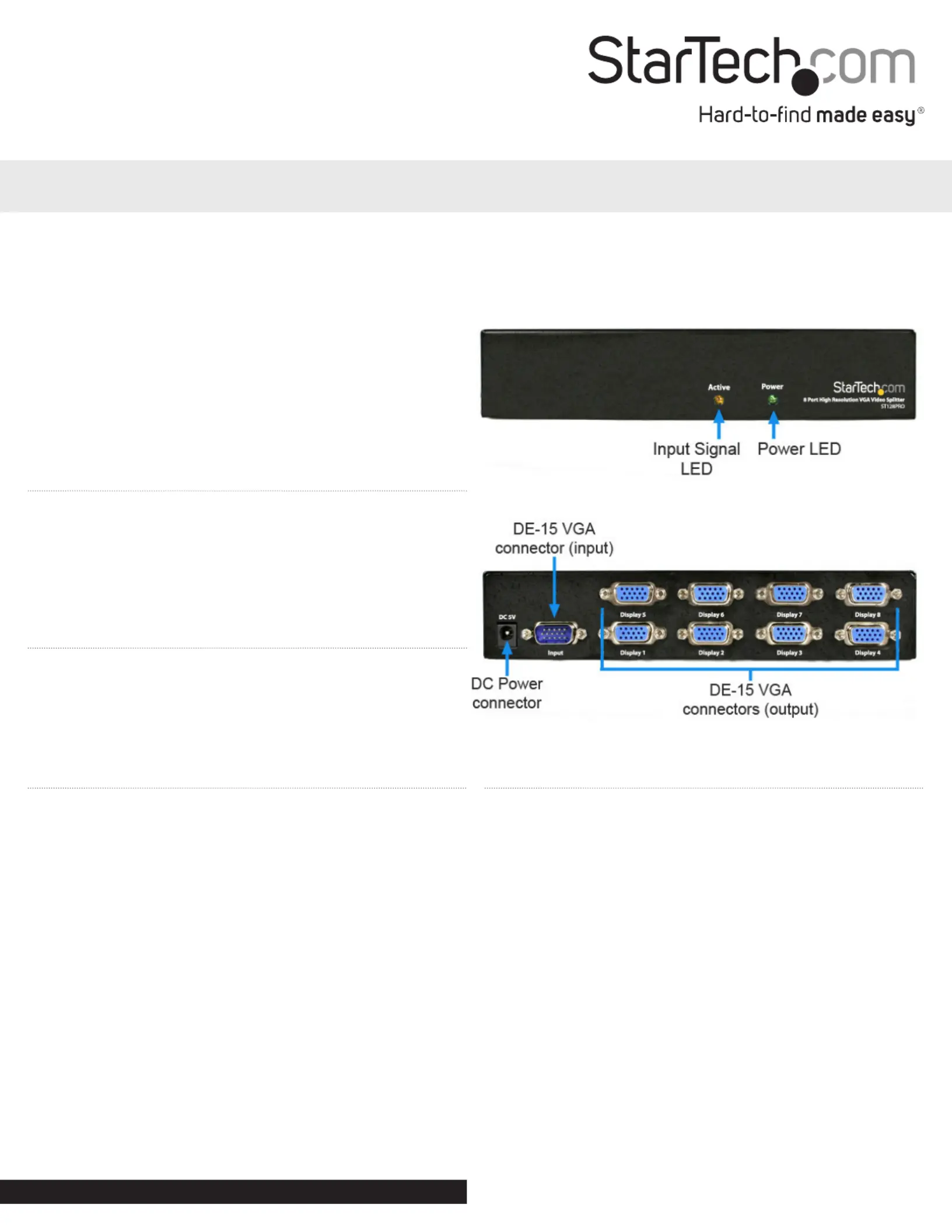

Rear View
Front View
Installation Guide
*8-Port ST128PRO shown
Manual Revision: 02/21/2021
For the most up-to-date information, please visit: www.startech.com
FCC Compliance Statement
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment
o and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from that to which the receiver
is connected.
Consult the dealer or an experienced radio/TV technician for help.
Use of Trademarks, Registered Trademarks, and other Protected Names & Symbols
This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of
third-party companies not related in any way to
StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an
endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual
applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body
of this document, StarTech.com hereby acknowledges that all trademarks, registered trademarks, service marks, and
other protected names and/or symbols contained in this manual and related documents are the property of their
respective holders.
Technical Support
StarTech.com’s lifetime technical support is an integral part of our commitment to provide industry-leading solutions.
If you ever need help with your product, visit www.startech.com/support and access our comprehensive selection of
online tools, documentation, and downloads.
Warranty Information
This product is backed by a two year warranty.
In addition, StarTech.com warrants its products against defects in materials and workmanship for the periods noted,
following the initial date of purchase. During this period, the products may be returned for repair, or replacement with
equivalent products at our discretion. The warranty covers parts and labor costs only. StarTech.com does not warrant
its products from defects or damages arising from misuse, abuse, alteration, or normal wear and tear.
Limitation of Liability
In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their ocers, directors, employees
or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise),
loss of prots, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the
actual price paid for the product. Some states do not allow the exclusion or limitation of incidental or consequential
damages. If such laws apply, the limitations or exclusions contained in this statement may not apply to you.
Specications
ST122PRO / ST122PROGB / ST122PROEU ST124PRO / ST124PROGB / ST124PROEU ST128PRO /ST128PROGB / ST128PROEU
Number of Ports 2 4 8
Video Signal VGA (RGBHV)
Connectors
1 x DE-15 VGA male
2 x DE-15 VGA female
1 x 5V DC Power
1 x DE-15 VGA male
4 x DE-15 VGA female
1 x 5V DC Power
1 x DE-15 VGA male
8 x DE-15 VGA female
1 x 5V DC Power
LEDs 1 x Power
1 x Input Signal Detect
Maximum Video Resolution 2048 x 1536 @ 80Hz 2048 x 1536 @ 80Hz 2048 x 1536 @ 80Hz
Maximum Cable Distance 65 m / 213 ft
Video Bandwidth 350 MHz (-3dB) 350 MHz (-3dB) 300 MHz (-3dB)
Audio Support No
DDC Support Yes
Operating Temperature 5°C ~ 40°C (41°F ~ 104°F)
Humidity 0% ~ 80% RH
Dimensions
(LxWxH) 180.0mm x 85.0mm x 20.0mm 180.0mm x 85.0mm x 20.0mm 196.0mm x 70.0mm x 40.0mm
Weight 270g 300g 1150g
