Manual Revision:12/02/2010
For the most up-to-date information, please visit www.startech.com

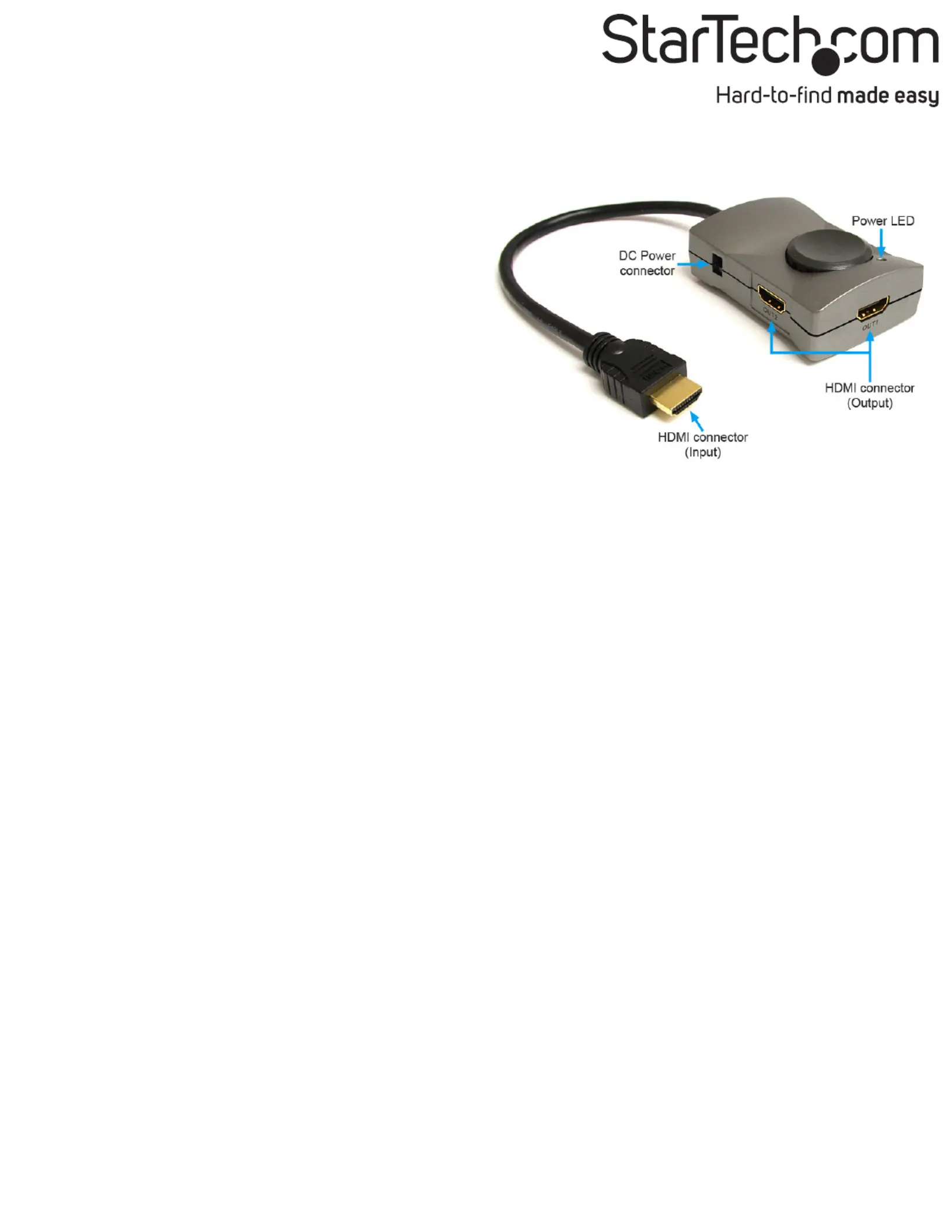

• 1 x HDMI Splitter
• 1 x 24in USB to DC Power Cable
• 1 x Installation Guide
• HDMI enabled display devices (i.e. monitor, projector,
HDTV, etc.)
• HDMI enabled video source (i.e. computer, Blu-Ray
player, PVR/DVR, etc.)
• Available USB port
1. Make sure all displays and the video source device are
turned off before installing.
2. Connect an HDMI cable (not included) from each of the
video display devices (e.g. monitor, HDTV, etc) to the
numbered output HDMI connectors on the video splitter.
NOTE: Port 1 (OUT1) is the primary output so EDID
information will be taken from there. The capabilities of
the display on Port 1 will be applied to all other ports so be
careful not to exceed the capabilities of the other displays.
3. Connect the integrated HDMI cable from the video splitter
to the video source device (e.g. computer, PVR/DVR, etc).
If the cable is too short, an extension cable may be used.
4. Connect the included USB to power adapter cable from
the video splitter to an available USB port on the video
source device.
5. Turn on the display devices, followed by the video source.
The video output should be displayed on all connected
display devices.
The ST122HDMILE HDMI splitter can be cascaded/daisy-
chained with almost any other additional HDMI video
splitters for expanded capabilities, such as more ports and
reaching greater distances.
1. Make sure all displays and the video source device are
turned off before installing.
2. Connect the inputs of the second level HDMI
splitters to the “OUT1” and “OUT2” connectors on the
ST122HDMILE. If only connecting a single HDMI splitter,
make sure it is connected to “OUT1”.
3. Connect each of the video display devices (e.g. monitor,
HDTV, etc) to the output HDMI connectors on each of the
video splitters.
4. Power on the HDMI Video splitters, starting with the
ST122HDMILE, and then moving down the chain.
5. Turn on the display devices, followed by the video source.
The video output should be displayed on all connected
display devices.
NOTE: The more levels of HDMI splitters that are
cascaded, the greater the chances of the signal quality
becoming degraded.
FCC Compliance Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols
This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-party companies not related in any way to
StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the
product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby
acknowledges that all trademarks, registered trademarks, service marks, and other protected names and/or symbols contained in this manual and related documents are the property of their
respective holders.
Technical Support
StarTech.com’s lifetime technical support is an integral part of our commitment to provide industry-leading solutions. If you ever need help with your product, visit www.startech.com/support and
access our comprehensive selection of online tools, documentation, and downloads.
Warranty Information
This product is backed by a one year warranty.
In addition, StarTech.com warrants its products against defects in materials and workmanship for the periods noted, following the initial date of purchase. During this period, the products may
be returned for repair, or replacement with equivalent products at our discretion. The warranty covers parts and labor costs only. StarTech.com does not warrant its products from defects or
damages arising from misuse, abuse, alteration, or normal wear and tear.
Limitation of Liability
In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive,
incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. Some
states do not allow the exclusion or limitation of incidental or consequential damages. If such laws apply, the limitations or exclusions contained in this statement may not apply to you.
Number of Ports 2
Video Signal High Speed HDMI (1.3)
Connectors 2 x HDMI type A female (Output)
1 x HDMI type A male (Input)
1 x DC Power
LEDs 1 x Power LED
Maximum Video Resolution 1080p
Maximum Cable Distance 15 m
Audio Support Yes
HDCP Support Yes
DDC Support Yes
Enclosure Material Plastic
Power Adapter USB powered
Operating Temperature 0°C ~ 70°C (32°F ~ 158°F)
Storage Temperature -20°C ~ 85°C (-4°F ~ 185°F)
Humidity 0% ~ 95% RH
Dimensions 85.5mm x 52.7mm x 20.3mm
Weight 120g
