Instruction Manual

DE: Bedienungsanleitung - de.startech.com

FR: Guide de l'utilisateur - fr.startech.com

ES: Guía del usuario - es.startech.com

IT: Guida per l'uso - it.startech.com

NL: Gebruiksaanwijzing - nl.startech.com

PT: Guia do usuário - pt.startech.com

Manual Revision: 10/16/2014

For the most up-to-date information, please visit: www.startech.com

Packaging Contents

• 1x HDMI Audio/Video Splitter (ST122HD4KU)

• 1x Power Adapter (NA/EU/UK/AUS)

• 1x USB power Cable

• 1x Instruction Manual

System Requirements

• 1x HDMI-enabled Video Source Device (i.e. Blu-ray player,

computer, etc.)

• 2x HDMI-enabled Display Devices w/ cabling (i.e. Television,

projector, etc.)

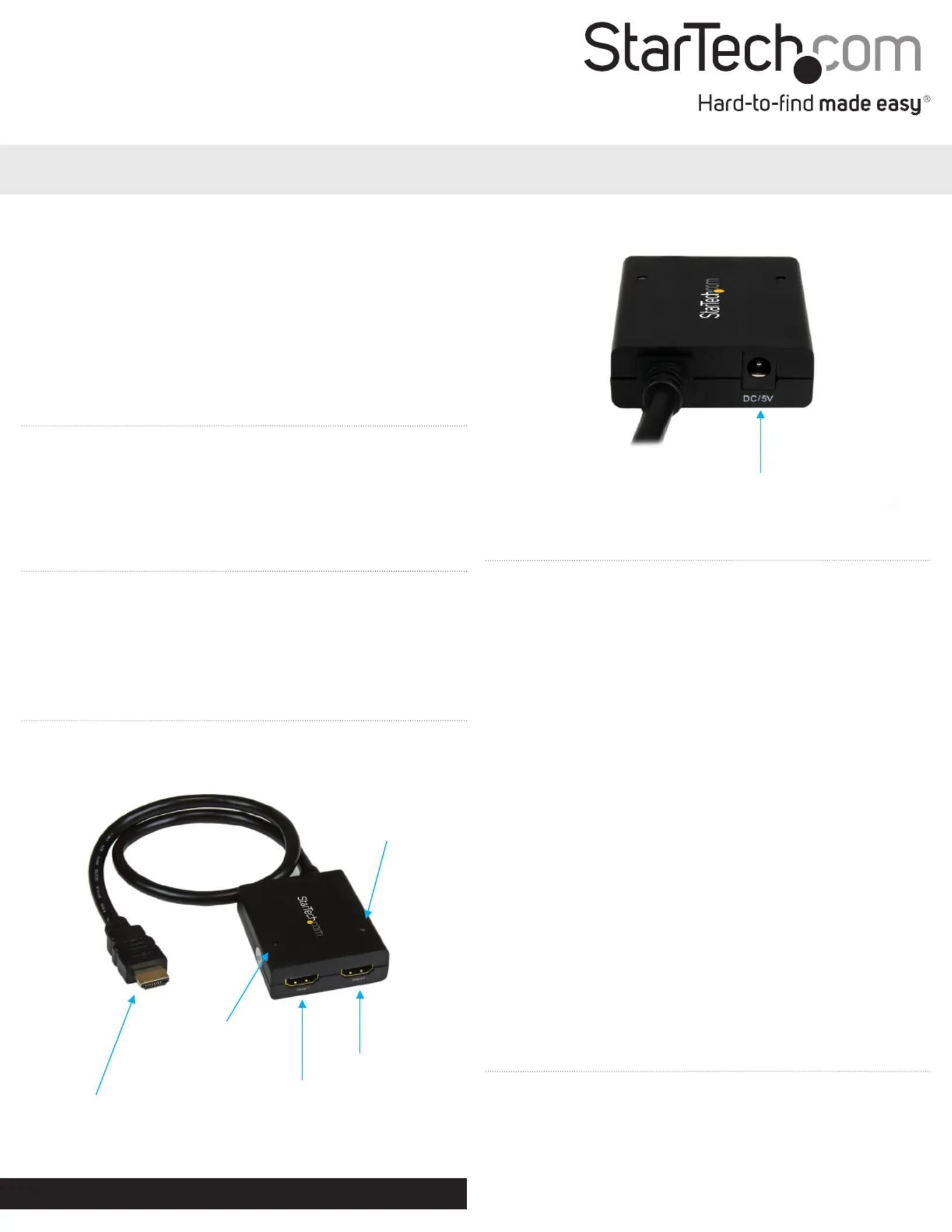

Product Diagram

Front View

Hardware Installation

Note: Ensure your HDMI-enabled video source device, and the

HDMI-enabled Display Devices are powered o before you begin

installation.

1. Connect the on the HDMI Input Dongle Cable ST122HD4KU

from the A/V output port of your HDMI-enabled Video Source

Device.

2. Connect an (not included) from each of theHDMI cable HDMI

output ports ST122HD4KU HDMI input port on the to the on

your HDMI-enabled Display Devices.

Note: Each port is numbered, please take note of which number is

assigned to each HDMI-enabled display device.

3. Power on each HDMI-enabled Display Device, followed by your

HDMI-enabled Video Source Device.

4. Connect the included power adapter from an available power

source to the power adapter port ST122HD4KU. on the

If you would prefer to use a USB power source, connect the

included from an available USB power source, USB power cable

to the power adapter port ST122HD4KU. on the

5. Your Video source device A/V output will now appear on each

attached HDMI-enabled display device.

ST122HD4KU

2-Port HDMI® Splitter with USB Power – 4K

HDMI Output Port 1

Activity LED

HDMI Input Dongle

Cable

HDMI Output Port 2

Activity LED

HDMI Output Port 2

Power Adapter Port

Rear View

Activity LED

Each HDMI output port on the ST122HD4KU is equipped with an

Activity LED. This LED will light while an active HDMI display is

attached and receiving a video input signal.

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against

harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause

harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s)

to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby acknowledges that all

trademarks, registered trademarks, service marks, and other protected names and/or symbols contained in this manual and related documents are the property of their respective holders.

Technical Support

StarTech.com’s lifetime technical support is an integral part of our commitment to provide industry-leading solutions. If you ever need help with your product, visit www.startech.com/support and access

our comprehensive selection of online tools, documentation, and downloads.

For the latest drivers/software, please visit www.startech.com/downloads

Warranty Information

This product is backed by a two year warranty.

In addition, StarTech.com warrants its products against defects in materials and workmanship for the periods noted, following the initial date of purchase. During this period, the products may be returned

for repair, or replacement with equivalent products at our discretion. The warranty covers parts and labor costs only. StarTech.com does not warrant its products from defects or damages arising from

misuse, abuse, alteration, or normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their ocers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental,

consequential, or otherwise), loss of prots, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. Some states do not allow

the exclusion or limitation of incidental or consequential damages. If such laws apply, the limitations or exclusions contained in this statement may not apply to you.

Specications

Video Signal HDMI (1.4)

Number of Input Ports 1

Number of Output Ports 2

Maximum Video Resolution 4K (3840 x 2160) @ 30hz

Audio Support 7.1 Digital Audio
