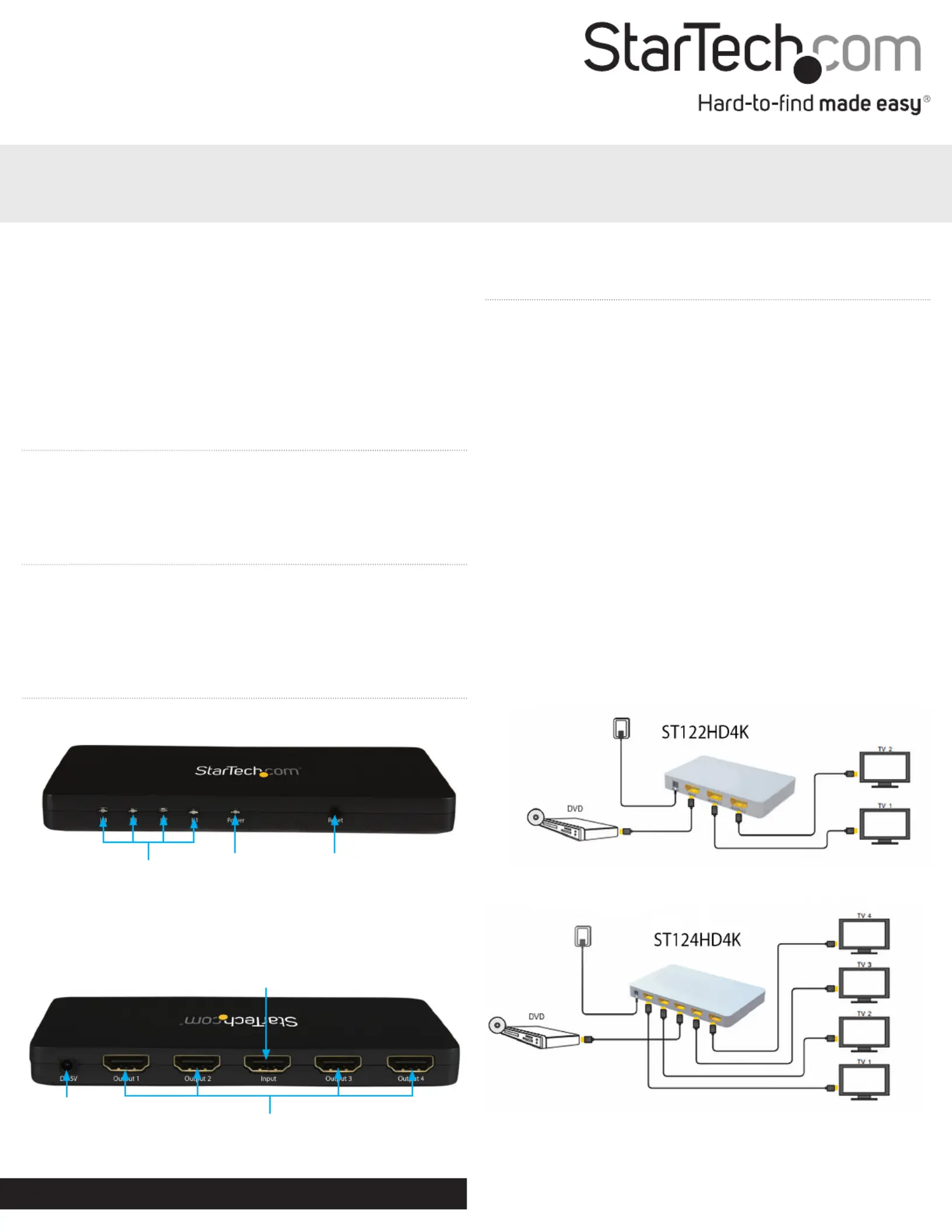

Instruction Manual

DE: Bedienungsanleitung - de.startech.com

FR: Guide de l'utilisateur - fr.startech.com

ES: Guía del usuario - es.startech.com

IT: Guida per l'uso - it.startech.com

NL: Gebruiksaanwijzing - nl.startech.com

PT: Guia do usuário - pt.startech.com

Manual Revision: 02/13/2018

For the most up-to-date information, please visit: www.startech.com

Port

activity LEDs

Power LED Reset Button

Packaging Contents

• 1x HDMI Audio/Video Splitter (ST122HD4K/ST124HD4K)

• 1x Power Adapter (NA/EU/UK/AUS)

• 1x Instruction Manual

System Requirements

• 1x HDMI-enabled Video Source Device w/ HDMI cable

(i.e. Blu-ray player, computer, etc.)

• 4x HDMI-enabled Display Device w/ cable (i.e. Television,

projector, etc.)

ST124HD4K / ST122HD4K

Split an HDMI audio/video source to multiple HDMI Displays simultaneously, with

support for resolutions up to 4K

*actual product may vary from photos

Product Overview

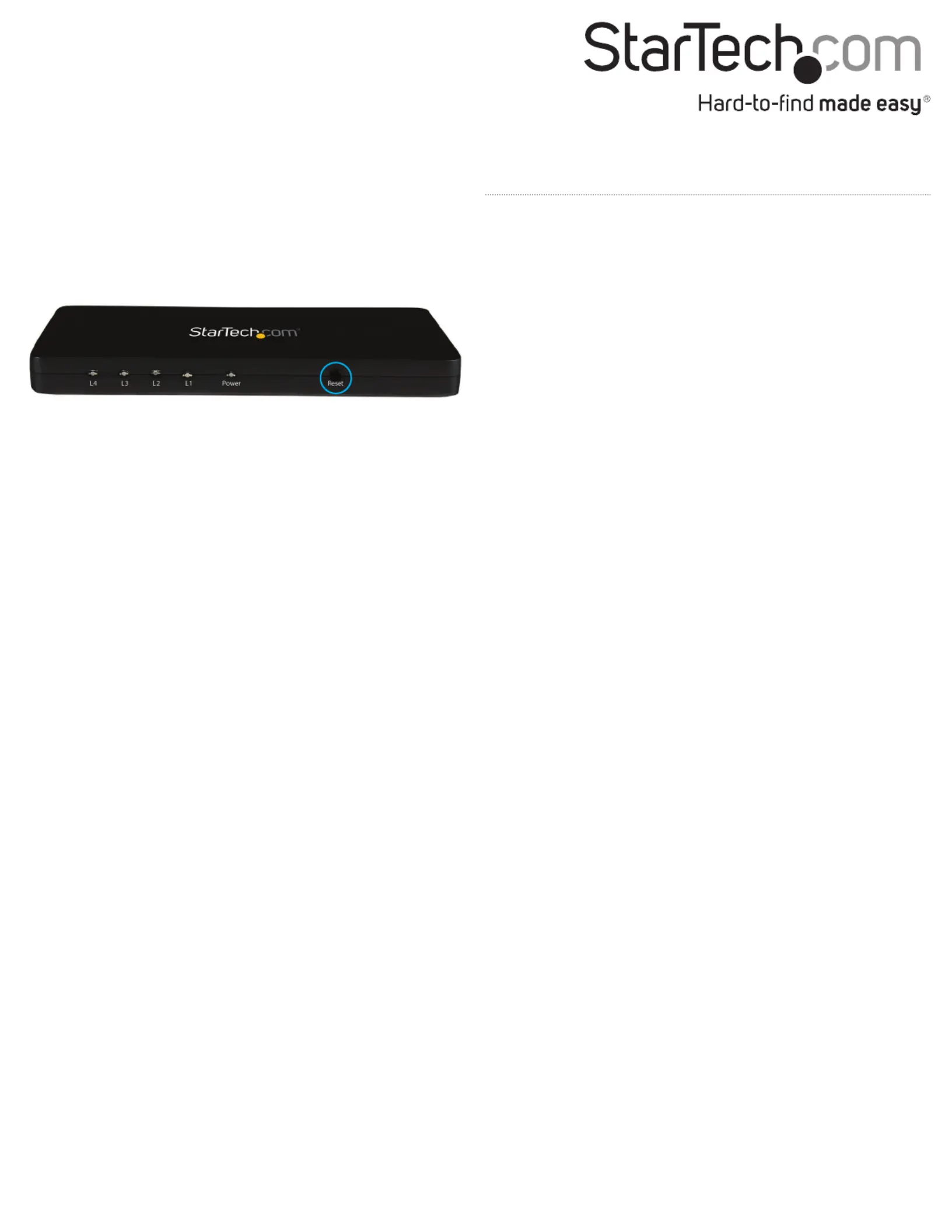

Front View - ST124HD4K

Rear View - ST124HD4K

Hardware Installation

Note: Ensure your HDMI-enabled video source device, and the

HDMI-enabled Display Devices are powered o before you begin

installation.

1. Connect an (not included) from the A/V output of HDMI cable

your HDMI-enabled Video Source Device A/V input Port to the

on the HDMI Audio/Video Splitter.

2. Connect an (not included) from the on HDMI cable output ports

the HDMI Video Splitter to each desired HDMI-enabled Display

Device (up to 2 on ST122HD4KS) (up to 4 on ST124HD4KS).

Note: Each port is numbered, please take note of which number

is assigned to each HDMI-enabled display device.

3. Power on each , followed by your HDMI-enabled Display Device

HDMI-enabled Video Source Device.

4. Connect the included power adapter from an available power

source to the power adapter port HDMI Audio/Video on the

Splitter.

5. Your Video source device A/V output will now appear on each

attached HDMI-enabled display device.

Power

adapter port A/V output

ports

A/V input

port
