Quick-start guide
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
Manual Revision: 04/23/2018
For the latest information, technical specications, and support for
this product, please visit www.startech.com/ST122HD20
Packaging contents
• 1 x HDMI® video splitter
• 1 x universal power adapter (NA, EU, UK, ANZ)
• 1 x quick-start guide
System requirements
• One HDMI video source device with cabling
• Two HDMI video display devices with cabling.
ST122HD20
2-Port HDMI Video Splitter - 4K at 60 Hz
*actual product may vary from photos
Hardware installation
Note: Before you begin the hardware installation steps, ensure
your HDMI source device and each of the HDMI video displays are
powered o.
1. Connect an HDMI cable (sold separately) to the on HDMI input
the video splitter and to the HDMI output on your video source
device.
2. Connect an HDMI cable (sold separately) to each of the HDMI
outputs on the video splitter and to the HDMI input ports on your
video displays.
Note: The HDMI display with the lowest resolution and refresh
rate that can be achieved by both displays, should be connected
to output #1.
3. Connect the power adapter (included) to the DC 5V power
adapter port on the video splitter and to an AC outlet.
4. Power on your video source.
5. Power on each of your video displays.
6. Verify your video source is now displaying on each of your
displays.
Product overview
Output
LEDs
About this product
This HDMI video switch lets you connect an HDMI video source to
two HDMI video displays, with support for Ultra HD resolutions up to
4K at 60Hz and 7.1 surround sound audio.

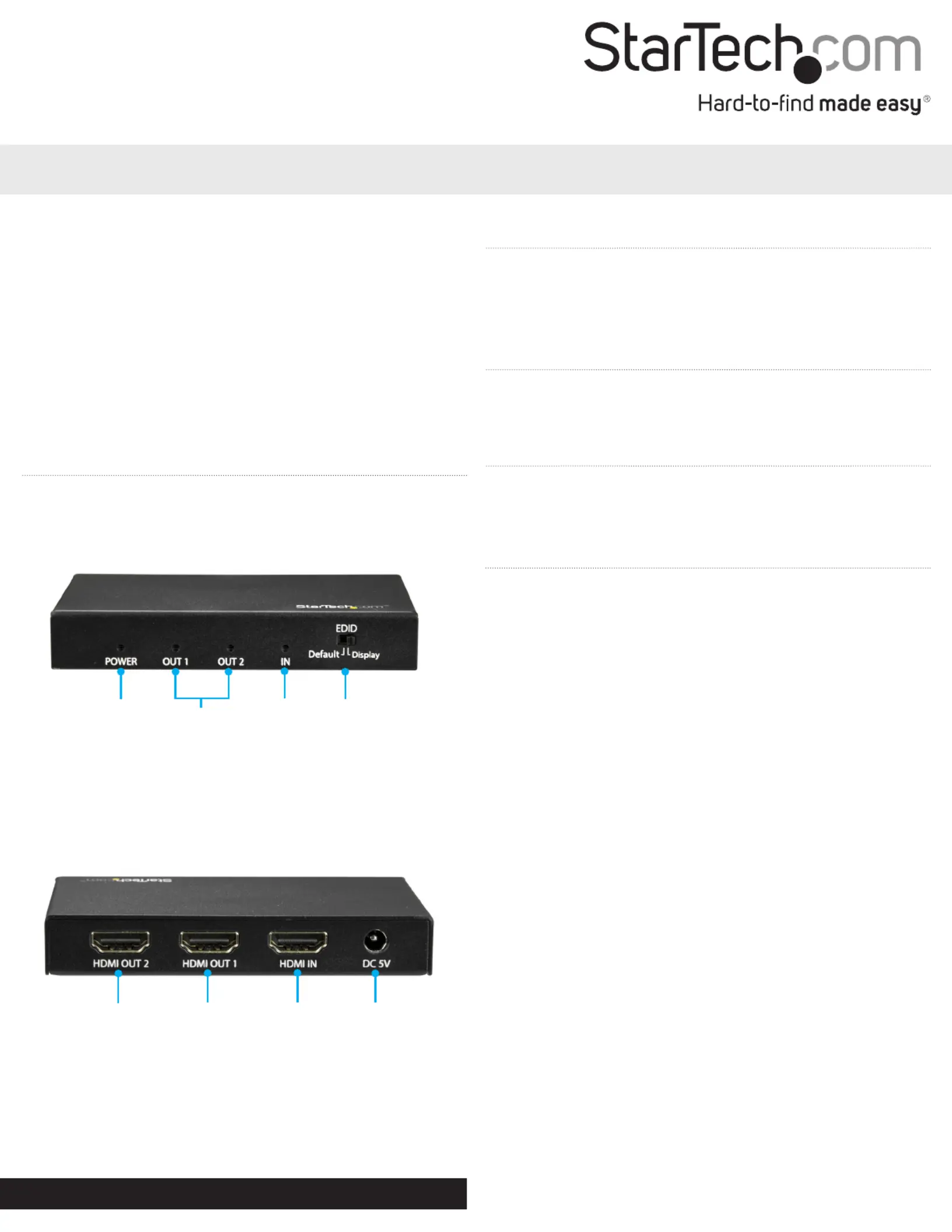

Front view
Rear view
HDMI
input
DC 5V power
adapter port
Power
LED
HDMI
output 2
HDMI
output 1
Input
LED
FCC Compliance Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation. Changes or modications not expressly approved by StarTech.com could void the user’s authority to operate the
equipment.
Industry Canada Statement
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe [B] est conforme à la norme NMB-003 du Canada.
CAN ICES-3 (B)/NMB-3(B)
Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols
HDMI is a trademark of HDMI Licensing, LLC. This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-party companies not related in
any way to
StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s)
to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby acknowledges that all
trademarks, registered trademarks, service marks, and other protected names and/or symbols contained in this manual and related documents are the property of their respective holders.
Technical Support
StarTech.com’s lifetime technical support is an integral part of our commitment to provide industry-leading solutions. If you ever need help with your product, visit www.startech.com/support and
access our comprehensive selection of online tools, documentation, and downloads.
For the latest drivers/software, please visit www.startech.com/downloads
Warranty Information
This product is backed by a two year warranty.
StarTech.com warrants its products against defects in materials and workmanship for the periods noted, following the initial date of purchase. During this period, the products may be returned for
repair, or replacement with equivalent products at our discretion. The warranty covers parts and labor costs only. StarTech.com does not warrant its products from defects or damages arising from
misuse, abuse, alteration, or normal wear and tear.
Limitation of Liability
In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their ocers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental,
consequential, or otherwise), loss of prots, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. Some states do not
allow the exclusion or limitation of incidental or consequential damages. If such laws apply, the limitations or exclusions contained in this statement may not apply to you.
LED indicators
This video splitter features LED indicators that can be used
to notify you of the video status. The following table explains
what each LED represents:
LED Status
Power LED Lights when the splitter is connected to a
power source.
Input LED Lights when an active video source is
connected to the HDMI input.
Output LEDs Lights when an active video display is
connected to the designated HDMI output.
EDID switch
When connected, EDID information is shared between the video
source and the displays, to determine which output settings are
optimal for the display.
Because this switch enables you to connect two displays to a single
video source, it’s possible that each display may have dierent
capabilities, which can negatively aect the performance of the
display with lower capabilities.
To ensure optimal support for both displays, this HDMI splitter
features an that gives you the option to use the EDID EDID switch
settings from the display that’s attached to Output 1, or emulate
generic EDID settings that are commonly supported by most HDMI
displays.
Use the EDID settings from the display attached to
HDMI output 1
1. Set the EDID switch to Display.
2. Disconnect and reconnect the power adapter from the video
splitter.
Use generic EDID settings that are commonly
supported by most HDMI displays
1. Set the . EDID switch to Default
2. Disconnect and reconnect the power adapter from the video
splitter.
Note: The generic EDID settings are:
Resolution: 1920 x 1080 at 60Hz
Audio: 2-channel stereo
