Seite 1/2
Quick-Start Guide
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.
Manual Revision: July 24, 2023 5:11 PM

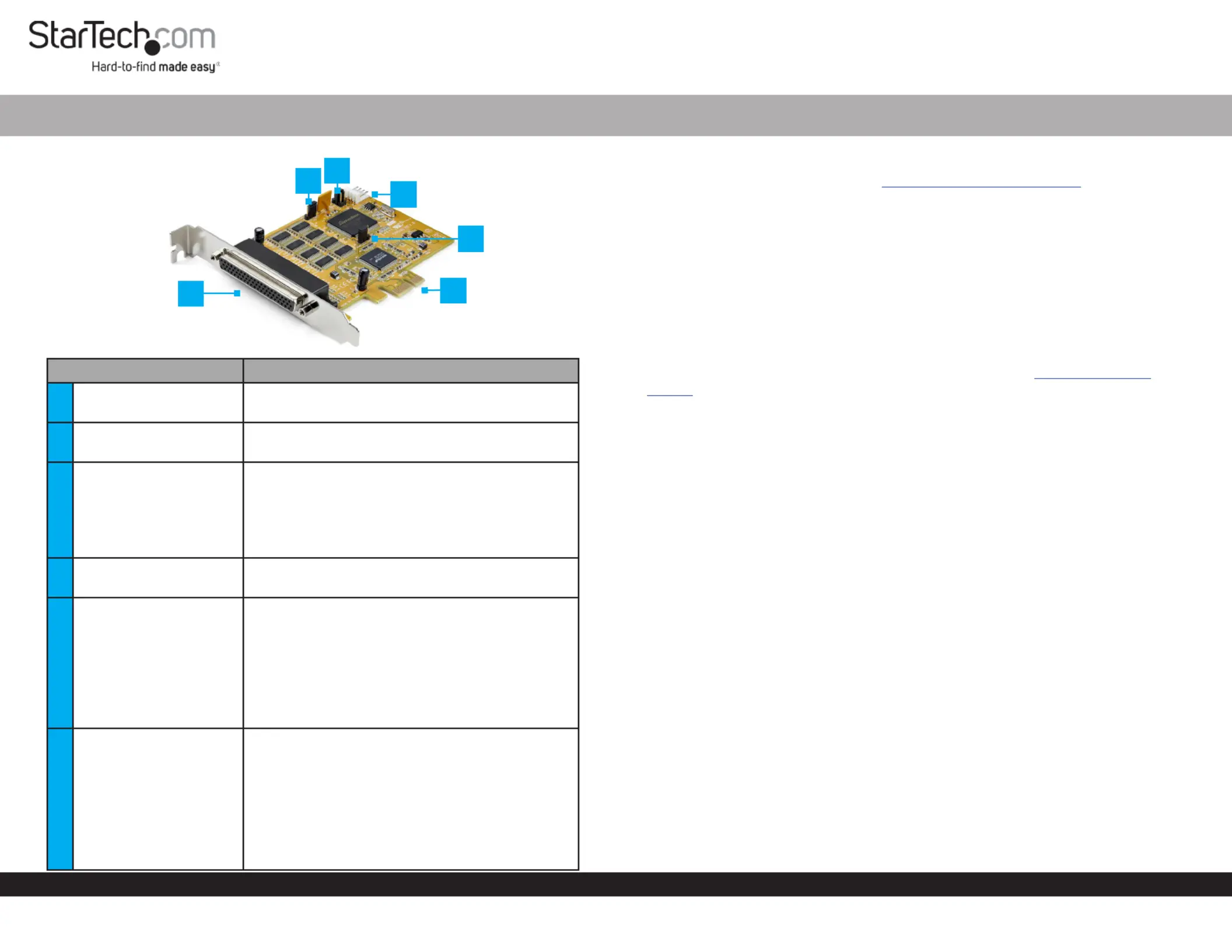

Product Diagram (PEX8S1050)
Component Function
1DB62 Connector Connects the 8-Port DB62 to DB9MX8
Breakout Cable Serial Adapter Card to the .
2PCI Express Connector Used to connect the to Serial Adapter Card
the on the .PCI Express Slot Host Computer
3JP1 PME Jumper
Used to enable or disable wake from sleep.
ENA = Enables wake from sleep. Move the plug
to cover the and middle pins.ENA
DIS = Disables wake from sleep. Move the plug
to cover the and middle pins.DIS
4J5 Aux Power
Connector
Used to connect the Host Computers Power
Supply (4 Pin SP4/Floppy power connector).
5JP5 Aux Power Source
Selector
Determines the voltage.DC Power Source
X5V DC Power Source= 5V from a connected
to the .JP5 Aux Power Connector
X12V DC Power Source = 12V from a
connected to the .JP5 Aux Power Connector
I12V PCI Express Slot = 12V from
(motherboard’s PCIe slot).
6JP4 Power Over
External Connector
Enables or disables the power over Pin #58
on the 8-Port DB62 to DB9MX8 Breakout
Cable’s DB62 Connector.
GND Pin #58 = No power is supplied to on the
DB62 Connector.
PWR Pin #58 = Power is supplied to on the
DB62 Connector DC Power Source when a is
connected to . J5 Aux Power Connector
8 Port PCI Express RS232 Serial Adapter Card 16C1050
Requirements
For the latest requirements, please visit www.startech.com/PEX8S1050
Computer with an available PCI Express® slot (x1, x4, x8, or x16)
(Optional) External DC Power Source - Host Computer’s PSU
(Optional) DB62 to DB9MX8 Cable w/ Pin #58 as power source
Operating System (OS):
Windows® 7, 8, 8.1, 10 and 11
Tools
Small Phillips Head Screwdriver
Driver
You must download and install the Systembase Drivers, see Downloading the
Drivers section.
Hardware Installation
Warning: Serial Adapter Cards can be damaged by static electricity. Make sure that you are
properly grounded before you open your computer case or touch the . Serial Adapter Card
Only handle the by its edges and do not touch the gold connectors.Serial Adapter Card
Installing the Serial Adapter Card
1. Turn o the and any that are connected (e.g., Computer Peripheral Devices
printers, external hard drives, etc.).
2. Unplug the from the back of the and disconnect any Power Cable Computer
Peripheral Devices that are connected.
3. Remove the from the . Cover Computer Case
4. Locate an open (x1, x4, x8, or x16) and remove the corresponding PCI Express Slot
Metal Cover Plate Computer Case from the back of the .
5. Gently insert the into the open and fasten the Serial Adapter Card PCI Express Slot
Bracket Computer Case to the back of the .
6. Place the back onto the . Cover Computer Case
7. Connect the 8-Port DB62 to DB9MX8 Breakout Cable ( ) DB62 included to the
Connector Serial Adapter Card.on the
Note: The the 8-Port DB62 to DB9MX8 Cable’s Connector shell/exterior is not
grounded.
8. Tighten the two screws on the sides of the , securing the . DB62 Connector Cable
9. Connect up to 8 serial devices to the on the DB9MX8 Connectors DB62 to DB9MX8
Breakout Cable.
12
65
4
3
FCC Compliance Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation. Changes or modications not expressly approved by StarTech.com could void
the user’s authority to operate the equipment.
Industry Canada Statement
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe [B] est conforme à la norme NMB-003 du Canada.
CAN ICES-3 (B)/NMB-3(B)
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions:
(1) This device may not cause interference, and (2) This device must accept any interference, including interference that may
cause undesired operation of the device.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation
est autorisée aux deux conditions suivantes:
(1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi,
même si le brouillage est susceptible d’en compromettre le fonctionnement.
Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols
This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-
party companies not related in any way to StarTech.com. Where they occur these references are for illustrative purposes only
and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which
this manual applies by the third-party company in question. StarTech.com hereby acknowledges that all trademarks, registered
trademarks, service marks, and other protected names and/or symbols contained in this manual and related documents are the
property of their respective holders.
Warranty Information
This product is backed by a lifetime warranty.
For further information on product warranty terms and conditions, please refer to .
www.startech.com/warranty
Limitation of Liability
In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their ocers, directors, employees or agents)
for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of prots, loss of
business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product.
Some states do not allow the exclusion or limitation of incidental or consequential damages. If such laws apply, the limitations
or exclusions contained in this statement may not apply to you.
Safety Measures
If product has an exposed circuit board, do not touch the product under power.
Mesures de sécuri
Si l’un des circuits imprimés du produit est visible, ne pas touchez le produit lorsqu’il est sous tension.
安全対策
• 製品に露出した状態の回路基盤が含まれる場合、電源が入っている状態で製品に触らないでください。
Misure di sicurezza
Se il prodotto ha un circuito stampato visibile, non toccare il prodotto quando è acceso.
Säkerhetsåtgärder
Rör aldrig vid enheter med oskyddade kretskort när strömmen är påslagen.
StarTech.com Ltd.
45 Artisans Crescent
London, Ontario
N5V 5E9
Canada
StarTech.com LLP
4490 South Hamilton
Road
Groveport, Ohio
43125
U.S.A.
StarTech.com Ltd.
Unit B, Pinnacle 15
Gowerton Road
Brackmills,
Northampton
NN4 7BW
United Kingdom
StarTech.com Ltd.
Siriusdreef 17-27
2132 WT Hoofddorp
The Netherlands
FR: startech.com/fr
DE: startech.com/de
ES: startech.com/es
NL: startech.com/nl
IT: startech.com/it
JP: startech.com/jp
Pin Signal Pin Signal Pin Signal
1 TXD1 22 RXD1 43 CTS1
2 DTR1 23 DSR1 44 RTS1
3 RXD2 24 DCD1 45 GND
4 DSR2 25 TXD2 46 CTS2
5 DCD2 26 DTR2 47 RTS2
6 TXD3 27 RXD3 48 CTS3
7 DTR3 28 DSR3 49 RTS3
8 RXD4 29 DCD3 50 GND
9 DSR4 30 TXD4 51 CTS4
10 DCD4 31 DTR4 52 RTS4
11 RXD5 32 GND 53 CTS5
12 DSR5 33 TXD5 54 RTS5
13 DCD5 34 DTR5 55 GND
14 TXD6 35 RXD6 56 CTS6
15 DTR6 36 DSR6 57 RTS6
16 RXD7 37 DCD6 58 PWR
17 DSR7 38 TXD7 59 CTS7
18 DCD7 39 DTR7 60 RTS7
19 RXD8 40 GND 61 CTS8
20 DSR8 41 TXD8 62 RTS8
21 DCD8 42 DTR8
10. (Optional) Screw two (included) onto the two screws on the sides of the Hex Screws
DB9 Connector in order to attach/secure additional peripherals or another cable to
the .DB9 Connector
11. Reconnect the to the back of the and reconnected allPower Cable Computer
Peripheral Devices.
Downloading the Drivers
When the is connected, you must download the Serial Adapter Card Systembase
Drivers from the tab - @ . Support Drivers www.startech.com/PEX8S1050
Connecting an External DC Power Source
Connect the to the Host Computer’s Power Source Unit (PSU) 4 Pin SP4/Floppy
Power Connector Serial Adapter Card on the .

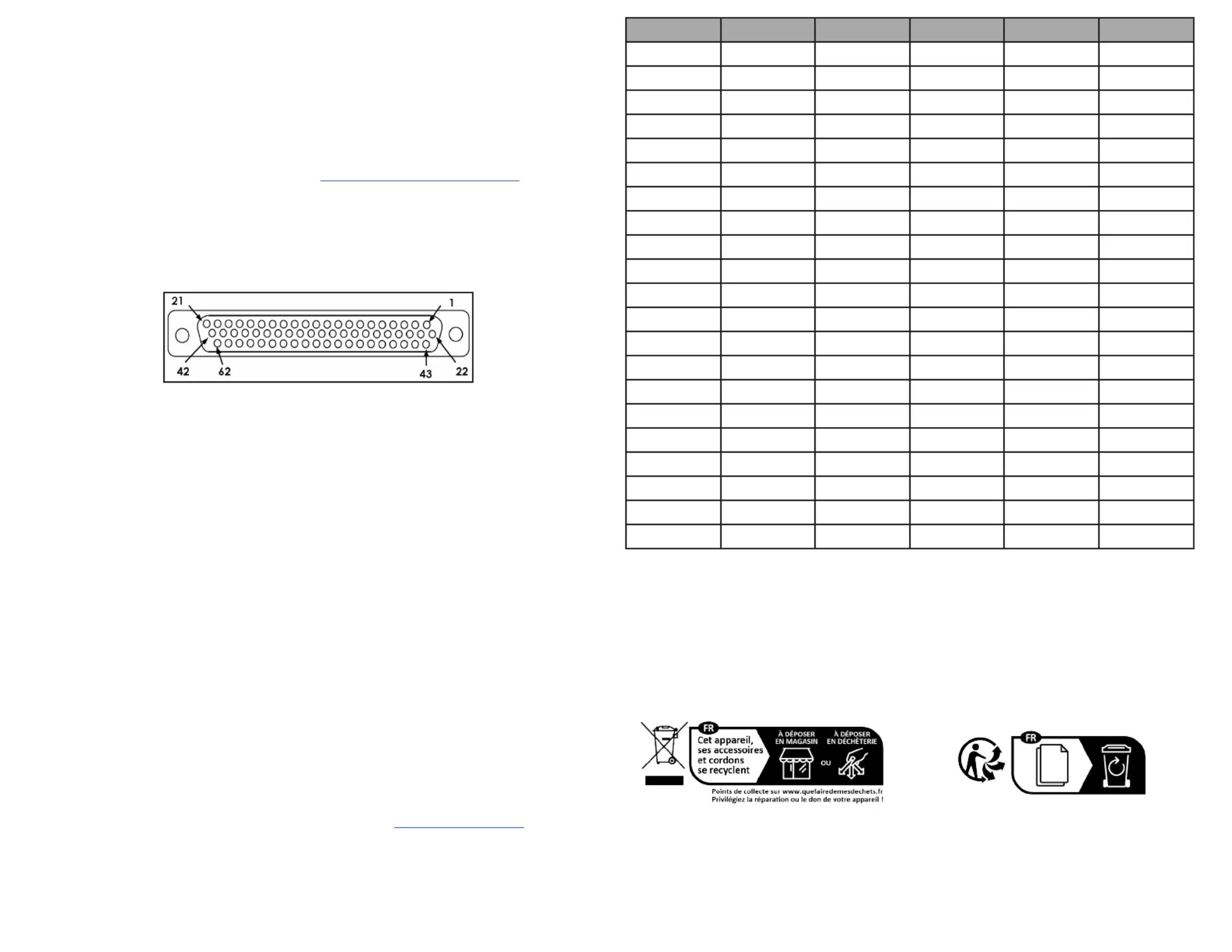

Pinout Diagram
