Quick-Start Guide
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.
Manual Revision: October 31, 2019

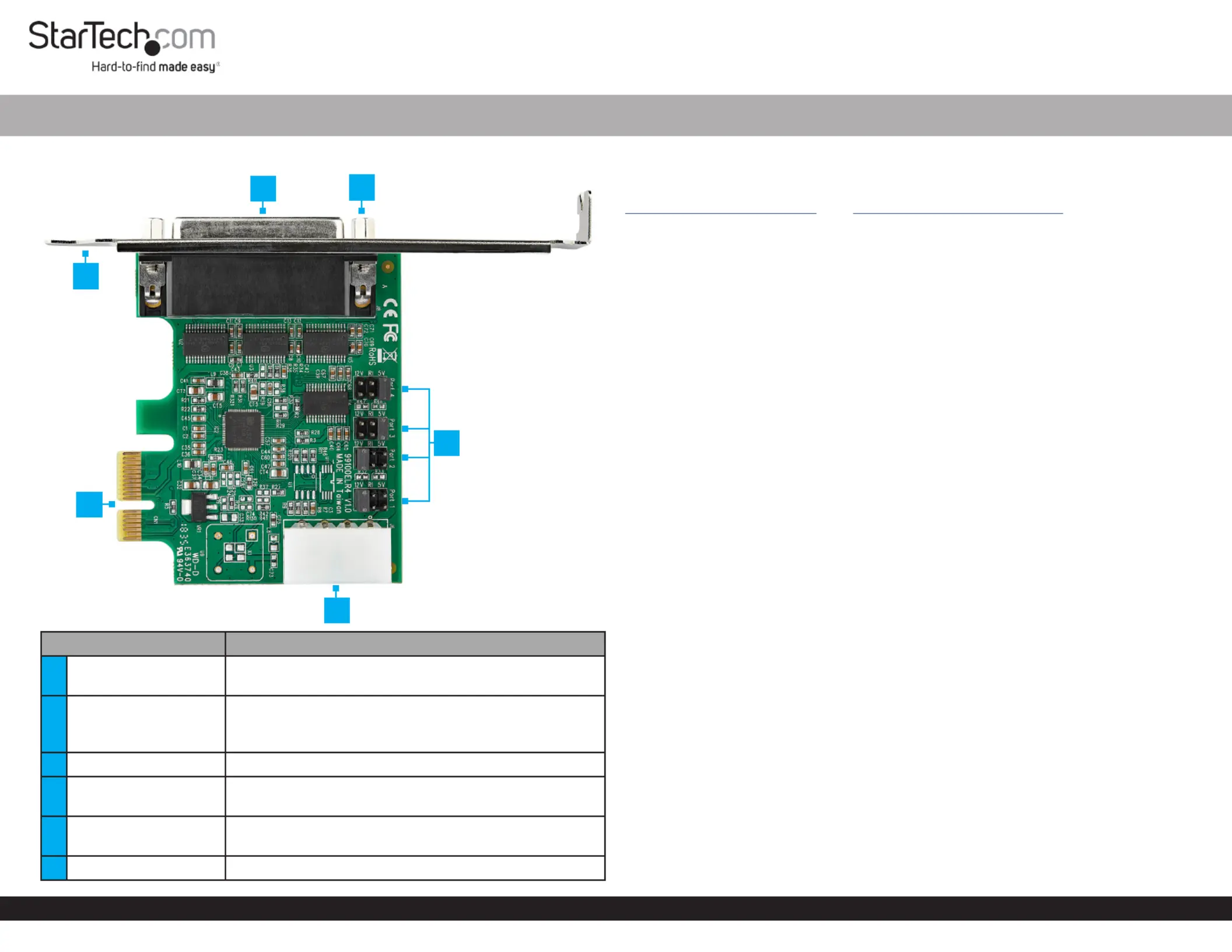

Product Diagram (PEX4S953 and PEX4S953LP)
Port Function
1Break-out Cable Port Connect the to connect 4-Port DB9 Break-out Cable
up to 4 Serial Devices
2Stand-os
Attach the to the Bracket PCI Express Serial Card
Secure the to the 4-Port DB9 Break-out Cable
Break-out Cable Port
3Bracket Attach the to the PCI Express Serial Card Computer
4PCI Express Bus
Connector
Connect the to the PCI Express Serial Card
Computer Motherboard
5Jumpers Congure the individual power Serial Connector
settings
6LP4 Power Connector Used to connect an LP4 Power Source
4-Port PCI Express RS232 Serial Card - 16950 UART
Requirements
For the latest requirements please visit:
www.startech.com/PEX4S953 www.startech.com/PEX4S953LP. - or -
PCIe Slot
Needle-Nose Pliers
(Optional) LP4 Power Source
Installation
WARNING!
PCI Express Serial Cards can be severely damaged by static electricity. Make sure
that you are properly grounded before you open the or touch the Computer Case
PCI Express Serial Card Anti-Static Strap . You should wear an when you install
any computer component. If an isn’t available, discharge any Anti-Static Strap
built-up static electricity by touching a large for several Grounded Metal Surface
seconds. Only handle the by its edges and don’t touch PCI Express Serial Card
the gold connectors.
Jumper Conguration
Note: This is specially designed to allow for power output PCI Express Serial Card
from the ninth pin of the for that support power Serial Connector(s) Serial Devices
over serial. conguration is a requirement when connecting Jumper Serial Devices
that require power through a .Serial Connector
The can be moved into one of three dierent positions in order to set the Jumper
power output voltage for the . The default setting for the Serial Connector Jumpers
is , no power. The must be connected after conguring theRI LP4 Power Connector
Jumper 5V 12V Jumper to or of power. To congure the , complete the following:
1. Ensure the isComputer Power O.
2. Locate the for and carefully remove the . Lift the Jumper Port One Jumper Jumper
straight up and o of the .PCI Express Serial Card
Notes: The is located on the right hand side, labeled as on the Jumper Port 1
. Printed Circuit Board
Always hold the by the edges.Card
3. Determine the power setting that is required for .Port One
4. Position the over the set of that correspond with the desired Jumper Pins Serial
Connector Power Setting Jumper. See to determine where the Figure 1 should be
positioned.
1
4
6
3
5
2
FCC Compliance Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation. Changes or modications not expressly approved by StarTech.com could void
the user’s authority to operate the equipment.
Industry Canada Statement
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe [B] est conforme à la norme NMB-003 du Canada.
CAN ICES-3 (B)/NMB-3(B)
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions:
(1) This device may not cause interference, and (2) This device must accept any interference, including interference that may
cause undesired operation of the device.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation
est autorisée aux deux conditions suivantes:
(1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi,
même si le brouillage est susceptible d’en compromettre le fonctionnement.
Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols
This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-
party companies not related in any way to StarTech.com. Where they occur these references are for illustrative purposes only
and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which
this manual applies by the third-party company in question. StarTech.com hereby acknowledges that all trademarks, registered
trademarks, service marks, and other protected names and/or symbols contained in this manual and related documents are the
property of their respective holders.
Warranty Information
This product is backed by a lifetime warranty.
For further information on product warranty terms and conditions, please refer to .
www.startech.com/warranty
Limitation of Liability
In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their ocers, directors, employees or agents)
for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of prots, loss of
business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product.
Some states do not allow the exclusion or limitation of incidental or consequential damages. If such laws apply, the limitations
or exclusions contained in this statement may not apply to you.
Safety Measures
If product has an exposed circuit board, do not touch the product under power.
Mesures de sécuri
Si l’un des circuits imprimés du produit est visible, ne pas touchez le produit lorsqu’il est sous tension.
安全対策
• 製品に露出した状態の回路基盤が含まれる場合、電源が入っている状態で製品に触らないでください
Misure di sicurezza
Se il prodotto ha un circuito stampato visibile, non toccare il prodotto quando è acceso.
Säkerhetsåtgärder
Rör aldrig vid enheter med oskyddade kretskort när strömmen är påslagen.
FR: fr.startech.com
DE: de.startech.com
ES: es.startech.com
NL: nl.startech.com
IT: it.startech.com
JP: jp.startech.com
StarTech.com Ltd.
45 Artisans Cres
London, Ontario
N5V 5E9
Canada
StarTech.com Ltd.
Unit B, Pinnacle 15
Gowerton Rd,
Brackmills
Northampton
NN4 7BW
United Kingdom
StarTech.com LLP
2500 Creekside
Parkwy
Lockbourne, Ohio
43137
U.S.A.
5. Remove the corresponding or from an Full-Height Low-Prole Slot Bracket
available . PCIe Slot
6. (Recongure the for Full-Height or Low-Prole installations) PCI Express Serial Card
Remove the two by twisting each one counterclockwise, using Stand-os Needle-
Nose Pliers Bracket Bracket Break-out Cable . Remove the . Slide the new over the
Port Stand-os Bracket. Insert the two through the and tighten by twisting each
one clockwise, using .Needle-Nose Pliers
7. To install the , carefully align the with the selected Card Card’s Bus Connector
PCIe Slot Motherboard. Card Card on the Push the down rmly to ensure the is
properly seated into the . PCIe Slot
8. (Optional - for power output from the ninth pin of the ) Connect Serial Connectors
the from the to the LP4 Power Connector Cable Computer’s Power Supply LP4
Power Connector Port PCI Express Serial Cardon the .
9. Replace the to secure the . Slot Bracket’s Holding Screw Card
10. Replace the and reconnect the . Computer’s Cover Power Cord
11. Insert the into the and secure 4-Port DB9 Break-out Cable Break-out Cable Port
by tightening the integrated .Thumbscrews
12. Download the latest .Drivers
Driver Installation
You can download the latest from the StarTech.com website: Drivers
www.startech.com/PEX4S953 www.startech.com/PEX4S953LP. - or -
Navigate to the to locate the . Follow the instructions included Support Page Drivers
with the . Driver Files
5. Push the straight down and into place.Jumper
Note: Push the all the way into position for proper contact. Jumper
6. Repeat these steps to congure the for , , and Jumpers Port 2 Port 3 Port 4.
Hardware Installation
1. Ensure the is .Computer Power O
2. Unplug the .Computer Power Cord
3. Remove the . Computer Cover
Note: For further information on how to remove the Computer Cover, refer to the
Manual Computer that came with the .
4. Remove the .Slot Bracket’s Holding Screw

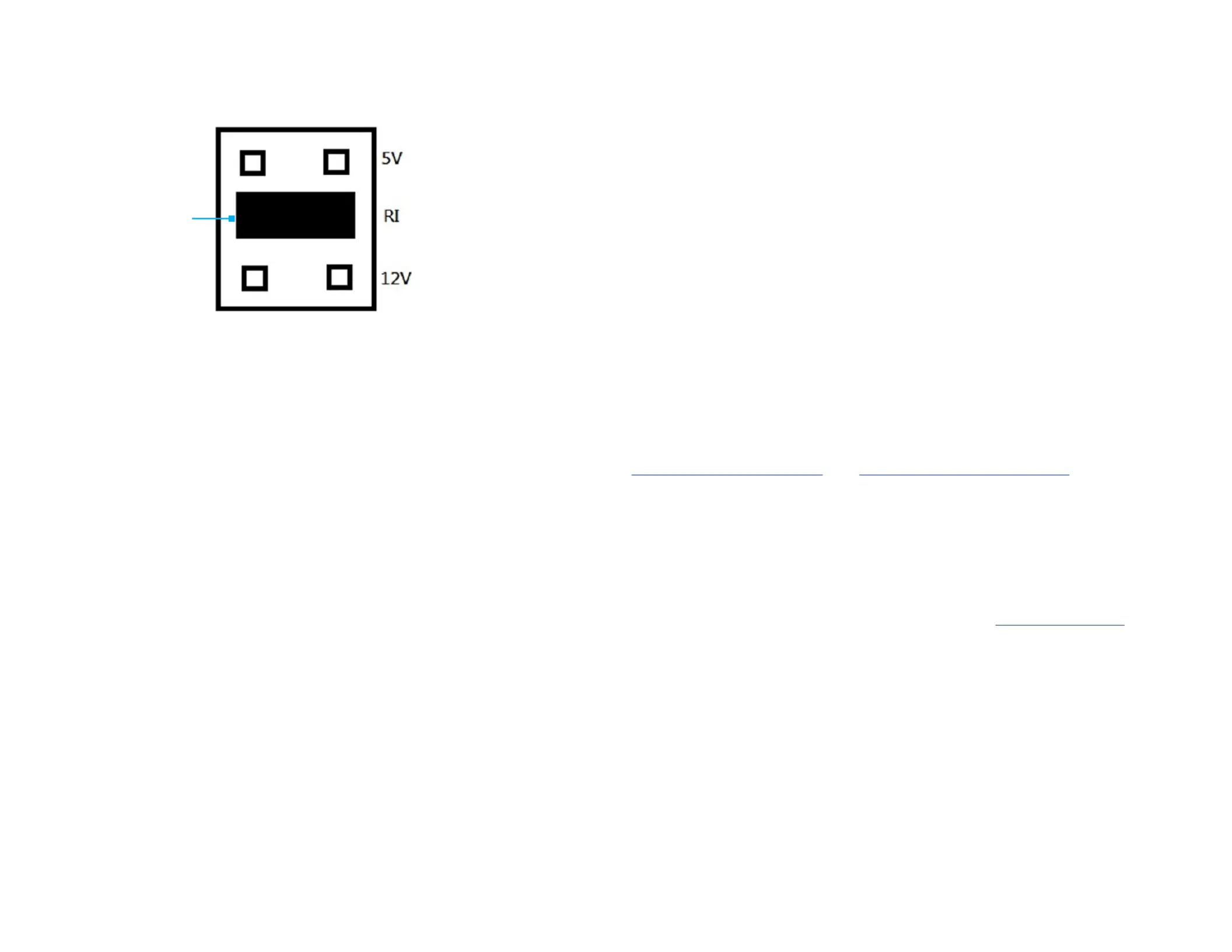

Figure 1
