Quick-Start Guide
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.
Manual Revision: December 17, 2019 9:30 AM

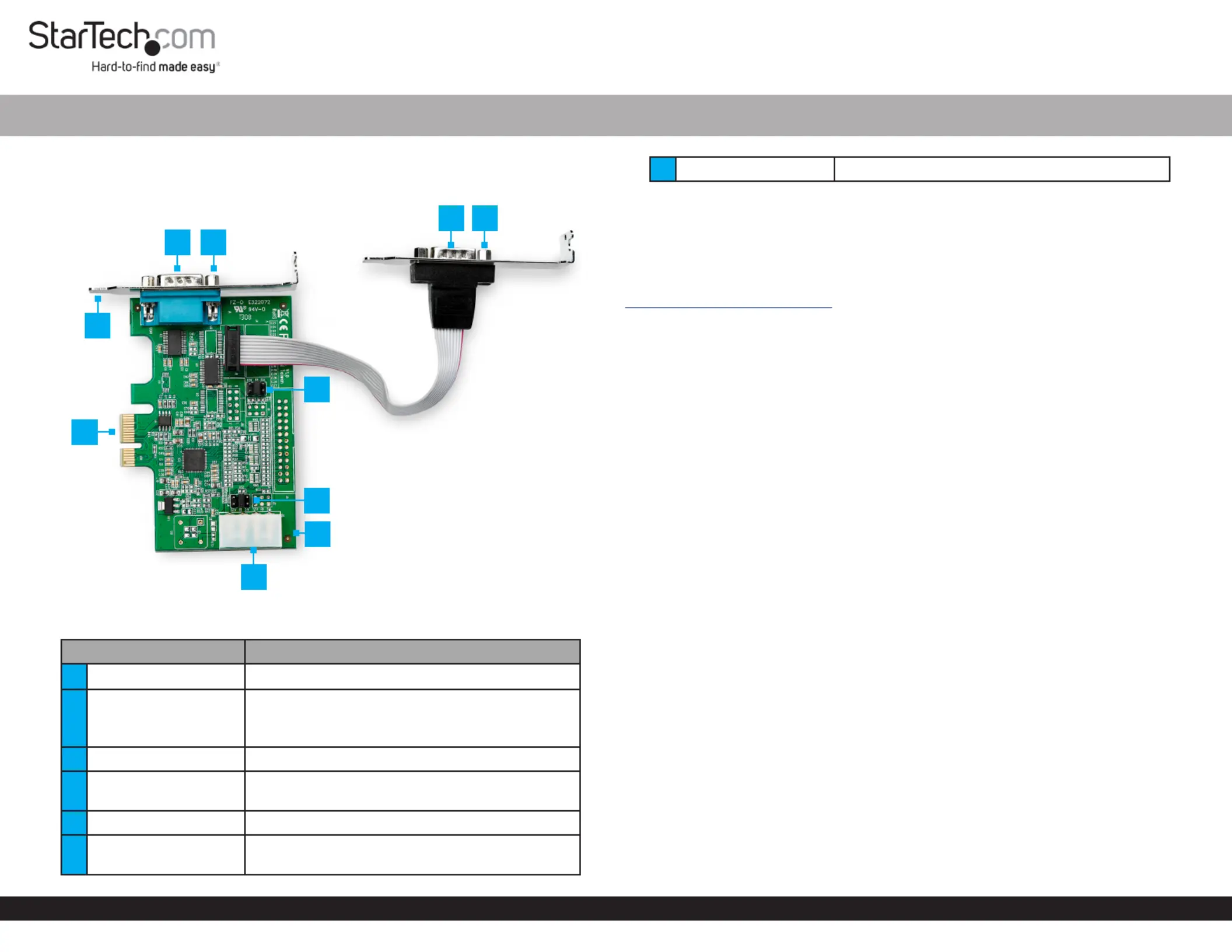

Product Diagram (PEX2S953LP)
Port Function
1Serial Port Used to connect Serial Devices
2Screws
Used to attach the to the Serial Port Bracket
Used to secure a to the Serial Cable Serial
Port
3Bracket Used to attach the to the Card Computer
4PCI Express Bus
Connector
Used to connect the PCI Express Serial Card
to the Computer’s Motherboard
5Jumper Used to congure power settingsSerial Port
6Printed Circuit Board Components such as are located on Jumpers
the Board
2-Port PCI Express Serial Card with 16950 UART - Low-Prole
7LP4 Power Connector Used to connect a Power Source
Requirements
PCIe Slot
Needle-Nose Pliers
For the latest requirements and full manual, please visit
www.startech.com/PEX2S953LP.
Installation
WARNING!
PCI Express Serial Cards can be severely damaged by static electricity. Make sure
that you are properly grounded before you open your or touch the Computer Case
PCI Express Serial Card Anti-Static Strap. You should wear an when you install any
computer component. If an isn’t available, discharge any built-up Anti-Static Strap
static electricity by touching a large for several seconds. Only Grounded Metal Surface
handle the by its edges and don’t touch the gold connectors.PCI Express Serial Card
Jumper Conguration
Note: Jumper Serial Devices conguration is a requirement when connecting that
require power through a . Serial Port
This can be moved into one of three dierent positions in order to set the Jumper
power output voltage for the . The default setting for the is , Serial Ports Jumpers RI
which is the setting for no power. The can be moved to one of the other two Jumper
settings for or of power. To congure the , complete the following:5V 12V Jumper
1. Locate the for . is located on the right hand side, labeled Jumper Port One Port One
as on the . The is labeled as on the COM1 Printed Circuit Board Jumper J1 Printed
Circuit Board.
2. Carefully remove the . Lift the straight up and o of the Jumper Jumper PCI Express
Serial Card.
Note: Always hold the by the edges.Card
3. Determine the power setting that is required for .Port One
4. Position the over the set of that correspond with the desired Jumper Pins Serial
Port Power Setting Jumper. See to determine where the Figure 1 should be
positioned.
5. Push the straight down and into place.Jumper
Note: Push the all the way into position for proper contact. Jumper
1 2
1 2
4
3
5
7
6
5
FCC Compliance Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation. Changes or modications not expressly approved by StarTech.com could void
the user’s authority to operate the equipment.
Industry Canada Statement
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe [B] est conforme à la norme NMB-003 du Canada.
CAN ICES-3 (B)/NMB-3(B)
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions:
(1) This device may not cause interference, and (2) This device must accept any interference, including interference that may
cause undesired operation of the device.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation
est autorisée aux deux conditions suivantes:
(1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi,
même si le brouillage est susceptible d’en compromettre le fonctionnement.
IC Radiation Exposure Statement
This equipment complies with IC RSS-102 radiation exposure limit set forth for an uncontrolled environment. This equipment
should be installed and operated with minimum distance 0.5cm between the radiator and your body.
Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols
This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-
party companies not related in any way to StarTech.com. Where they occur these references are for illustrative purposes only
and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which
this manual applies by the third-party company in question. StarTech.com hereby acknowledges that all trademarks, registered
trademarks, service marks, and other protected names and/or symbols contained in this manual and related documents are the
property of their respective holders.
Warranty Information
This product is backed by a lifetime warranty.
For further information on product warranty terms and conditions, please refer to .
www.startech.com/warranty
Limitation of Liability
In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their ocers, directors, employees or agents)
for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of prots, loss of
business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product.
Some states do not allow the exclusion or limitation of incidental or consequential damages. If such laws apply, the limitations
or exclusions contained in this statement may not apply to you.
Safety Measures
If product has an exposed circuit board, do not touch the product under power.
Mesures de sécuri
Si l’un des circuits imprimés du produit est visible, ne pas touchez le produit lorsqu’il est sous tension.
安全対策
• 製品に露出した状態の回路基盤が含まれる場合、電源が入っている状態で製品に触らないでください
Misure di sicurezza
Se il prodotto ha un circuito stampato visibile, non toccare il prodotto quando è acceso.
Säkerhetsåtgärder
Rör aldrig vid enheter med oskyddade kretskort när strömmen är påslagen.
FR: fr.startech.com
DE: de.startech.com
ES: es.startech.com
NL: nl.startech.com
IT: it.startech.com
JP: jp.startech.com
StarTech.com Ltd.
45 Artisans Cres
London, Ontario
N5V 5E9
Canada
StarTech.com Ltd.
Unit B, Pinnacle 15
Gowerton Rd,
Brackmills
Northampton
NN4 7BW
United Kingdom
StarTech.com LLP
2500 Creekside
Parkwy
Lockbourne, Ohio
43137
U.S.A.
5. (Full-Prole installations) Remove the four from the , Screws Low-Prole Brackets
using . Insert the into the , with Needle-Nose Pliers Serial Ports Full-Prole Bracket
the that is connected via on the left-hand side. Insert and Serial Port Ribbon Cable
fasten all four of the , using .Screws Needle-Nose Pliers
6. To install the , carefully align the with the selected Card Card’s Bus Connector
PCIe Slot Motherboard. Card Card on the Push the down rmly to ensure the is
properly seated into the . PCIe Slot
7. (Optional): Connect the from the LP4 Power Connector Cable Computer’s Power
Supply LP4 Power Connector Port Card to the on the .
8. Replace the to secure the . Slot Bracket’s Holding Screw Card
9. Replace the and reconnect the . Computer’s Cover Power Cord
10. Download the latest . See for more details. Drivers Driver Installation
Driver Installation
You can download the latest from the StarTech.com website: Drivers www.startech.
com/PEX2S953LP
Navigate to the to locate the . Follow the instructions included Support Page Drivers
with the . Driver Files
6. Repeat these steps to congure the for . This will be labeled as Jumper Port 2 Jumper
J7 Printed Circuit Board on the .
Hardware Installation
Note: This is specially designed to allow for power output PCI Express Serial Card
from the ninth pin of the for devices that support power over Serial Connector(s)
Serial. This card allows users to set each to or (no power). Users Serial Port 5V, 12V, RI
can also choose to draw the necessary power from the by Computer’s Power Supply
connecting to the . LP4 Power Connector
1. Turn o the power to your . Computer
2. Unplug your .Computer’s Power Cord
3. Remove your . Computer’s Cover
4. Remove the corresponding from an Full-Height or Low-Prole Slot Brackets
available . PCIe Slot

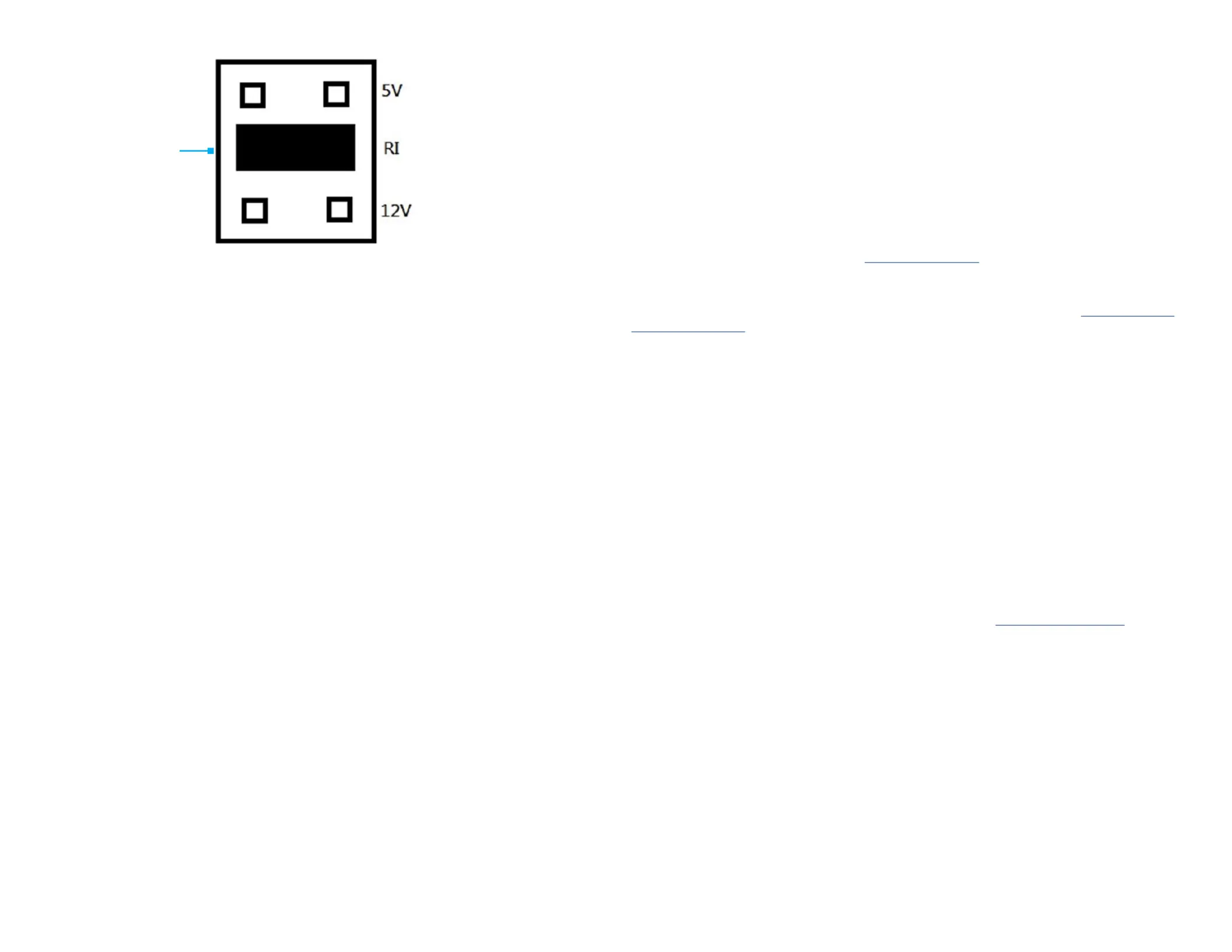

Figure 1
