Quick-Start Guide
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.
Manual Revision: February 7, 2019 10:23 AM

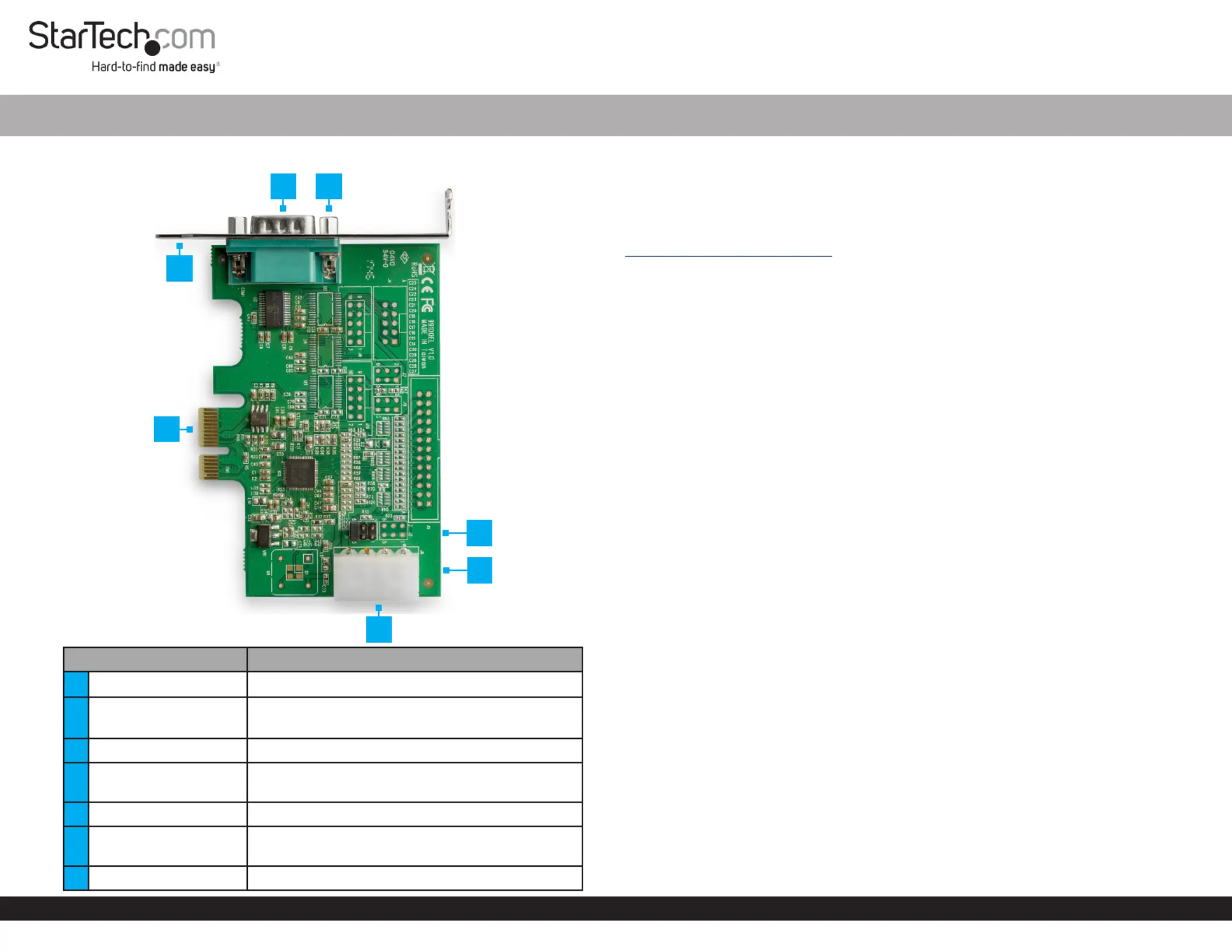

Product Diagram (PEX1S953LP)
Port Function
1Serial Port Used to connect a Serial Device
2Screws Used to attach the Serial Port to the Bracket
Used to secure a Serial Cable to the Serial Port
3Bracket Used to attach the Card to your Computer
4PCI Express Bus
Connector
Used to connect the PCI Express Serial Card to
your Computer’s Motherboard
5Jumper Used to congure Serial Port power settings
6Printed Circuit Board Components such as Jumpers are located on
this Board
7LP4 Power Connector Used to connect a Power Source
1-Port PCI Express Serial Card with 16950 UART - Low-Prole
Requirements
PCIe Slot
Needle-Nose Pliers
For the latest requirements and full manual, please visit
www.startech.com/PEX1S953LP.
Installation
WARNING!
PCI Express Serial Cards can be severely damaged by static electricity. Make sure
that you are properly grounded before you open your or touch the Computer Case
PCI Express Serial Card Anti-Static Strap. You should wear an when you install any
computer component. If an isn’t available, discharge any built-up Anti-Static Strap
static electricity by touching a large for several seconds. Only Grounded Metal Surface
handle the by its edges and don’t touch the gold connectors.PCI Express Serial Card
Jumper Conguration
Note: Jumper Serial Devices conguration is a requirement when connecting that
require power through a . Serial Port
This can be moved into one of three dierent positions in order to set the Jumper
power output voltage for the . The default setting for the is , Serial Port Jumpers RI
which is the setting for no power. The can be moved to one of the other two Jumper
settings for or of power. To congure the , complete the following:5V 12V Jumper
1. Determine the power setting that is required for the .Serial Port
2. Locate the . The is labeled as on the .Jumper Jumper J1 Printed Circuit Board
3. Carefully remove the . Lift the straight up and o of the Jumper Jumper PCI Express
Serial Card.
Note: Always hold the by the edges.Card
4. Position the over the set of that correspond with the desired Jumper Pins Serial
Port Power Setting Jumper. See to determine where the Figure 1 should be
positioned.
5. Push the straight down and into place.Jumper
Note: Push the all the way into position for proper contact. Jumper
1
4
7
5
6
2
3
FCC Compliance Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation. Changes or modications not expressly approved by StarTech.com could void
the user’s authority to operate the equipment.
Industry Canada Statement
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe [B] est conforme à la norme NMB-003 du Canada.
CAN ICES-3 (B)/NMB-3(B)
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions:
(1) This device may not cause interference, and (2) This device must accept any interference, including interference that may
cause undesired operation of the device.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation
est autorisée aux deux conditions suivantes:
(1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi,
même si le brouillage est susceptible d’en compromettre le fonctionnement.
IC Radiation Exposure Statement
This equipment complies with IC RSS-102 radiation exposure limit set forth for an uncontrolled environment. This equipment
should be installed and operated with minimum distance 0.5cm between the radiator and your body.
Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols
This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-
party companies not related in any way to StarTech.com. Where they occur these references are for illustrative purposes only
and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which
this manual applies by the third-party company in question. StarTech.com hereby acknowledges that all trademarks, registered
trademarks, service marks, and other protected names and/or symbols contained in this manual and related documents are the
property of their respective holders.
Warranty Information
This product is backed by a lifetime warranty.
For further information on product warranty terms and conditions, please refer to .
www.startech.com/warranty
Limitation of Liability
In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their ocers, directors, employees or agents)
for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of prots, loss of
business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product.
Some states do not allow the exclusion or limitation of incidental or consequential damages. If such laws apply, the limitations
or exclusions contained in this statement may not apply to you.
Safety Measures
If product has an exposed circuit board, do not touch the product under power.
Mesures de sécuri
Si l’un des circuits imprimés du produit est visible, ne pas touchez le produit lorsqu’il est sous tension.
安全対策
• 製品に露出した状態の回路基盤が含まれる場合、電源が入っている状態で製品に触らないでください
Misure di sicurezza
Se il prodotto ha un circuito stampato visibile, non toccare il prodotto quando è acceso.
Säkerhetsåtgärder
Rör aldrig vid enheter med oskyddade kretskort när strömmen är påslagen.
FR: fr.startech.com
DE: de.startech.com
ES: es.startech.com
NL: nl.startech.com
IT: it.startech.com
JP: jp.startech.com
StarTech.com Ltd.
45 Artisans Cres
London, Ontario
N5V 5E9
Canada
StarTech.com Ltd.
Unit B, Pinnacle 15
Gowerton Rd,
Brackmills
Northampton
NN4 7BW
United Kingdom
StarTech.com LLP
2500 Creekside
Parkwy
Lockbourne, Ohio
43137
U.S.A.
5. (For Full-Height PCIe installations) The is congured out of PCI Express Serial Card
the box to t into a . Recongure the Low-Prole PCIe Slot PCI Express Serial Card
for Low-Prole PCIe installations by removing the . Remove the Low-Prole Bracket
two from the , using . Insert the Screws Low-Prole Bracket Needle-Nose Pliers
Serial Port Full-Height Bracket Screwsinto the . Insert and fasten the two , using
Needle-Nose Pliers.
6. To install the , carefully align the with the selected Card Card’s Bus Connector
PCIe Slot Motherboard. Card Card on the Push the down rmly to ensure the is
properly seated into the . PCIe Slot
7. (Optional): Connect the from the LP4 Power Connector Cable Computer’s Power
Supply LP4 Power Connector Port Card to the on the .
8. Replace the to secure the . Slot Bracket’s Holding Screw Card
9. Replace the and reconnect the . Computer’s Cover Power Cord
10. Download the latest . See for more details. Drivers Driver Installation
Driver Installation
You can download the latest from the StarTech.com website:Drivers
www.startech.com/PEX1S953LP
Navigate to the to locate the . Follow the instructions included Support Page Drivers
with the . Driver Files
Hardware Installation
Note: This is specially designed to allow for power output PCI Express Serial Card
from the ninth pin of the for devices that support power over Serial. Serial Connector
This card allows users to set the to or (no power). Users can Serial Port 5V, 12V, RI
also choose to draw the necessary power from the by Computer’s Power Supply
connecting to the . LP4 Power Connector
1. Turn o the power to your . Computer
2. Unplug your .Computer’s Power Cord
3. Remove your . Computer’s Cover
4. Remove the corresponding from an Full-Height or Low-Prole Slot Bracket
available . PCIe Slot

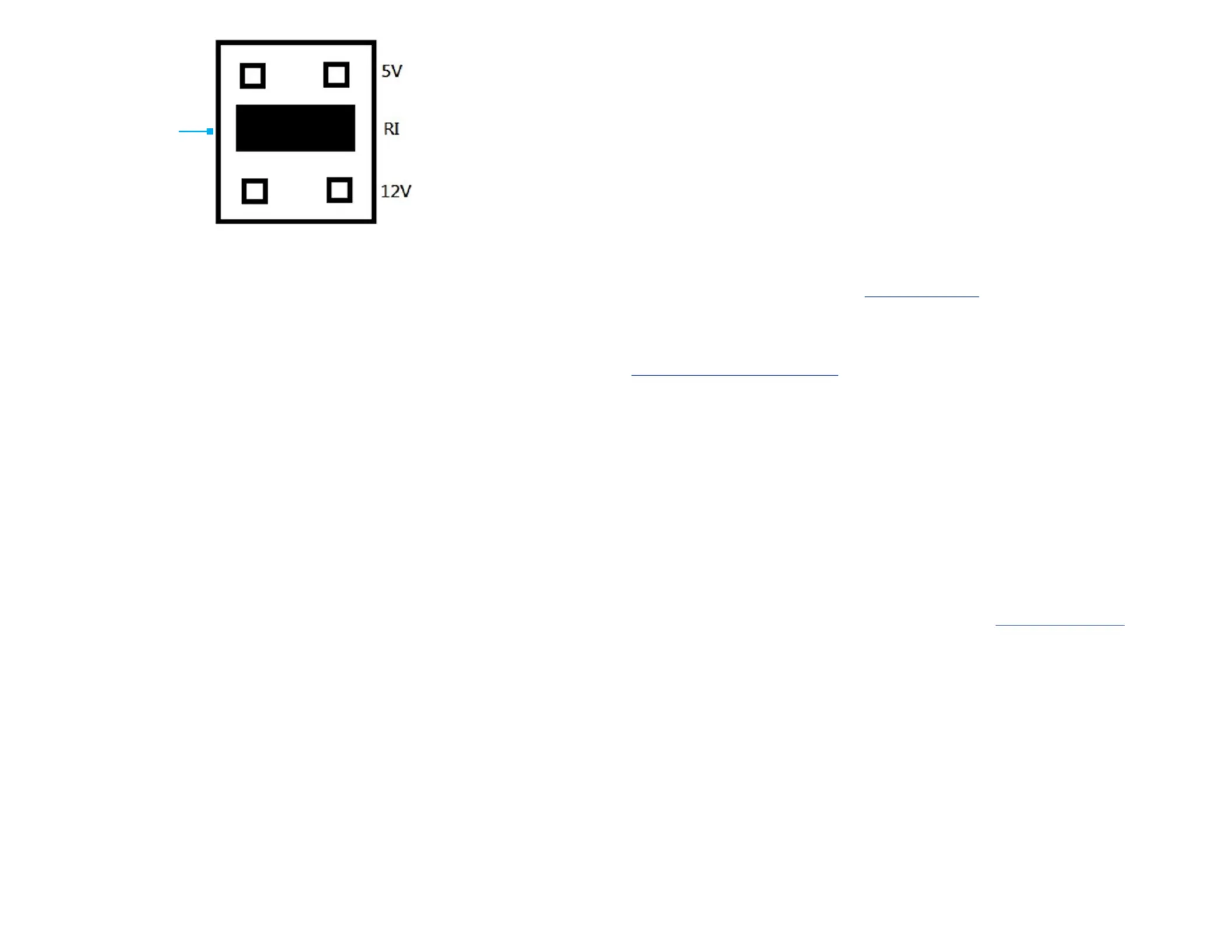

Figure 1
Jumper
