Quick-Start Guide
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.
Manual Revision: November 2, 2020

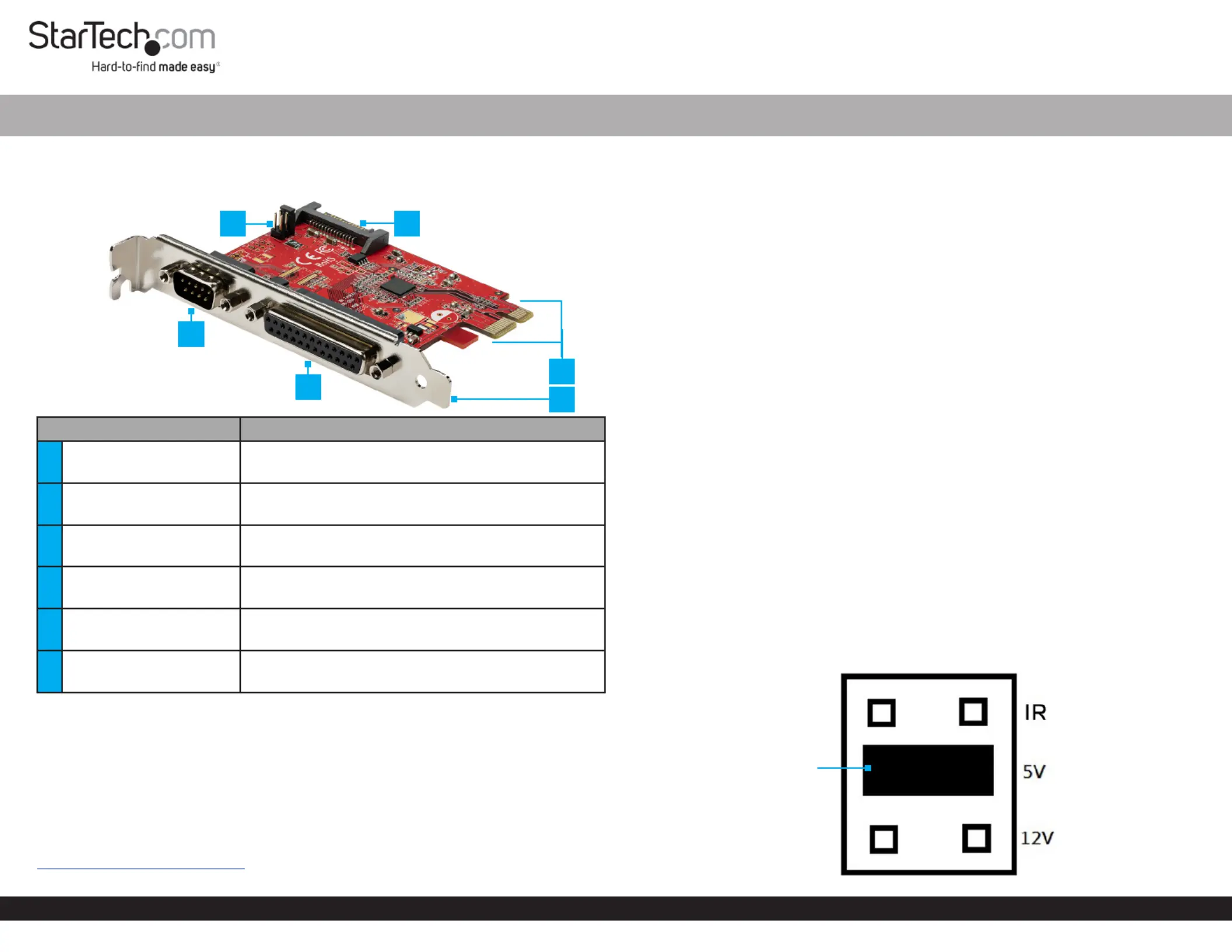

Product Diagram (PEX1S1P950)
Front Angle View
Port Function
1Serial Port Connect Serial Peripheral Devices
DB-9 Parallel (Male)
2Jumper Set the power output voltage for the Serial Port
3SATA Power Connector Connect to a SATA Power Source
(Optional) Power the Serial Port
4Parallel Port Connect Parallel Peripheral Devices
DB-25 Parallel (Female)
5PCIe Connector Connect the to the in PCIe Card PCI Express Slot
the Computer
6Bracket For full prole installations
Package Contents
Serial and Parallel PCI Express Card x 1
Full Prole Bracket (Installed) x 1
Quick-Start Guide x 1
Requirements
For the latest requirements, please visit:
www.startech.com/PEX1S1P950.
Computer with an available PCI Express slot (x1)
1S1P Native PCI Express Serial Parallel Combo Card with 16C950 UART
Hardware Installation
Warning: PCIe Cards can be damaged by static electricity. Make sure that the
Installer Computer Case is properly grounded before they open the or touch the PCIe
Card. The should wear an when installing any computer Installer Anti-Static Strap
component. If an is not available, discharge any built-up static Anti-Static Strap
electricity by touching a large for several seconds. Only Grounded Metal Surface
handle the by its edges and do not touch the gold connectors.PCIe Card
Jumper Conguration
Note: This is specially designed to allow for power output from the ninth PCIe Card
pin of the for that support power over serial. Serial Port Serial Devices Jumper
conguration is a requirement when connecting that require power Serial Devices
through the .Serial Port
The can be moved into one of three dierent positions in order to set the Jumper
power output voltage for the . The default setting for the is , no Serial Port Jumpers RI
power. The must be connected after conguring the SATA Power Connector Jumper
to or of power. To congure the , complete the following:5V 12V Jumper
1. Ensure the isComputer Power O.
2. Locate and carefully remove the . Lift the straight up and o of the Jumper Jumper
PCIe Card.
Notes: The is located on the left-hand side, labeled as on the Jumper Serial 1
. Printed Circuit Board
Always hold the by the edges.Card
3. Determine the power setting that is required for the .Serial Port
4. Position the over the set of that correspond with the desired Jumper Pins Serial
Connector Power Setting Jumper. See to determine where the Figure 1 should be
positioned.
Figure 1
Jumper
5
1
3
46
2
FCC Compliance Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation. Changes or modications not expressly approved by StarTech.com could void
the user’s authority to operate the equipment.
Industry Canada Statement
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe [B] est conforme à la norme NMB-003 du Canada.
CAN ICES-3 (B)/NMB-3(B)
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions:
(1) This device may not cause interference, and (2) This device must accept any interference, including interference that may
cause undesired operation of the device.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation
est autorisée aux deux conditions suivantes:
(1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi,
même si le brouillage est susceptible d’en compromettre le fonctionnement.
Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols
This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-
party companies not related in any way to StarTech.com. Where they occur these references are for illustrative purposes only
and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which
this manual applies by the third-party company in question. StarTech.com hereby acknowledges that all trademarks, registered
trademarks, service marks, and other protected names and/or symbols contained in this manual and related documents are the
property of their respective holders.
Warranty Information
This product is backed by a lifetime warranty.
For further information on product warranty terms and conditions, please refer to .
www.startech.com/warranty
Limitation of Liability
In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their ocers, directors, employees or agents)
for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of prots, loss of
business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product.
Some states do not allow the exclusion or limitation of incidental or consequential damages. If such laws apply, the limitations
or exclusions contained in this statement may not apply to you.
Safety Measures
If product has an exposed circuit board, do not touch the product under power.
Mesures de sécuri
Si l’un des circuits imprimés du produit est visible, ne pas touchez le produit lorsqu’il est sous tension.
安全対策
• 製品に露出した状態の回路基盤が含まれる場合、電源が入っている状態で製品に触らないでください
Misure di sicurezza
Se il prodotto p2-ha un circuito stampato visibile, non toccare il prodotto quando è acceso.
Säkerhetsåtgärder
Rör aldrig vid enheter med oskyddade kretskort när strömmen är påslagen.
FR: fr.startech.com
DE: de.startech.com
ES: es.startech.com
NL: nl.startech.com
IT: it.startech.com
JP: jp.startech.com
StarTech.com Ltd.
45 Artisans Cres
London, Ontario
N5V 5E9
Canada
StarTech.com Ltd.
Unit B, Pinnacle 15
Gowerton Rd,
Brackmills
Northampton
NN4 7BW
United Kingdom
StarTech.com LLP
4490 South Hamilton
Road
Groveport, Ohio
43125
U.S.A.
Software Installation
Driver Installation
You can download the latest from the StarTech.com website: Drivers
www.startech.com/PEX1S1P950.
Navigate to the tab to locate the . Follow the instructions Drivers/Downloads Drivers
included with the . Driver Files
5. Push the straight down and into place.Jumper
Note: Push the all the way into position for proper contact. Jumper
Installing the Card
1. Turn o the and any that are connected Computer Peripheral Devices
(e.g. printers, external hard drives, etc.).
2. Unplug the from the rear of the and disconnect any Power Cable Computer
Peripheral Devices that are connected.
3. Remove the from the . Cover Computer Case
Note: Consult the documentation that came with the for details about how Computer
to do this safely.
4. Locate an open and remove the corresponding PCI Express Slot Metal Cover Plate
from the rear of the . In most instances, the is Computer Case Metal Cover Plate
attached to the rear of the with a single . Save this for Computer Case Screw Screw
the next step.
5. Gently insert the into the open and fasten the to PCIe Card PCI Express Slot Bracket
the rear of the , using the from step 4. Computer Case Screw
6. Place the back onto the . Cover Computer Case
7. Reconnect all of the that were disconnected in step 2.Peripheral Devices
8. Connect a to the on the .Serial Device Serial Port PCIe Card
9. Connect a to the on the .SPP/EPP/ECP Peripheral Device Parallel Port PCIe Card
10. Reconnect the to the rear of the .Power Cable Computer
