Instruction Manual

DE: Bedienungsanleitung - de.startech.com

FR: Guide de l'utilisateur - fr.startech.com

ES: Guía del usuario - es.startech.com

IT: Guida per l'uso - it.startech.com

NL: Gebruiksaanwijzing - nl.startech.com

PT: Guia do usuário - pt.startech.com

Manual Revision: 07/18/2012

For the most up-to-date information, please visit: www.startech.com

Installation

WARNING! PCI cards, like all computer equipment, can be severely damaged by

static electricity. Be sure that you are properly grounded before opening your

computer case or touching your PCI card. StarTech.com recommends that you

wear an anti-static strap when installing any computer component. If an anti-static

strap is unavailable, discharge yourself of any static electricity build-up by touching

a large grounded metal surface (such as the computer case) for several seconds.

Also be careful to handle the PCI card by its edges and not the gold connectors.

Please note: The internal FireWire port (designated above as P1) cannot

be used while the rst external port (designated above as P2) is in use.

Packaging Contents

• 1 x PCI FireWire Card

• 1 x FireWire Cable

• 1 x Full Prole Bracket (PCI1394_2LP only)

• 1 x Low Prole Bracket (PCI1394_2 only)

• 1 x Instruction Manual

Features

• Supports data transfer rates of 100, 200 and 400 Mbps

• Compliant with IEEE 1394-1995, 1394a (rev. 1.1)

• Compliant with OHCI Interface Specication 1.0

• Provides hot-swappable connectivity for FireWire peripherals

System Requirements

• A computer with an available PCI slot

• Microsoft® Windows® 2000/ XP(32/64-bit)/ Server 2003(32/64-bit)/

Vista(32/64-bit)/ 7(32/64-bit)/ 8(32/64-bit), or Apple® Mac OS® 10.5

and up, or Linux®

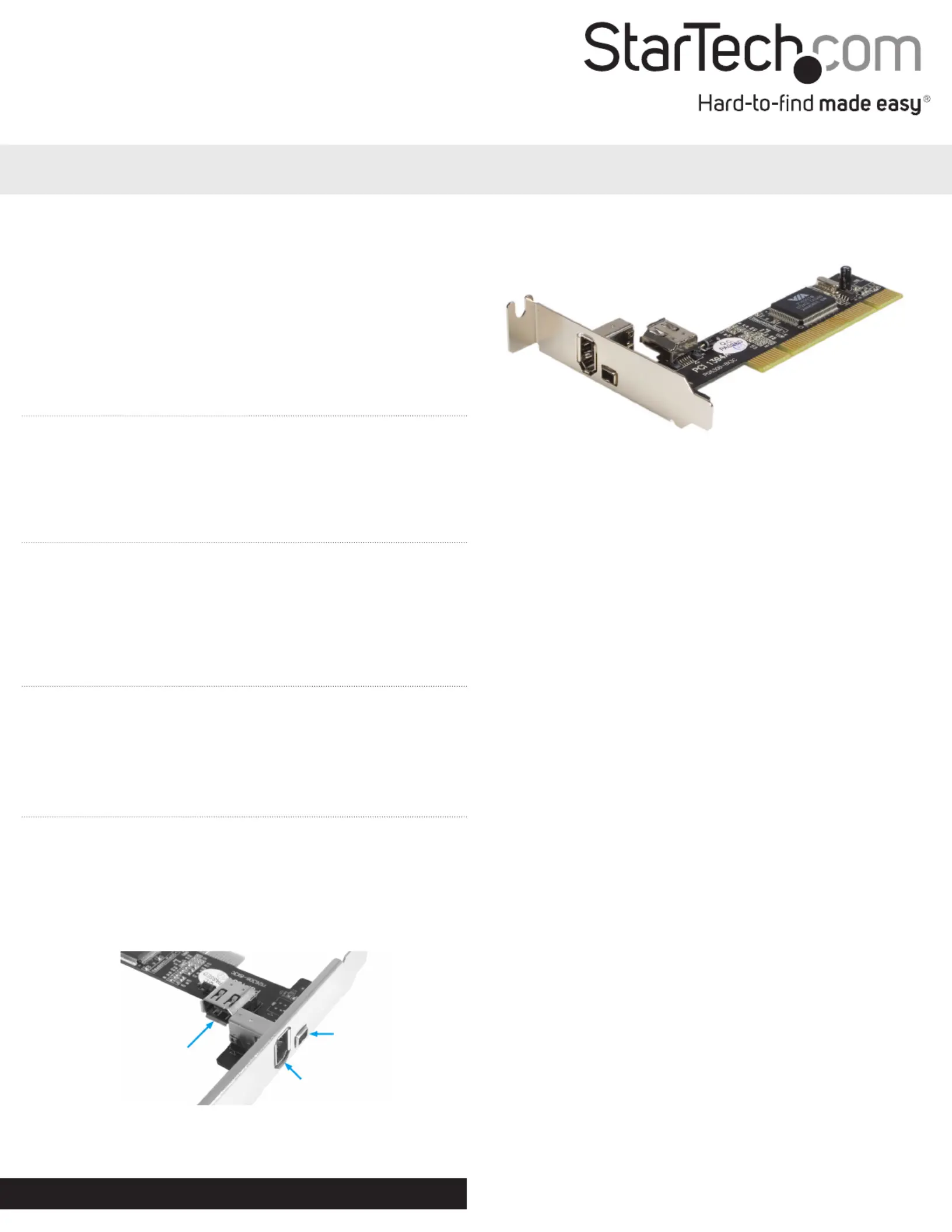

PCI1394_2 / PCI1394_2LP

3 Port PCI 1394a FireWire Card

6-pin Internal FireWire

connector (P1, shared)

6-pin FireWire

connector (P2, shared)

4-pin FireWire

connector

Hardware Installation

1. Power down the computer. As an additional precaution, you may

wish to disconnect the computer from the power source.

2. Remove the computer cover. For more detailed instruction on

how to perform this step, please refer to the documentation that

was included with your computer at the time of purchase.

3. Locate an empty PCI slot and remove the metal bracket covering

the accompanying empty port/socket.

4. If you need to change the bracket to t your case requirements,

please remove the two screws fastening the bracket to the circuit

board using a Philips (cross-head) screwdriver, then replace with

the secondary bracket (included).

5. Position the card above the open PCI slot, ensuring that the card

is properly aligned with the slot. Insert the card rmly into the

slot, distributing force evenly across the length of the board. Once

inserted, secure the card into the adjoining socket (previously

covered by metal bracket), using the correct size screw.

6. Replace the computer cover and re-connect all power to the

computer (if it was removed in Step #1).

Software Installation

Once the computer has been restarted following the physical

installation of the card, Windows® 2000/XP/Vista/7/8 will automatically

detect and install the correct driver for the FireWire adapter.

To verify that the driver has correctly been installed:

1. Right-click on the My Computer icon. If you are using Windows

Vista, right-click on Computer.

2. Select Manage, to open the Computer Management window.

3. In the left pane of the Computer Management window, click on

Device Manager.

4. In the right pane of the Computer Management window, click

on IEEE 1394 Bus host controller. Here, you should see VIA OHCI

Compliant IEEE 1394 Host Controller listed.

*actual product may vary from photos

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against

harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause

harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s)

to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby acknowledges that all

trademarks, registered trademarks, service marks, and other protected names and/or symbols contained in this manual and related documents are the property of their respective holders.

Technical Support

StarTech.com’s lifetime technical support is an integral part of our commitment to provide industry-leading solutions. If you ever need help with your product, visit www.startech.com/support and access

our comprehensive selection of online tools, documentation, and downloads.

For the latest drivers/software, please visit www.startech.com/downloads

Warranty Information

This product is backed by a lifetime warranty.

In addition, StarTech.com warrants its products against defects in materials and workmanship for the periods noted, following the initial date of purchase. During this period, the products may be returned

for repair, or replacement with equivalent products at our discretion. The warranty covers parts and labor costs only. StarTech.com does not warrant its products from defects or damages arising from

misuse, abuse, alteration, or normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their ocers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental,

consequential, or otherwise), loss of prots, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. Some states do not allow

the exclusion or limitation of incidental or consequential damages. If such laws apply, the limitations or exclusions contained in this statement may not apply to you.

Specications

Host Interface 32-bit PCI (3.3V/ 5V)

Form Factor Full / Low Prole

Chipset VIA VT6307

Connectors

1 x 6-pin FireWire female (External)

1 x 4-pin FireWire female (External)

1 x 6-pin FireWire female (Internal)

Maximum Data

Transfer Rate 400 Mbps

Operating System

Support
