Quick-start guide
FR: Guide de l’utilisateur - fr.startech.com
DE: Bedienungsanleitung - de.startech.com
ES: Guía del usuario - es.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
IT: Guida per l’uso - it.startech.com
Manual Revision: 10/12/2017
For the latest information, technical specications, and support for
this product, please visit www.StarTech.com/MCMGBSCSM10.
Package contents
1 x media converter
1 x universal power adapter (NA/JP, UK, EU, ANZ)
1 x quick-start guide
Requirements
Ethernet network (10/100/1000)
Gigabit (1000Mbps) Fiber network
Requirements are subject to change. For the latest requirements,
please visit www.StarTech.com/MCMGBSCSM10.
MCMGBSCSM10
Gigabit Ethernet to SC Fiber Media Converter - 1000Base-LX - Single-mode - 10 km
*actual product may vary from photos

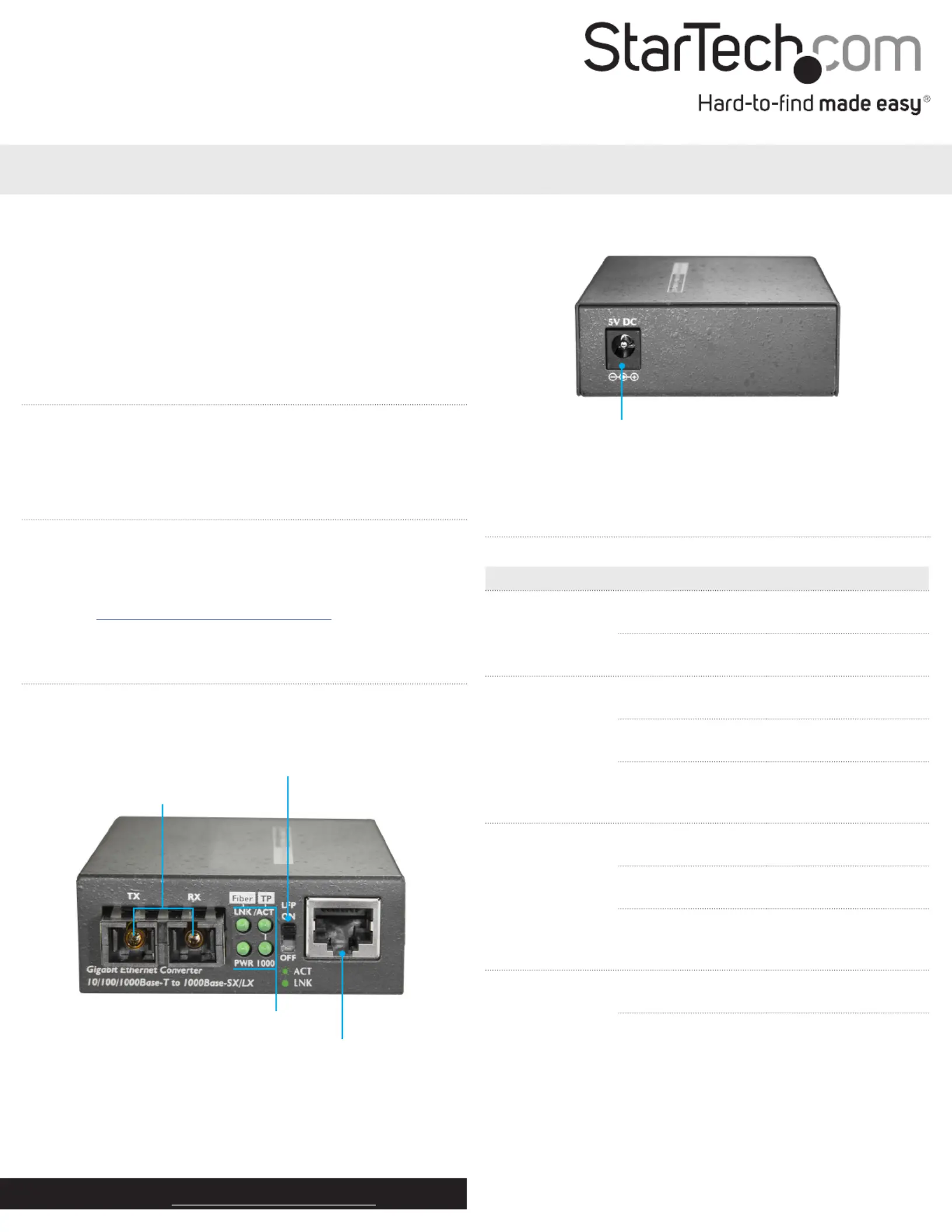

Product diagram
Right view
SC Fiber port
LED indicators
Link Fault Pass-through switch
RJ45 Ethernet port
Left view
Power adapter port
LED indicators
LED Status Description
PWR
Illuminated green Power is being
received
Not illuminated Power is not being
received
Fiber LNK/ACT
Illuminated green Link to Fiber port
detected
Not illuminated No link to Fiber port
detected
Blinking green Data is being received
or sent through the
Fiber port
TP LNK/ACT
Illuminated green Link to Ethernet port
detected
Not illuminated No link to Ethernet
port detected
Blinking green Data is being received
or sent through the
Ethernet port
TP 1000
Illuminated green Port is transmitting
data at 1000Mbps
Not illuminated Port is transmitting
data at 10/100Mbps
FCC Compliance Statement
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a commercial installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation. Changes or modications not expressly approved by StarTech.com could void the user’s authority to operate the
equipment.
Industry Canada Statement
This Class A digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe [A] est conforme à la norme NMB-003 du Canada.
CAN ICES-3 (A)/NMB-3(A)
Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols
This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-party companies not related in any way to
StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s)
to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby acknowledges that all
trademarks, registered trademarks, service marks, and other protected names and/or symbols contained in this manual and related documents are the property of their respective holders.
Technical Support
StarTech.com’s lifetime technical support is an integral part of our commitment to provide industry-leading solutions. If you ever need help with your product, visit www.startech.com/support and
access our comprehensive selection of online tools, documentation, and downloads.
For the latest drivers/software, please visit www.startech.com/downloads
Warranty Information
This product is backed by a two-year warranty.
StarTech.com warrants its products against defects in materials and workmanship for the periods noted, following the initial date of purchase. During this period, the products may be returned for
repair, or replacement with equivalent products at our discretion. The warranty covers parts and labor costs only. StarTech.com does not warrant its products from defects or damages arising from
misuse, abuse, alteration, or normal wear and tear.
Limitation of Liability
In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their ocers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental,
consequential, or otherwise), loss of prots, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. Some states do not
allow the exclusion or limitation of incidental or consequential damages. If such laws apply, the limitations or exclusions contained in this statement may not apply to you.
About Link Fault Pass-through
The MCMGBSCSM10 includes the LFP (Link Fault Pass-through)
function. This means that when a device (for example, an Ethernet
switch or router) is connected to the media converter and a
link fault occurs on the local side of the connection, the media
converter disconnects the link on the remote side of the connection.
As a result, the LFP function can immediately alert network
administrators to link errors, which can help to minimize the impact
and duration of link errors. The LFP function includes the Link Loss
Cary Forward (LLCF) and Link Loss Return (LLR) functions.
By default, the LFP function is enabled on the MCMGBSCSM10.
Turn o the LFP function
1. To disable the LFP function, disconnect the universal power
adapter from the power adapter port on the media converter.
2. Move the Link Fault Pass-through switch to the OFF position.
3. Reconnect the universal power adapter to the power adapter port
on the media converter.
About triple speed support
The RJ45 port on the MCMGBSCSM10 supports triple speed
(10/100/1000 BASE-T) auto negotiation. The media converter
automatically detects the link speed of the connected device and
defaults to that link speed.
Install the media converter
1. Turn o the device that you want to connect to the media
converter.
2. Connect a Fiber cable to the device that youre connecting and
to the SC Fiber port on the media converter. Make sure that you
reverse the TX and RX leads between the device and the media
converter.
3. Connect an Ethernet cable to the device that you’re connecting
and to the RJ45 Ethernet port on the media converter.
4. Connect the universal power adapter to the power adapter port
on the media converter and an available AC power outlet. Verify
that the PWR LED on the media converter illuminates.
5. Turn on the power on the connected device. Verify that the FX
and TP link LEDs illuminate.
