Quick-Start Guide

To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.

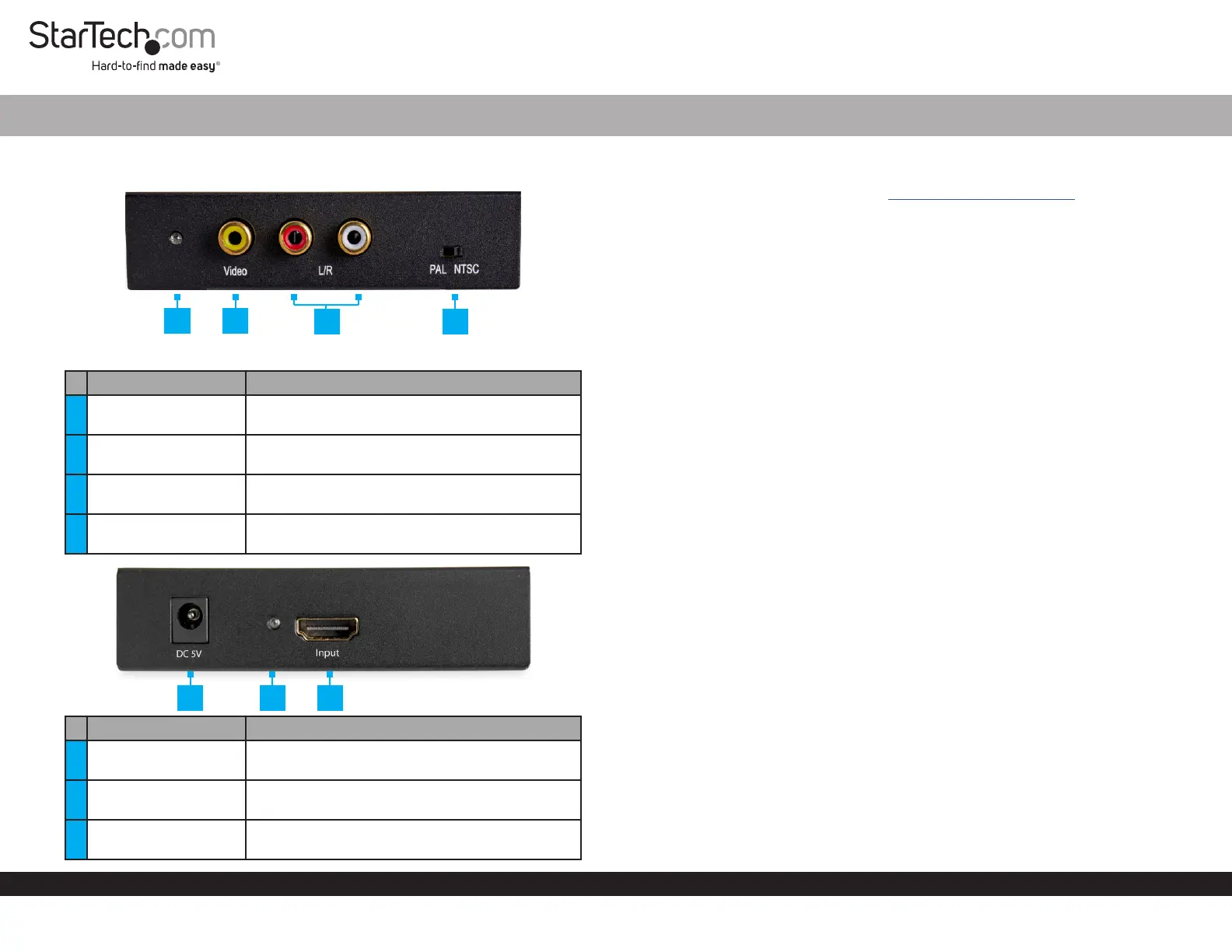

Product Diagram (HD2VID2)

Port/LED Function

1Composite LED • Indicates that video is connected using the

HDMI Port.

2Composite Video Port

(Yellow)

• Used to connect a to the Display Device

Converter.

3Stereo Port L/R (Red/

White)

• Used to connect an to the Audio Device

Converter.

4PAL/NTSC Switch • Used to toggle between PAL and NTSC video

modes.

Port/LED Function

5DC/5V Port • Used with the to Universal Power Adapter

power the .Converter

6Power LED • Indicates that the is receiving Converter

power.

7HDMI Input Port • Used to connect a to the Video Source Device

Converter.

HDMI® to Composite Video Converter with Audio

Requirements

For the latest requirements, please visit . www.startech.com/HD2VID2

Note: All Required items are sold separately.

• HDMI Enabled Video Source x 1

• Composite Video Enabled Display Device (e.g. Monitor, Projector, HDTV, etc.) x 1

• HDMI Cable x 1

• RCA Composite Video Cable x 1

• Phillips Head Screwdriver x 1

• Composite Audio Cable x 1

Installation

Note: Power o all devices before connecting the .Converter

1. Connect an to the on the and connect the other HDMI Cable HDMI Port Converter

end of the to the HDMI port on the .HDMI Cable Video Source Device

2. Connect an (sold separately) to the RCA Composite Cable Composite Video Port

on the and connect the other end of the to the Converter RCA Composite Cable

composite video port on the .Display Device

3. If HDMI audio is being used, connect (sold separately) Composite Audio Cables

to the on the and the other end of the Stereo Port L and R Ports Converter

Composite Audio Cables Speakers/Audio Receiver to the .

4. Connect the to the on the and Universal Power Adapter DC/5V Port Converter

other end to an . The will light up solid.AC Electrical Outlet Power LED

5. Power on the and the .Video Display Device HDMI Video Source

6. Slide the to adjust the video mode to either PAL or NTSC.PAL/NTSC Switch

Connecting a Regional Power Clip

1. Select a . Regional Power Clip

2. Align the two on the with the notches on the face Side Tabs Regional Power Clip

of the . Universal Power Adapter

3. Slide the down until you hear a click, connecting the contact Regional Power Clip

prongs on the with the contact prongs on the Regional Power Clip Universal

Power Adapter.

2 4

5 6 7

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC

Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not

occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be

determined by turning the equipment o and

on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including

interference that may cause undesired operation. Changes or modications not expressly approved by StarTech.com could void

the user’s authority to operate the equipment.

Industry Canada Statement

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe [B] est conforme à la norme NMB-003 du Canada.

CAN ICES-3 (B)/NMB-3(B)

This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions:

(1) This device may not cause interference, and (2) This device must accept any interference, including interference that may

cause undesired operation of the device.

Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation

est autorisée aux deux conditions suivantes:

(1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi,

même si le brouillage est susceptible d’en compromettre le fonctionnement.

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-

party companies not related in any way to StarTech.com. Where they occur these references are for illustrative purposes only

and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which

this manual applies by the third-party company in question. StarTech.com hereby acknowledges that all trademarks, registered

trademarks, service marks, and other protected names and/or symbols contained in this manual and related documents are the

property of their respective holders.

Warranty Information

This product is backed by a two year warranty.

For further information on product warranty terms and conditions, please refer to .www.startech.com/warranty

Limitation of Liability

In no event shall it be the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their ocers, directors, employees or

agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of prots, loss

of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product.

Some states do not allow the exclusion or limitation of incidental or consequential damages. If such laws apply, the limitations

or exclusions contained in this statement may not apply to you.

Safety Measures

• If product has an exposed circuit board, do not touch the product under power.

Mesures de sécurité

• Si l’un des circuits imprimés du produit est visible, ne pas touchez le produit lorsqu’il est sous tension.

安全対策

• 製品に露出した状態の回路基盤が含まれる場合、電源が入っている状態で製品に触らないでください。

Misure di sicurezza

• Se il prodotto ha un circuito stampato visibile, non toccare il prodotto quando è acceso.

Säkerhetsåtgärder

• Rör aldrig vid enheter med oskyddade kretskort när strömmen är påslagen.

FR: fr.startech.com

DE: de.startech.com

ES: es.startech.com

NL: nl.startech.com

IT: it.startech.com

JP: jp.startech.com

StarTech.com Ltd.

45 Artisans Cres

London, Ontario

N5V 5E9

Canada

StarTech.com Ltd.

Unit B, Pinnacle 15

Gowerton Rd,

Brackmills

Northampton

NN4 7BW

United Kingdom

StarTech.com LLP

2500 Creekside

Parkwy

Lockbourne, Ohio

43137

U.S.A.

Supported Resolutions

Description

Video

• Input Resolutions:

• HD: 1080p, 720p, 576p, 480p @ 60Hz

• PC: 1280x800, 1280x768, 1224x768, 800x600, 640x480 @ 60Hz

• Output Resolutions:

• 480i (NTSC) @ 3.58MHz

• 576i (PAL) @ 4.43MHz

Removing a Regional Power Clip

1. Push the on the .Release Button Universal Power Adapter

2. Slide the upward, aligning the on the Regional Power Clip Side Tabs Regional

Power Clip Universal Power Adapter with the notches on the .

3. Pull the away from the .Regional Power Clip Universal Power Adapter

Installing the Mounting Brackets

1. Align a with the two on the side of the Mounting Bracket Mounting Holes

Converter.

Note: The has four , two on each side.Converter Mounting Holes

2. Insert the through the and into the Bracket Screws (x2) Mounting Bracket

Mounting Holes.

3. Tighten the using a , be careful not to Mounting Screws Phillips Head Screwdriver

overtighten.

4. Before installing the onto the mounting surface, contact a Mounting Bracket

professional. Product mounting should be completed by a certied professional as

per the local safety and building code guidelines.
