Quick-Start Guide
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.
Manual Revision: July 18, 2019

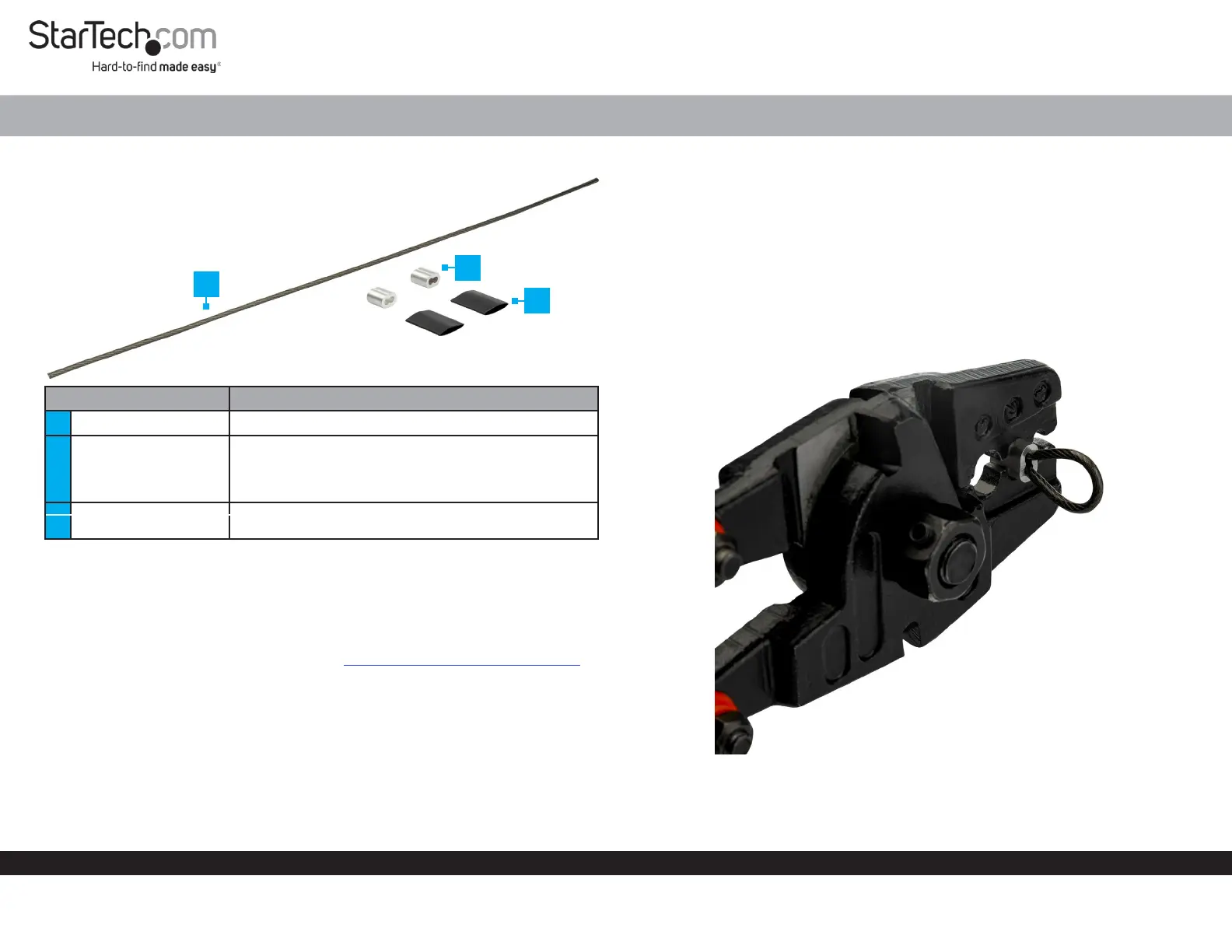

Product Diagram (CONNLOCKPK)
Part Function
1Steel Cable Tether • Tether to A/V Cables A/V Adapters
2Aluminum Ferrule
• Create a loop by routing the Steel Cable Tether
through each opening
• Crimp to secure the loopSteel Cable Tether
3Heat Shrink Tubing • Shrink around the crimped Aluminum Ferrules
Requirements
• Swaging Tool x 1
• (Optional) Heat Gun x 1
• (Optional) Wire Cable Cutter x 1
For the latest requirements please visit: . www.startech.com/CONNLOCKPK
Installation
1. (Optional) Thread the onto the center of the Heat Shrink Tubing Steel Cable
Tether.
Note: This step is necessary if you plan to utilize the . Heat Shrink Tubing
2. Thread the onto each end of the .Aluminum Ferrules Steel Cable Tether
3. Wrap one end of the around the .Steel Cable Tether A/V Cable
Connectivity Lock - Steel Cable Tether
4. Route the working end of the back into the second hole in the Steel Cable Tether
Aluminum Steel Ferrule.
5. Cinch the until it ts snugly around the .Steel Cable Tether A/V Cable
Note: Do not cinch the down all the way. Cinch the SSteel Cable Tether teel Cable
Tether AV until it is no longer possible to slip the loop over the connectors of the
Cable.
6. Crimp the in the appropriate tting of a . Aluminum Steel Ferrule Swaging Tool
(Figure 1)
Note: It may be necessary to crimp the a few times to create Aluminum Steel Ferrule
a strong and circular shaped crimp.
7. Wrap the other end of the around the cable portion of the Steel Cable Tether A/V
Adapter.
1
2
3
Figure 1
Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols
This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-
party companies not related in any way to StarTech.com. Where they occur these references are for illustrative purposes
only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to
which this manual applies by the third-party company in question. StarTech.com hereby acknowledges that all trademarks,
registered trademarks, service marks, and other protected names and/or symbols contained in this manual and related
documents are the property of their respective holders.
Warranty Information
This product is backed by a ve-year warranty.
For further information on product warranty terms and conditions, please refer to .www.startech.com/warranty
FR: fr.startech.com
DE: de.startech.com
ES: es.startech.com
NL: nl.startech.com
IT: it.startech.com
JP: jp.startech.com
StarTech.com Ltd.
45 Artisans Cres
London, Ontario
N5V 5E9
Canada
StarTech.com Ltd.
Unit B, Pinnacle 15
Gowerton Rd,
Brackmills
Northampton
NN4 7BW
United Kingdom
StarTech.com LLP
2500 Creekside
Parkwy
Lockbourne, Ohio
43137
U.S.A.
Limitation of Liability
In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their ocers, directors, employees or agents)
for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of prots, loss of
business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product.
Some states do not allow the exclusion or limitation of incidental or consequential damages. If such laws apply, the limitations
or exclusions contained in this statement may not apply to you.
8. Repeat steps 4 to 6 to secure the to the cable portion of the Connectivity Lock A/V
Adapter. (Figure 2)
9. (Optional) Slide the over the crimped .Heat Shrink Tubing Aluminum Ferrules
10. (Optional) Apply heat to the using a . Always keep Heat Shrink Tubing Heat Gun
the moving to ensure the heat is evenly distributed over theHeat Gun Heat Shrink
Tubing. (Figure 3)
Note: Heat Shrink TubingApply just enough heat to shrink the . Excessive heat will
melt the nylon sheath that covers the . Steel Cable Tether
Removal
• Cut both ends of the using a .Steel Cable Tether Wire Cable Cutter
Note: Ensure the cut is made close to the to prevent any Aluminum Steel Ferrule
damage to the .Cables
Figure 2
Figure 3
